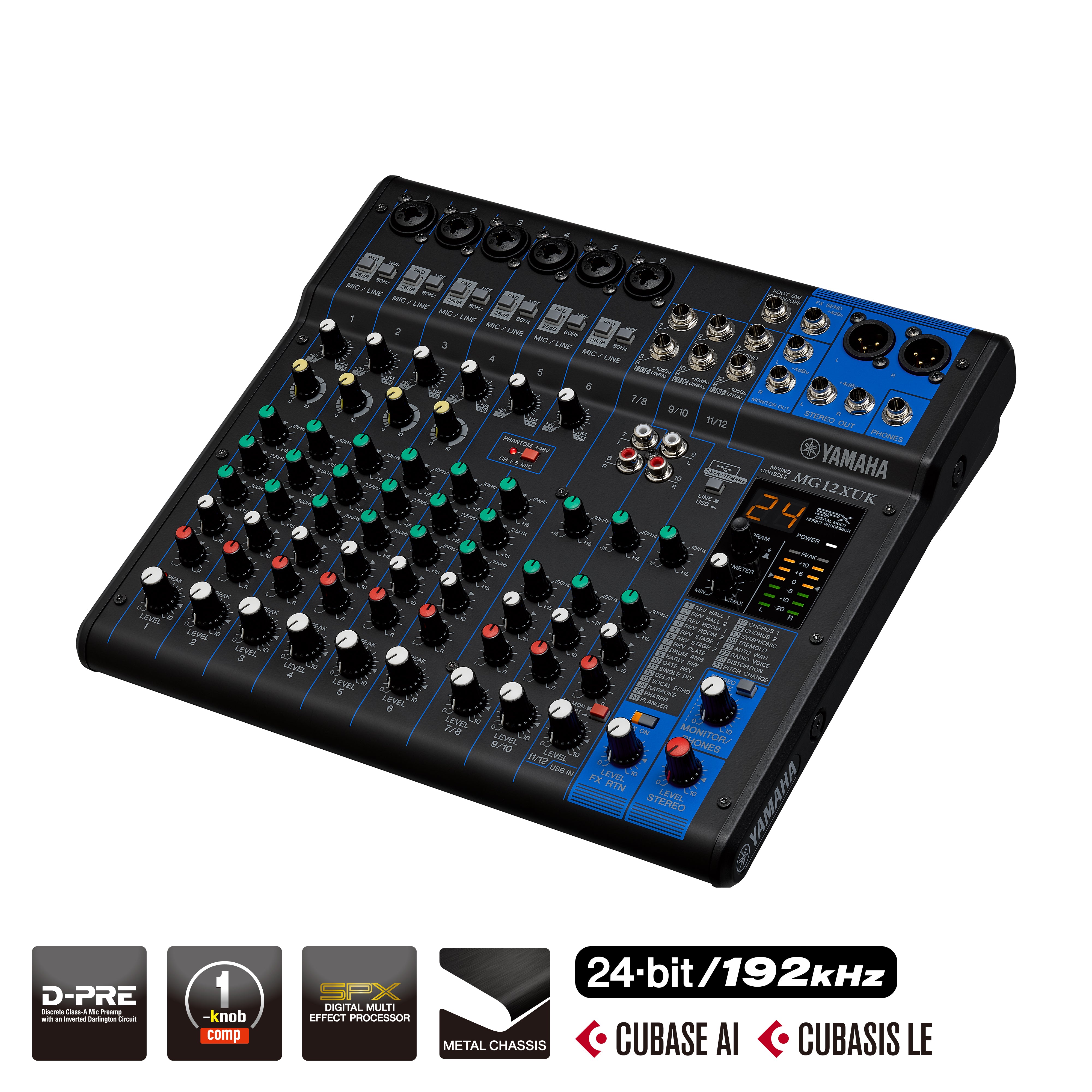

Yamaha - MG12XUK Rotary

$379.99
Steve's Code: 73925
Barcode: 889025115117
By Yamaha

Description

Mixing capability

On-board processors

SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)



I/O

Phantom power

+48 V



Digital I/O

USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit



Input Channels

Mono[MIC/LINE]

6



Stereo[LINE]

3



Output Channels



STEREO OUT

2



MONITOR OUT

1



PHONES

1



AUX SEND

1



Bus

Stereo: 1, AUX[FX]: 1



Input Channel Function

PAD

26 dB (Mono)



HPF

80 Hz, 12 dB/oct (Mono)



COMP

1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec



EQ HIGH

Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving



EQ MID

Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking



EQ LOW

Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving



PEAK LED

LED turns on when post EQ signal reaches 3 dB below clipping



Level Meter

2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]



General specifications

Total harmonic distortion

0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min



Frequency response

+0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min



Hum & noise level



Equivalent input noise

-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)



Residual output noise

-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)



Crosstalk

-83 dB



Power requirements

PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha



Power consumption

22.9 W



Dimensions

W

315 mm (12.4")



H

91 mm (3.6")



D

297mm (11.7")



Accessories

Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Foot Switch FC5



Others

Operating Temperature: 0 to +40˚C
