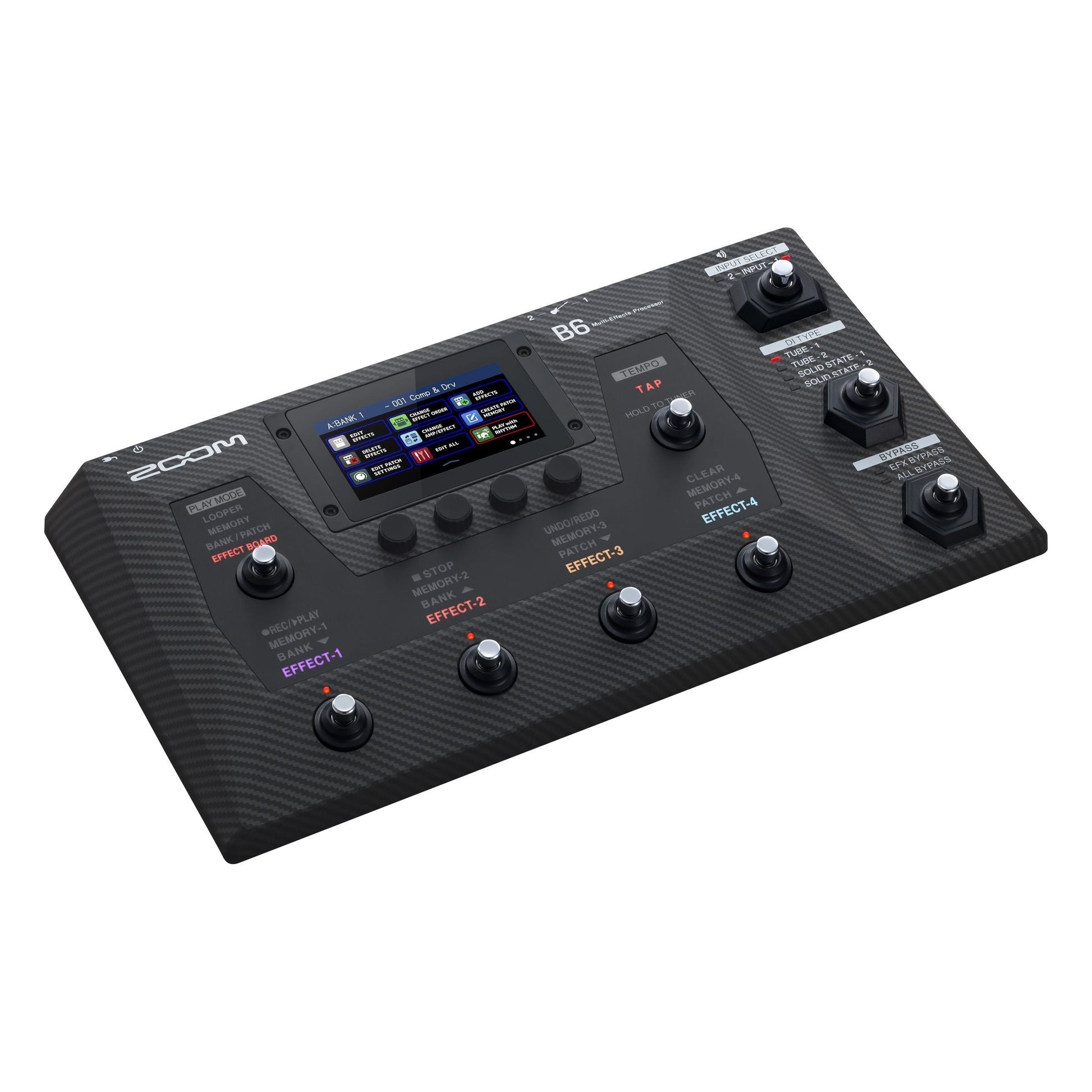

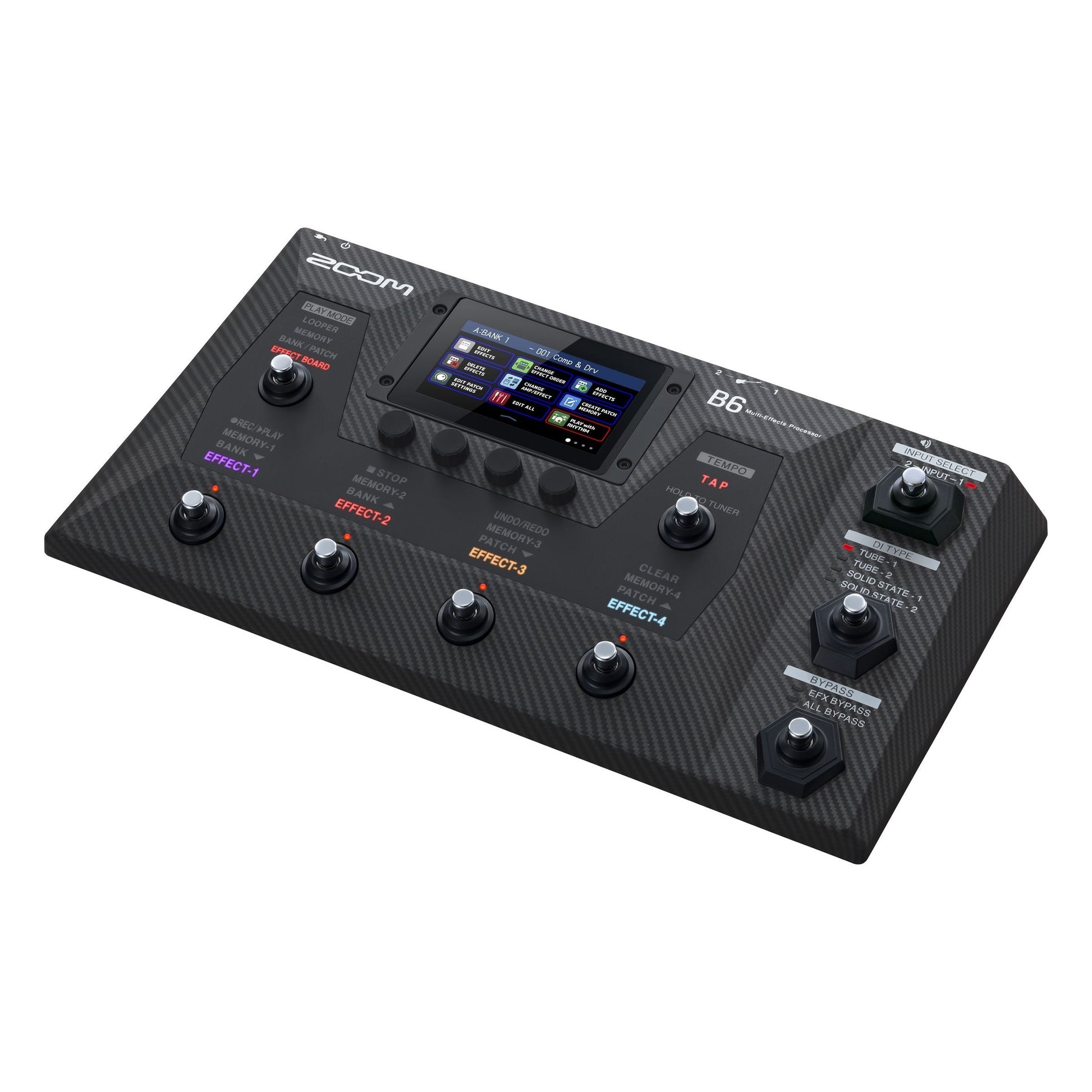

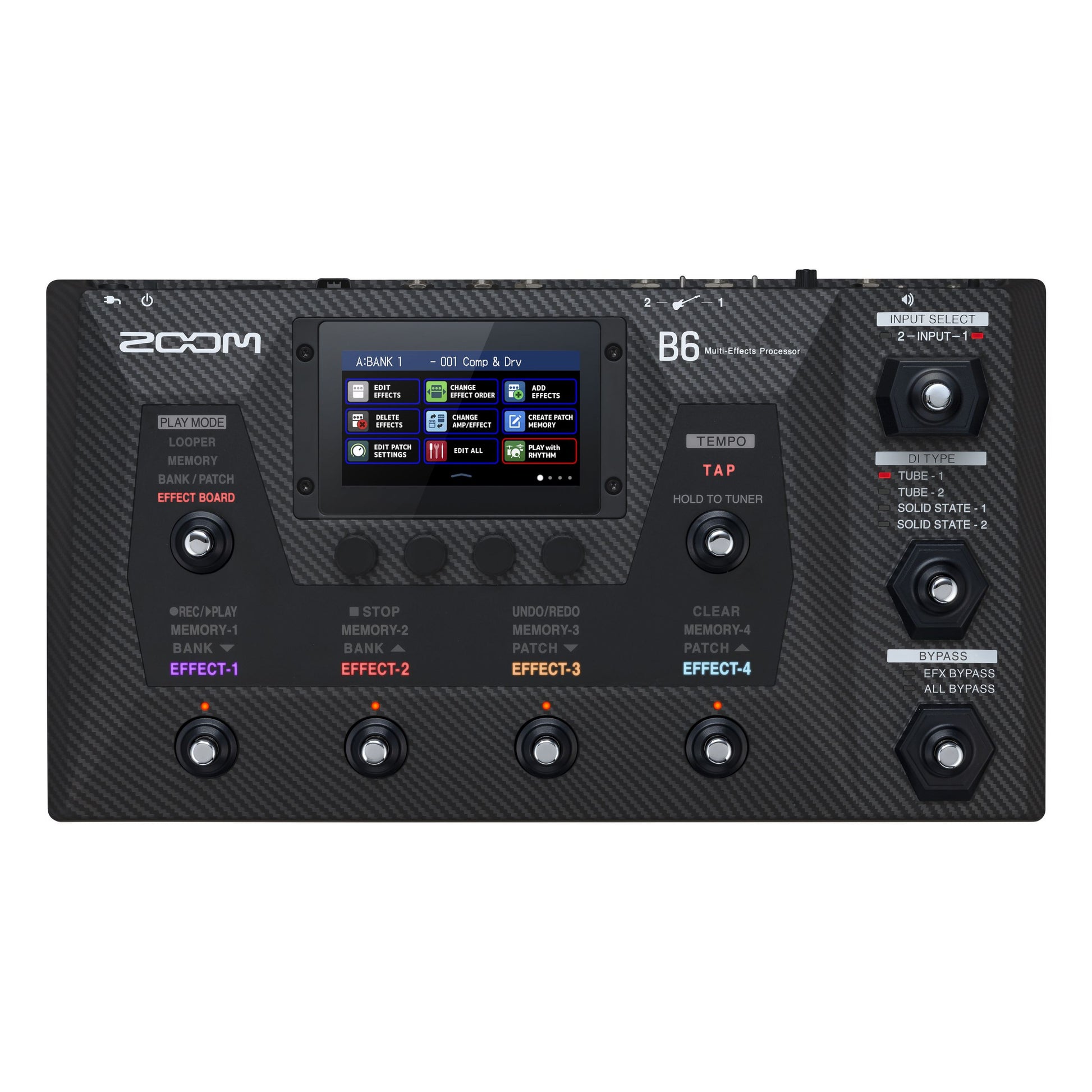

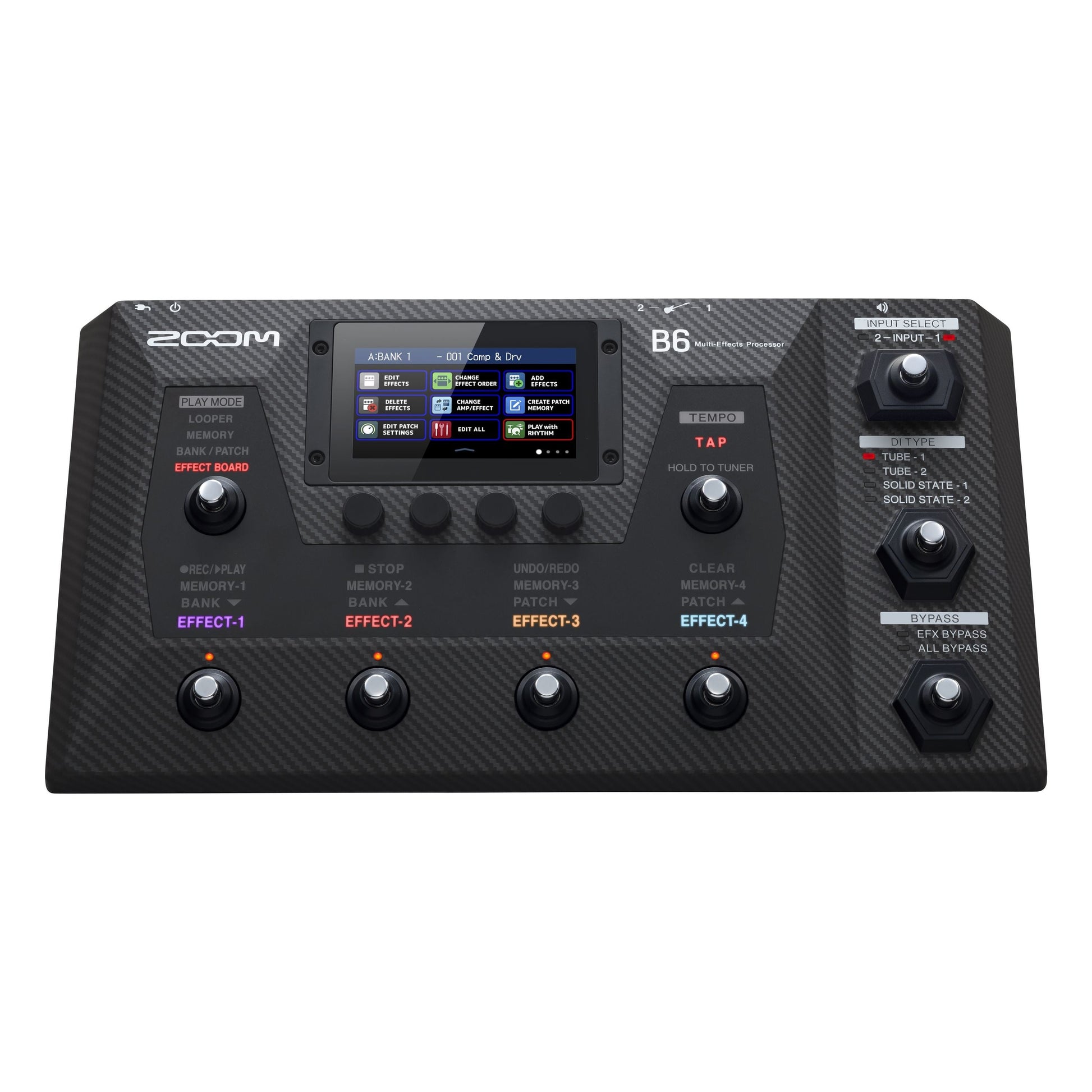

Zoom - B6 Advanced Multi-Effects Bass Processor
$729.99
Unit price
/
Unavailable
Steve's Code: 23360
By Zoom
Couldn't load pickup availability
Description
B6 Features
- 4 DI models: 2 tube and 2 solid state models
- Integrated A/B switcher for seamless instrument switching
- Ultimate Zoom FX processor technology with amp modeling
- Integrated pedal board with 9 stomp switches
- IR load function for speaker cabinet simulation
- 4.3˝ color LCD touch-screen interface
- Chain up to 6 effects (including amp emulation)
- Two variable-impedance inputs for electric and acoustic bass
- New Play Mode Footswitch provides instant access to different play modes
- Easy-to-see backlit panel with color-coded stomp effects
- Built-in USB audio interface (2-in / 2-out)
- Rhythm patterns and looper
- Compatible with Zoom Guitar Lab
- Wireless control via optional Bluetooth adapter (BTA-1) with Handy Guitar Lab for B6 app
- Accessibility functionality for the visually impaired with Handy Guitar Lab for B6 app
Specs
- Maximum number of simultaneous effects: 6
- User patches: 240
- Sampling frequency: 88.2KHz
- A/D conversion: 24-bit 128x oversampling
- D/A conversion: 24-bit 128x oversampling
- Signal processing: 32-bit
- Frequency Characteristics: 20 Hz ～ 40 kHz +0.5 dB –0.5dB（10 kΩ load）
- Display: 4.3" TFT color LCD (480 x 272 pixels)

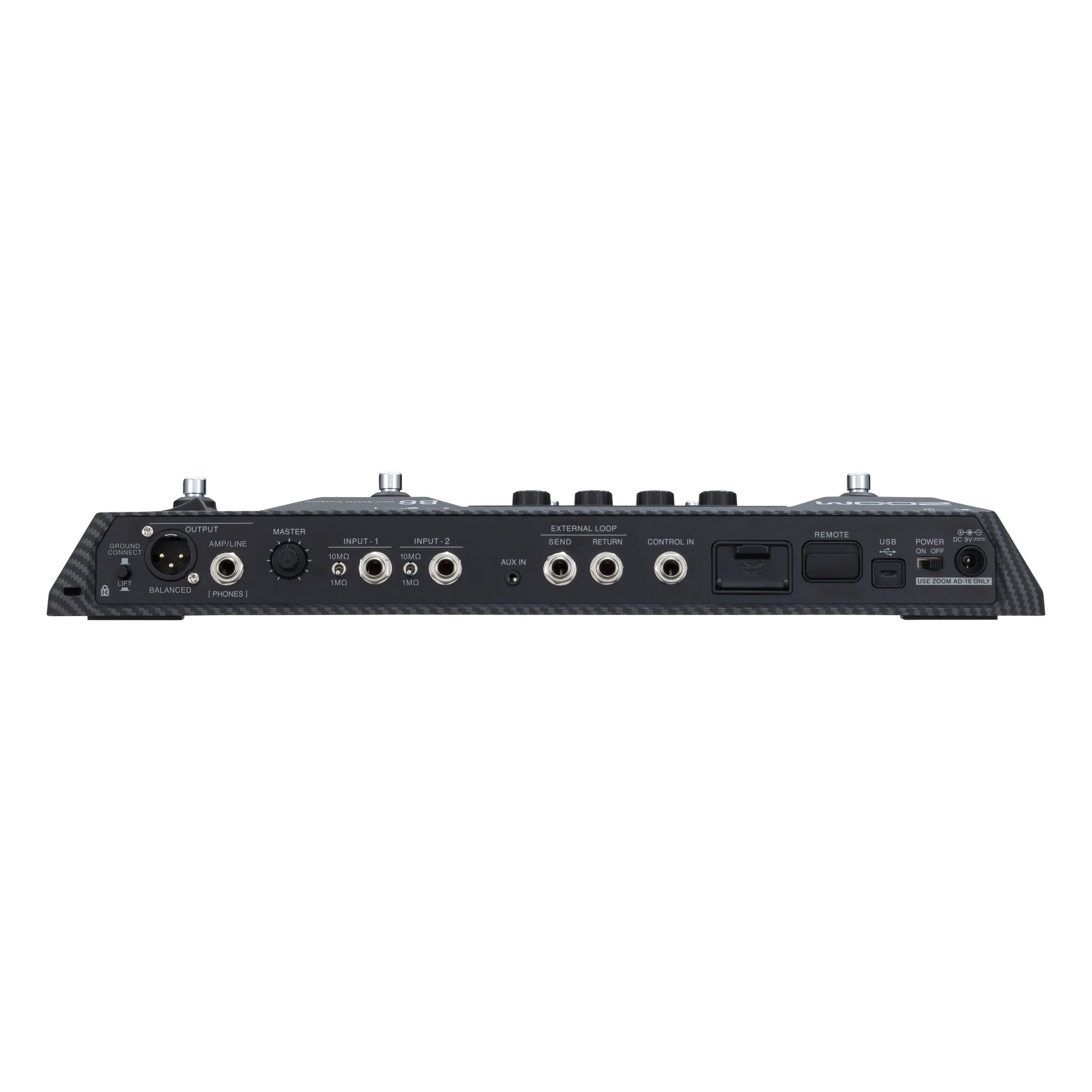

INPUTS
- Inputs 1/2: Standard mono phone jack
- Rated input level: -20 dBu
- Input impedance (line)：1 / 10 MΩ（Select by Switch）
- Return: Standard mono phone jack
- Rated input level: -20 dBu
- Input impedance (line): 1 MΩ
- Aux in: Stereo mini jack
- Rated input level: -10 dBu
- Input impedance (line): 10 kΩ
OUTPUTS
- AMP OUT/PHONES Standard mono phone jack
- Maximum output level (line): +11.4 dBu (when output impedance 10 kΩ or higher)
- Headphones 24 mW + 24 mW (at 32 Ω load)
- OUTPUT XLR jack
- Impedance: 100 Ω (HOT-GND, COLD-GND), 200 Ω (HOT-COLD)
- GND LIFT (Select by switch)
- SEND Standard stereo phone jack
- Maximum output level (line): +11.4 dBu (when output impedance 10 kΩ or higher)
NOISE FLOOR (RESIDUAL NOISE)
- AMP OUT/PHONES -96.0 dBu
- OUTPUT -100.0 dBu
- SEND -99.0 dBu
CONTROL INPUT FP02M
- POWER AC adapter ( 9v DC 500mA, center negative) (Zoom AD-16)
- USB Port: USB 2.0 Micro-B/Supported cable type: Micro-B
- Guitar Lab: USB 1.1 Full Speed
- Audio Interface: USB 2.0 Full Speed, 44.1 kHz(32-bit)/88.2kHz(16-bit), 2 in, 2 out
- Use a USB cable that supports data transfer. USB bus power is not supported
SD CARD
- STANDARDS Cards that support SD/SDXC/SDHC specifications (class 10 or higher)
- LOOPER 44.1 kHz/ 16-bit stereo WAV
- IR 44.1 - 192kHz, 16/24/32-bit WAV
REMOTE ZOOM BTA-1 or other dedicated wireless adapter
EXTERNAL DIMENSIONS 228 mm (D) x 418 mm (W) x 65 mm (H)
WEIGHT 1.89 kg
Note: 0 dBu = 0.775 V
