Audio Interface and Video Capture Card

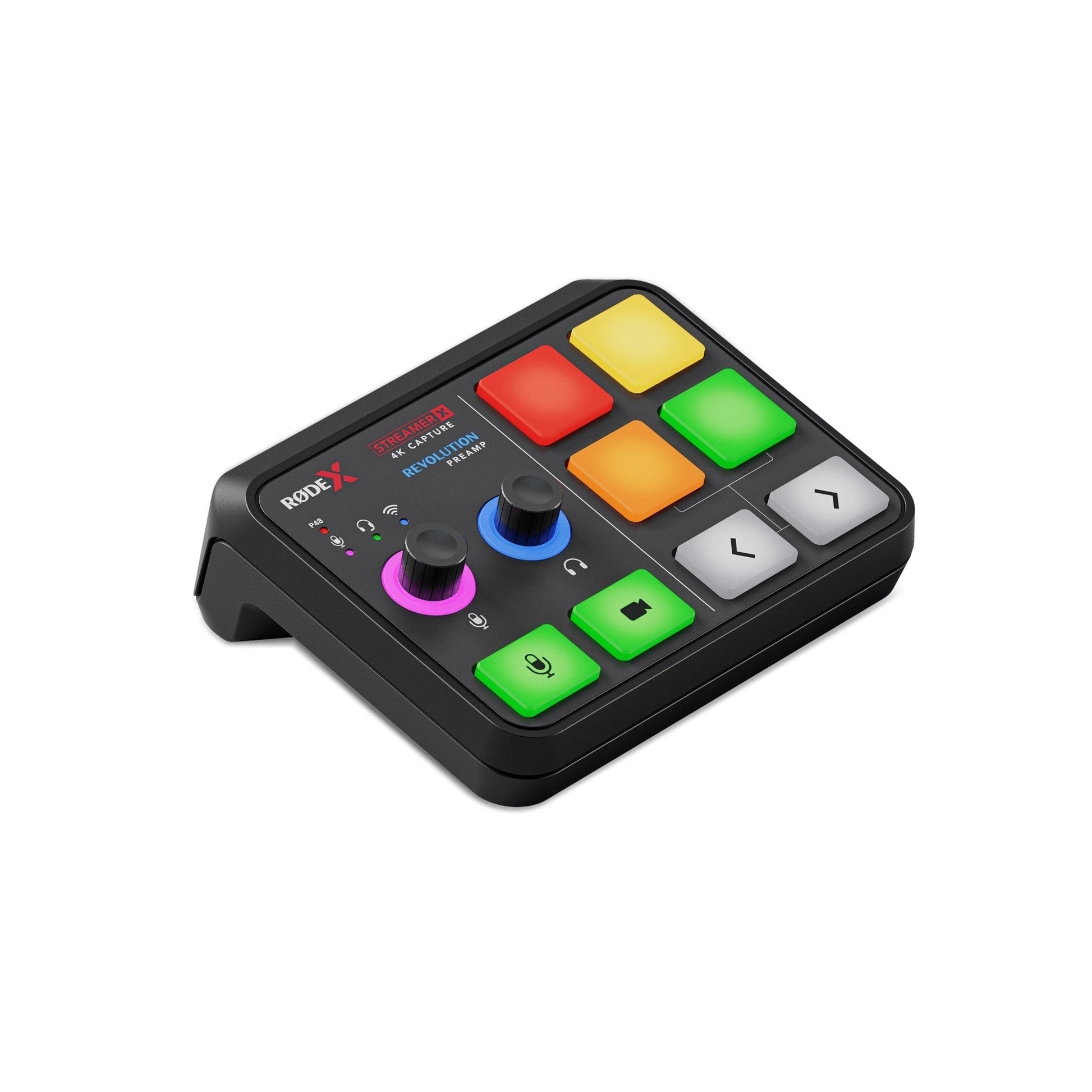

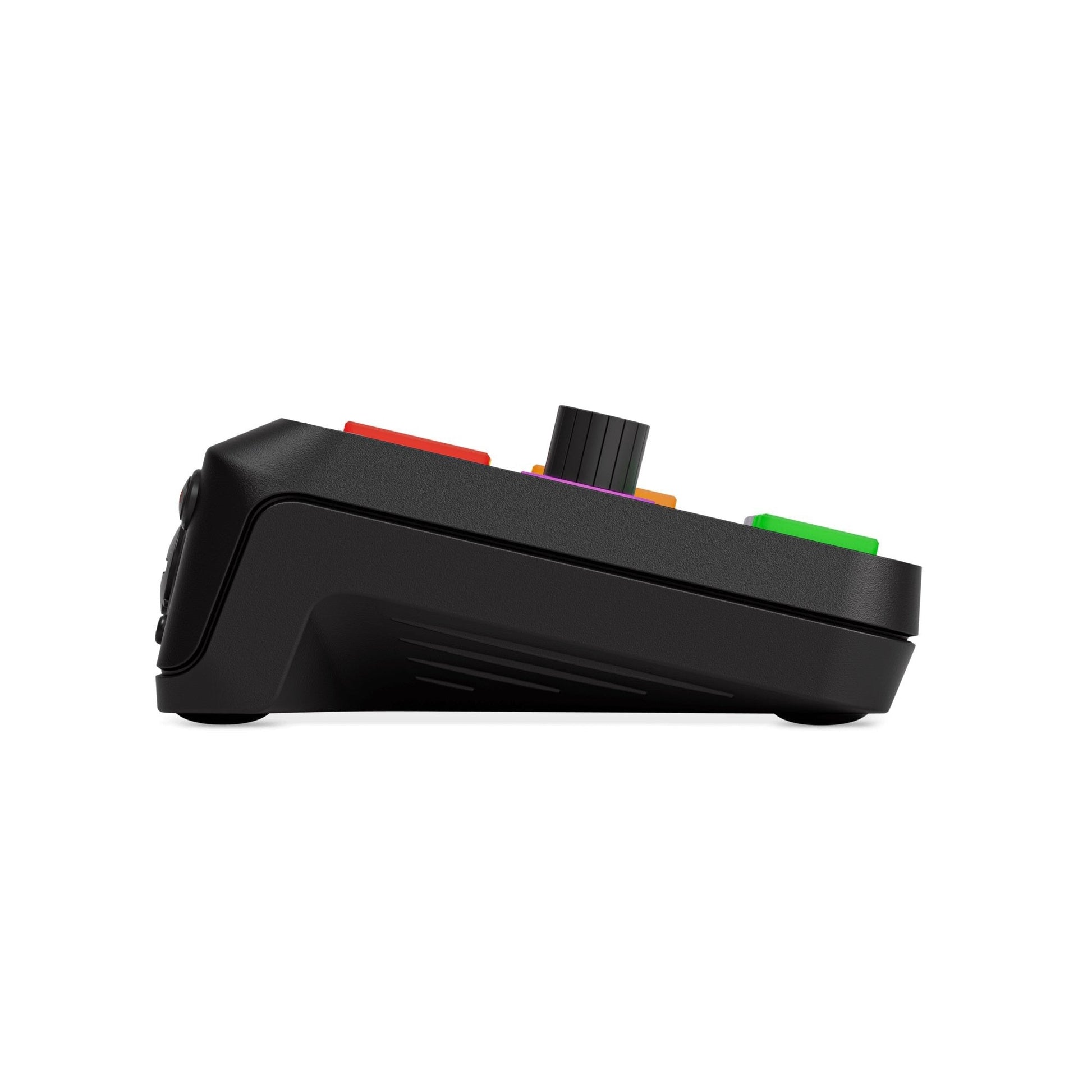

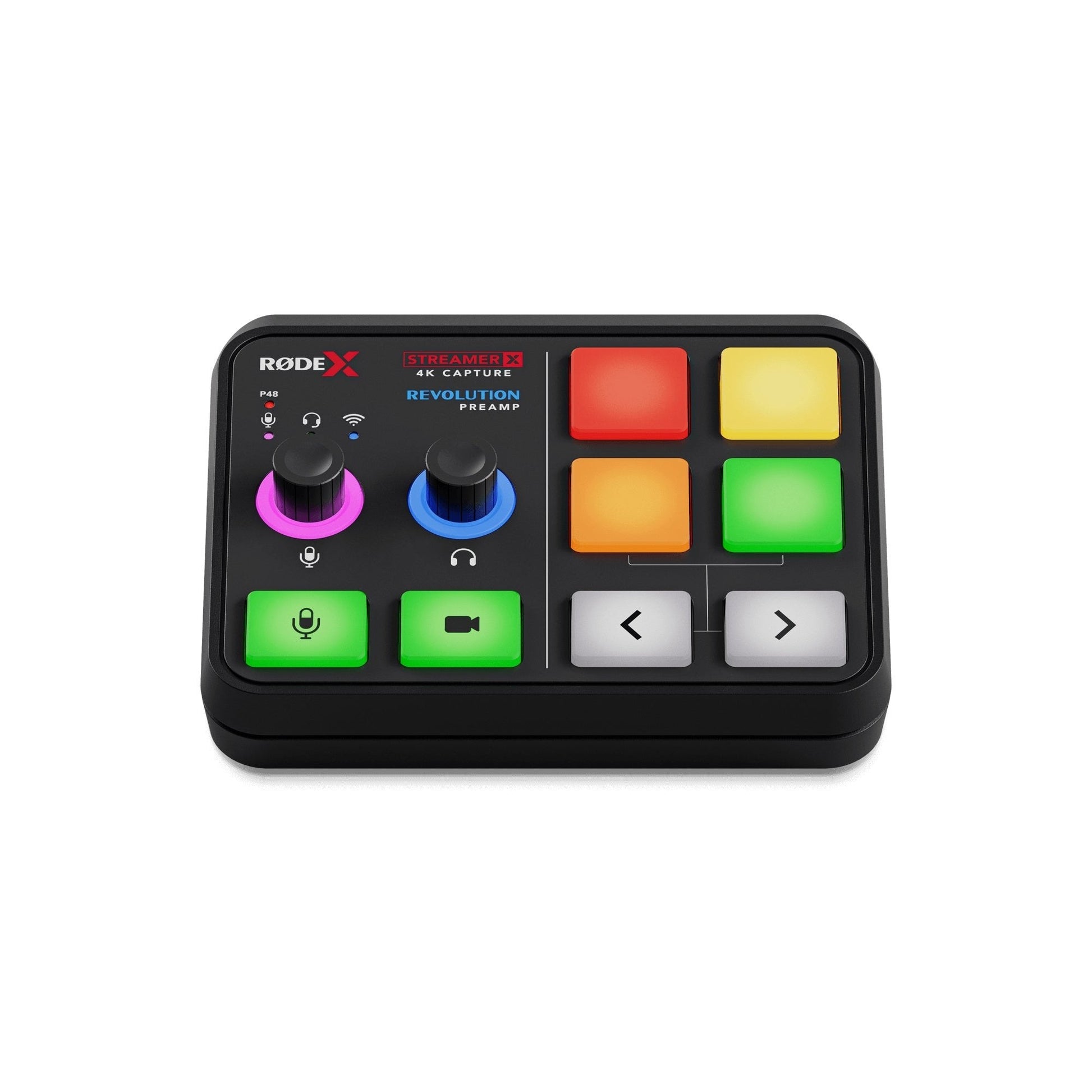

The Streamer X is a professional video capture card, audio interface and control surface integrated in one compact device that makes creating incredible content incredibly easy. It features studio-grade audio inputs for XLR microphones and instruments, headsets and RØDE wireless microphones, with an ultra-low-noise, high-gain Revolution Preamp™ and powerful APHEX® audio processing delivering pristine sound quality. HDMI connections offer up to 4K30 streaming and 4K60 pass-through for incredible video quality in a wide range of applications, from streaming and gaming, to podcasting and content creation, to business presentations. Dual USB-C connections seamlessly accommodate dual PC setups, and four fully customizable SMART pads allow for on-the-fly triggering of sound or voice FX and other actions on a computer. The ultimate all-in-one streaming solution.

Key Features:

- Professional audio interface, video capture card and control surface integrated in one compact, easy-to-use device

- Up to 4K30 video capture and 4K60 pass-through via HDMI

- Variable Refresh Rate (VRR) support

- Neutrik® combo jack for connecting XLR microphones or instruments, with an ultra-low-noise, high-gain Revolution Preamp™ for pristine audio quality

- 3.5mm TRRS input for connecting headsets and 1/4-inch headphone output for zero-latency monitoring

- Integrated wireless receiver for connecting RØDE Series IV wireless microphones, including the Wireless GO II and Wireless ME

- Internal DSP for advanced audio processing powered by APHEX®

- Four fully customizable SMART pads for triggering sounds, voice effects and MIDI commands

- Dual USB-C interfaces for connecting to two computers or consoles

- Easy configuration and control via RØDE Central desktop companion app

- Compatible with free UNIFY streaming software for advanced audio routing, mixing and configuration

- Designed and made in RØDE’s precision manufacturing facilities in Sydney, Australia

What's in the Box:

- 1 x Streamer X

- 1 x SC27 USB-C to USB-C Cable

Upgrade Your Stream with Pristine Audio and Flawless Video:

- Don't compromise your audio or your video. With up to 4K30 video capture and 4K60 HDR, zero-latency pass-through, the Streamer X delivers incredible video quality for you and your audience. It also features our ultra-low-noise, high-gain Revolution Preamp™ for capturing pristine, studio-grade audio – no need for boosters or lifters – and with its advanced audio processing on-board, you can give your voice that rich, broadcast sheen.

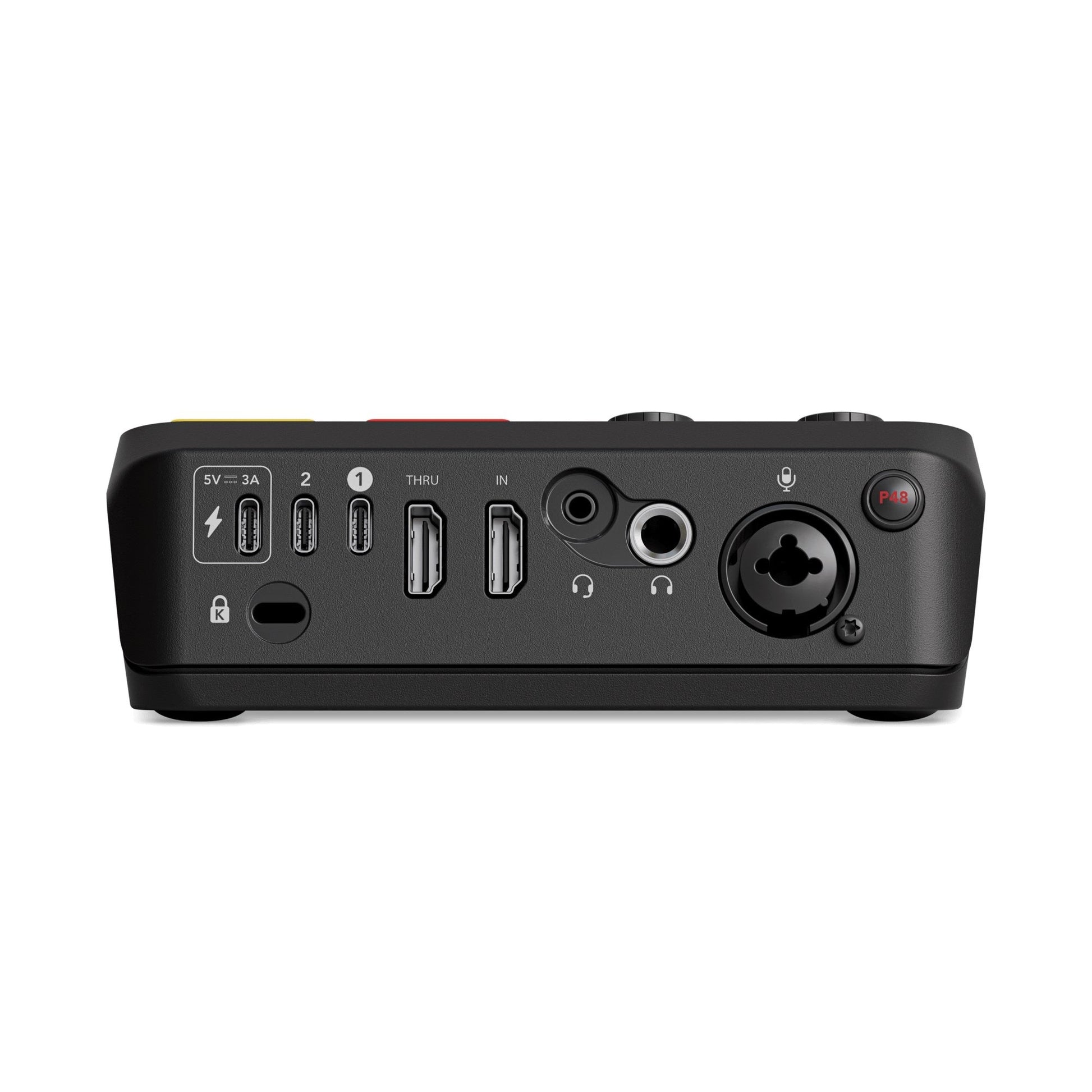

Acoustic, Video & Electrical Specs:

- Video Input Connectors: 1 x HDMI Type A 2.0

- Video Passthrough Output: 1 x HDMI Type A 2.0

- Max Input Resolutions (HDMI In): 4Kp60 HDR /// 1440p144 HDR /// 1080p240 HDR

- Variable Refresh Rate Support (VRR): Yes

- Max Capture Resolutions: 4Kp30 /// 1440p60 /// 1080p120 /// 1080p60 HDR

- Audio Input Connectors: 1 x XLR Combo Jack (Mic / Instrument) /// 1 x Wireless Receiver /// 1 x Input HDMI

- Audio Output Connectors: 1 x 3.5 TRRS Headset Jack (I/O) /// 1 x ¼" Headphone Jack

- Input Dynamic Range: 113 dB

- Preamp Noise: -131.5 dBV (A-Weighted)

- Frequency Range: Microphone Inputs: 20 Hz - 20 kHz /// Headphone Output: 20 Hz - 20 kHz

- Microphone Input Impedance: 4 KΩ

- Instrument Input Impedance: 1 MΩ

- Preamplifier Gain Range: 0 - 76 dB

- Phantom Power: Yes

- Direct Monitor: Yes

- Headphone Output Power: 125 mW Per Channel

- Internal Storage: 2 GB (SMART Pads)

- Power Requirements: Via USB: 5 V @ 3 A

Digital Specs:

- USB Interface: USB 1: USB 3.1 Type C /// USB 2: USB 2.0 Type C

- Bit Depth: 24-Bit

- Sampling Rate: 48 kHz

- Processing: APHEX Processing /// RØDE Voice FX

- Minimum OS Requirements: MacOS 10.15 or Later /// Windows 10 Version 1803 or Later /// Windows 11

Mechanical Specs:

- Weight: 380 g

- Dimensions: Length: 144 mm /// Width: 122 mm /// Height: 51 mm
