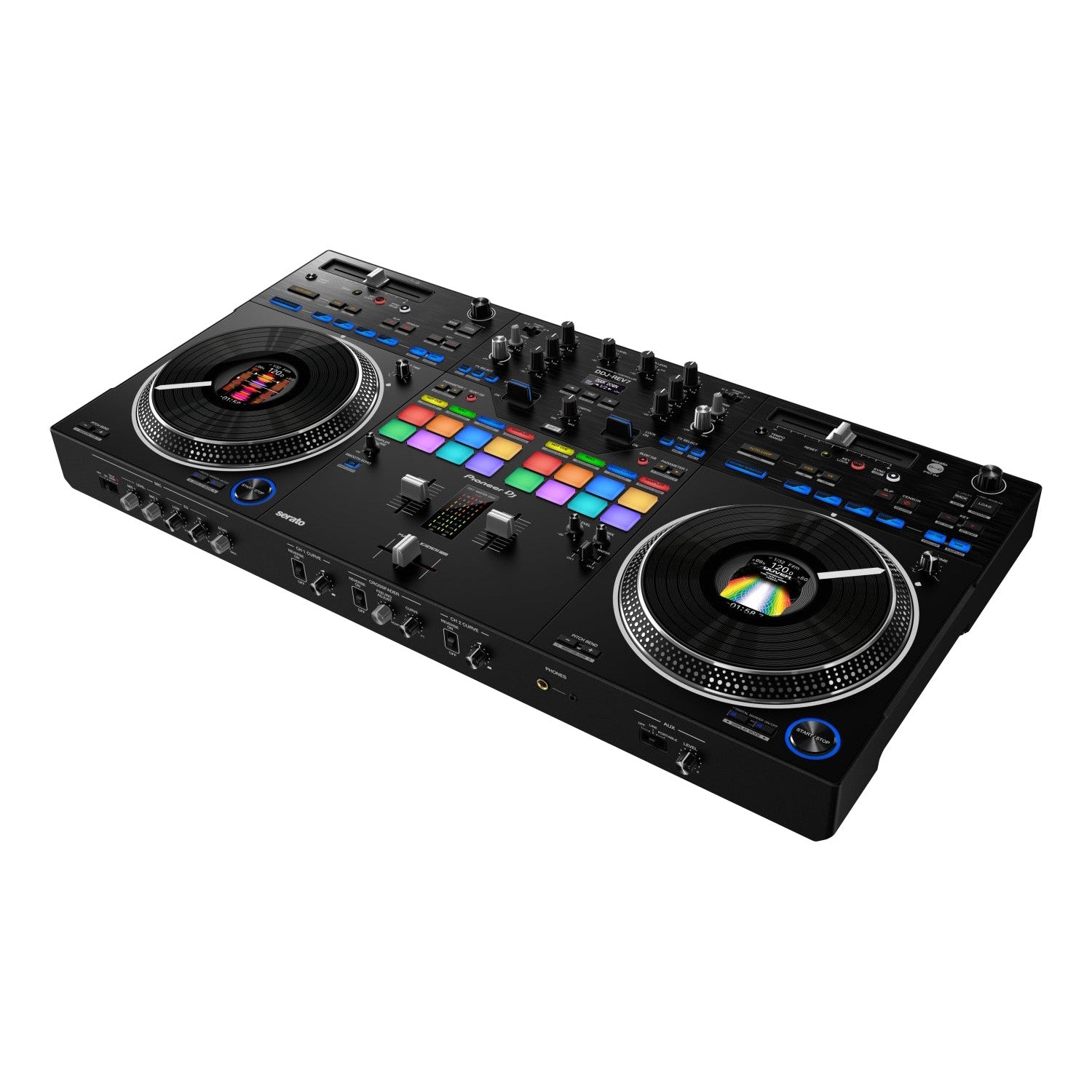

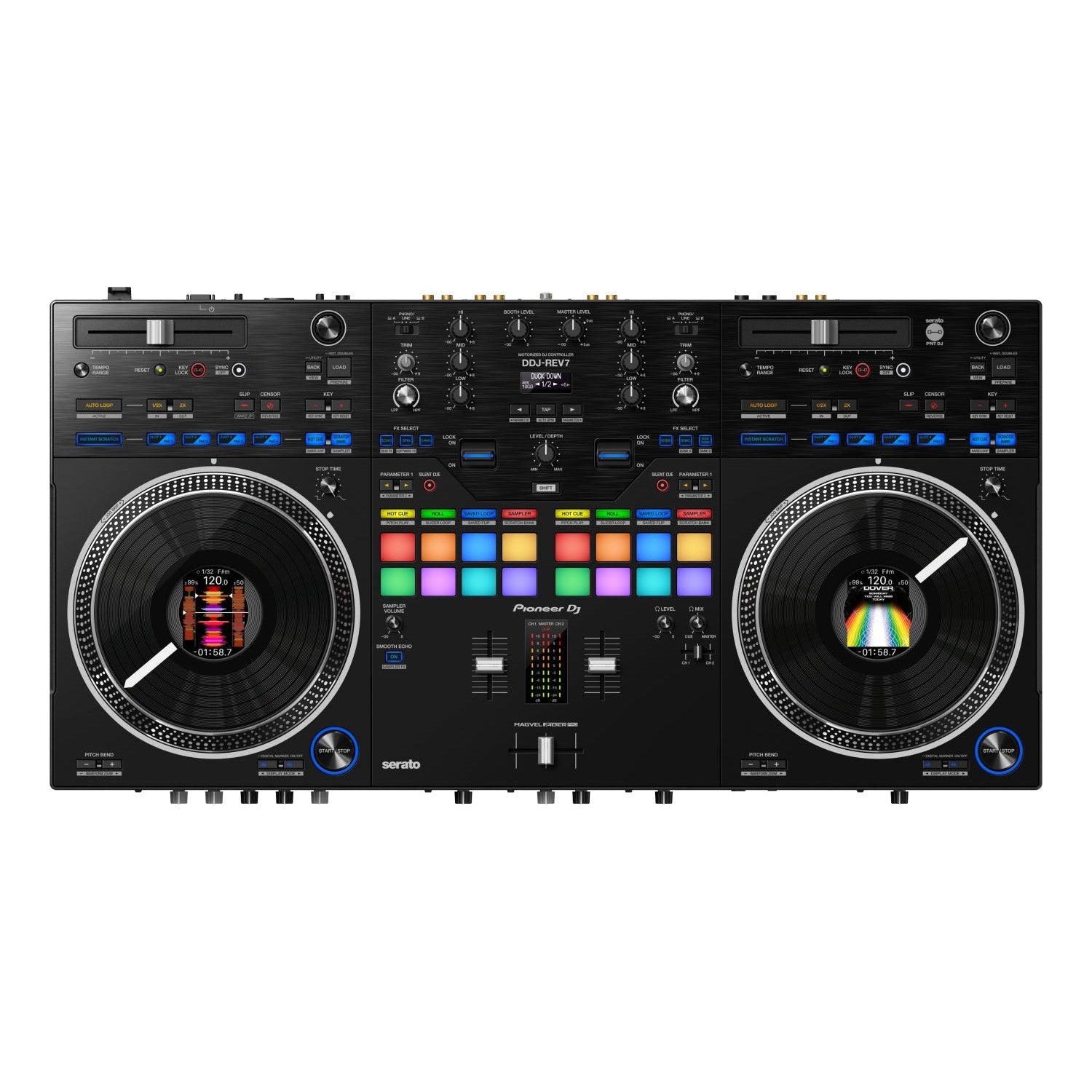

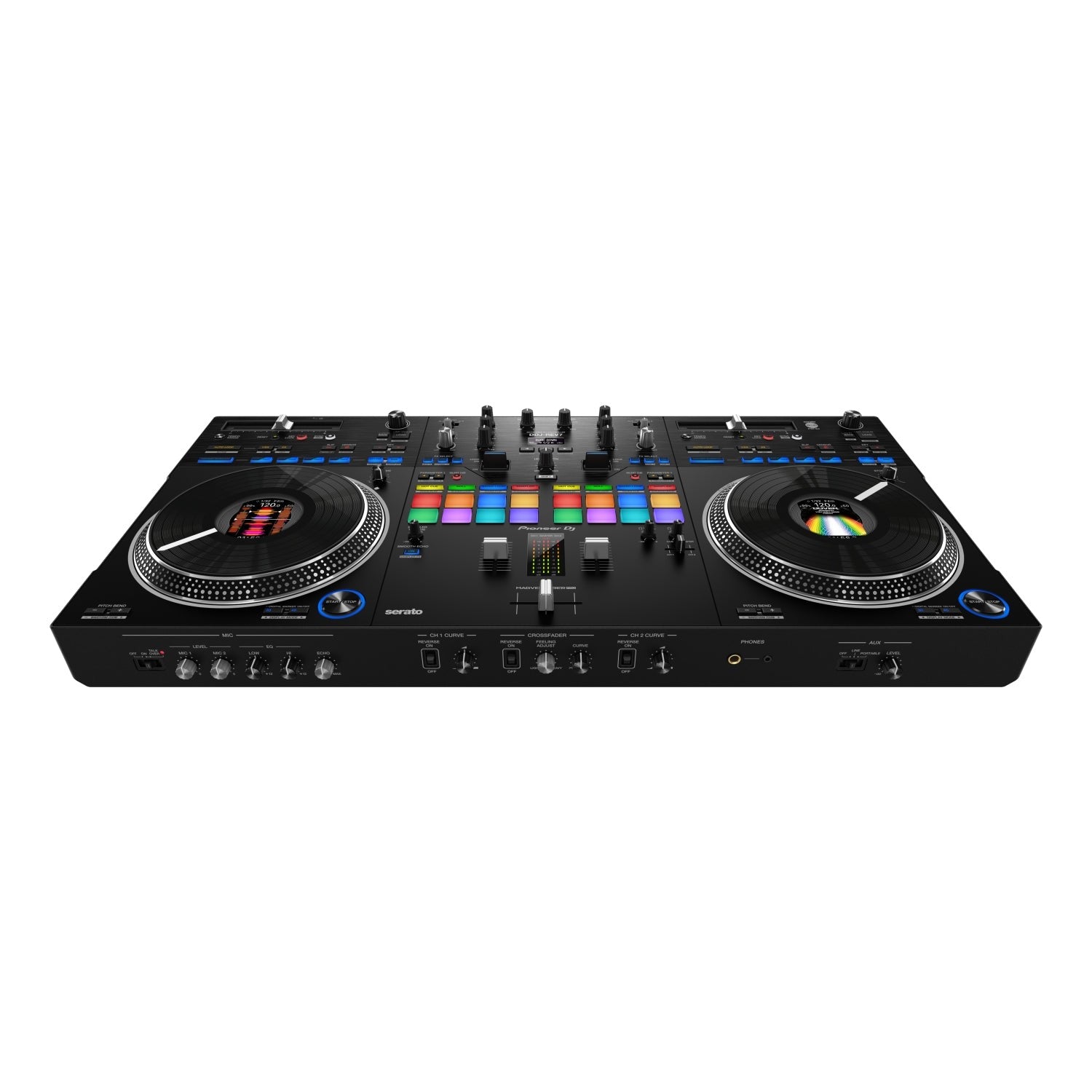

The DDJ-REV7 controller boasts a scratch-style design and features motorized jog wheels with On Jog display. The fact that the jog wheels are larger (7 in.) and vinylized wheels with customizable settings means that DJs are in for a tactile connection to tracks. What’s more, two included slip sheets allow users to experiment with torque and friction for the perfect experience. The DDJ‐REV7 also inherits Pioneer DJ’s renowned Magvel Fader Pro stick for a slick and accurate response while scratching. New beat FXs and an included voucher for Serato DJ Pro round out this premium unit setup.

Features

- Brand-new motorized, vinylized jog

- On Jog Display: Virtual deck mode, Artwork display, DJ logo display, Waveform mode

- Instant Scratch

- Advanced audio design

- Magvel Fader Pro

- Plug and play compatibility with Serato Pro DJ

- Portable, sophisticated design

- 22 Built‐in Beat FX including three new additions: Duck Down, Fill Out, Helix Out

- Silent Cue

- Smooth Echo

Software Serato DJ Pro

Frequency Response 20Hz - 20kHz (USB, LINE, AUX (LINE / PORTABLE), MIC 1, MIC 2)

S/N Ratio 110 dB (USB), 95 dB (LINE), 84 dB (PHONO)

Total Harmonic Distortion 0.003% (USB), 0.005% (LINE), 0.017% (PHONO)

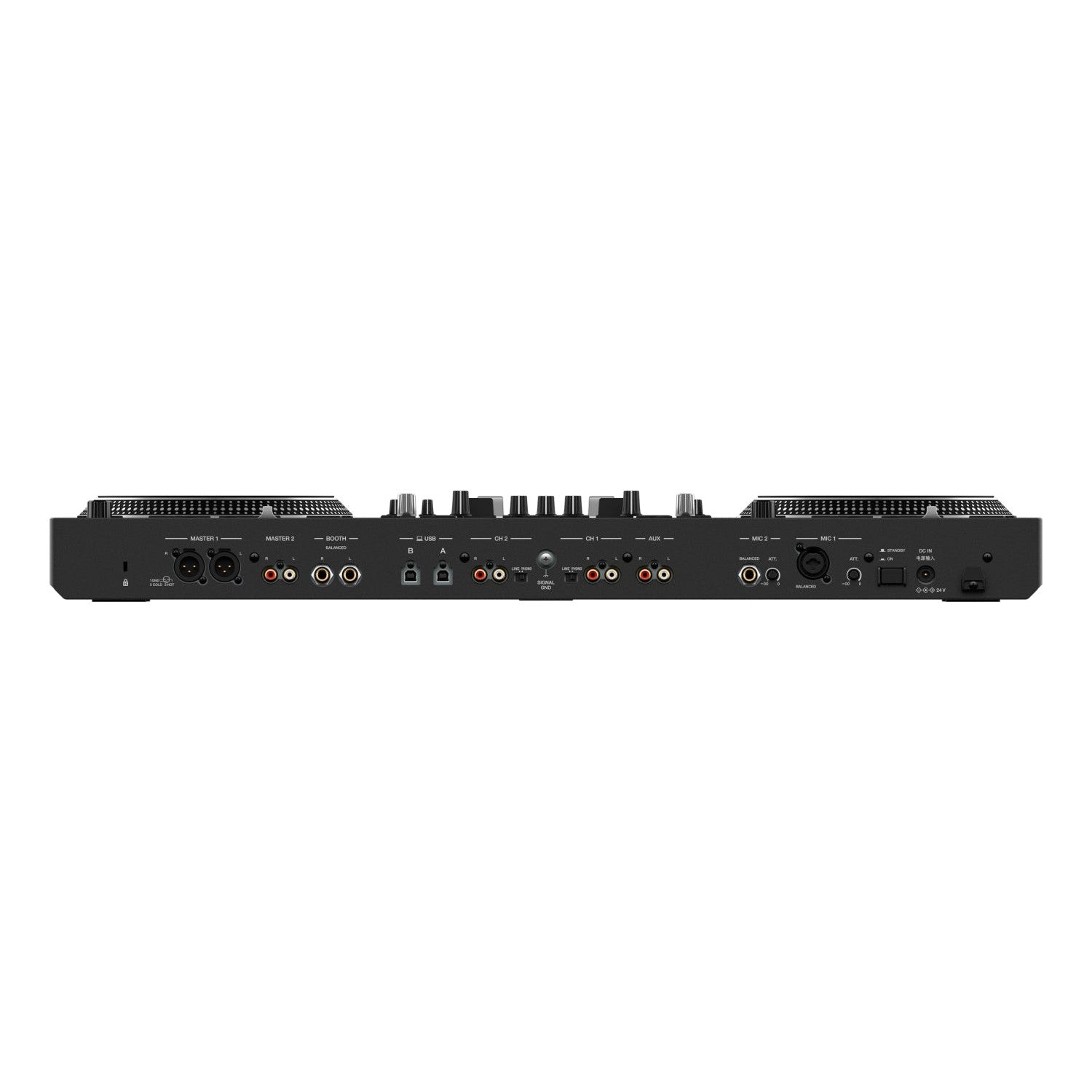

Input/Output Terminals

Inputs LINE / PHONO × 2 (RCA), MIC × 2 (XLR & 1/4" TRS jack × 1, 1/4" TRS jack × 1), AUX × 1 (RCA)

Outputs MASTER × 2 (XLR × 1, RCA × 1), BOOTH × 1 (1/4" TRS jack × 1), PHONES × 2 (1/4" stereo jack × 1, 3.5mm stereo mini-jack × 1)

USB USB Type-B × 2

Power Supply AC 100V – 240V, 50Hz / 60Hz

Power Consumption DC 24V, 1000 mA

Maximum Dimensions (W × D × H) 7.32 × 382.2 × 82.4 mm (28.8" × 15.0" × 3.2")

Weight 10.7 kg (23.6 lb.)

Accessories AC adapter, power cord, USB cable, warranty (for some regions), Quick Start guide, Precaution for Use, Serato DJ Pro Expansion Pack voucher
