Tone Shaping Articulation:

"The DG Custom 30 is the culmination of a three year collaboration between myself and Doug Sewell. After extensive designing, redesigning, and repeated comparisons to the amps I have cherry picked over the years, we have come up with an amp that would rival the best of my vintage amps. Equally well-suited to both live situations and studio work, this amp is far from a knockoff. I am blown away. I'm hopeful that other players will find it as inspiring and musical as I do." – David Grissom

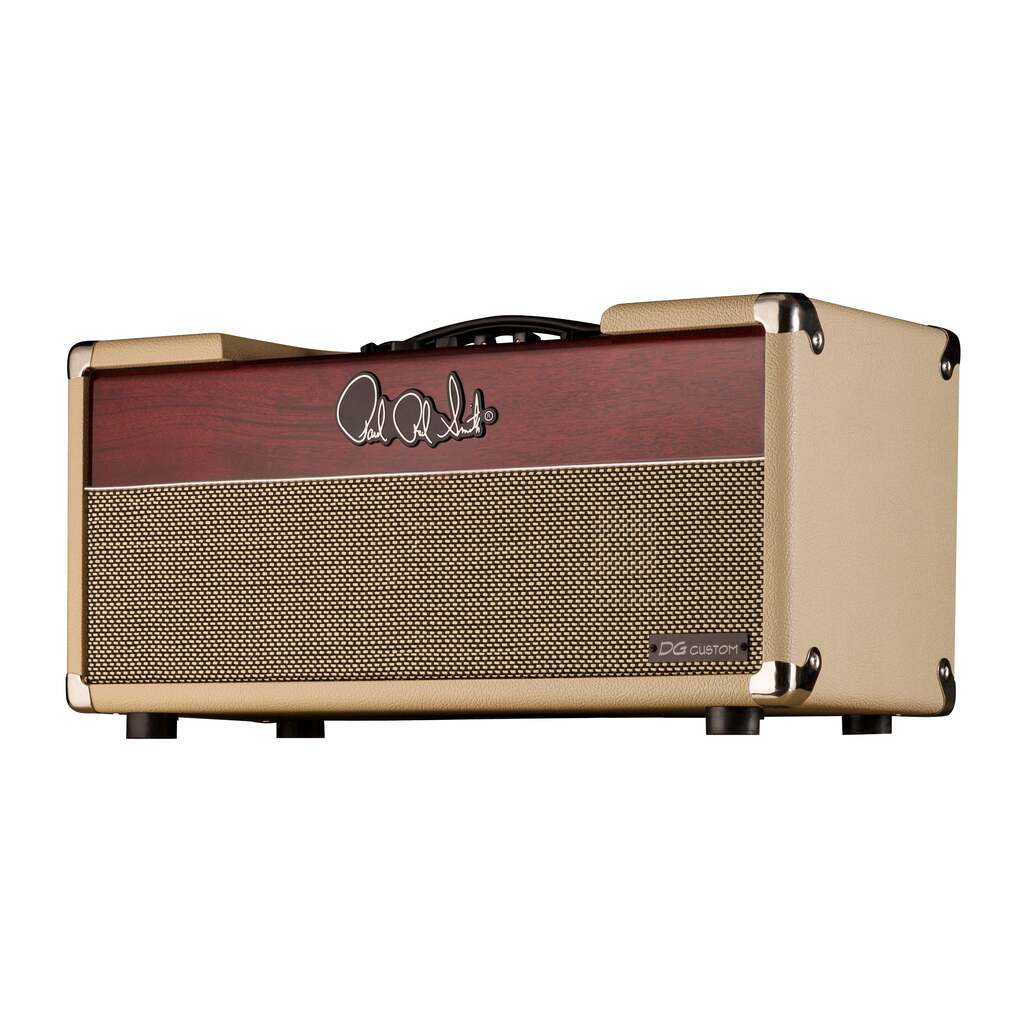

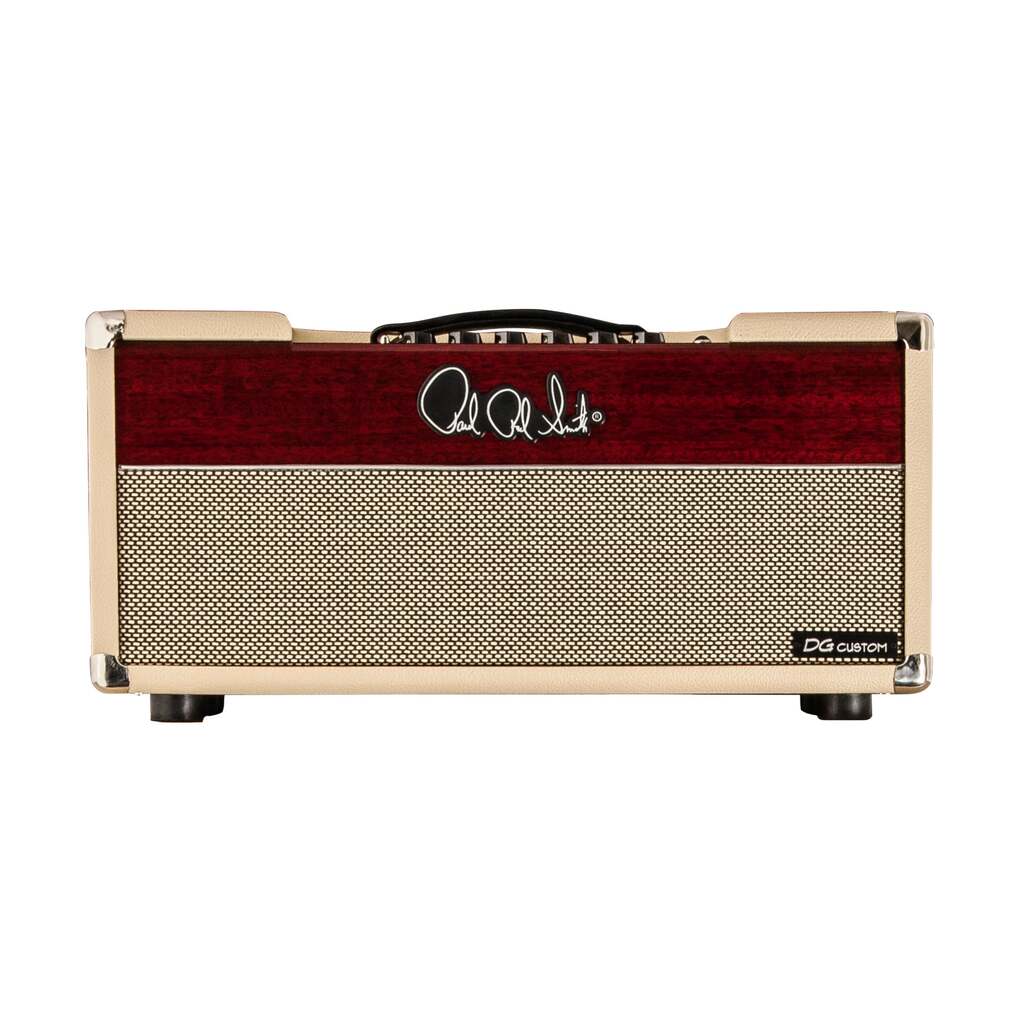

- Developed and refined over many years, the PRS David Grissom signature DG Custom 30 amp brings Grissom’s discriminating tone to players looking for a highly-responsive, musical amp rig. The PRS “DG Custom 30” comes in blonde vinyl with a cherry stained mahogany fascia and un-tinted salt and pepper grill cloth. It features four EL84/7581 power tubes and several tone-sculpting features, including bright switch, reverb, boost/normal gain switch, presence control, and top cut control.

General:
- Available Configurations: Head
- Channels: Single

Electronics:
- Wattage: 30

Tubes:
- Power Tubes: (4) 6P14P-EV / 7189
- Preamp Tubes: (3) 12AX7 / ECC83, (1) 12AT7

Front Panel Controls:
- Front Panel Controls: Bright Switch, Volume, Reverb, Treble, Middle, Bass, Master
- Rear Panel: Top Cut, Gain Boost Switch, Presence

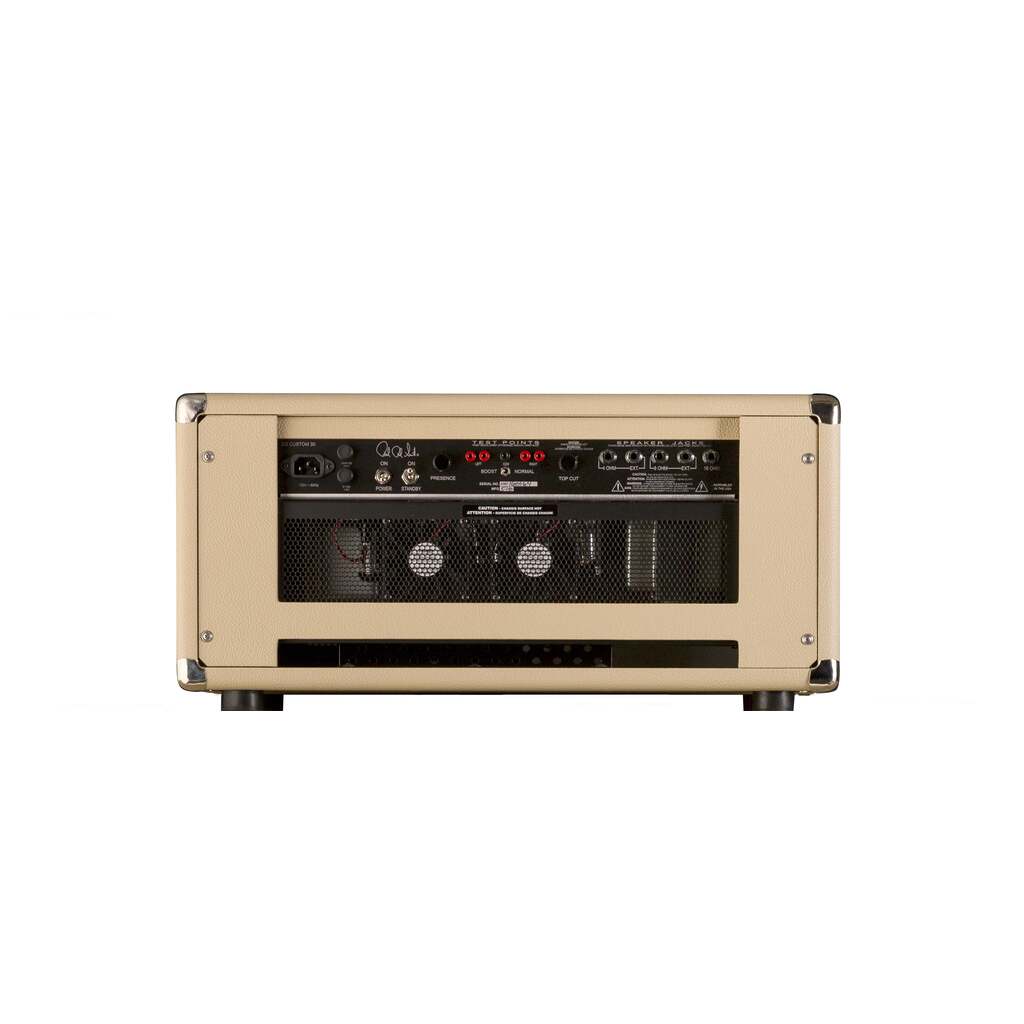

Back Panel Features:
- Extension Speaker Jacks: 5
- Ohm Switching: (2) 4 ohm & (2) 8 ohm parallel, (1) 16 ohm
- Bias: Cathode (non-adjustable) with Monitoring Jacks

Hardware:
- Cabinet Material / Construction: Pine, Fingerjoint
- Covering: Blonde Tolex
- Grill Cloth: Salt and Pepper
- Panel: Mahogany, Vintage Cherry

Measurements:
- Amp Width: 24" (60.96 cm)
- Amp Depth: 10" (25.4 cm)
- Amp Height: 11.5" (29.21 cm)
- Amp Weight: 38 lbs. (17.24 kg)

Preamp Tube Positions & Functions:
- V1: 12AX7 Input
- V2: 12AT7 Reverb Driver
- V3: 12AX7 Reverb Recovery
- V4: 12AX7 Phase Inverter
