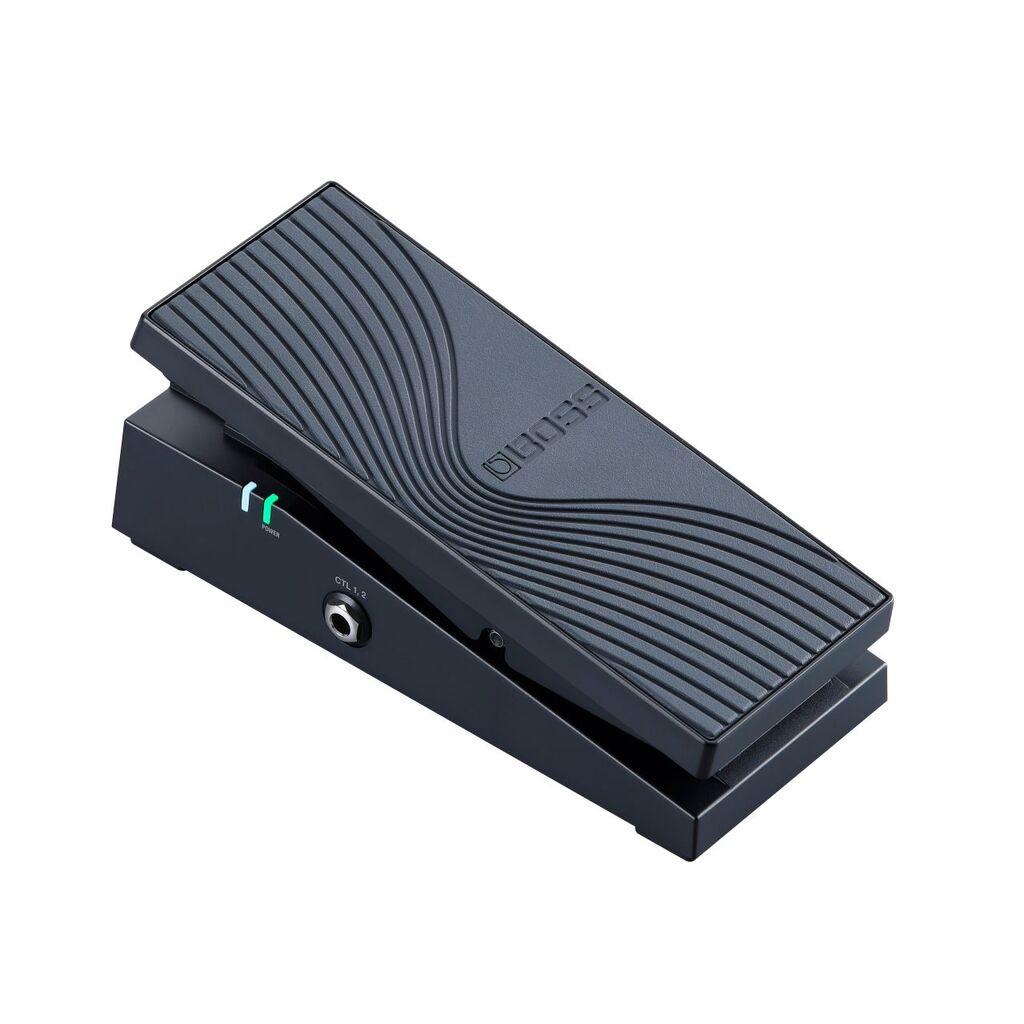

Boss - EV-1-WL Wireless Expression Pedal

$229.99
Steve's Code: 17060
Barcode: 761294517871
By Boss

Description


Take Control of Your MIDI Music World

Powerful MIDI expression pedal for controlling devices through Bluetooth MIDI, USB, and TRS MIDI outputs.

Take command ofyour MIDI music gear with the BOSS EV-1-WL, the world’s first wireless MIDI expression pedal.The EV-1-WL provideswireless foot control for the BOSS GS-1-CTM and Waza-Air,music apps on mobile devices,andanything thatcan receive CC messages via Bluetooth® MIDI.In addition, USB and MIDI TRS connectivityare on hand for wired controlof computer music software and standard MIDI devices.Whether you go wireless or wired—or both at once—the EV-1-WL delivers a ton of MIDI power in a compact footprint.

• Powerful MIDI control pedal with three ways to connect: Bluetooth wireless, USB, and TRS MIDI
• Use all three outputs at once with independent MIDI CC settings for each
• Communicate wirelessly with the BOSS GS-1-CTM guitar, Waza-Air, and any device that supports Bluetooth MIDI
• Class-compliant USB for plug-and-play operation with music software on macOS and Windows computers
• TRS MIDI output for controlling MIDI devices with TRS or 5-pininputs
• Supports communication with theRoland WM-1 and WM-1D wireless MIDI adaptors
• Built-in toe switch with on/off indicators on both sides of the pedal
• Control input for up to two BOSS FS-series footswitches
• Dedicated iOS/Android app for assigning MIDICC numbers, customizing the response, and more
• Powered with two AA batteries or BOSS PSA-series adaptor

Expand Your Performance Range withBluetooth
The EV-1-WL is the ideal creative partner for the growing range of music performance hardware with Bluetooth wireless support. Use it to control pitch bend, filter, and other synth functions in the BOSS GS-1-CTM guitar. Or add external footswitches to create a wireless mini pedalboard for patch selection, wah/volume control, and more in the Waza-Air personal guitar amp system. The EV-1-WL can also communicate wirelessly with standard 5-pin MIDI devices that have the Roland WM-1 Wireless MIDI Adaptor installed.

Wireless MIDI Controlfor Computers and Mobile Devices
Pair the EV-1-WL via Bluetooth with Mac computers, smartphones,and tabletsto interface withmusic appsthat support remote operation with MIDI CC messages, from guitar amp simulators and effects tovirtual instruments andmusic production software. And if you’re a Windows user, you can add a Roland WM-1D dongle for wireless communication with the EV-1-WL.

Plug-and-Play via USB
The EV-1-WL also works as a standalone USB MIDI controller for music software on Mac or Windows computers. The class-compliant interface means there are no drivers to install—simply plug in with a USB cable and configure your software as needed for external MIDI input.

ControlMIDI Stompboxes, Multi-Effects, and More
With its space-saving TRS MIDI output, the EV-1-WL is a powerful accessory for all types of MIDI music hardware, from effect pedals and multi-effects processorsto keyboards, drum machines, and beyond. Use a TRS-to-TRS cable to connect with BOSS pedals equipped with TRS MIDI, including 200series effects and the RC-5 and RC-500 Loop Stations. Or grab the BOSS BMIDI-5-35 cable to connect with any devicethat has a standard 5-pin MIDI input jack.

Deep Customization
The free EV-1-WL Editor app for iOS and Android deviceslets youcustomize MIDI CC assignments for the EV-1-WL’s pedal, toe switch, and up to two external footswitches.TheBluetooth, USB, and TRS MIDI outputssupportsimultaneous operation, and you can create independent control settingsfor each. It’s also possible to set the switches for momentary or latching operation, adjust the pedal’s response curve, and much more.

-Controls
POWER switch
Bluetooth button

- Indicator
POWER
Bluetooth
EXP SW

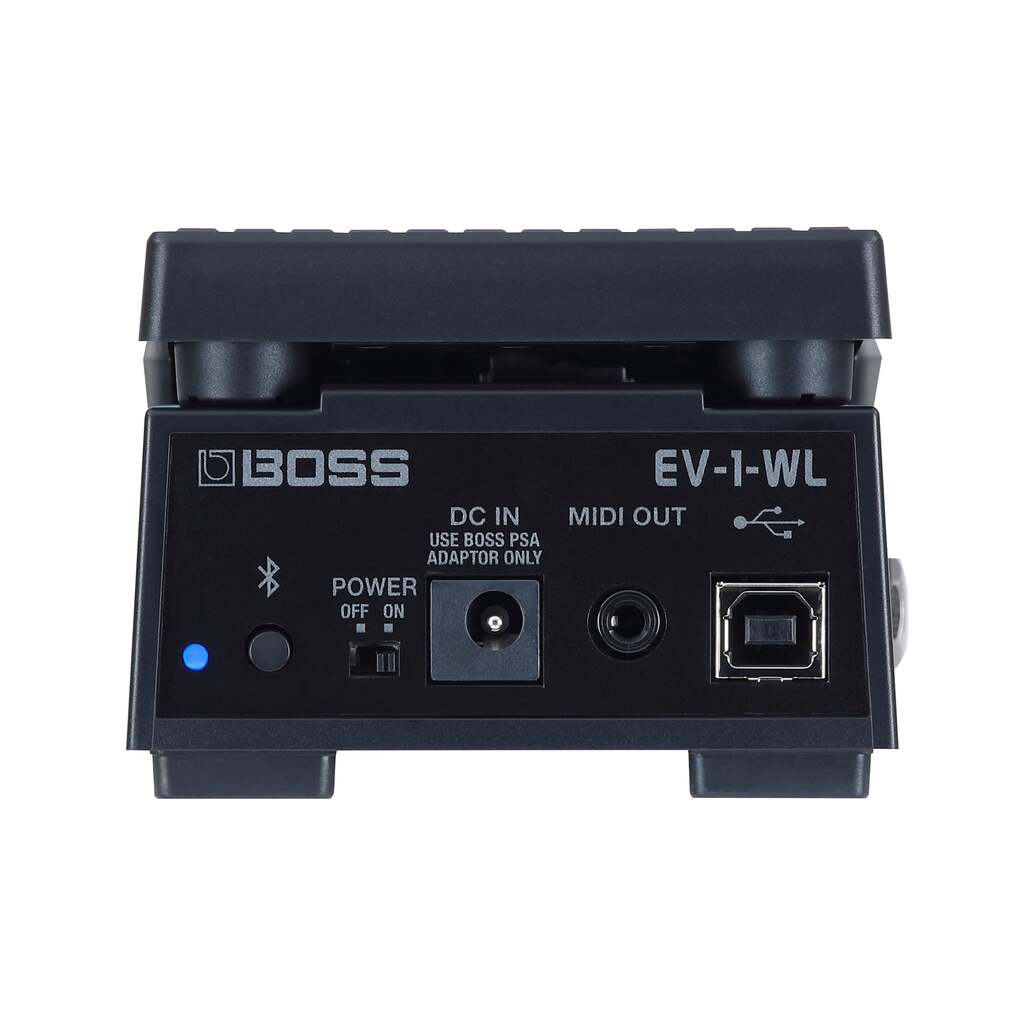

-Connectors
MIDI OUT jack: stereo miniature phone type
USB COMPUTER port: USB B type
CTL 1, 2 jack: 1/4-inch TRS phone type
DC IN jack

- Power Supply
Alkaline battery (AA, LR6) x 2
AC adaptor (sold separately)

- Current Draw
75 mA

- Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
Alkaline battery: 30 hours

-Dimensions
87 (W) x 200 (D) x 62 (H) mm
3-7/16 (W) x 7-7/8 (D) x 2-1/2 (H) inches

(Maximum height)
87 (W) x 200 (D) x 92 (H) mm
3-7/16 (W) x 7-7/8 (D) x 3-5/8 (H) inches

-Weight
600 g / 1 lb 6 oz
650 g / 1 lb 7 oz (including batteries)

- Accessories
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 2

- Options (sold separately)
AC adaptor: PSA series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
TRS/MIDI connecting cable: BMIDI-5-35
