Broken Record - Loop Your Acoustic Creativity with the AFX Broken Record:
- High-quality looping & sampling specifically designed for acoustic guitarists

AFX Broken Record Mini Acoustic Guitar Looper Pedal:
- Drag 'n Drop WAV File Transfer via USB
- True Bypass with Buffered Bypass Option
- 24-bit / 44.1-kHz Recording Quality
- Intuitive Record/Play Footswitch & Loop Level Control
- Innovative Dual Path Routing
- Super-Compact Design Fits Almost Anywhere
- 9-V External Power Required (sold separately)

Looper and Sampler Pedal with 6 Minutes of Audio Recording!
- AFX Broken Record packs high-quality audio looping and sampling into a tiny, yet deceptively-simple stompbox package. It features intuitive 1-button operation, endless overdub capability and offers easy transfer to a computer.

Creating Loops on the Fly Couldn't Be Easier:
- A single footswitch is all it takes to record, overdub, and play along with your coolest riffs and patterns.
- Featuring high-quality 24-bit, 44.1-kHz audio recording of up to 6 minutes, AFX Broken Record lets you capture cool ideas and build on them, or even play along with pre-recorded audio you transfer from your computer.
- Built-in memory will retain what you recorded even after the power is disconnected. So, you can unplug at your gig and transfer your loop to your computer later. This also means that the backing track you transfer from your computer will be ready and waiting for you to play back at your next performance.

USB / AFX Phrasetransfer:
- In addition to creating samples and loops on-the-fly, you can transfer audio between a computer and AFX Broken Record where it remains in memory even after the power is removed.

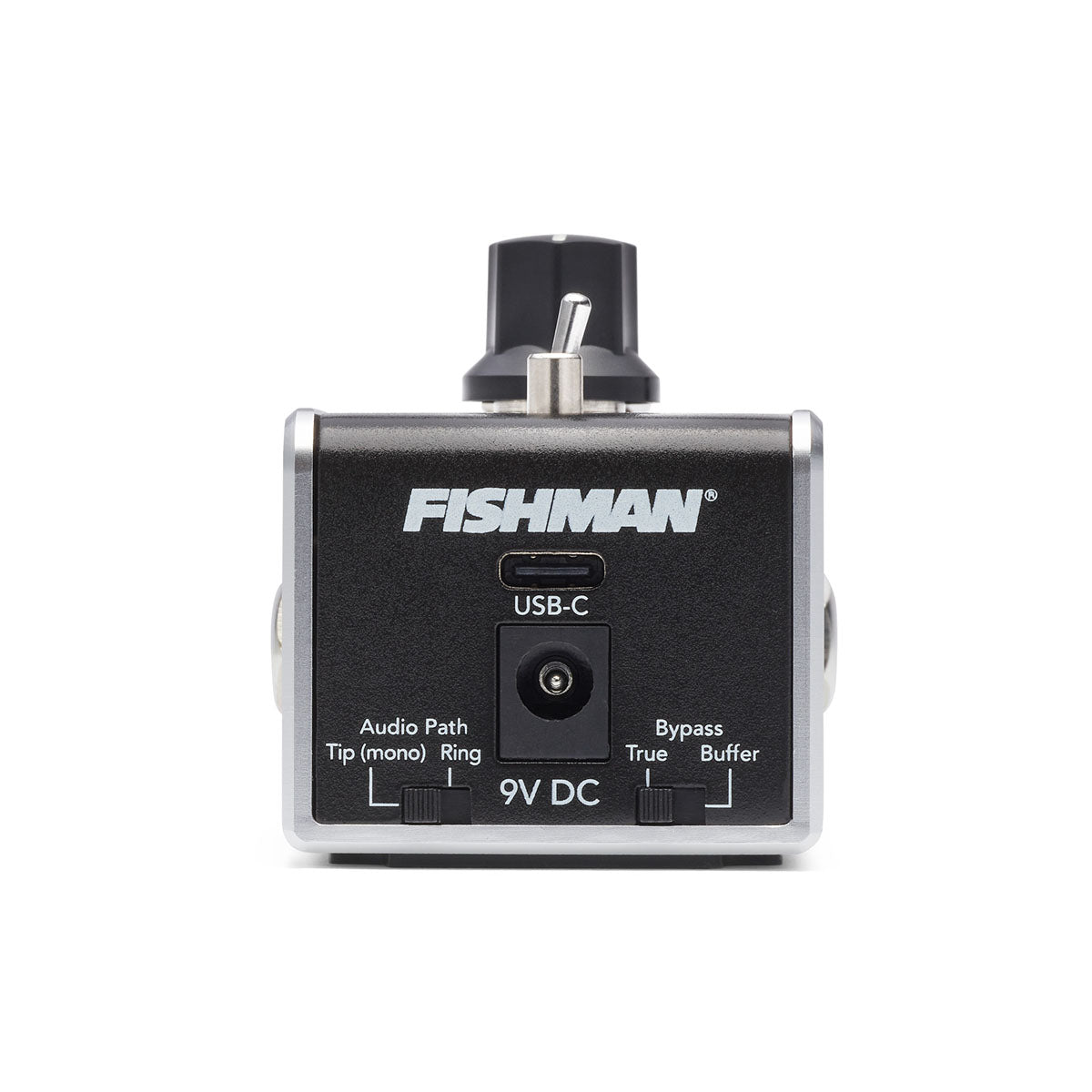

Audio Path Switch:
- AFX Minis allow you to choose the audio path on which a particular effect will be processed. You do this by flipping the Audio Path switch on the front of the pedal.

True Bypass:
- With true bypass, the pedal's electronics are literally removed from the signal chain. For those who prefer a buffered bypass, AFX Mini effect pedals are switchable.

DC Power:
- In order to pack a lot of functionality into the smallest stompbox size we could find, AFX Minis require external power. Be sure to use a Fishman 910-R (120 VAC) or 910-U (230 VAC) power adapter to ensure the above specs.

Level:
- This knob sets the playback level of a loop or sample. It is mixed alongside your direct sound.

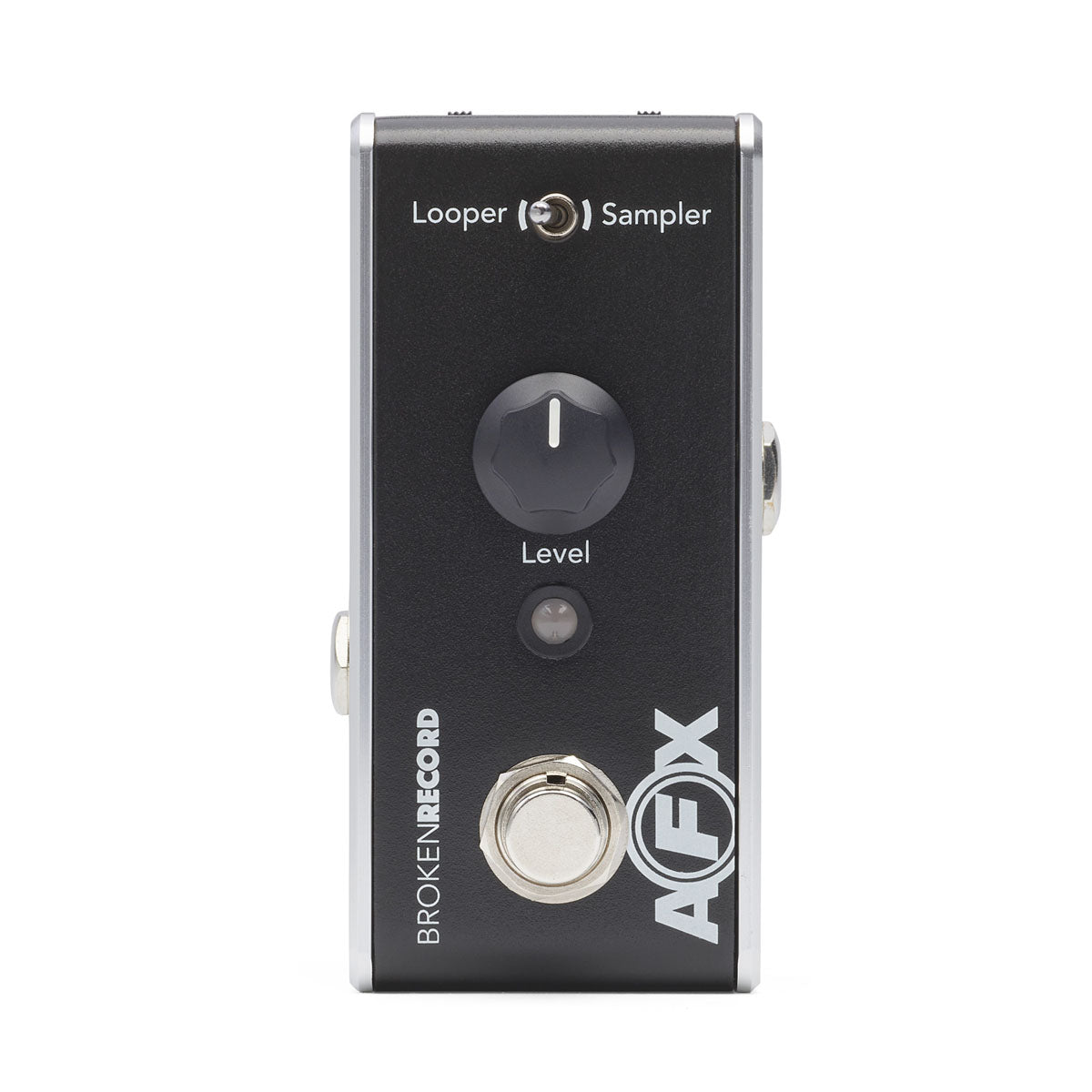

Looper Mode:
- Looper mode lets you record, play back, and endlessly overdub to create multi-layered audio loops.

Sampler Mode:
- Sampler mode is designed to play audio once without looping. You can switch between Looper and Sampler mode if you want to simply - just play a recording once and have it stop automatically.

Specifications:
- Model Number: PRO-AFX-LP2

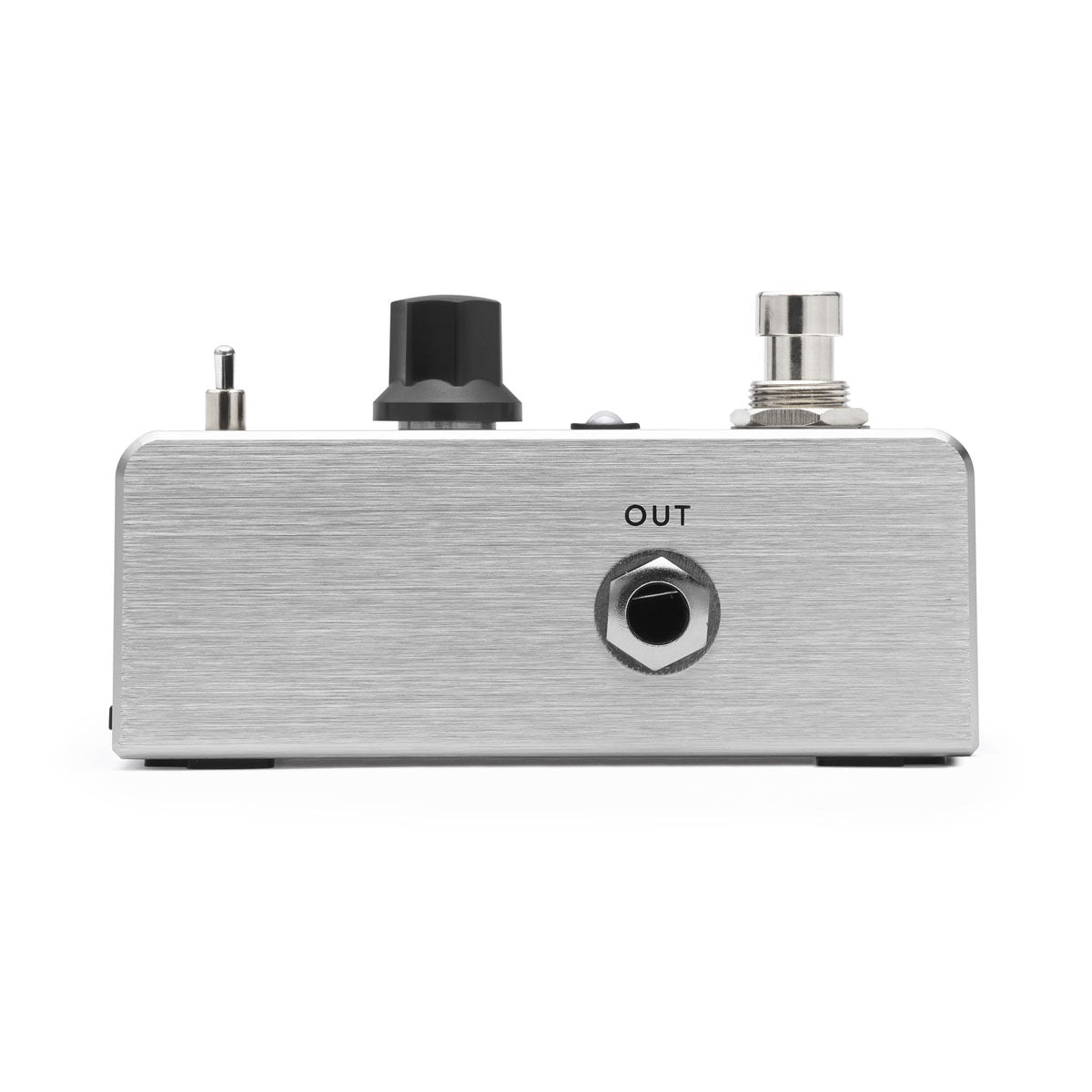

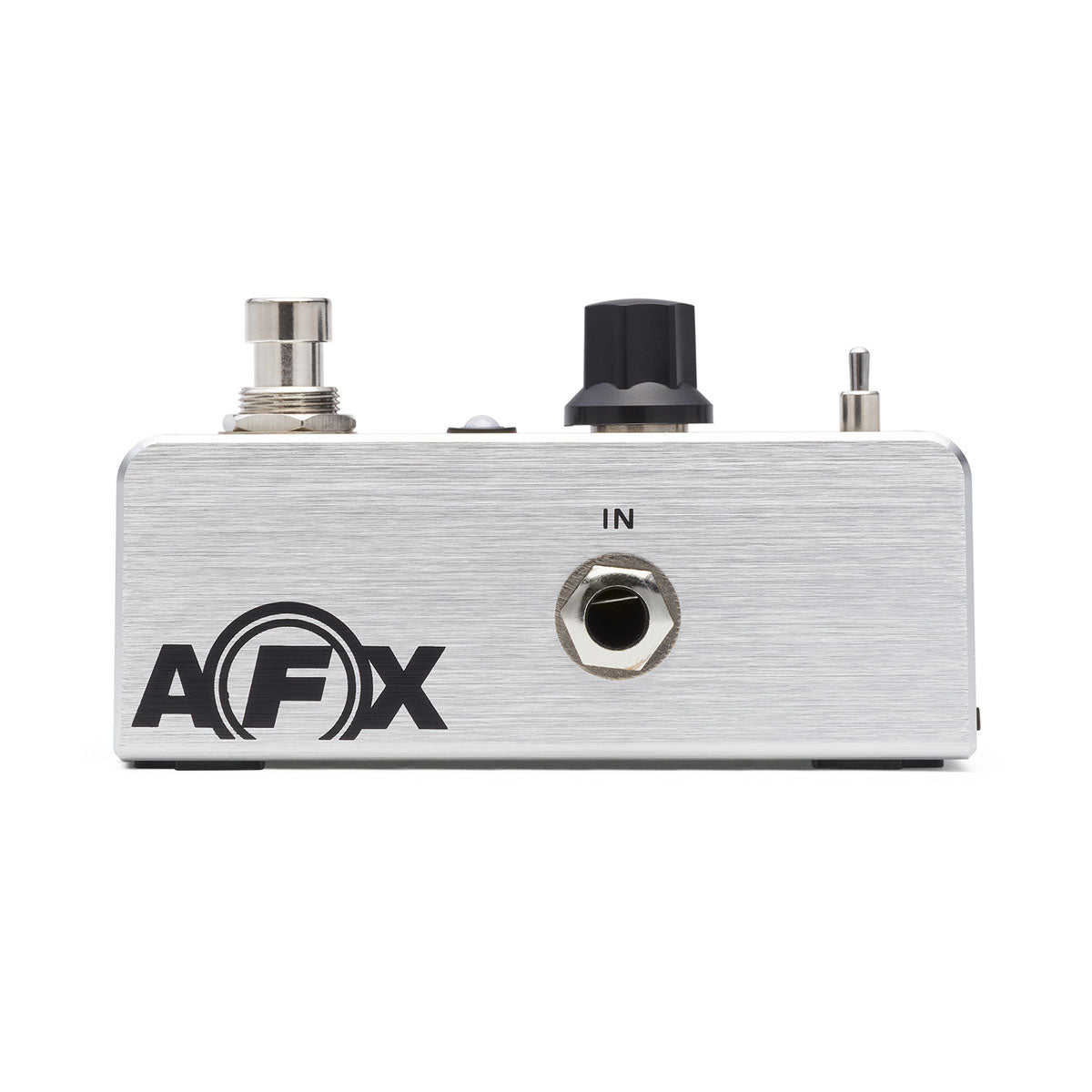

- Audio I/O: 1/4" TRS input and output (TRS enables dual path functionality)
- DSP: 32-bit processing
- Bypass: True bypass with buffered bypass option
- Dimensions (W x D x H): 1.9" x 3.8" x 1.92" | 49 mm x 97 mm x 49 mm
- Material: Durable aluminum enclosure
- Current Draw: 53 mA (Typical)
- Power: 910-R AC adapter (Sold separately) or suitable filtered and regulated 5.5-mm OD, 2.1-mm ID barrel connector, center = negative
- Analog Signal Path: Input Impedance: 10 M Ohm | Output impedance: 1 k Ohm | Signal-to-Noise: -100 dB | Dynamic Range: 100 dB
- Digital Signal Path: A/D, D/A Conversion: 24-bit | Signal Processing: 32-bit
