Your Dream Tone Starts Here.
Start your signal chain with the best possible version of your guitar tone. Treat your guitar signal to true studio quality analog compression with two distinct voices for smooth transparency or vintage squeeze. Hit the Boost switch to add clean boost or soft-clipped dirty boost, with the EQ curve of your choice. Mix in some dry signal for natural attack even with extreme compression settings. Feel the perfectly tailored dynamic response, feeding your amp and effects just what they need to sound their best.

Your Everything Upgrade.
From pickups, tubes, capacitors, to speaker cabinets—the aspects of a rig that can be upgraded or changed are nearly endless. Plug in Compadre and you may find you already have everything you need for the tone you’ve been seeking.

Bring out your amp’s character in ways you never thought possible. Compadre’s Class A JFET input circuit, studio quality analog compression, and musically voiced analog boost circuits all work together to make your amp sound like it was just modified by a world-class boutique amp designer.
Super Flexible, Super Easy.

Compadre gives you everything you need to shape your front end tone, and nothing to slow you down. Auto makeup gain and auto threshold mean that all you have to do is turn up the Compression knob to dial in the desired amount. Compadre’s wide variety of tone shaping features are all designed to easily sound great across a wide variety of settings.
Two Distinct Analog Compression Circuits.

Choose between two compression circuits, each with its own unique character. Studio mode gives you the smooth, beautifully transparent compression typically found in the best vintage studio rack units. For a harder compression effect typical of classic guitar pedals, Compadre’s Squeeze mode is designed to deliver heavy compression with maximum sustain.
Boost the Sweet Spot, Clean or Dirty.

Compadre gives you two distinct analog boost circuits: a clean boost, and a dirty boost that introduces soft clipping, characteristic of an overdrive pedal. The selectable boost EQ ensures the perfect compliment to any guitar and amp combination. Add sparkle and shine with a treble boost, fatten your tone with the midrange boost, or level up the full frequency range with flat mode.
Extended Control.

Connect an expression pedal to add premium VCA-based volume control. Add an optional MiniSwitch or MultiSwitch Plus to store and recall your favorite settings. Integrate Compadre into a MIDI pedalboard using our MIDI EXP Cable and access up to 300 preset locations.



Tone Shaping
Press (+) for more info.

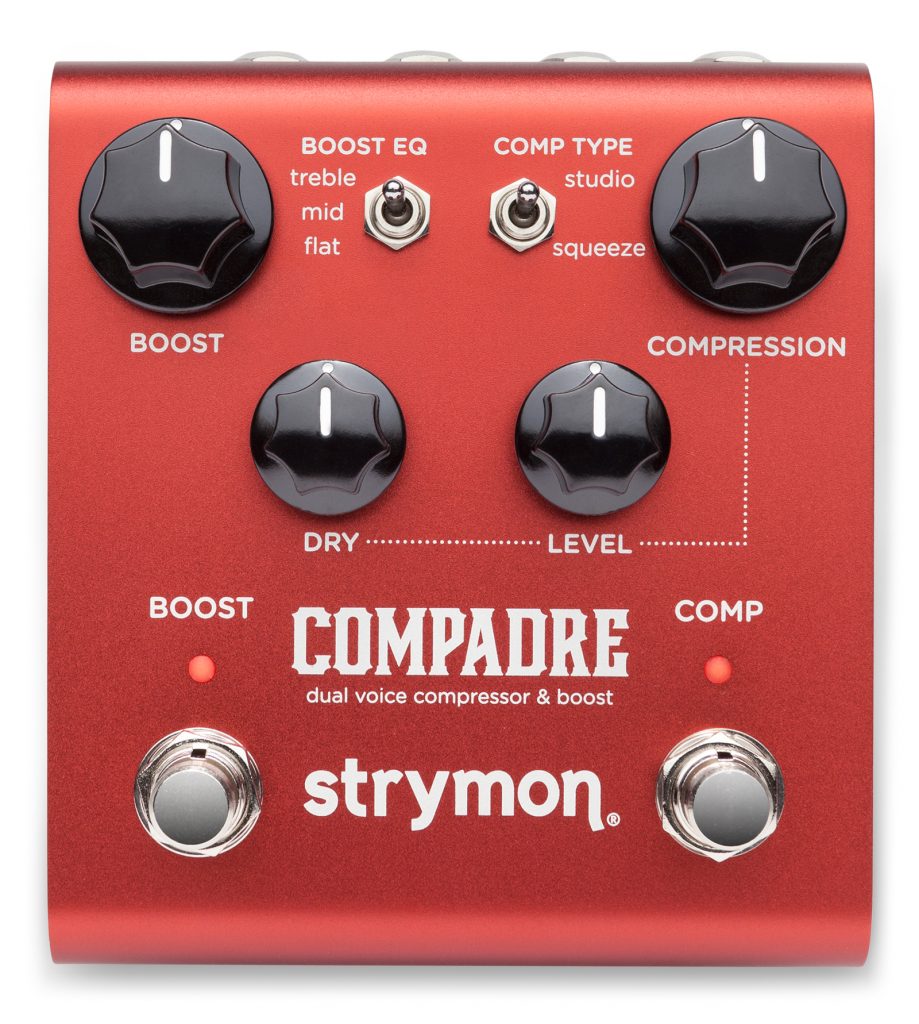

    Front Panel Controls Ins & Outs

    Boost adjusts the amount of boost when the boost circuit is active. Typical boost is approximately 14dB when using flat clean setting.
    Compression adjusts the amount of compression added to the signal. Turning clockwise increases compression by lowering the threshold. When fully counterclockwise, no compression is applied.
    Boost EQ selects the frequency shape for clean and dirty boost.

    treble: Tightens the bottom end by boosting mid to high frequencies

    mid: Fattens tone by pushing midrange frequencies

    flat: Full range frequency response


    Comp Type selects the type of compression.

    studio: Smooth compression as found in vintage rack compressors

    squeeze: Hard compression typical of classic guitar pedals
    Dry adjusts the amount of dry signal summed with the compressor output.
    Level adjusts the output level of the pedal by -6dB to +6dB when the compressor is engaged. Set to noon for unity gain.
    The Boost footswitch engages and disengages the variable boost independent of the compression circuit. Compadre's boost is post-compression.
    The Comp footswitch engages and disengages the VCA compressor independent of the boost circuit.

Vintage Inspiration, Modern Execution.
The Compadre design project started with a study of some of the finest analog compressors ever created, inspiring and guiding our circuit design process. Utilizing a VCA in the compression circuits allowed us to carefully tune the exact response and dynamics we desired for each voicing.

For Studio mode, our goal was to achieve the musical and transparent sound found within our favorite studio rack units and the best vintage studio console bus compression. Careful tuning of our detection circuit granted us exacting control over decay, especially important for Squeeze mode. With ample sustain on tap, we paid special attention to creating a completely smooth decay, with no unwanted pumping artifacts.
