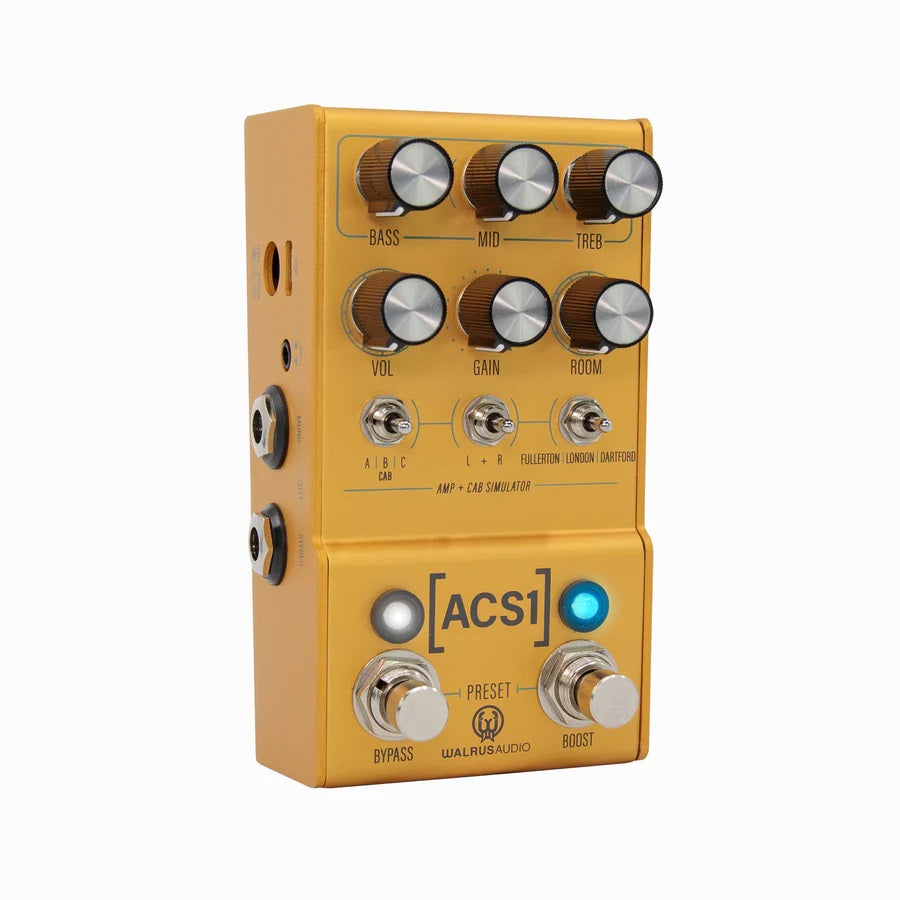

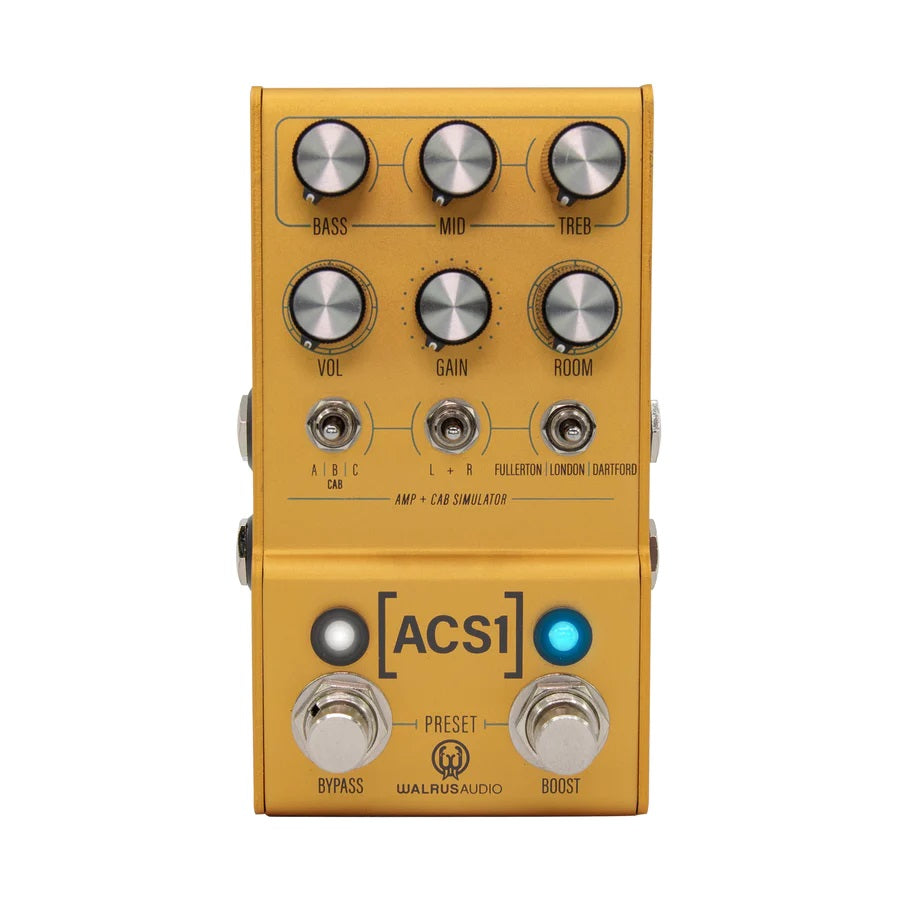

The [ACS1]™ is an amplifier and speaker cab simulator delivering the sound and feel of world-class amplifiers, complimentary speaker cabinets created by Tone Factor, and controllable room size. With the ACS1, players have expansive options to deliver their tone whether it's on stage, in the studio, or practicing at home. Simple controls, stereo in and out, onboard presets, and MIDI support make the ACS1 an immeasurable tool in a guitarist's arsenal.

Cabinet IRs:

- The ACS1 includes 6 IRs custom-engineered by David Hislop and Kenyon Reed at Tone Factor. Each IR has been created with vintage amps to deliver the best tonal representation possible.

- Visit tonefactor.com/ACS1 to explore their new XR IR Collection and see all of the complete IR packs with more microphones and placement options.

- Users also have the option to load their own IRs via our customer web app found at walrusaudio.io.

- Use the ABC Cab toggle switch to select your cab preference. Access the 2nd set of cabs by holding down bypass while changing the cab toggle position.

Room Ambience:

- Simulate the size of the room that your amp and cabinet are in. At 0, it would resemble tracking your amp in an isolated environment with no reverb. At max would emulate a natural-sounding, large studio environment.

Presets:

- Save up to 3 presets onboard by dialing in your favorite sound then pressing and holding the bypass and boost switch simultaneously. Both LEDs will flash confirming your settings were saved. Cycle through presets by pressing and releasing bypass and boost simultaneously. The pedal will cycle through the 3 onboard presets - red, green, and blue. When power is removed from the pedal, it will boot up in the last used preset. Using MIDI, up to 128 presets can be saved and recalled.

Boost:

- A boost feature is available by pressing the boost switch. It allows you to quickly jump to a preset level of volume and/or gain. The boost LED will flash letting you know that it is active. To set the boost, simply click the switch on and adjust the volume and gain knobs to taste. Pressing the boost switch again will save your boost settings and return the pedal to its normal level of volume and gain.

Stereo Amplifier and Cabinet Simulators at Your Feet:

- The ACS1 delivers vintage amplifier and custom speaker cabinets that can be mixed and matched in left and right channels. Need some clear headroom on the right and a little chime-y grit on the left? Easily dial in completely separate amps, cabs, EQ, gain and room reverb and save your favorite tones with 1 of 3 on-board presets (128 via MIDI).

3 Vintage Amps in 1 Box:

- Fullerton

- London

- Dartford

Specs:

- The ACS1 comes in an anodized gold finish with black and green ink

- The enclosure's exact size with knobs is 4.9" x 2.52" x 2.64"

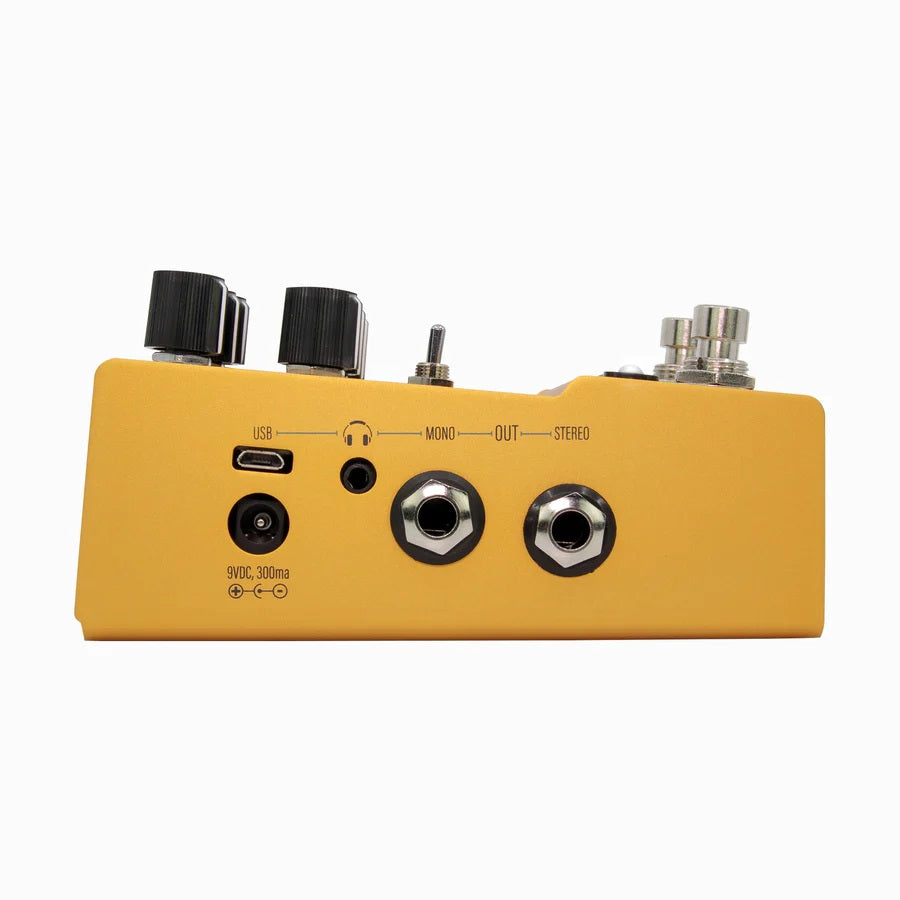

- Power requirements are 9 VDC (300 mA minimum)

- The use of an isolated power supply is recommended for powering all Walrus Audio Pedals. Daisy chain power supplies are not recommended. Power supply not included.

- 24-bit 48-kHz A/D and D/A converters for high-quality audio

- 32-bit floating-point processing

- Sharc & ARM co-processors

- Update firmware and load IR cabinets at www.walrusaudio.io
