Specs:
- Neck Type: GRGM | Maple Neck
- Top | Back | Body: Poplar Body
- Fretboard: Jatoba Fretboard | White Sharktooth Inlay
- Fret: Medium Frets
- Number of Frets: 24
- Bridge: F106 Bridge
- String Space: 10.5 mm
- Neck Pickup: Infinity R (H) Neck Pickup (Passive | Ceramic)
- Bridge Pickup: Infinity R (H) Bridge Pickup (Passive | Ceramic)
- Factory Tuning: 1E, 2B, 3G, 4D, 5A, 6E
- String Gauge: 0.010 | 0.013 | 0.017 | 0.026 | 0.036 | 0.046
- Hardware Color: Chrome

Neck Dimensions:
- Scale: 564 mm | 22.2"
- Width at Nut: 41 mm
- Width at 24th Fret: 56 mm
- Thickness at 1st Fret: 19.5 mm
- Thickness at 12th Fret: 21.5 mm
- Fingerboard Radius: 400 mmR

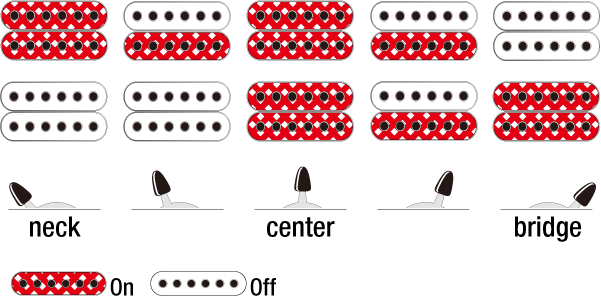

Switching System:
- When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, the bridge side of the neck pickup is selected. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, the bridge side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected.

Controls:
- With the guitar held in the playing position, there is 1 knob and 1 switch along the lower edge of the body. Closest to the neck is the 5-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the 5-way pickup selector switch.
