Specs:
- Neck Type: JSM | Nyatoh | Set-in Neck
- Top | Back | Side: Flamed Maple Top | Linden Back | Linden Sides
- Fretboard: Bound Rosewood Fretboard | Acrylic Block Inlay
- Fret: Medium Frets
- Number of Frets: 22
- Bridge: Gibraltar Performer Bridge
- String Space: 10.5 mm
- Tailpiece: Quik Change III Tailpiece
- Neck Pickup: Super 58 (H) Neck Pickup (Passive | Alnico)
- Bridge Pickup: Super 58 (H) Bridge Pickup (Passive | Alnico)
- Factory Tuning: 1E, 2B, 3G, 4D, 5A, 6E
- Strings: D'Addario® EXL140
- String Gauge: 0.010 | 0.013 | 0.017 | 0.030 | 0.042 | 0.052
- Hardware Color: Gold

Neck Dimensions:
- Scale: 628 mm
- Width at Nut: 43 mm
- Width at 22nd Fret: 57 mm
- Thickness at 1st Fret: 21 mm
- Thickness at 9th Fret: 24 mm
- Fingerboard Radius: 305 mmR

Body Dimensions:
- Body Length: 19 1/4"
- Maxiumum Body Width: 15 3/4"
- Maxiumum Body Depth: 2 5/8"

Switching System:
- When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. If the neck Tri-Sound switch is in neck position, the neck pickup is in parallel mode. If the switch is in center position, the neck side of the neck pickup is selected. If the switch is in bridge position, the neck pickup is in series mode.

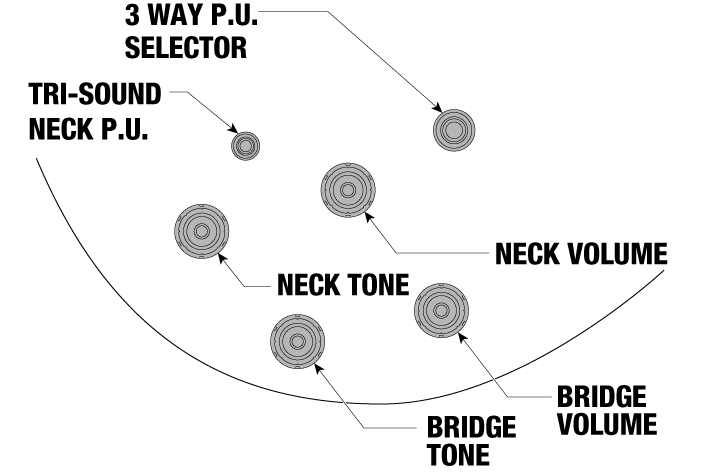

Controls:
- With the guitar held in the playing position, the knob closest to the end of the body is the tone knob. The knob closest to the neck is the volume knob.

Other Features:
- Tri-Sound Switch
