Amp your amp.

140-Watts of ferocious power, custom-designed to maximize Spark smart guitar amps. Plug in. Get loud.

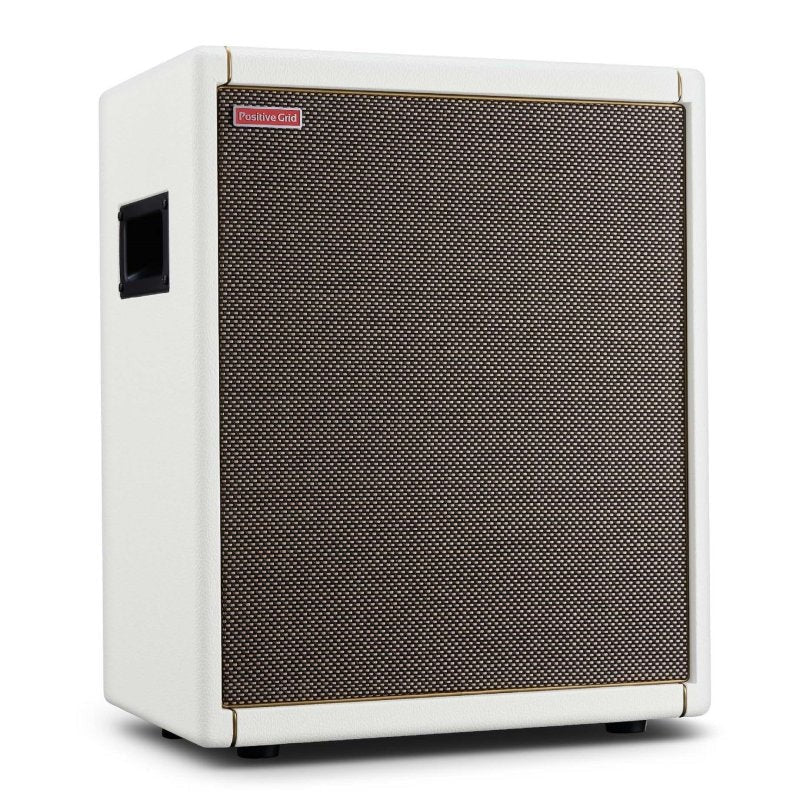

Spark CAB is compact enough to fit anywhere with high-quality sound big enough to blow the doors down. Live performances. Recording sessions. Home practice. CAB has you covered.

“Spark CAB is a game changer. If you love Spark, now you’ll be able to get all of those amazing patches and sounds you’ve created at gigging and recording levels!”

Elliot Easton Lead Guitarist, The Cars.

Power player.

Spark CAB features a 10-inch woofer and 2 high-frequency dome tweeters, powered by a built-in 140-Watt Class D amplifier. Get clear and accurate dynamic sound reproduction, with full range flat response (FRFR).

Outsized performance.

With plenty of power and headroom, CAB delivers authentic feel and high volume output. Precise and transparent audio reproduction allows players to hear every nuance, capturing the intricate details of every guitar tone.

All guitars welcome.

Spark CAB sounds so good, you’ll want to use it for your electric, acoustic and bass, too. With a full audio spectrum from 45-20,000 Hz, Spark CAB delivers great tone for all guitars.

It gets louder from here.

Spark CAB is optimized for Spark series amps, with a dedicated input that perfectly aligns with Spark’s sonic output. But you can use it for any other modeler, instrument or amp with a direct out.* Plug ‘em in for gig-level sound anywhere.

AUDIO SPECIFICATIONS
FREQUENCY RANGE 45-20,000 Hz
STEREO/MONO MONO
MAXIMUM SOUND PRESSURE LEVEL 117 dB (RMS), 120 dB (Peak)
CABINET PRINCIPLE Bass Reflex
POWER AMPLIFIERS 140 Watt Class D Amplifier
SPEAKERS 1x10-inch woofer, 2x1-inch (25mm) tweeter
TOTAL IMPEDANCE 4 ohms
CONTROLS AND CONNECTIVITY
BACK PANEL CONTROLS
Input Selector - Switch between the 3.5 mm Spark Input and the two mono XLR/TRS Combo Inputs
Speaker Volume
Line Out Volume
Ground Lift Switch
Contour Switch - Boosts low and high frequencies to improve balance at low volumes
WIRED CONNECTIVITY
1 x 1/8" dedicated stereo Input for Spark Amp
2 x mono XLR/TRS combo inputs
1 x mono XLR balanced output
PHYSICAL UNIT
DIMENSIONS 492.5 x 399.8 x 255 mm (with rubber feet) (19.39 x 15.74 x 10.04 in)
WEIGHT 13.5 kg / 29.76 lbs
GRILLE CLOTH Woven
Handle 2 recessed speaker handles on the sides
Cable Tie 1 adjustable cable tie for fixing instrument and audio cables on the back
INCLUDED IN THE BOX
BOX CONTENTS
3.5mm stereo audio cable for Spark amps
DC power cable for Spark 40
Power cord
Quick Start Guide
Safety Instructions Card
POWER
MAIN INPUT POWER AC 100-240V
DC POWER OUTPUT For Spark 40
DC 19V/2.5A
USB-C POWER OUTPUT For Spark MINI & GO
DC 5V/2A
