Features

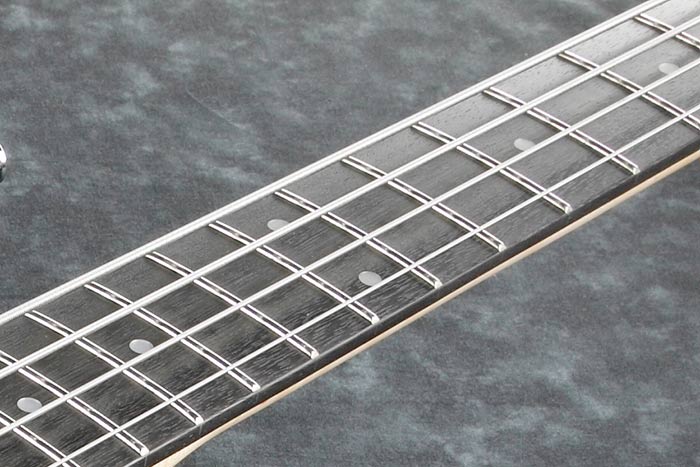

Purpleheart fretboard
The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this bass.

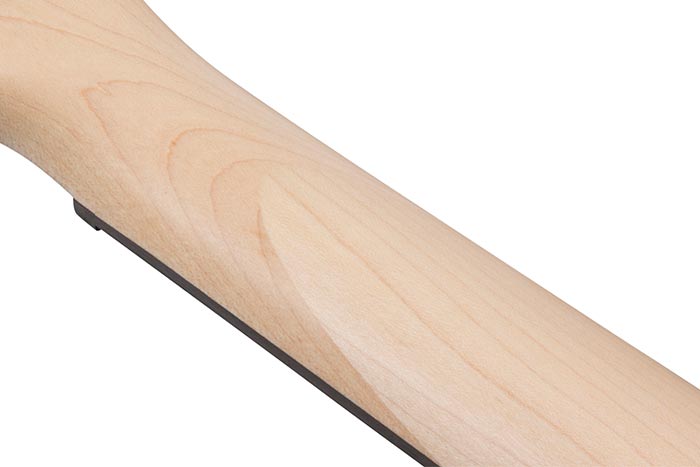

Maple neck
The Maple neck provides stability and bright tonal character.

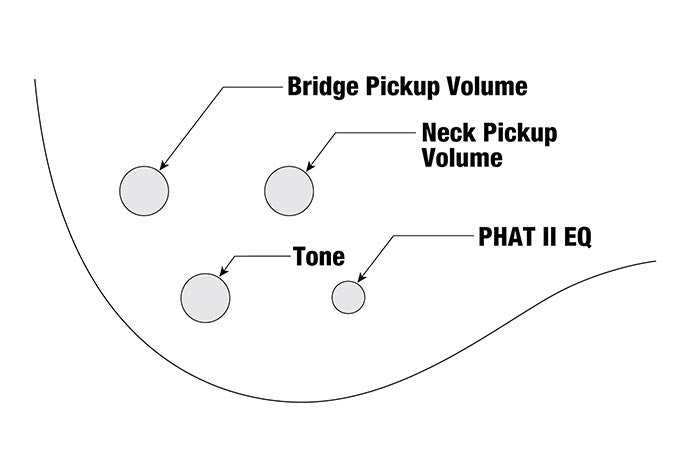

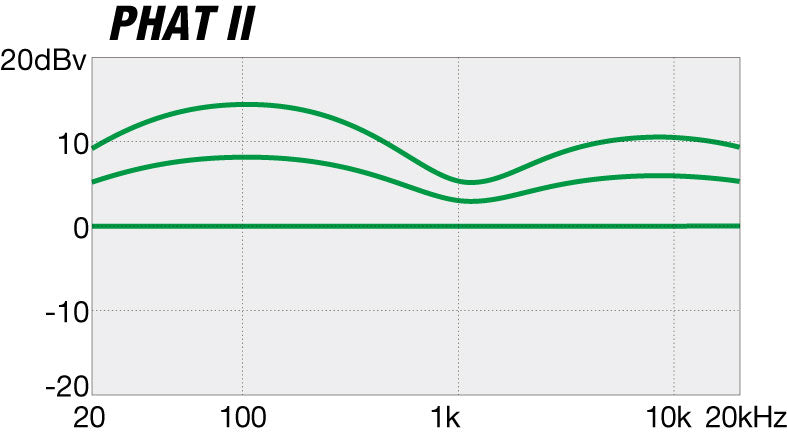

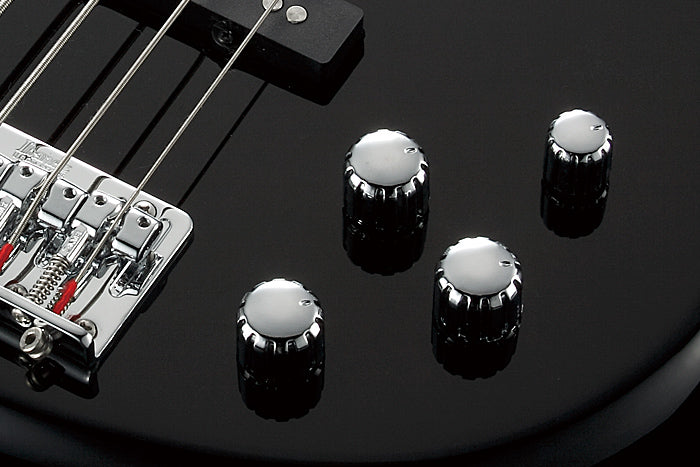

Phat II EQ
Phat II active bass boost adds additional low-end power.

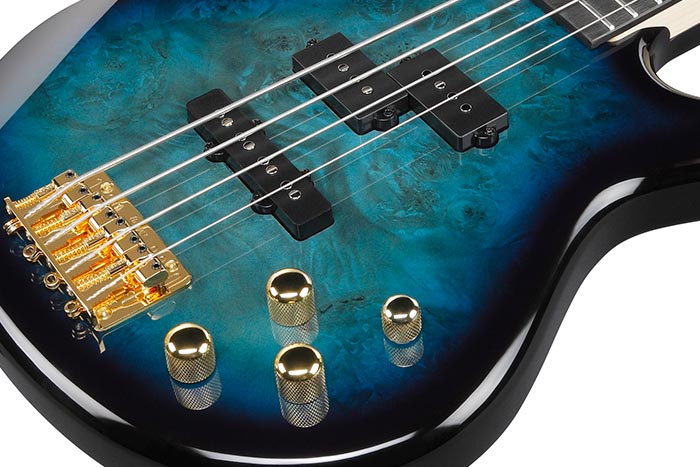

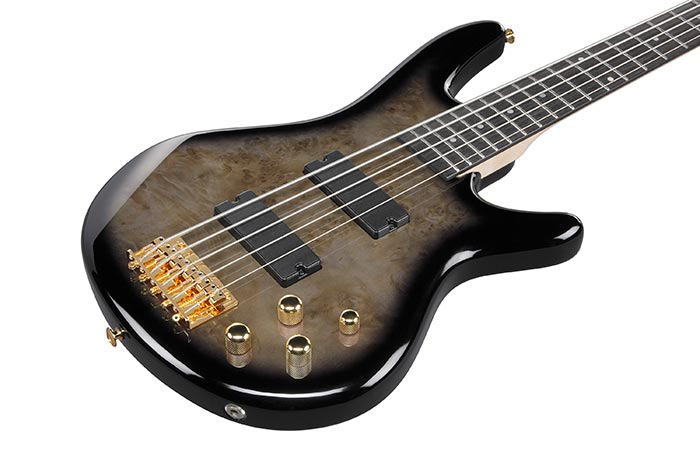

PB Canvas Art Grain top / Okoume body
The PB Canvas Art Grain top displaying a gorgeous wood grain and the Okoume body provide a bright and solid sound.

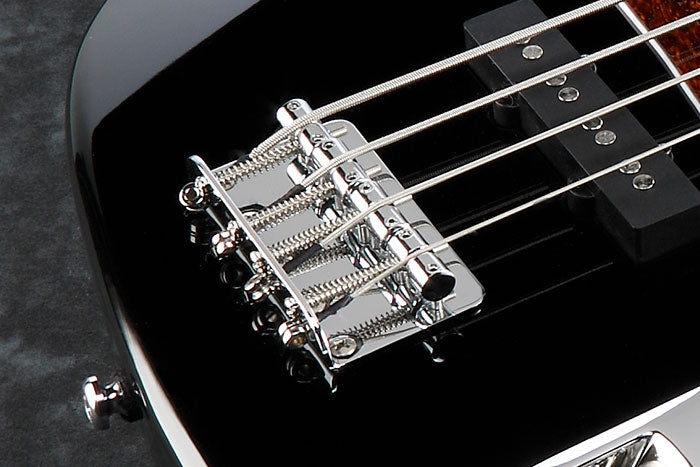

B10 series bridge
The B10 bridge allows fully adjustable intonation and solid tuning stability.

SPECS
• Neck Type: GSR5Maple neck
• Top/Back/Body: PB Canvas Art Grain/Okoume topOkoume body
• Fretboard: Purpleheart Fretboard White Dot Inlay
• Fret: Medium Frets
• Number Of Frets: 22
• Bridge: B15 Bridge
• String Space: 16.5mm
• Neck Pickup: Dynamix H Neck Pickup Passive
• Bridge Pickup: Dynamix H Bridge Pickup Passive
• Equalizer: Phat II EQ
• Factory Tuning: 1G,2D,3A,4E,5B
• String Gauge: .045/.065/.080/.100/.125
• Hardware Color: Gold

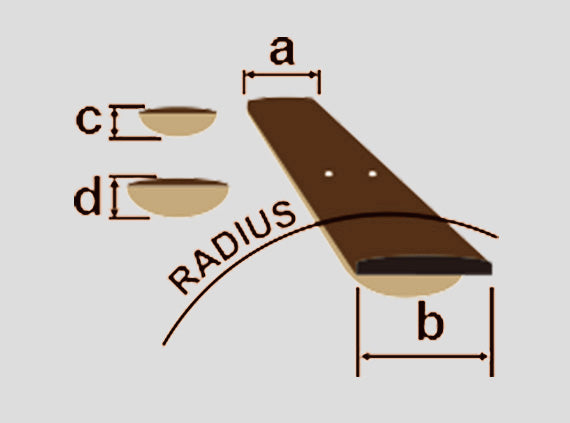

NECK DIMENSIONS
Scale : 864mm/34"
a : Width: 45mm at NUT
b : Width: 67mm at 22F
c : Thickness: 21mm at 1F
d : Thickness: 22mm at 12F
Radius : 305mmR
