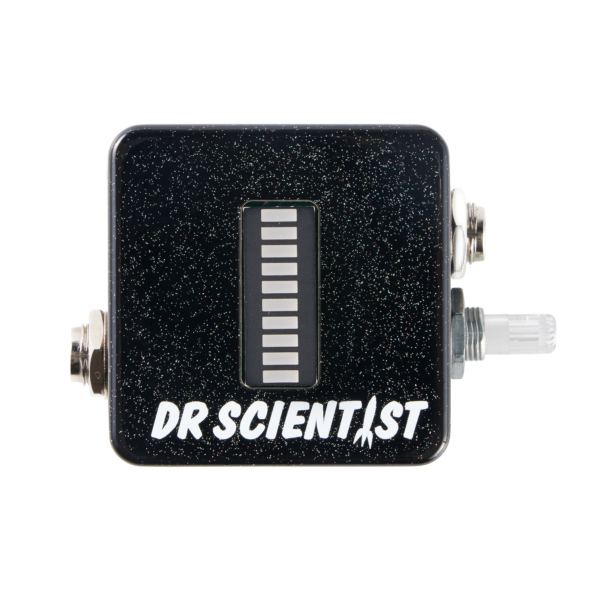

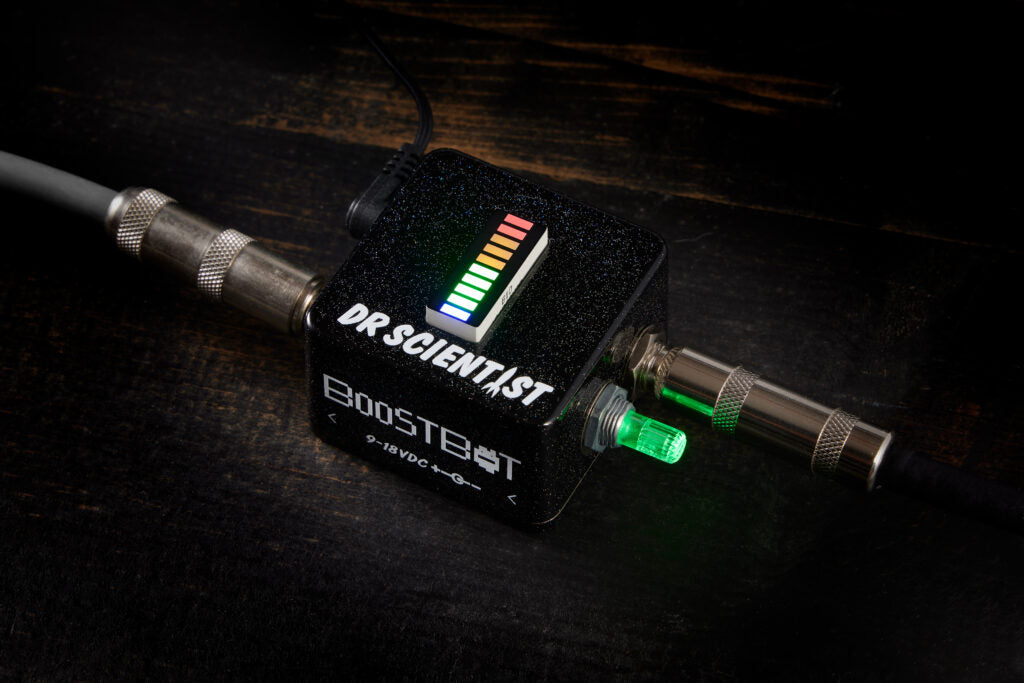

The BoostBot is an always-on, ultra-compact clean boost with dynamic, real-time level display meter. The boost circuit is a classic op amp design, a clean and loud amplifier that sounds great and provides 20dB of boost. Displaying the signal level is a classic 10 Segment Bar Graph LED. Like all Dr. Scientist pedals the BoostBot can be used with guitar, bass, synths, and many other instruments.



Features
20dB of clean boost
Bright Bar Graph LED to display your signal level
Illuminated volume control
Ultra-compact design
Available in several different colours
High quality analog signal path
Premium parts and components throughout
Designed and handmade in B.C., Canada

Operation
1MΩ input impedance, 1kΩ output impedance
75mA @ 9VDC, 150mA @ 18VDC, 2.1mm centre negative
The BoostBot is always on
Additional Specs
Mono input, mono output
Dimensions: 73mm wide, 51mm long, 42mm tall (2.0” wide, 2.0” long, 1.7” tall)
