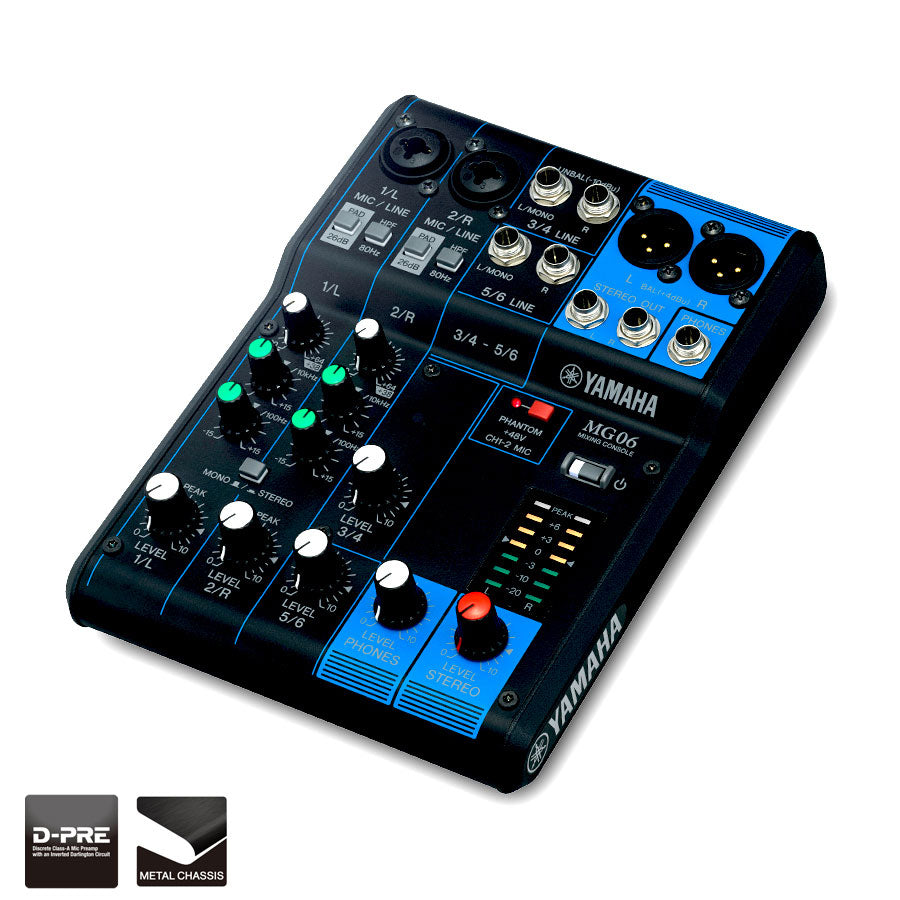

6-Channel Mixing Console: Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo) / 1 Stereo Bus

6-Channel Mixing Console
Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)

• 1 Stereo Bus


• “D-PRE” mic preamps with an inverted Darlington circuit


• XLR balanced outputs


• PAD switch on mono inputs


• +48V phantom power


• Metal chassis


• Dimensions(W×H×D): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9")


• Net Weight: 0.9 kg (1.98 lbs.). Specs

Outline

• I/O Phantom power +48 V


• Input Channels Mono[MIC/LINE] 2


• Stereo[LINE] 2


• Output Channels STEREO OUT 2


• PHONES 1


• Bus Stereo: 1


• Input Channel Function PAD 26 dB (Mono)


• HPF 80 Hz, 12 dB/oct (Mono)


• EQ HIGH (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving


• EQ LOW (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving


• PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping


• Level Meter 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]

General specifications

• Total harmonic distortion 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min


• Frequency response +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min


• Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150?, GAIN knob: Max)


• Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)


• Crosstalk -88 dB


• Power requirements PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha


• Power consumption 12 W


• Dimensions W 149 mm (5.9")


• H 62 mm (2.4")


• D 202 mm (7.9")


• Net weight 0.9 kg (1.98 lbs.)


• Accessories Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A


• Others Operating Temperature: 0 to +40C
