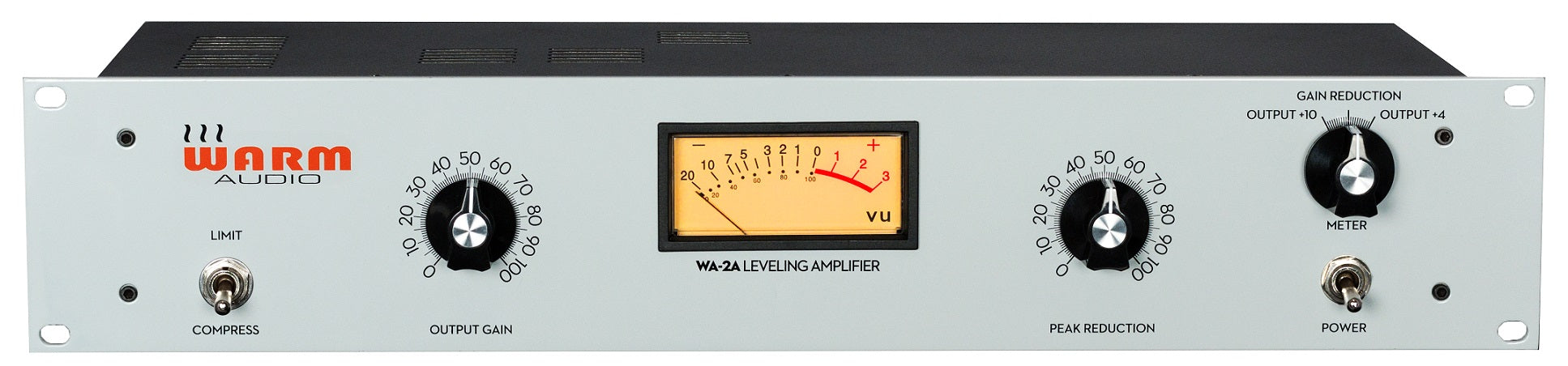

Warm Audio - Compressor WA2A

$1,359.00
Steve's Code: 60116
Barcode: 638142859097

Description


-'2A Style, Transformer balanced, high voltage, opto (Light controlled) tube compressor

-Fully discrete signal path

-Utilizes custom USA made CineMag input and output transformers

-Utilizes USA made Kenetek opto attenuator. Socketed to allow for retro-fitting with other opto-cells

-Premium Tung-Sol and Electro-Harmonix tubes. 2x 12ax7, 1x 12bh7, 1x 6aq5 (or 6p1 - interchangeable)

-Variable Pre-emphasis, allows for compression hipass filtering

-Stereo-link capability

-XLR and TRS balanced line level inputs - 600 ohms impedance

-XLR and TRS balanced line level outputs - 600 ohms impedance

-Frequency Response +/- 1 dB, 15 Hz to 20kHz

-Gain 40 dB ±1dB

-Input Level +16 dB maximum

-Output Level +10 dB nominal, +16 dB maximum

-Distortion Less than 0.1% THD at ±10 dBm

-Noise  = -74dB

-Attack Time - 10 milliseconds

-Release Time - 0.06 seconds for 50% release; 0.5 to 5 seconds for complete release

-Meter shows both dB gain reduction and dB output

-Power - 115/230 volts (switchable), 50/60 Hz

-Dimensions - 19" Rackmount chassis, 2U. 19" x 7" x 3.5"
