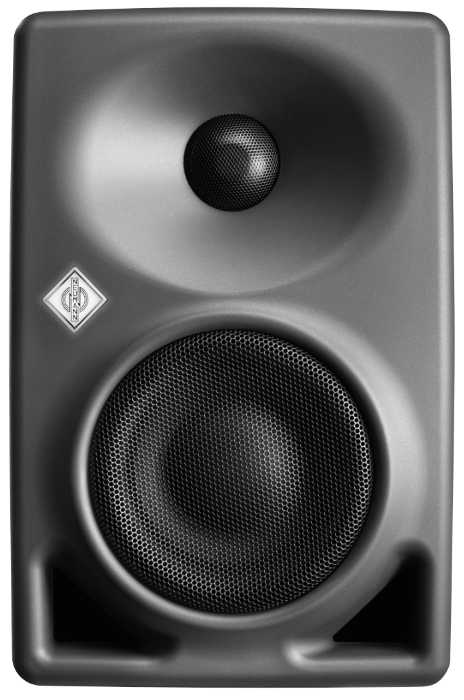

Neumann is pleased to announce the launch of the KH 80 DSP, Neumann’s frst DSP Studio Monitor. As a result, this monitor features greater consistency, improved accuracy and more ?exibility than its analog counterparts. The KH 80 DSP two-way (4” + 1”) active bi-amplifed monitor features a DSP engine with network control, a Mathematically Modeled Dispersion™ Waveguide (MMD™), an analogue input and an extensive range of mounting hardware. A standard IP network connection allows the monitoring system to be controlled using Neumann.Control which runs on a PC/Mac computer or Android/iOS tablet. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations. The KH 80 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.

Target Groups

The KH 80 DSP is designed for use as a near-field monitor, as a front loudspeaker in a mid-sized multichannel system, or as a rear loudspeaker in a larger multi-channel system. It can be used in music, broadcast centers, OB vans, and post production studios for tracking, mixing, and mastering. Due to its small size, it is also well-suited for desktop applications and domestic environments.

Key Features

•
  • 4” + 1” drivers powered by high efciency 120 and 70 W amplifers


•
  • Computer modeled and optimized drivers and MMD™ waveguide


•
  • 57 Hz (-3 dB) bass extension and 108.1 dB SPL at 1 m


•
  • DSP engine with standard IP networking and Neumann.Control sofware


•
  • Precision Alignment automation

Package Contents

•
  • 1x KH 80 DSP


•
  • 1 Mains Cable


•
  • 1x Safety Booklet


•
  • 1x Getting Started Quickly Guide


•
  • 1x Set of Stick-on Feet

Compatibility

The KH 80 DSP can be used with our existing range of analog Studio Monitors and Subwoofers.
