Launched in 1995, JBL’s best-selling EON family of PAs set the benchmark for how great a powered loudspeaker system can be.

The JBL EON710 10-inch loudspeaker is part of JBL’s new EON700 Series of powered PAs, which represents a major step forward in innovation and technology: JBL engineers used exclusive, state-of-the-art design and measurement techniques to deliver the best-performing loudspeakers in their category, regardless of application.

The EON700 Series leverages the latest acoustic science, transducer designs, cabinet materials and advanced DSP and control technologies to deliver extraordinary performance in a fully professional, highly flexible, easy to use, portable system.

With four models available, including the 10-inch EON710, the 12-inch EON712 and the 15-inch EON715 powered PA speakers and the 18-inch EON718S subwoofer, EON700 systems cover the needs of today’s working musicians and sound providers.
Features

- Custom-designed 10-inch woofer
- 2414H compression driver
- Redesigned high-frequency horn
- Power: 1,300W peak / 650W RMS
- Frequency response: 52 Hz–20 kHz (-10 dB); 65 Hz–20 kHz (-3 dB)
- Max SPL: 125 dB
- Dispersion: 110° H x 60° V

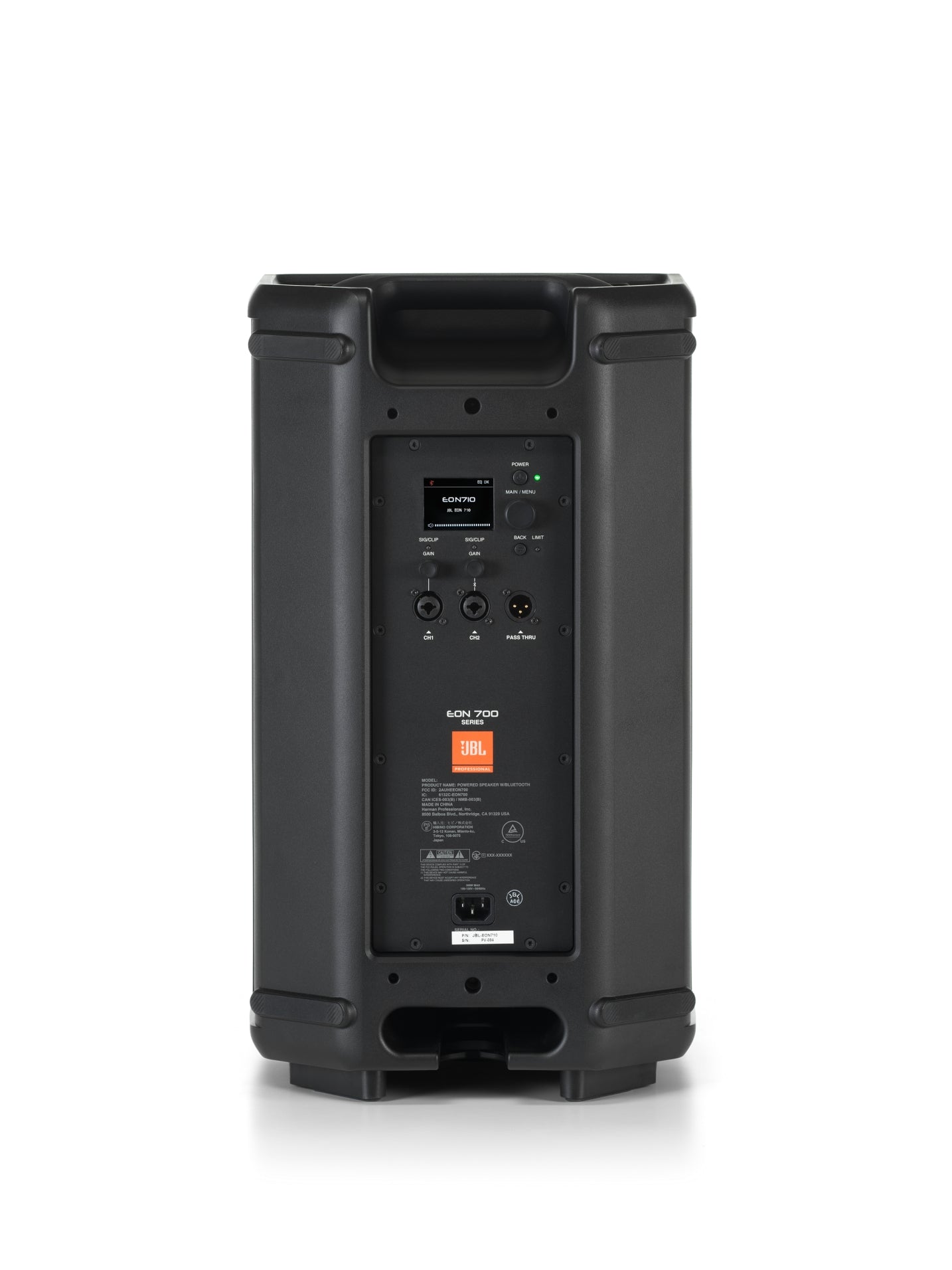

- Audio I/Os: 2 XLR Combo, 1 XLR passthrough
- Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
- Built-in 3-channel digital mixer
- Backlit color LCD screen provides easy access to functions
- Universal JBL Pro Connect app control
- Bluetooth 5.0 streaming and control
- Durable talc-reinforced polypropylene cabinet and metal grille

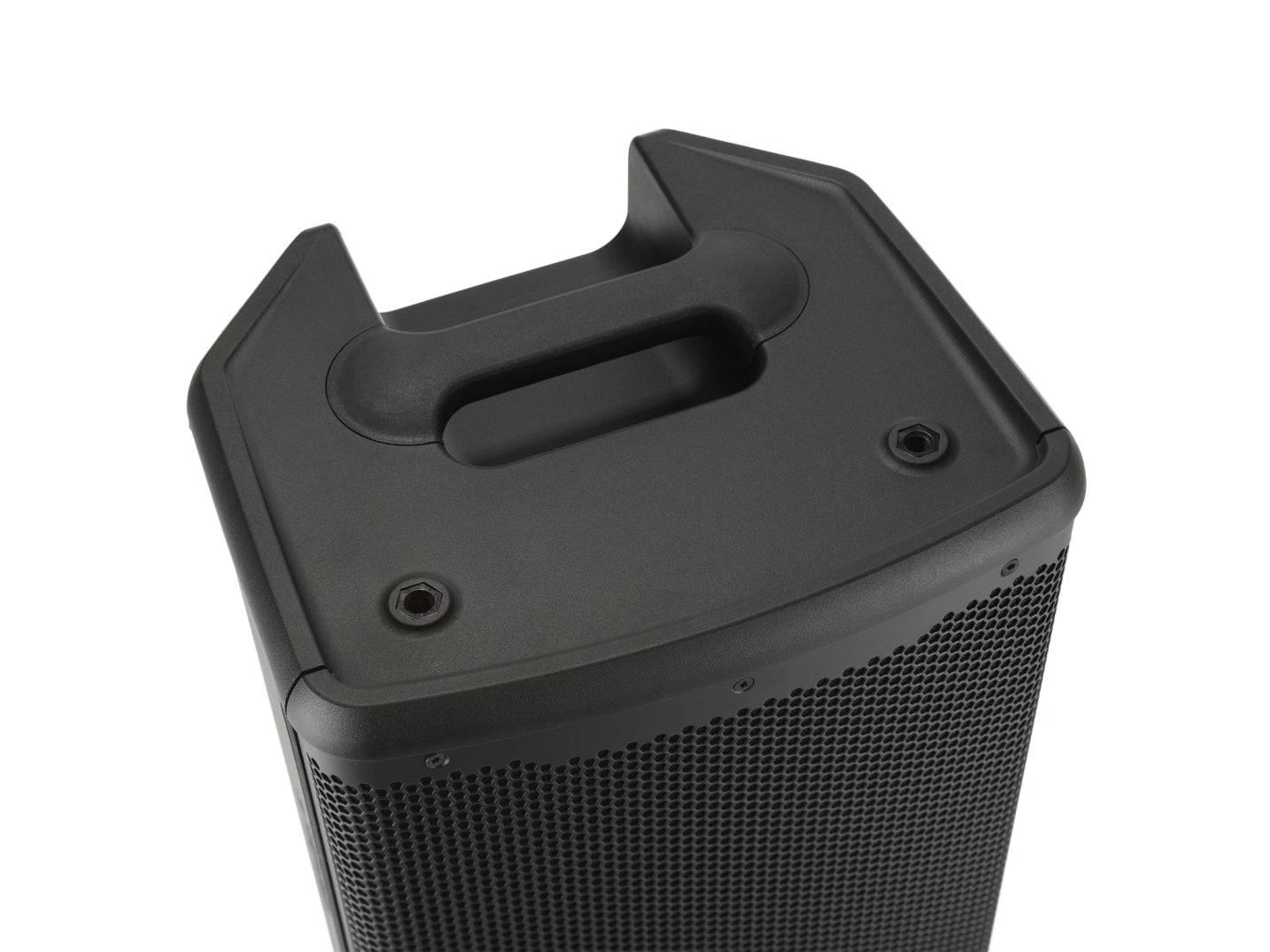

- Ergonomic handle simplifies transport
- Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
- Stackable cabinets allow easy storage
- Dimensions: 23.11 x 13.07 x 11.81 in (587 x 332 x 300 mm) (HxWxD)
- Weight: 26.2 pounds (11.9 kg)
- Shipping dimensions: 24.72 x 17.63 x 16.37 in (628 x 448 x 416 mm) (HxWxD)
- Shipping weight: 33.1 pounds (15 kg)

Acoustics and Amplifier
JBL’s advanced waveguide and transducer technologies, coupled with highly efficient amplification, ensure uniform coverage across the entire listening area, even when you push the system to the limit.

The EON710’s woofer is redesigned for lower impedance and higher efficiency, an improved horn delivers a smooth off-axis beamwidth and JBL’s powerful 2414H compression driver features a premium neodymium magnet for balanced response in a lightweight footprint. The speaker is powered by 1,300 watts of ultra-efficient discrete Class D amplification, for clean, clear sound. It all adds up to superior coverage, consistency and intelligibility at any volume.

Advanced DSP and Control
The EON710’s advanced DSP package provides comprehensive control over EQ, limiters, delay, dbx Automatic Feedback Suppression, ducking and other functions. Access settings on-speaker using an integrated backlit LCD screen, or from anywhere in the venue using the JBL Pro Connect App. Built-in Bluetooth audio streaming and control take advantage of the newest protocol’s security features, low latency, broad range and improved audio fidelity. Set up TWS (True Wireless Stereo) Bluetooth streaming using a free firmware update available in the JBL Pro Connect app.

System Versatility
EON710 loudspeakers can be used as main PA speakers or floor monitors. Top and rear suspension points enable flying speakers; rear suspension points serve as connections for fixed installations, using an optional universal yoke mount.

Indexed feet molded into enclosures enable a range of acoustic configurations and secure stacking for traditional stand-up configurations and convenient storage and transport. (Companion EON718S subwoofers feature a threaded pole mount for full-range speakers and are easily stacked for cardioid configurations.)

Rugged and Reliable
All audio products have useful lives, and JBL engineers are committed to making that lifespan as long as possible—not only in terms of reliability, but in terms of how good the system sounds every time it’s turned on.

The EON710 is housed in an FEA-optimized composite enclosure, taking advantage of injection-molding and mechanical-shaping techniques for added durability without sacrificing cabinet size or performance. Computer-optimized ergonomic handles make moving boxes a breeze.

Like every JBL Professional product, the EON710 undergoes stringent testing that goes above and beyond any conditions the product would face in the real world. Our industry-leading 100-hour power test ensures longevity so musicians and audio engineers can rely on JBL components in any scenario.

Specifications
System Type 10IN Powered Loudspeaker
Woofer Model 710G
Woofer Size 10"
Woofer Magnet Ferrite
Woofer Voice Coil 2"
Tweeter Model 2414H Compression Driver
Tweeter Size 1"
Tweeter Magnet Neodymium
Transducer Impedence LF 4ohm rated, HF 8ohm rated
Max SPL 125dB @1m/4Pi
Freq Range -10 52Hz - 20kHz
Freq Range -3 65Hz - 20kHz
Hor Dispersion 110°
Vert Dispersion 60°
Power Rating 1300W peak / 650 RMS
AC power input 100V-120V or 220V-240V
Cooling Passive
LED indicators 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs
Input Impedance 50k/100k un-balanced/balanced
Input Gain -∞ to +36db
Crossover Frequency 2 kHz
I/O 2 XLR Combo Jacks / BT
1 XLR M Thru
Cabinet PP+10% Talc
Grille 16GA perforated steel with acoustically transparent black cloth backing
Suspension / Mounting 4 M10 Suspension points, 36mm Pole Socket, Universal yoke bracket holes
Handles 1, Cable channel on bottom
Net Weight 12kg (26.46 lbs.)
Gross Weight 15.2kg (33.51 lbs.)
Product Dims HxWxL 587x332x305mm (23.11x13.07x12 in.)
Shipping Dims HxWxL 606x439x407mm (23.86x17.28x16.02 in.)
