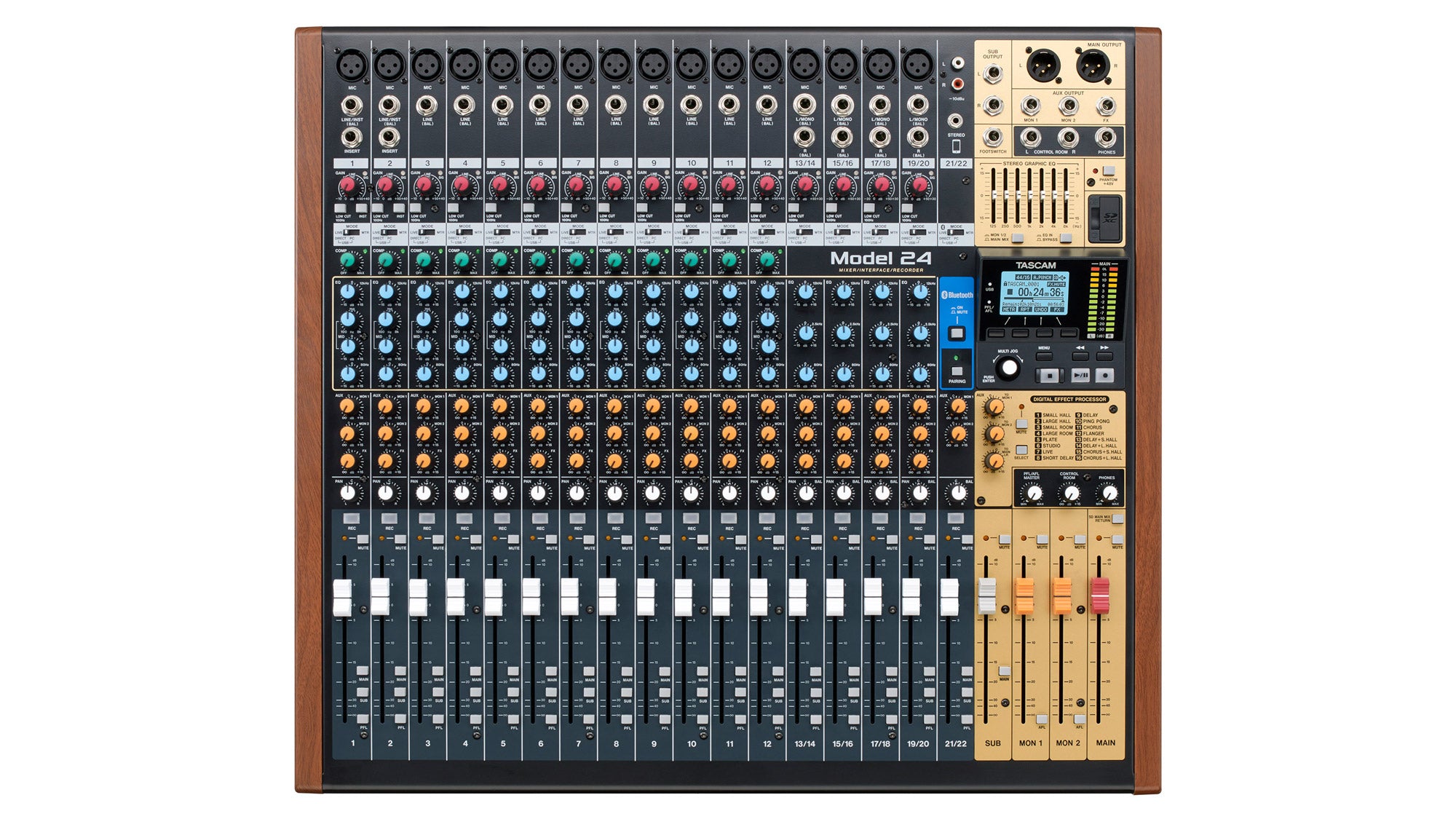

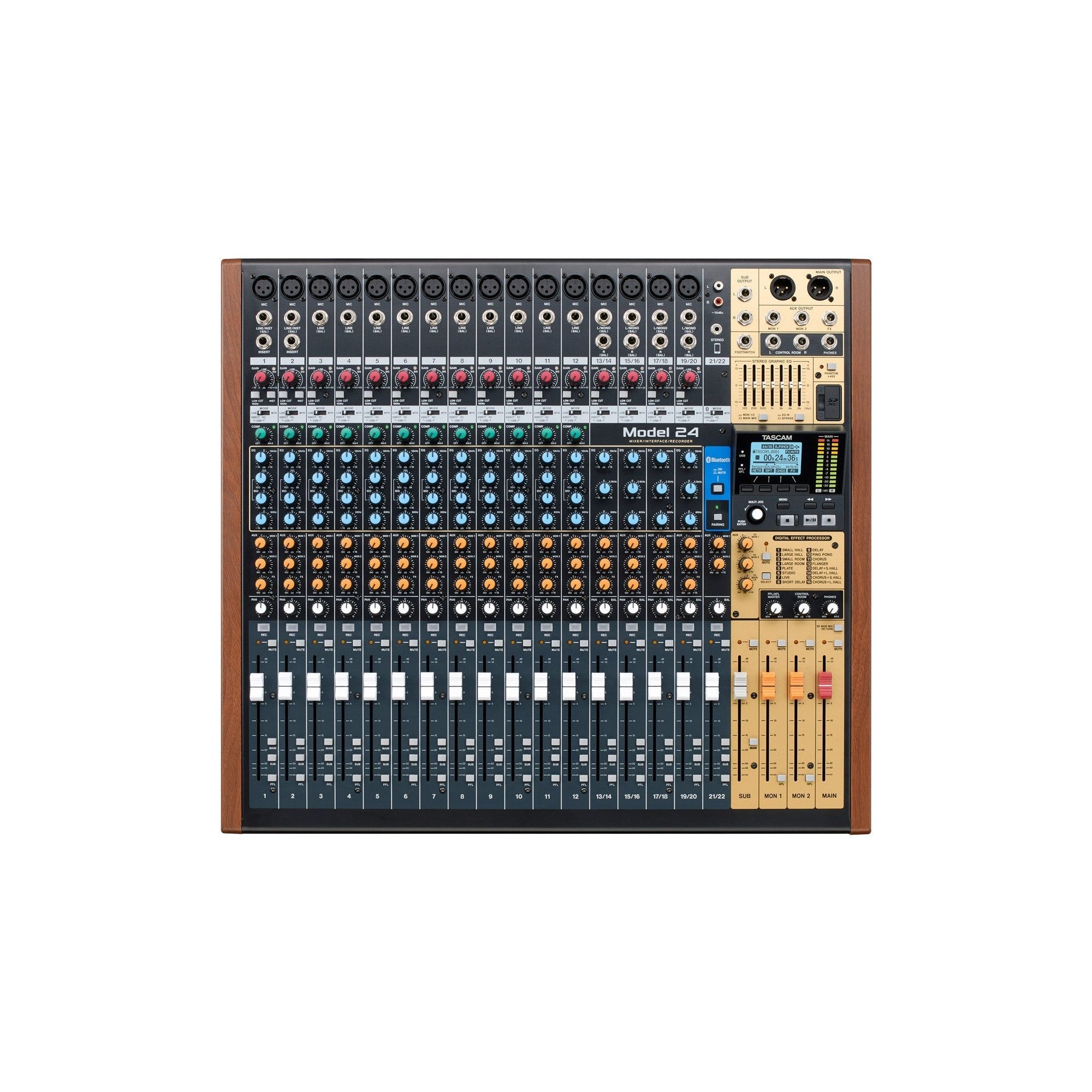

Tascam - Model 24 Multi-Track Live Recording Console

$1749.00
Out of stock
This item is not currently in stock but is available for purchase. You can contact our Internet sales department at support@stevesmusic.com for inquiries about expected delivery dates.
Cart Images Add to cart

Steve's Code : 79964

Manufactured By : Tascam

Features at a glance

All-in-One, Multitrack Recorder with 22 channel Mixer and USB Audio Interface
WAV 48kHz/24-bit, 24 channel multitrack recording to SD, SDHC and SDXC cards
Built-in USB Audio Interface to send/receive audio data to/from DAW
22 Inputs (20 Balanced, 12 Monaural, and 4 Stereo)
16 TASCAM Microphone Preamps
Input Mode switch on every input channel
TASCAM Ultra-HDDA Mic Pre-amp (Channels 1 to 12)
Preamp Gain Controller with Overload indicator (Channels 1 to 12)
3-band EQ with a sweepable mid-range frequency (Channels 1 to 12)
100kHz Low-cut Filter (Channels 1 to 12)
7-band Graphic EQ
16 Pre-set Effects
100mm Long-throw Faders for precise adjustment
Mute, Main/Sub, PLF switches on every input channel
Bluetooth® input supporting both AAC and SBC codecs
SUB Outputs via XLR Balanced and RCA Unbalanced connectors
LINE Inputs via RCA Pin and ⅛" Stereo Mini jacks
3 AUX Outputs (Monitor 1, Monitor 2, FX)
1 Stereo Output for Control Room
Phantom Power (+48V)
¼" Stereo Headphone Output
Backlit buttons for key operations such as REC and Play
Multi Jog-dial for quick menu operation
12-segment LED Output Level Meters



Spec description
Recording section
Supported Media SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 128GB), Class 10 or higher required.
File System SD card: FAT16, SDHC card: FAT32, SDXC card: exFAT
Recording File Format WAV
Playback Format WAV
Sampling Frequency 44.1k / 48k Hz
Bit Depth 16 / 24-bit
Recordable Channel Max. 24 channels (22ch + 2 stereo mix)
Audio Inputs
MIC IN CH1 to 12, 13/14 to 19/20
Connector XLR 3-31 (1: GND, 2: HOT, 3: COLD)
Maximum Input Level +10dBu
Nominal Input Level –8dBu
Minimum Input Level –58dBu
Gain Adjustable Range 0 to 50dB
Input Impedance 1.8kΩ
Phantom Power supply +48V
LINE IN CH1 to 20
Connector 1/4" (6.3mm) TRS Phone jack (Balanced)
Maximum Input Level +22dBu
Nominal Input Level +4dBu
Gain Adjustable Range –10 to +40dB: CH1 to 12, +20 to +30dB: CH13/14 to 19/20
Input Impedance 22kΩ
INSERT CH 1 and 2
Connector 1/4" (6.3mm) TRS Phone jack (T: Send, R: Return, S: GND)
Return (Ring)
Maximum Input Level +18dBu
Nominal Input Level 0dBu
Input Impedance 10kΩ
Send (Tip)
Maximum Output Level +18dBu
Nominal Output Level 0dBu
Output Impedance 100Ω
RCA INPUT
Connector RCA Pin jack (Unbalanced)
Maximum Input Level +8dBV
Nominal Input Level –10dBV
Input Impedance 10kΩ
STEREO INPUT
Connector 1/8" (3.5mm) Stereo Mini jack (Unbalanced)
Maximum Input Level +8dBV
Nominal Input Level –10dBV
Input Impedance 10kΩ
OUTPUTS
MAIN OUTPUT
Connector> XLR 3-32 (1: GND, 2: HOT, 3: COLD)
Maximum Output Level +22dBu
Nominal Output Level +4dBu
Output Impedance 100Ω
SUB OUT, MONITOR, FX OUT, CONTROL ROOM OUT
Connector> 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND)
Maximum Output Level +16dBu
Nominal Output Level -2dBu
Output Impedance 100Ω
PHONES OUT
Connector 1/4" (6.3mm) Stereo Phone jack
Output Level 80mW + 80mW (32Ω loaded)
REMOTE Compatible with TASCAM RC-1F Foot Switch
Connector 1/4" (6.3mm) TS Phone jack
USB Audio for connection with PC
Sampling Rate 44.1k / 48k Hz
Bit Depth 16 / 24-bit
Maximum INPUT and OUTPUT 24 Inputs / 22 Outputs
USB
Connector USB B type 4-pin
Format USB2.0 High-Speed, Mass-storage class/USB Audio Class
Bluetooth®
Output Class Class 2 (Transmission range: approx. 33ft. / 10 m)
* Transmission range may vary, depending on surroundings.
Bluetooth® version 4.0
Supported Profile A2DP, AVRCP 1.0
Supported A2DP Codecs SBC, AAC
A2DP Content Protection SCMS-T
Channel EQ
Low-Cut 100Hz, –18dB / Octave
Hi-Shelving +15dB / –15dB, Cut off frequency: 12kHz
Mid Peaking
(MONO): +15dB / –15dB, 100Hz to 8kHz Variable
(STEREO): +15dB / –15dB, Center frequency = 600Hz
MID Band Q Fix, 0.55
Low-Shelving +15dB / –15dB, Cut off frequency = 80Hz
Graphic EQ
Band 7-Band
Frequency 125 / 250 / 500 / 1k / 2k / 4k / 8k Hz
Gain +15dB / –15dB
FX
Type 1: SMALL HALL / 2: LARGE HALL / 3: SMALL ROOM / 4: LARGE ROOM / 5: PLATE / 6: STUDIO / 7: LIVE / 8: SHORT DELAY/ 9: DELAY / 10: PING PONG / 11: CHORUS / 12: FLANGER / 13: DELAY + S.HALL / 14: DELAY + L.HALL / 15: CHORUS + S.HALL / 16: CHORUS + L.HALL
Power AC 100 to 240V, 50/60Hz
Power Consumption 52 W
Dimensions (W×H×D) 576 × 513 × 112.5 mm (including side panels, knobs and connectors)
540 × 503 × 112.5 mm (excluding side panels. including knobs and connectors)
including Side panels 22.67" × 20.20" × 4.43" / 576 × 513 × 112.5 mm (including knobs and connectors)
excluding Side panels) 20.26" × 19.80" × 4.43" / 540 × 503 × 112.5 mm (including knobs
Operating Temperature 41˚ to 95˚F / 5˚ to 35˚C
Include Items AC Cord, Owner's manual (incl. Warranty card)

Audio Performance
Residual Output Noise –100dBu (MAIN OUT, MAIN fader: MIN)
Equivalent Input Noise –128dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Total Harmonic Distortion 0.01% or less (MIC IN to MAIN OUT, Max input level, 1kHz, GAIN min.)
0.004% or less (MIC IN to MAIN OUT, +4dBu, 1kHz, GAIN min.)
Frequency Response 20Hz to 30kHz (+0.5/–1.0dB: Analog)
20Hz to 20kHz (+0.5/–1.0dB: Digital)
Crosstalk –80dB, channels/input and output (1kHz, PAN fully counter clockwise/fully clockwise)
Maximum Gain 74dB (MIC to MAIN OUT)
50dB (MIC to INSERT OUT)
74dB (MIC to SUB OUT)
79dB (MIC to CR OUT)
75dB (MIC to MONITOR OUT)
75dB (MIC to FX OUT)
24dB (USB/SD to MAIN OUT)
(EQ and-EQ flatten, PAN fully counter clockwise/fully clockwise)


Supported PC
Windows
Compatible Computers Windows-compatible computer with a USB2.0 port
CPU Dual core / 2GHz or faster
Memory 2GB or more
Driver USB Audio Class 2.0, Model 24 ASIO2.0, WDM (MME)
Screen Resolution 1280 × 800 Dots or more
Macintosh
Compatible Computers Apple Macintosh computer with a USB2.0 port
CPU Dual core / 2GHz or faster
Memory 2GB or more
Driver Core Audio
Screen Resolution 1280 × 800 Dots or more

Supported Os'
Windows
Windows 10 (April 2018 Update) New , Windows 8.1 , Windows 7
Mac
macOS High Sierra (10.13) , macOS Sierra (10.12) , OS X El Capitan (10.11)
