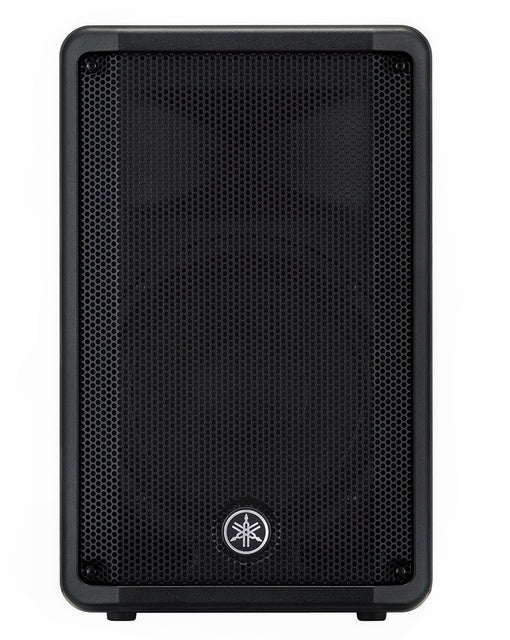

Yamaha - DBR12 [Each]

$599.99
Steve's Code: 53008
Barcode: 86792992426
By Yamaha

Yamaha - DBR12 [Each] is backordered and will ship as soon as it is back in stock.

Description

Yamaha DBR12









































































































Speaker type 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 52Hz ? 20kHz
Nominal coverage H 90?
V 60?
Components LF Diameter:12" cone, Voice Coil:2", Magnet:Ferrite
HF Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
Crossover 2.1kHz: FIR-X tuning? (linear phase FIR filter)
Output power Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
Maximum output level (1m; on axis) 131dB SPL
I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation Fan cooling, 4 speeds
Power requirements 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption 74W(1/8 Power Consumption), 18W(Idle)
Cabinet material Plastic
Finish Black
Handle Side x 2
Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
Pole socket 35mm (Bottom x 1)
Dimensions W 376mm (14.8")
H 601mm (23.7")
D 348mm (13.7")
Net weight 15.8 kg (34.8 lbs)
Accessories BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)

YDR101116
