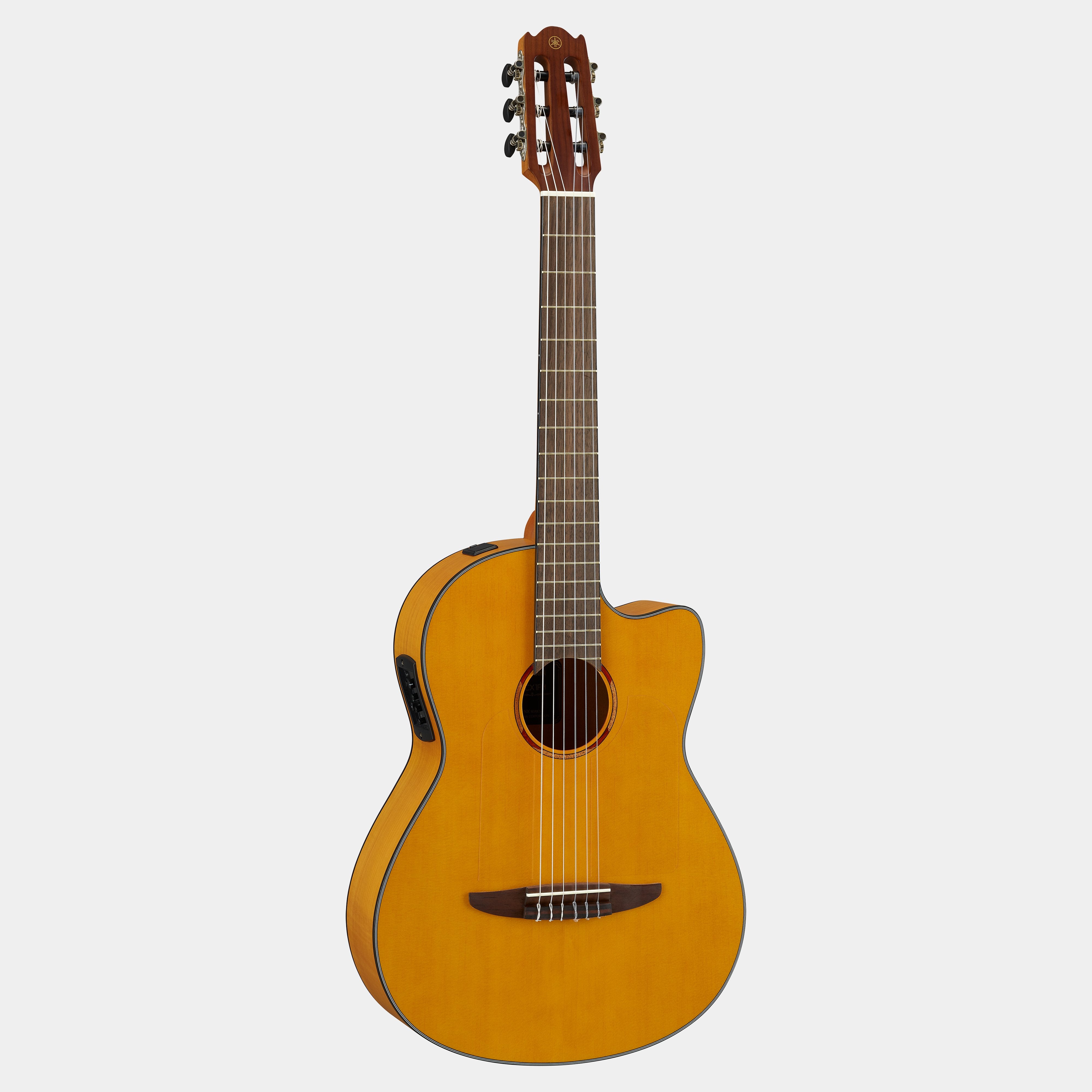

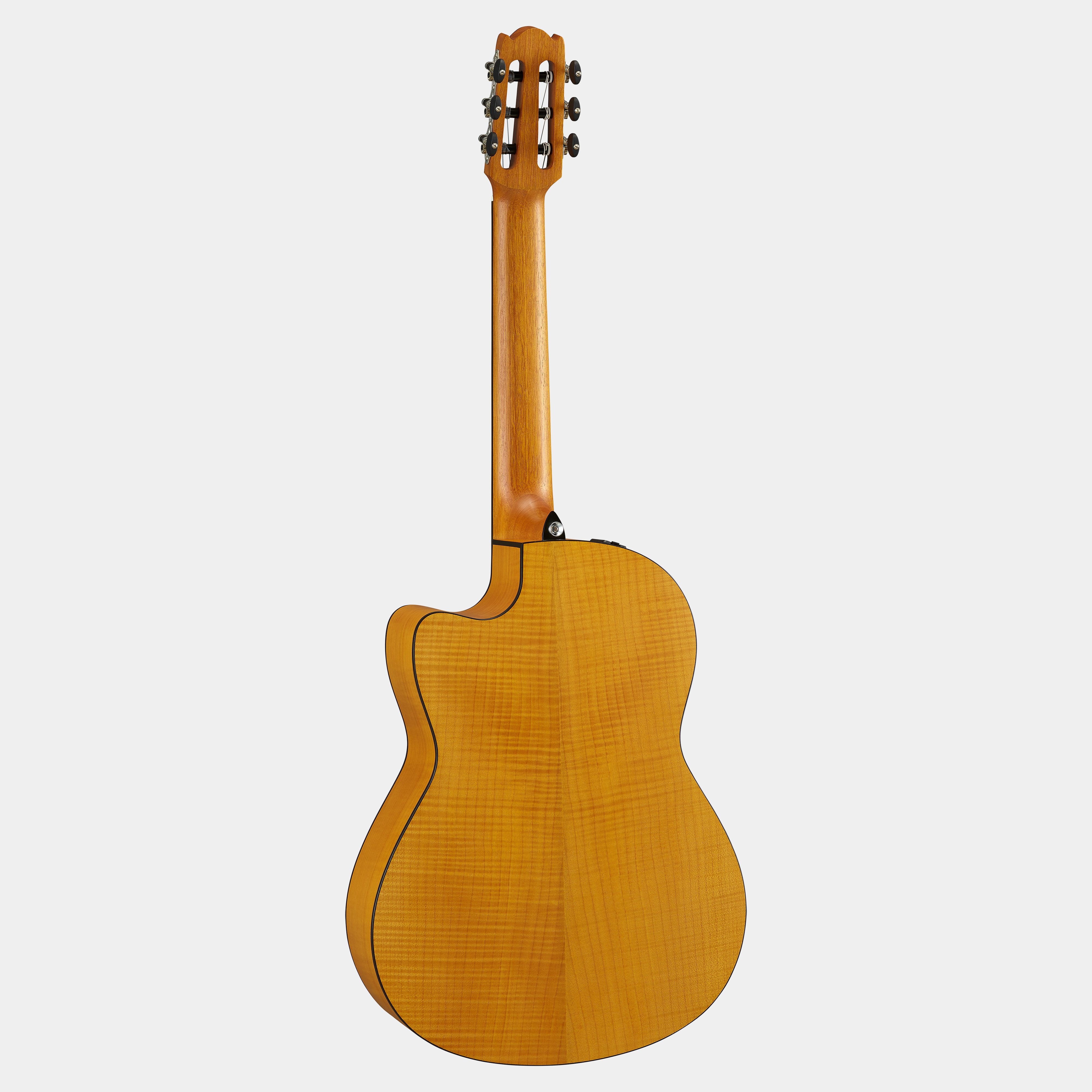

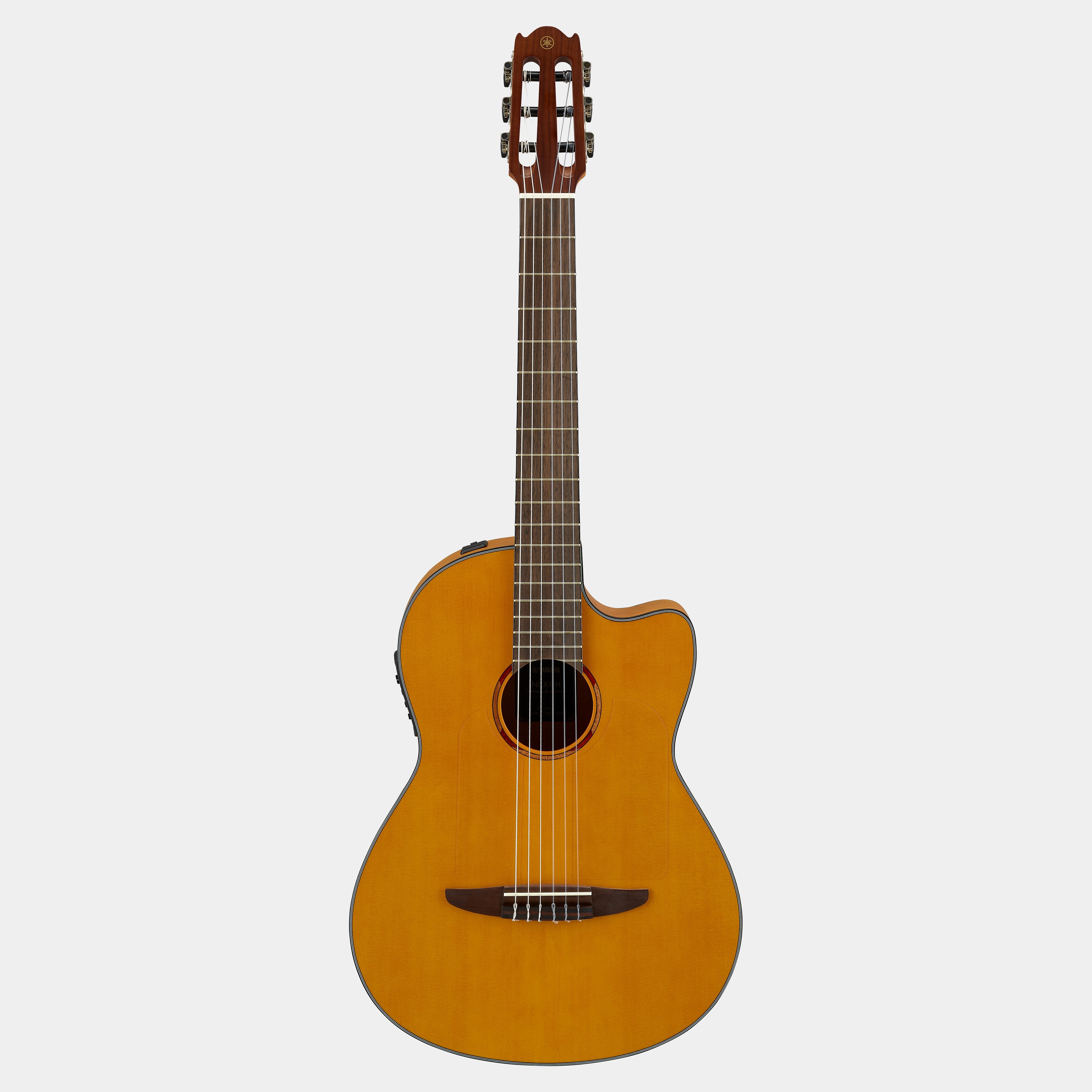

The NCX1 acoustic-electric guitar’s contemporary appearance, traditional neck profile, and advanced electronics make it an excellent choice for nylon-string players seeking superior amplified sound, while its strap buttons and exceptional amplified sound make it especially appealing to performing guitarists.

Contemporary style with traditional neck profile
Advanced preamp and Micor system with onboard tuner
Solid Sitka spruce top
Flamed maple back and sides
Walnut fingerboard
Performance-friendly strap buttons

Body Color NT
Body Shape Yamaha CG Cutaway Shape
Scale Length 650mm (25 9/16”)
Body Length 490mm (19 5/16")
Total Length 990mm (39")
Body Width 370mm (14 9/16")
Body Depth 94-100mm (3 11/16" - 3 15/16")
Nut Width 52mm (2 1/16")
String Spacing * 11.8mm
Top Material Solid Sitka Spruce
Back Material Flame Maple
Side Material Flame Maple
Neck Material Nato
Fingerboard Material Walnut
Fingerboard Radius Flat
Bridge Material Ebony + Walnut
Nut Material Urea
Saddle Material Urea
Bridge Pins None
Mécanique Chrome w/ Matt Black Shaft (RM11acou6)
Body Binding Black + White
Soundhole Inlay Mahogany + Padauk
Pickguard Clear Tap Plate
Body Finish Matt
Neck Finish Matt
Electronics Undersaddle 3-band EQ preamp with tuner
Controls Master Vol/Bass Vol/Treble Vol/3-band EQ/Tuner
Connections LINE OUT
Strings Medium (Yamaha S10)
Accessories Hex Wrench, 2 x AA Battery
Case None
