• 2500 W peak (1600 LF + 900 HF) 1250 W continuous RMS (800 LF + 450 HF)


• FREE Alto App (iOS/Android) for remote configuration and control


• Bluetooth® audio streaming direct from device


• On-board DSP with 4 Speaker Use modes (inc. Custom EQ via App)


• True Wireless Stereo speaker linking via Bluetooth®


• Integrated 3-channel mixer with dual XLR ¼-inch combo inputs, mic/line switches and independent level controls


• XLR Mix output, Speaker Use, and Sub Size Controls


• 15” driver, 2.5” (63 mm) high-temperature voice coil


• 1” exit ceramic driver with 1.4” (35 mm) coil


• Lightweight enclosure for easy transport, set up and installation


• Versatile design - pole-mountable, wedge monitor or flown application with integral M10 suspension points


• Powerful and efficient class D amplifiers with fanless cooling design to run cleaner, quieter and with greater long-term reliability


• Designed and tuned in the USA

 Louder. Clearer. Smarter.

Where TS3 exceeded expectations, TS4 redefines them completely.

Building on the legacy of our best-selling TrueSonic speakers, the TS4 Series delivers increased power, clearer sound, and advanced Bluetooth functions including streaming, speaker linking, and App control.

Compact, lightweight, and designed for reliability, the new TS4 Series makes it simple to get great live sound at every event.

True Sonic Power
Whether you need a powerful vocal PA or club-shaking bass performance for a DJ set, TS4 speakers deliver loud, clear, room-filling sound for any application.

With a 15-inch woofer, and a 1.4-inch compression driver, TS415 delivers 2500W of class-leading power and clarity in equal measure.

FREE Alto App for remote configuration and control
Available free for both Android and iOS, the Alto App gives hands-on remote control over Bluetooth levels, Speaker Use Modes, Custom EQ and Sub Size selection.  Further, True Wireless Stereo linking can be configured remotely via the app to save time during setup. Download for Android Download for iOS
Built-In 3-channel mixer

Every TS4 features an integrated 3-channel mixer, with two Mic/Line input channels and a dedicated Bluetooth channel. The Mic/Line channels feature XLR/TRS combo jacks and can be used with microphones, instruments, and line-level signals without the need for additional hardware or adjustment. Just plug straight into the rear panel and you’re up and running.

Simple Bluetooth Streaming & Speaker Linking
The ideal high-powered streaming solution, TS4’s built-in Bluetooth connectivity makes it easy to pair your laptop, phone or tablet and get the music pumping in no time at all.

With the True Wireless Stereo function you can stream Bluetooth audio to two TS4 speakers in perfect stereo without the need for any cables.

DSP Modes for the best sound in every application
TS4’s three preset “Speaker Use” modes let you optimize the speaker for any application, so you’ll get great sound every time at the touch of a button. For even more control over your sound, you can configure a Custom EQ within the Alto App and remote adjust the settings from any listening point in the venue. You can even save your favorite Custom EQ setting direct to the TS4 for easy recall whenever you need it.

Versatile and Reliable
From the high-quality drivers to the fanless class D amplifiers, every aspect of the TS4 Series has been designed for superb reliability, whether used for mobile gigs and performances or fixed installation.

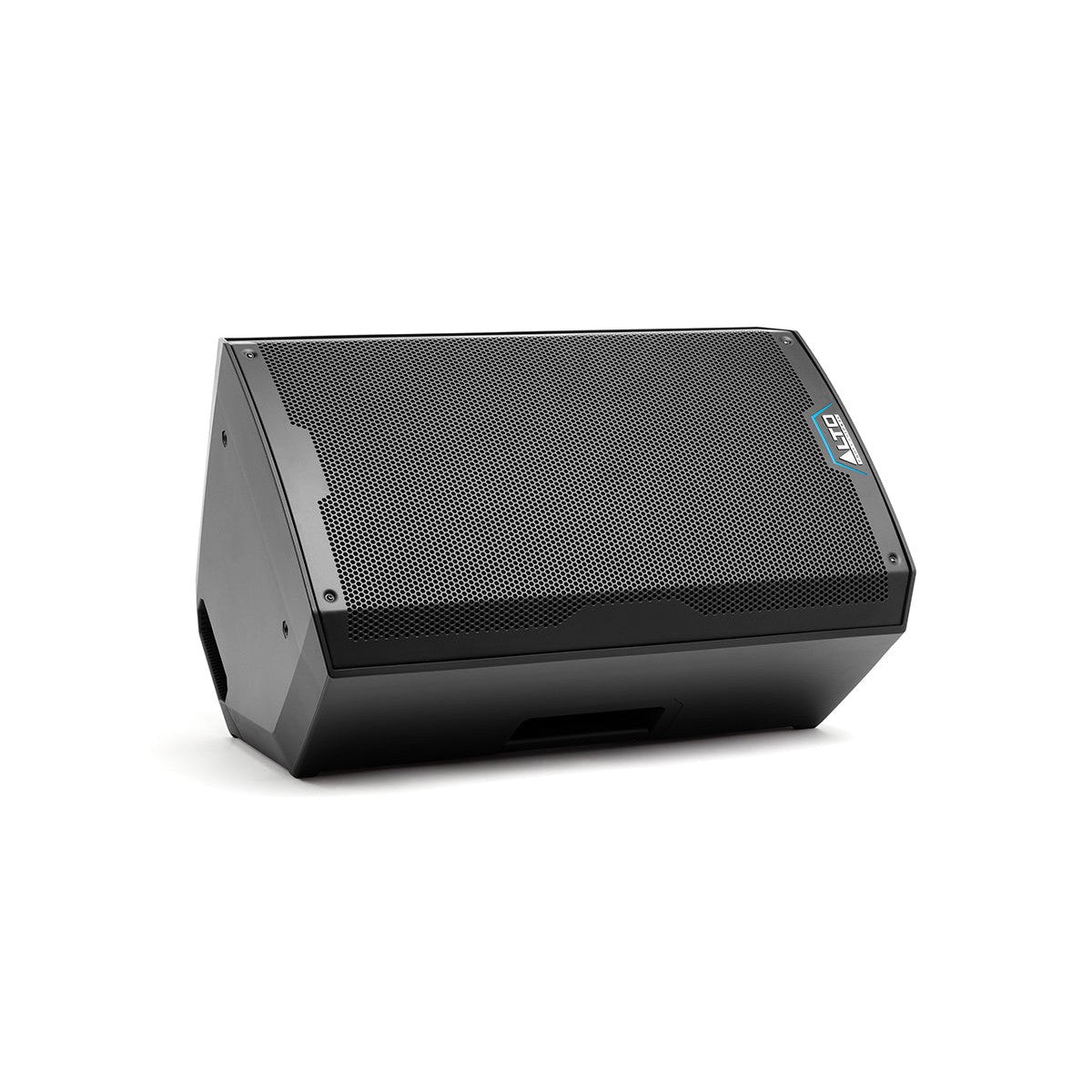

Each speaker features a lightweight, sleek, black box design that can be used as the application demands - freestanding, as a wedge monitor, pole-mounted or suspended via the integrated suspension points.

Level up your live sound. Choose Alto Professional’s TS4 Series.

TECH INFORMATION
Output Power 2500 W peak (1600 LF + 900 HF) 1250 W continuous RMS (800 LF + 450 HF)
Low-Frequency Driver: 15.0” driver, 2.5” (63 mm) high-temperature voice coil. 1 x 800 W RMS @ 2 Ω.
High-Frequency Driver: 1.0” exit ceramic driver with 1.4” (35 mm) coil. 1 x 450 W @ 4 Ω.
Crossover Frequency: 2 kHz
Maximum SPL: 135 dB (peak), 132 dB (continuous) (dB-SPL @ 1 m)
Frequency Response: 44 Hz – 20 kHz (+/- 3 dB)
Frequency Range: 33 Hz – 20 kHz (-10 dB)
Horn Coverage: 90° horizontal x 60° vertical (nominal)
Connectors: (2) XLR+1/4” (6.35 mm) TRS combo inputs (Balanced), (1) XLR output (Link), (1) IEC power cable input
Input Impedance Line: 10 KΩ balanced, 20 KΩ unbalanced, Mic: 1.2K
Line Gain/Volume Control Range: -∞ to 0 dB, +4 dBu nominal, +10 dBu for max output
Mic/Inst. Gain/Volume Control Range: -∞ to +50 dB
USB Charging Port: 5V 2.1A
Controls: Power switch, (2) gain control knobs (1 per input), (2) Mic/Line switches, Bluetooth volume control encoder, Pairing button, Stereo Link button, Sub Size button, Speaker Use button
Indicators:(1) Input Channel Signal/Limit/Clip LED (Green = Ch1/2 Signal) (Yellow = Ch1/2 Limiter) (Red = Ch1/2 Output Clipped), (1) Bluetooth LED (Blue), (1) Link LED (Orange), (4) DSP Presets LED (Green), (3) HPF LED (Green)
Power Connection: IEC
Voltage: 100-120V, 50/60Hz; 220-240V, 50-60Hz
Consumption: 1100W
Fuse: 100-120V T15AL AC250V; 220-240V T6.3AL AC250V
Protection: Electronic clip, thermal, and transducer overdrive protection
Enclosure: Injected Molded Enclosure and Perforated Metal Grille
Mounting/Installation: Standard 36 mm pole socket, flown application with integral M10 suspension points, or in a wedge monitor position
Operating Temperature: -10°C to 45°C (14°F to 113°F)
Dimensions: (height x width x depth) 25.3” x 16.4” x 15.8” / 643 x 417.5 x 402 mm
Weight: 38.0 lbs. / 17.2 kg
