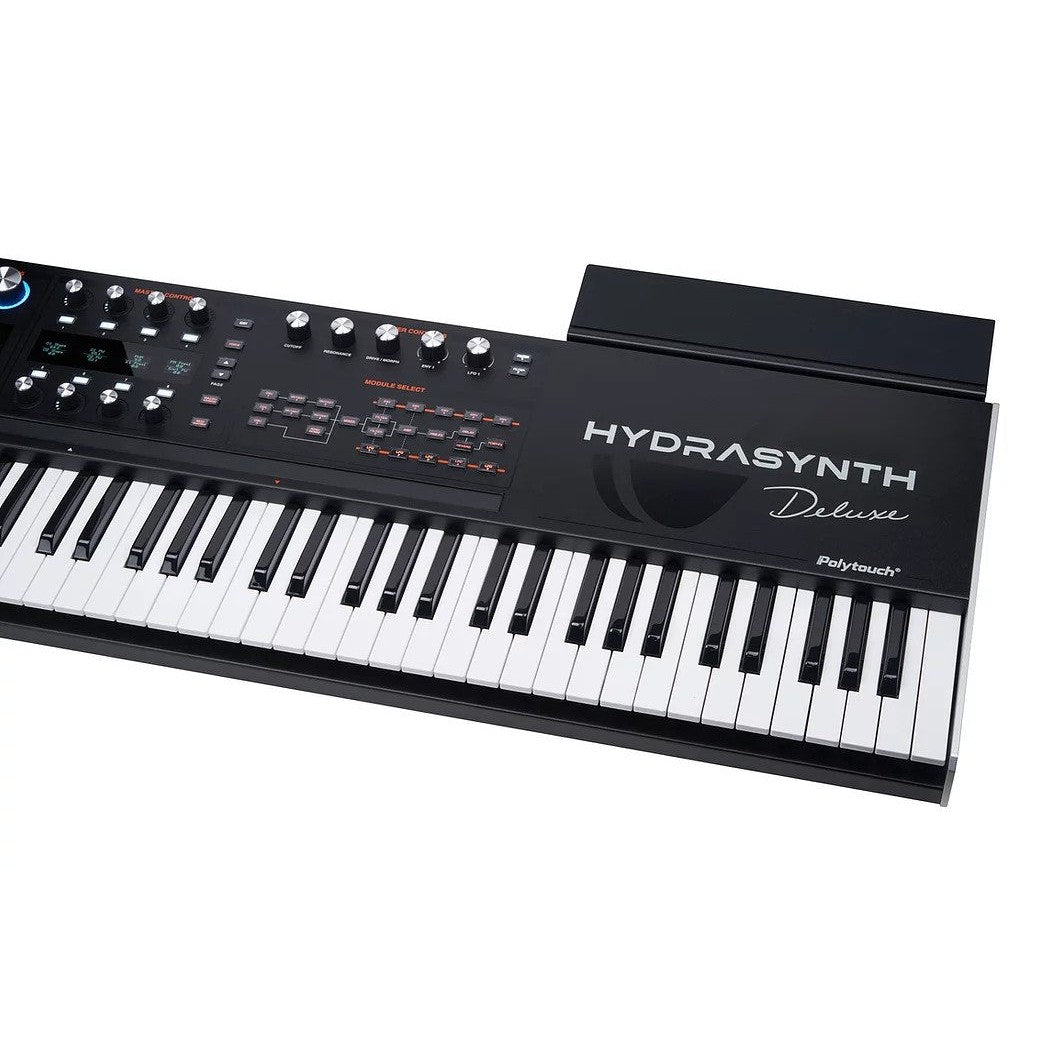

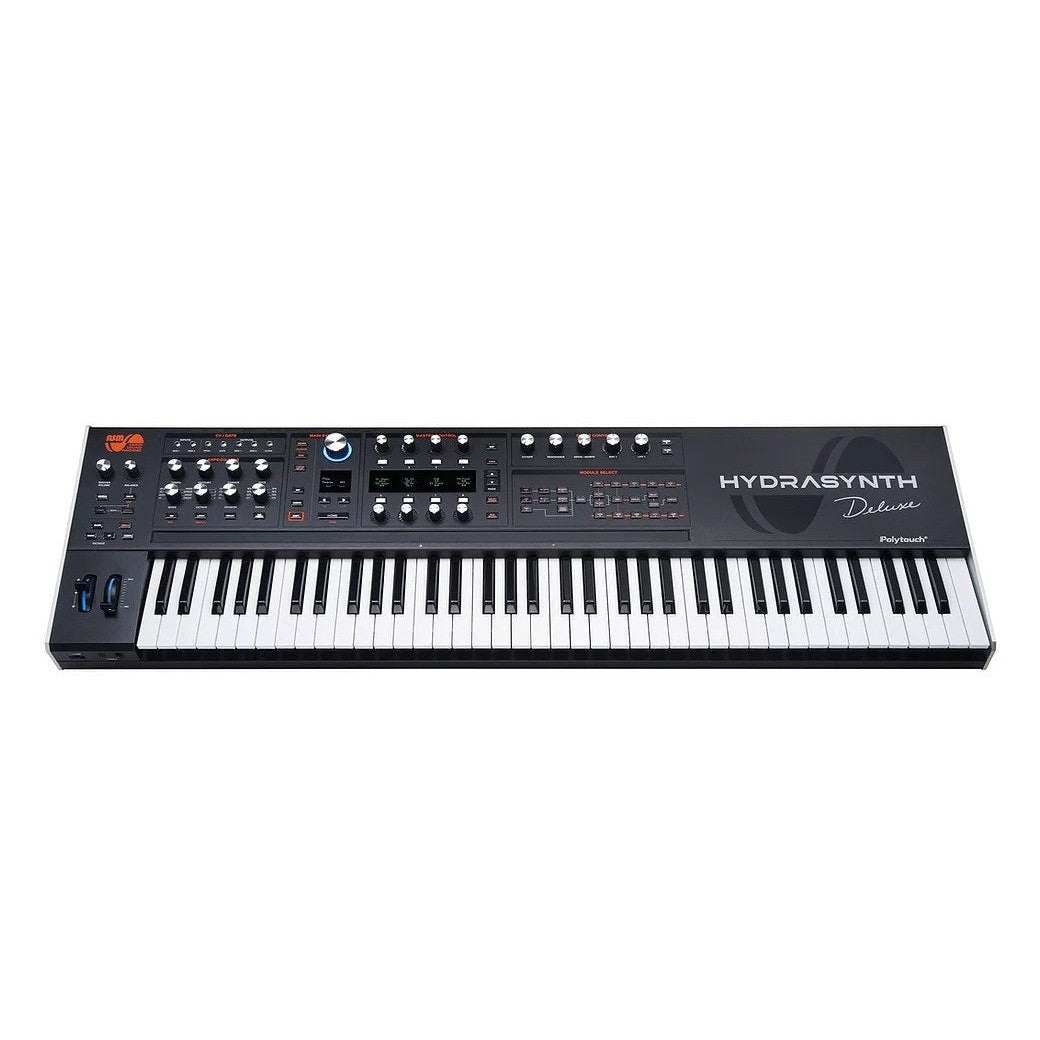

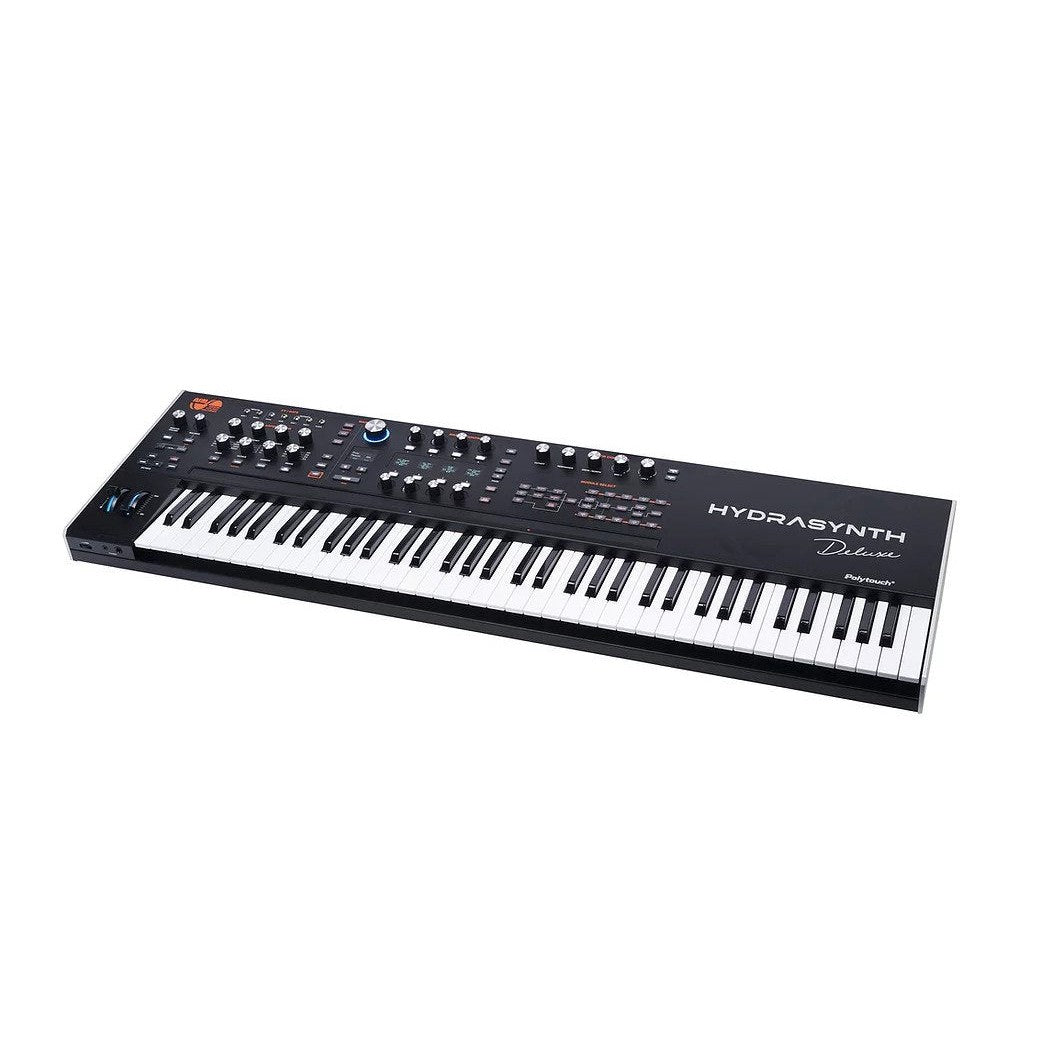

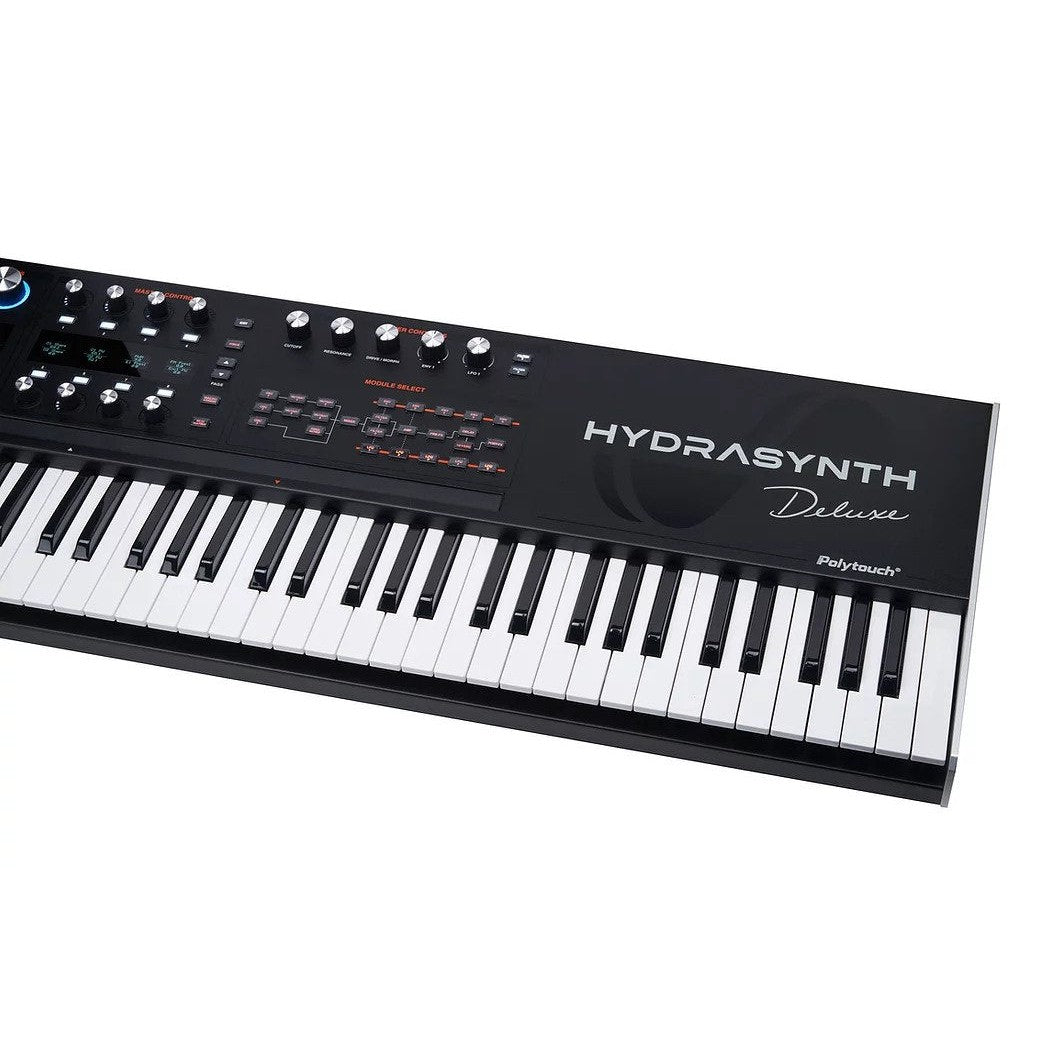

ASM - 73-Key Hydrasynth Deluxe With Dual Sound Engines & PolyTouch - HSLX
Couldn't load pickup availability
Description
- Metal Chassis
- Steel top and bottom
- Aluminum side panels
- PolyTouch© Keybed
- Semi-weighted
- Polyphonic aftertouch
- Note On and Note Off Velocity
- 4 octave (67 cm, 26.4”) Ribbon controller
- Pitch bend mode
- CC control mode – modulation source
- Theremin mode - triggers envelopes and plays pitch
- Continuous pitch or choose from multiple scales
- 8 banks of 128 patches in SINGLE mode
- 5 banks of 128 MULTI mode patches
- 5 banks of 128 patches for the LOWER part in MULTI mode
- 5 banks of 128 patches for the UPPER part in MULTI mode
- CV gate input and oututs
- Support multiple CV/GATE standards
- CV
- 1v per octave +/-5V
- 1V per octave 0-10V
- Hz to Volts +/-5V
- Hz to Volts 0-10V
- 1.2V per octave
- Gates
- V-trig, S-trig
- 3V, 5V, 10V
- Mod In/Out range
- +/5V, 0-10V, 0-5V, 0-1V
- Clock in and out
- 1PPS, 2PPQ, 24PPQ, 48 PPQ
- Clock Voltage - 3v, 5V, 10V

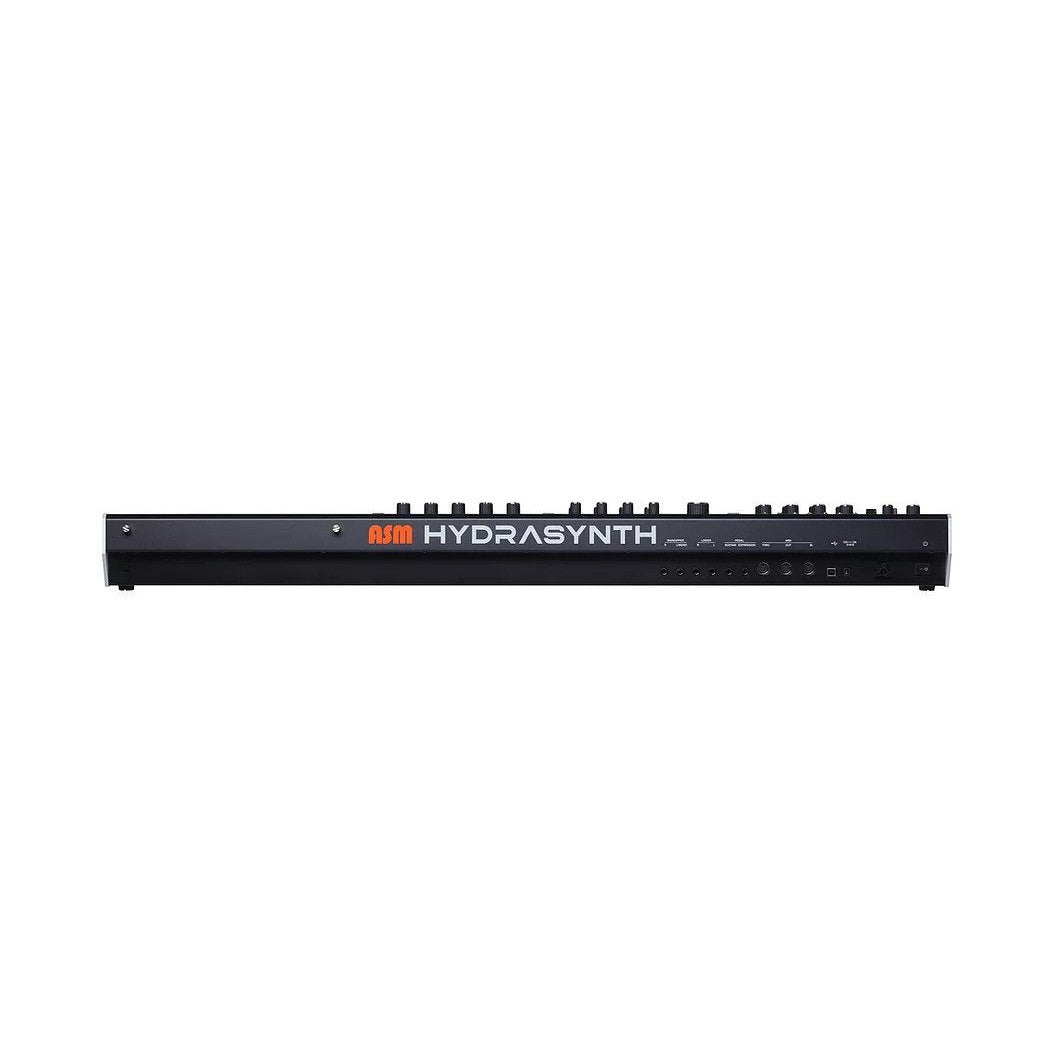

- MIDI IN/OUT/THRU
- Voice overflow mode for expanding voices with another Hydrasynth
- Expression pedal input
- Sustain pedal input
- Polarity sensing input?
- DC input jack
- USB port
- Supports USB MIDI In/Out
- Dimensions
- 1131 x 359 x 119 mm
- 44.5” x 14.1” x 4.7” (inch)
- Weight
- 13.5 kg (29.8 lbs)
