Maximize the Power of Your BOSS Gear with MIDI Connectivity

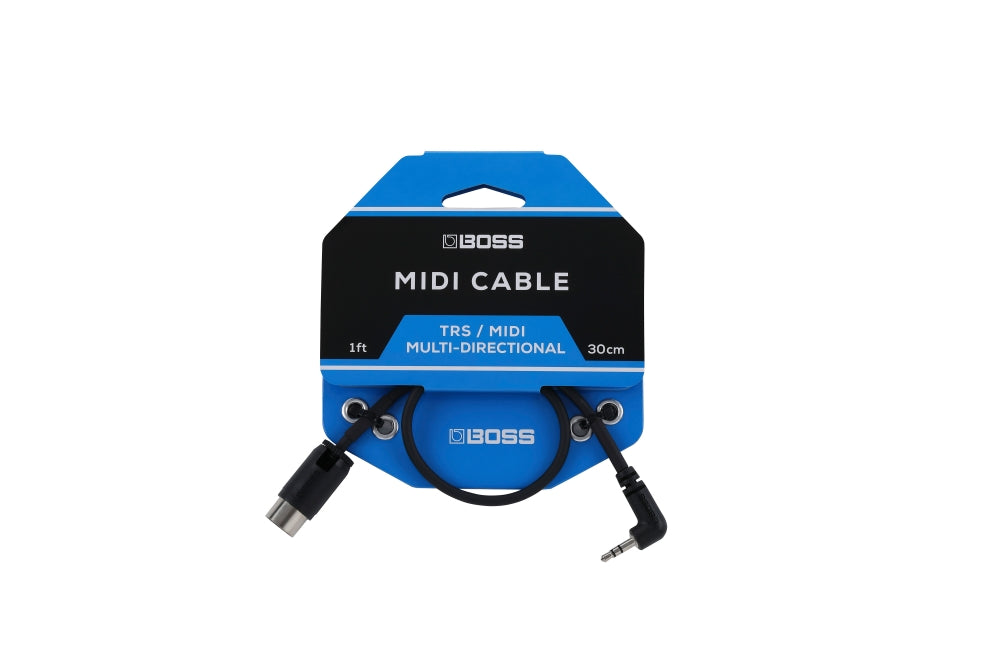

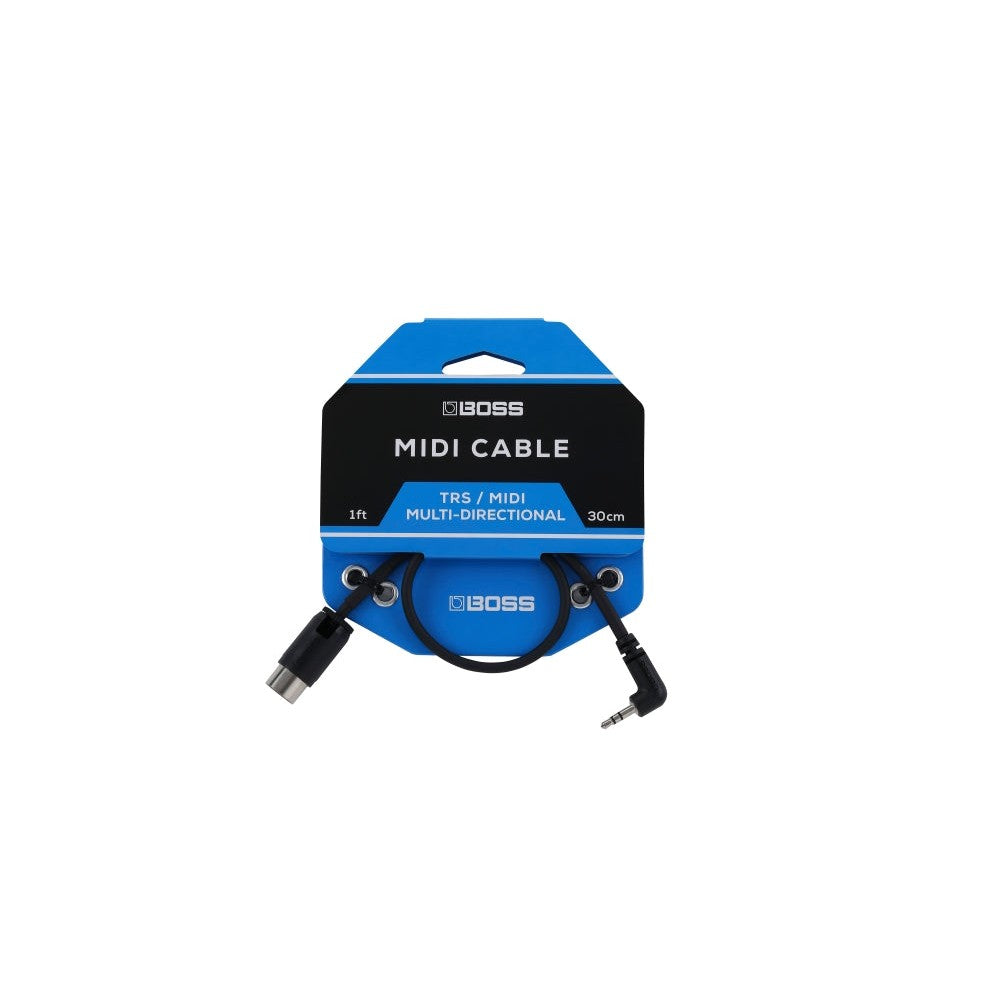

The BMIDI-1-35 and BMIDI-2-35 cables provide premium connectivity for the expanding lineup of BOSS pedals with space-saving 3.5 mm TRS MIDI jacks. These rugged and reliable cables feature 3.5 mm TRS and 5-pin DIN connectors, allowing you to connect products such as the BOSS 200 series, EV-1-WL, and others to gear equipped with traditional MIDI jacks, from pedals, loop switchers, and multi-effects units to keyboards and MIDI interfaces for computers. The low-profile plugs fit into tight spaces on your pedalboard, with a slim right-angle plug housing on the TRS side and three-way cable adjustment on the 5-pin DIN connector.

• MIDI cable with right-angle 3.5 mm TRS and 5-pin DIN* connectors

• Compatible with all BOSS products with 3.5 mm TRS MIDI jacks

• Designed to fit in tight spaces with a slim right-angle housing on the TRS plug and three-way cable exit direction on the 5-pin connector

• Rugged and robust design

• Oxygen-free copper wire and shielding

• Flexible and durable PVC outer jacket

• Available in two lengths: 1 ft./30 cm (BMIDI-1-35) and 2 ft./60 cm (BMIDI-2-35)

• For applications where you need a longer cable, check out the 5 ft./1.5 m BMIDI-5-35

*The BMIDI-1-35 and BMIDI-2-35 are three-conductor cables. Pins 1 and 3 on the 5-pin DIN are unconnected.

Application Example—BOSS 200 Series with an ES Switching System

The BOSS ES-8 and ES-5 are go-to pedalboard command centers for guitarists everywhere, offering top-quality loop switching, deep MIDI capabilities, and advanced preset control. BOSS 200 series pedals have also become extremely popular, thanks to their great sound, user presets, and low-profile designs. Connecting a 200 series pedal to an ES unit via MIDI opens up a range of external control options from the switcher, including recall of 128 presets and much more.

Application Example—BOSS 200 and 500 Series Together

Connecting 200 and 500 series pedals via MIDI unlocks a world of possibilities to increase your sonic palette and call up complex sound combinations with a single press. The 200 series supports MIDI preset and sync control, while the 500 series goes even further with real-time control of many parameters at once.

Application Example—EV-1WL Wired Connection

The EV-1WL Wireless MIDI Expression Pedal is a powerful cable-free solution for wireless MIDI control of all types of gear. But this versatile pedal also supports wired MIDI control of equipment with traditional 5-pin MIDI inputs. Use the short BMIDI-1-35 or BMIDI-2-35 cables for pedalboard applications, or grab the 5ft./1.5m BMIDI-5-35 to extend your reach to keyboards and other desktop devices.
