210 Digital Bass Combo

A Perfect Blend of Power and Precision:

- A powerful 500-W amplifier loaded with custom-made Eminence® speakers, the Infinity Combo Series is designed for the modern bass player. Its user-friendly interface and cloud-storable presets allow for seamless transitions between different sounds on the go. Its sonic versatility makes it ideal for live performances and practice sessions of various genres.

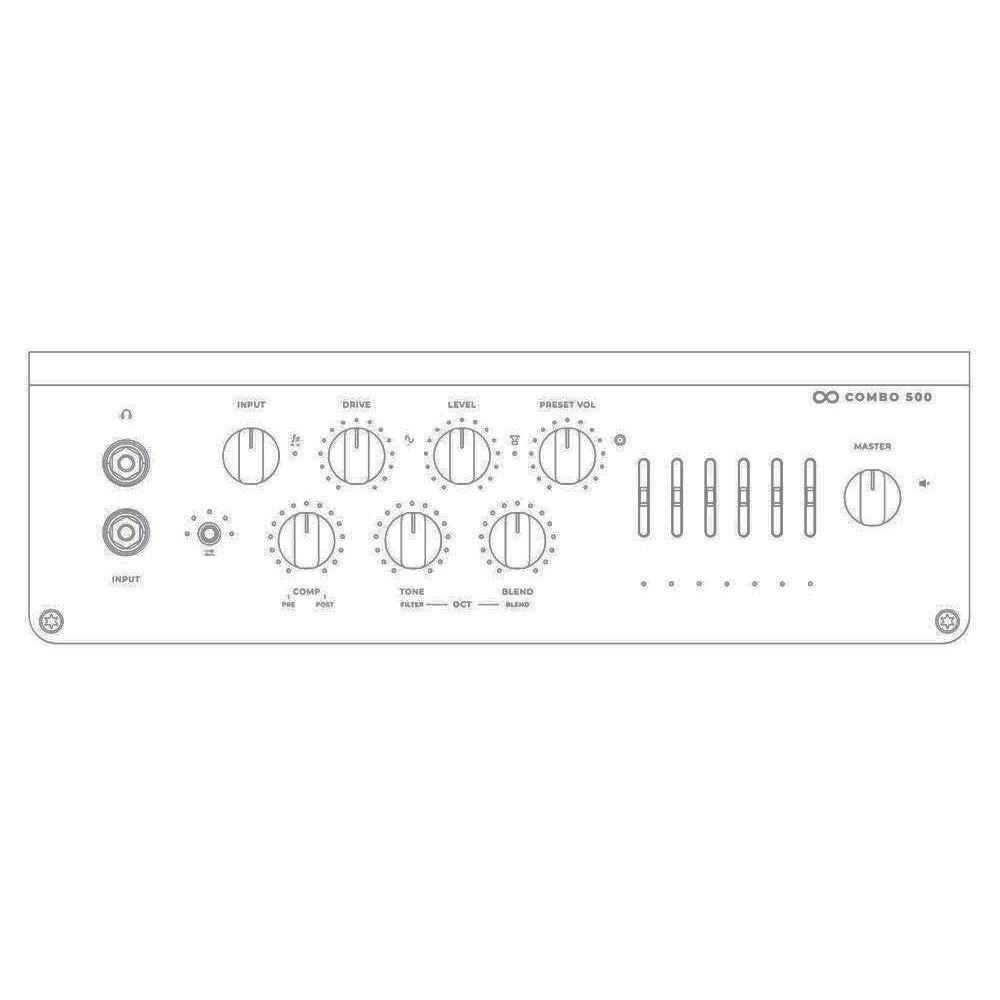

Top-Panel:

- Input Jack: Use this jack to connect your instrument via a standard 1/4" mono cable

- Headphone Output: Connect your headphones and enjoy an IR emulating your cabinet sound

- Preset: Pressing the preset button changes through presets 1 to 5 and a bypass signal. Long-press to store the current preset.

- Input: Controls the amount of analog input gain. Press to activate/deactivate the effects loop for the preset.

- Compression: Controls the amount of dynamic compression. The make-up gain is adjusted automatically. Press to select between compressor off/pre/post drive position.

- Drive: Controls the amount of gain of the selected drive mode. Press to select between: Off / Leo Bass / Vintage Microtubes / Microtubes B3K / Alpha-Omega. Long-press to access the noise gate threshold control.

- Tone: Controls the drive tone / octaver filter. Press to select which control is active.

- Level: Controls the drive level / tweeter level. Press to select which control is active.

- Blend: Controls the drive blend / octaver blend. Press to select which control is active.

- Preset Vol: Controls the preset volume. Press to toggle between the 7 IR slots / IR bypass for Post-DI & Headphone Out.

- Graphic EQ Section: Preset-specific Darkglass EQ. ± 12 dB @ low shelf / 250 Hz / 500 Hz / 1.5 kHz / 3 kHz / high shelf.

- Master: Controls the overall volume of the speaker and headphone outputs. Press for mute + tuner. Long-press for Bluetooth pairing (Audio + Suite).

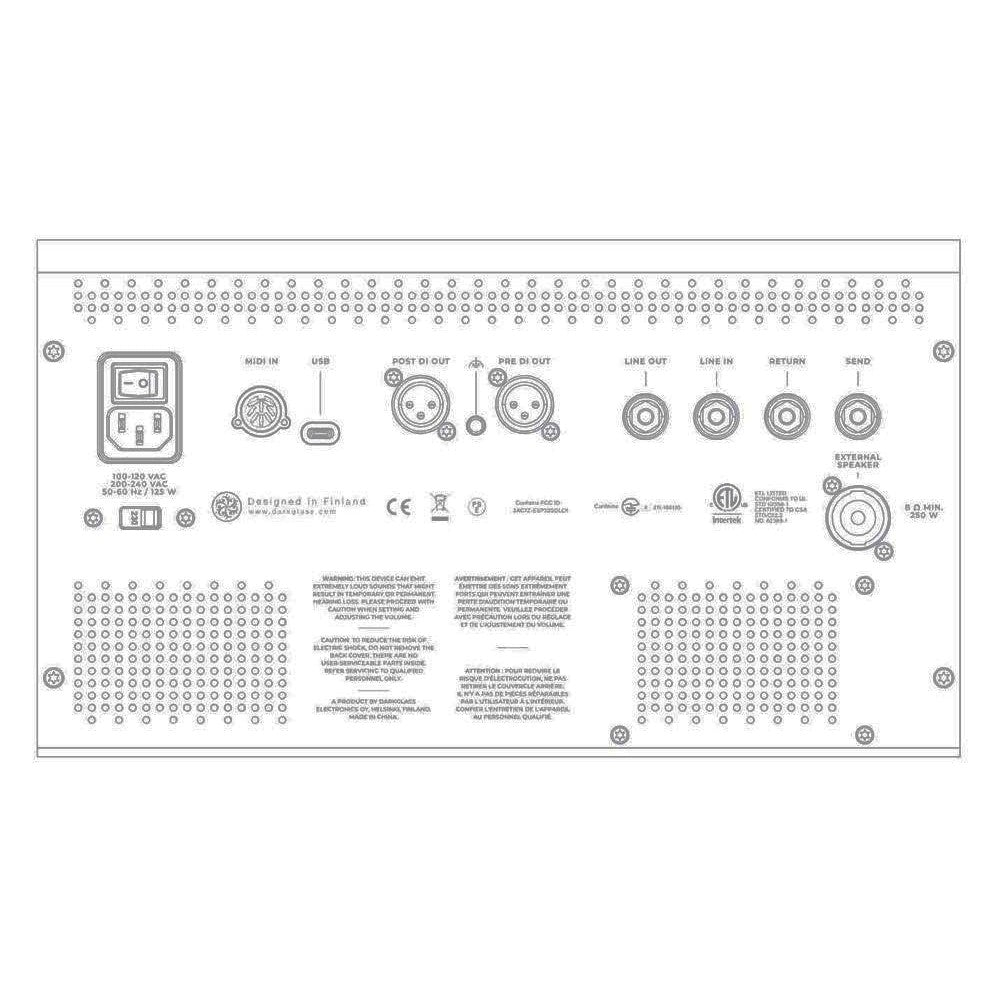

Back-Panel:

- AC Power On/Off: Power on the combo beast

- AC Socket: Use this connector to feed electric power to the amplifier. 100–230 VAC, 50-60 Hz. Set the voltage selector switch to the correct position before turning on the amplifier!

- MIDI In: Standard DIN connector. Use the 7-pin MIDI connector only with the Darkglass MIDI footswitch, and use a 5-pin connector with other MIDI equipment.

- USB: The USB-C port unlocks Combo's USB audio interface capabilities and allows connection to the Darkglass Suite. USB MIDI In/Out is also supported.

- Post-DI Output: Use this connector to send your signal to the console, mic preamp, interface, etc. This output provides the processed signal with or without the IR.

- Ground Lift: Use this control to lift the ground of the XLR outputs. If you are experiencing ground noise in your DI signal, try changing this control.

- Pre-DI Out: Use this connector to send your signal to the console, mic preamp, interface, etc. This output provides the unprocessed signal.

- Line Out: Use this connector to send your signal to line input of a console, interface, etc. This output provides the processed signal without the IR. You can also link several combos together using this output!

- Line In: This input accepts +4 dBu line-level signals from an amp modeler, keyboard, etc. Use this input when linking Darkglass Combos.

- Send: Use this output to send the signal to your outboard gear.

- Return: Use this input to receive the signal from your outboard gear.

- External Speaker: Use this connector to connect the amplifier to an external speaker cabinet. The SpeakON combo jack allows for SpeakON or 1/4" speaker cable operation. The minimum load impedance is 8 Ohms. The minimum power rating must be 250 W. | Warning: Do not use an instrument cable with this jack. Using an instrument cable can damage your amplifier.

Details:

- Woofers: Custom-Design Eminence® Speaker

- Horn: WGS-410

- Cabinet Material: Balsa Wood

- Power Rating RMS: 500 W

- Dimensions (W x D x H): 46.5 cm x 61.1 cm x 39.5 cm | 18.3" x 24" x 15.55 "

- Weight: 17.3 kg | 38.13 lb
