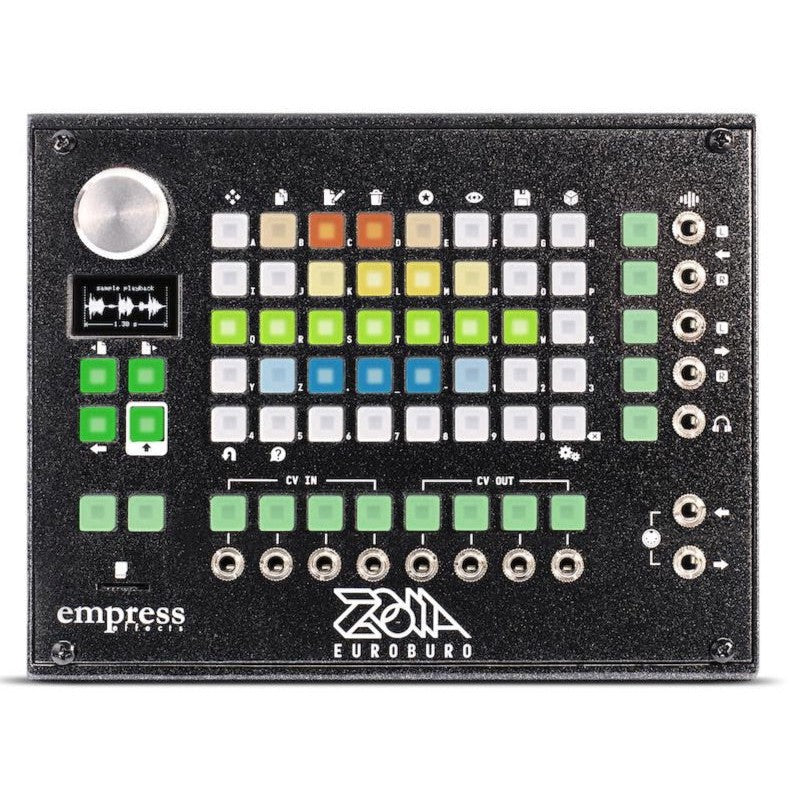

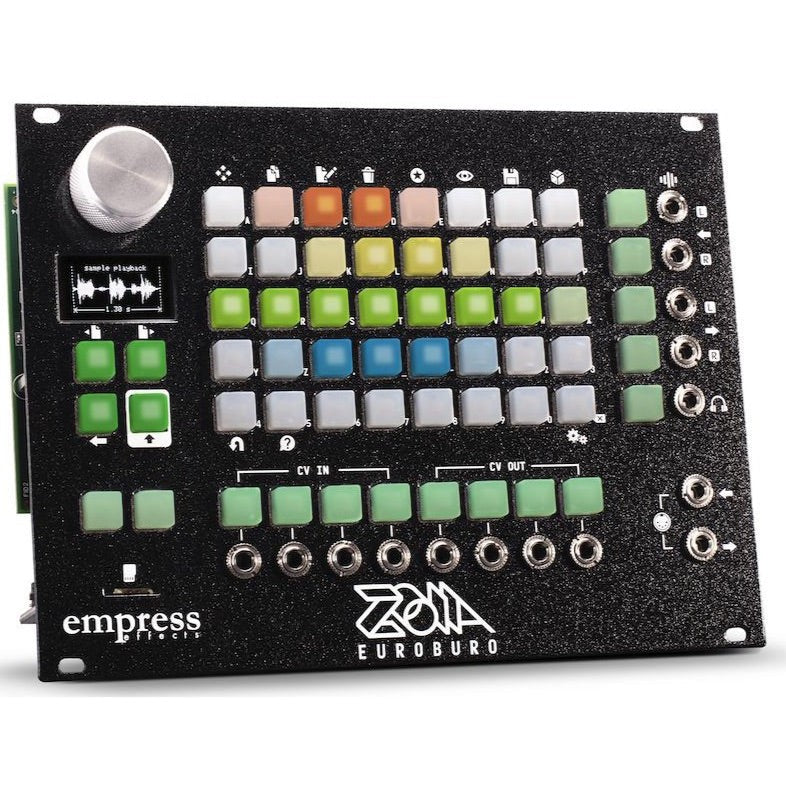

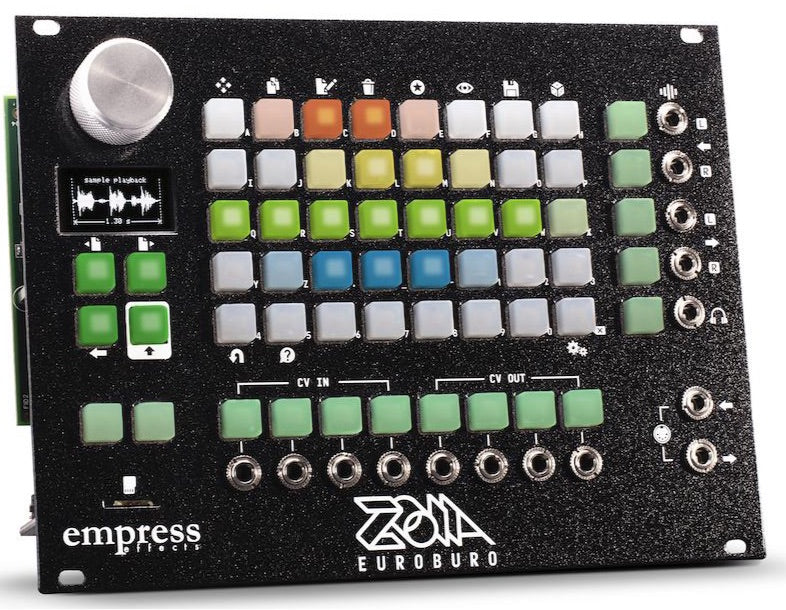

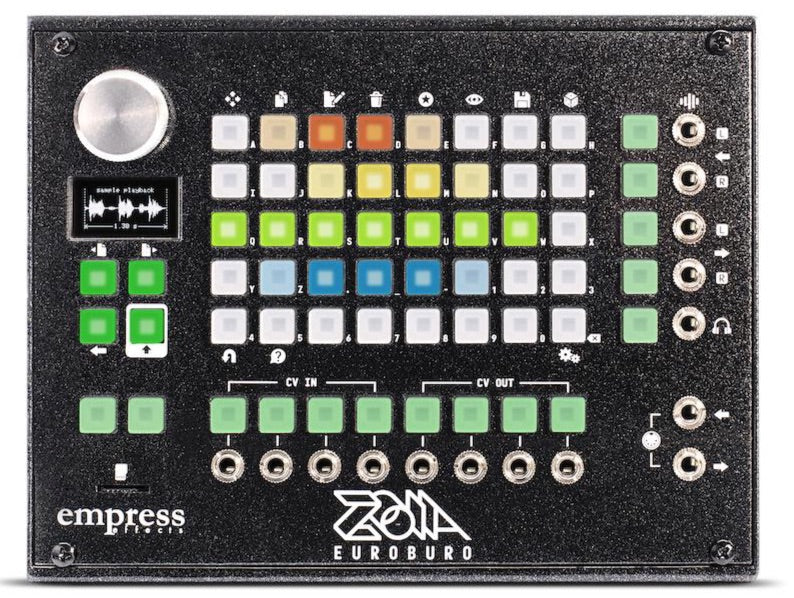

What's a Euroburo?

The ZOIA Euroburo is a digital modular system that can be placed in your modular system, a real Russian nesting doll situation. We added a headphone output and a super-slim optional case so the Euroburo can live happily on your desktop or be easily mounted in a Eurorack case. Hence the euro + buro, pronounced “bureau”…get it!?

Create unique signature effects, synthesizers, sequencers and more while using 4 freely assignable CV ins and 4 outs to interface with other CV enabled devices. The additional headphone output and powered 9-12v case makes the module even more desktop friendly. With over 90 modules from CV utilities to audio effects, oscillators and envelopes to MIDI, the Euroburo can do almost anything to fill the gaps in your setup.

There's no need to worry about getting bogged down with endless menus or a cluttered interface. Creating patches and performing with the ZOIA is a tactile experience. Patching, deleting or moving modules and editing values can all be done quickly using the push-button grid and a flick of the encoder. With the addition of dedicated push buttons for the CV and Audio I/O, patching on the ZOIA has never been faster.

Euroburo Features

- 4 CV Input and 4 Output Jacks - Editable CV jacks that send or receive -5 to 5, 0 to 5 or 0 to 10 volts

- 8 Dedicated CV UI Buttons - CV jack connections are always accessible on the face of the Euroburo

- 2 Quick Access Buttons - Sticky buttons, the assigned function does not change when changing page. Great for live performances!

- Stereo 3.5mm audio I/O - Includes dedicated audio I/O buttons to quickly patch in and out of the ZOIA

- MIDI 1/8" In/Out jack - MIDI 1/8" in/out jacks allow you to connect a huge range of external devices to control any or all of ZOIA's functions and easily add MIDI control to your modular setup!

- Headphone Audio Out - 3.5mm headphone out with UI button for volume control

- Skiff Friendly - 28mm depth with power

-- Optional Enclosure - Durable 34 hp slim enclosure with 12v power supply sold separately --

Classic ZOIA Features

80+ Modules and Growing - ZOIA Euroburo comes packed with a vast collection of modules to create just about anything you can dream up. With ZOIA the only limit is your imagination!

Create your own effects, synths, control devices, and more! - Oscillators, LFOs, filters, bit crushers, envelope followers - these are just a handful of the included modules that can be connected in almost any way imaginable. If you can dream it up, you can create it!

20+ Ready-Made Effects Modules - Pre-built effects modules such as reverbs, delays, chorus', flangers, overdrives and more.

Up to 64 Patches - Create and save up to 64 patches that can be easily recalled during live performance.

Swap and Share Patches - Join the community of ZOIA users on Patchstorage.com to try out other users patches, or upload your own awesome creations to share with the world.

SD Card Included - Load and save patches to/from ZOIA. We're also continuously improving the firmware by adding new modules and features, and fixing bugs. Download the newest firmware from Empresseffects.com and load onto the ZOIA with the included SD card.

OLED Display Screen for Easy Editing - View all of ZOIA's module and parameter information on the high resolution OLED display screen.

Customizable Patch Recall System Send MIDI program change messages to change patches on the fly

Built-In Help - Almost like having a built in manual, the dedicated help function will give you quick information at a glance about ZOIA's various modules and options.

High-Quality Audio - 48kHz sampling, with 24 bit conversion and 32 bit internal processing.

Low-Noise Signal Path - Features extremely low noise operation with a signal to noise of >105dB

Ever-Growing List of Modules

Interface Modules

Audio Input

Audio Output

Midi Notes In

Midi Pitch Bend In

Midi CC in

Midi Pressure

MIDI Clock in

Midi CC out

Midi PC out

Midi Note out

Midi Clock Out

Pixel

UI Button

Pushbutton

Keyboard

Device Control

Analysis Modules

Onset Detector

Env Follower

Pitch Detector

Audio Modules

Oscillator

VCA

SV Filter

Multi-Filter

Delay Line

Audio Panner

Pitch Shifter

Audio Balance

Audio Mixer

Inverter

Audio In Switch

Audio Out Switch

All Pass Filter

Noise

Audio Multiply

Bit Crusher

Aliaser

1 Buffer Delay

Looper

Granular

Stereo Spread

Bit Modulator

Diffuser

CV Modules

LFO

Sequencer

ADSR

Sample and Hold

CV Invert

CV Rectify

Value Trigger

CV Flip Flop

CV Delay

CV Loop

CV Filter

Clock Divider

Comparator

In Switch

Out Switch

Slew Limiter

Quantizer

Steps

Multiplier

Random

Rhythm

Tap To CV

CV Mixer

Effects

Tone Control EQ

Delay w/Mod

Ping Pong Delay

OD & Distortion

Fuzz

Compressor

Gate

Plate Reverb

Hall Reverb

Room Reverb

Ghostverb

Reverb Lite

Phaser

Chorus

Vibrato

Flanger

Tremolo

Env Filter

Ring Modulator

Cabinet Sim
