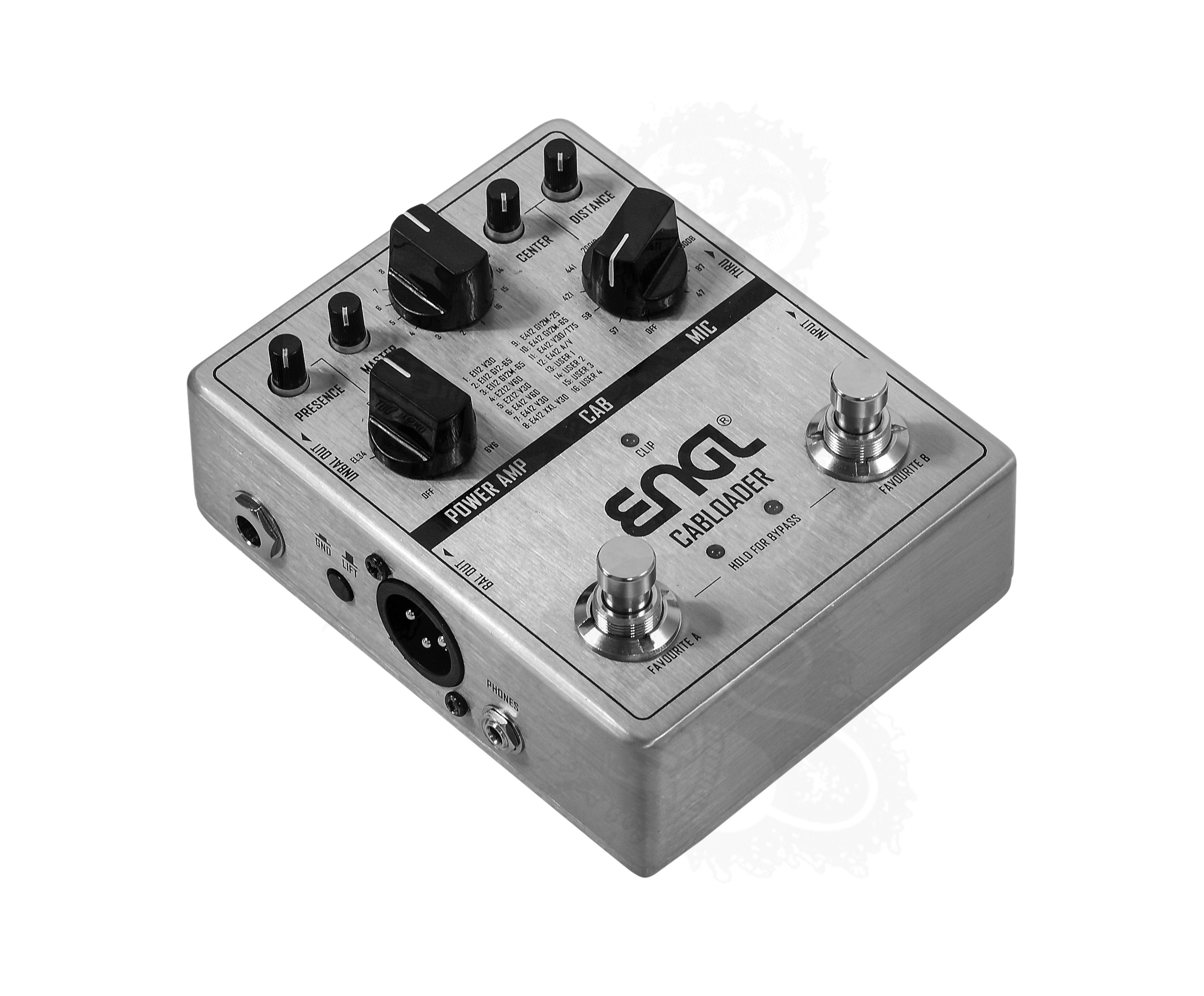

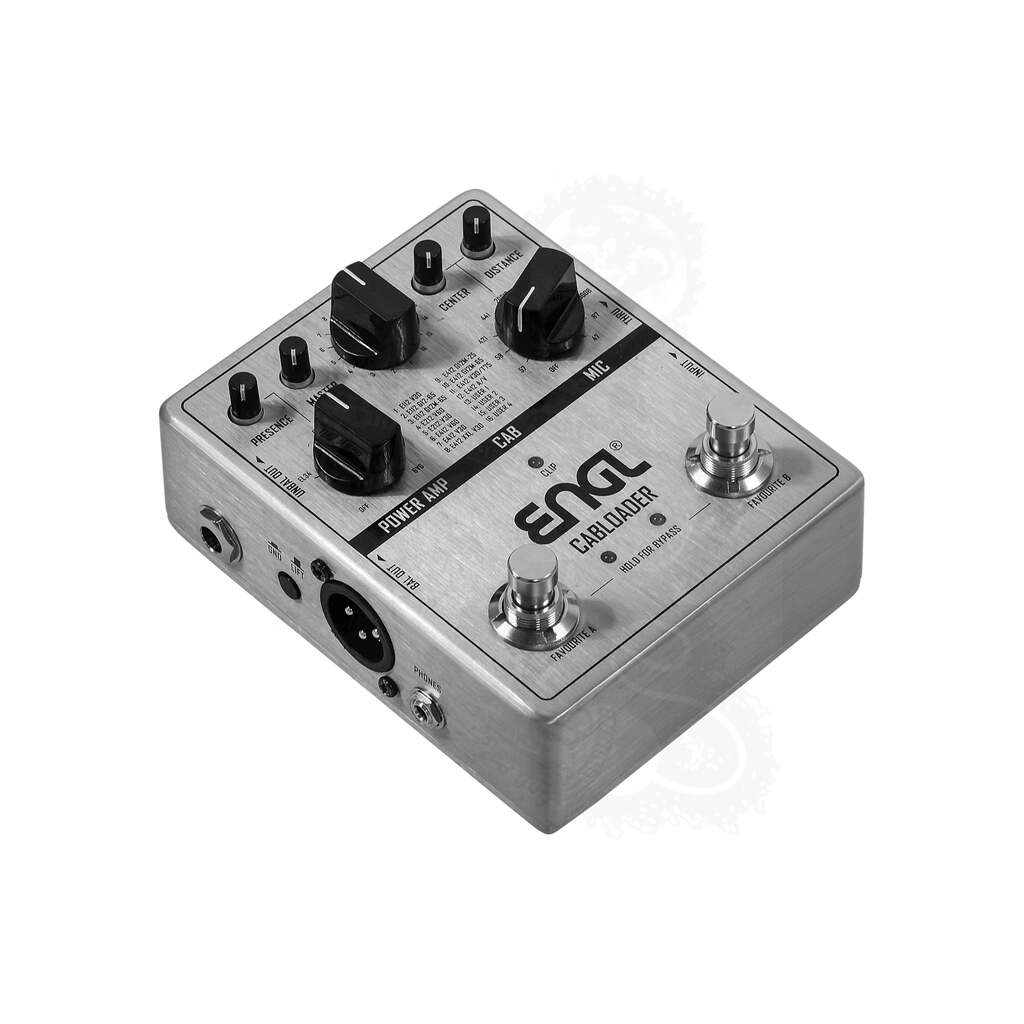

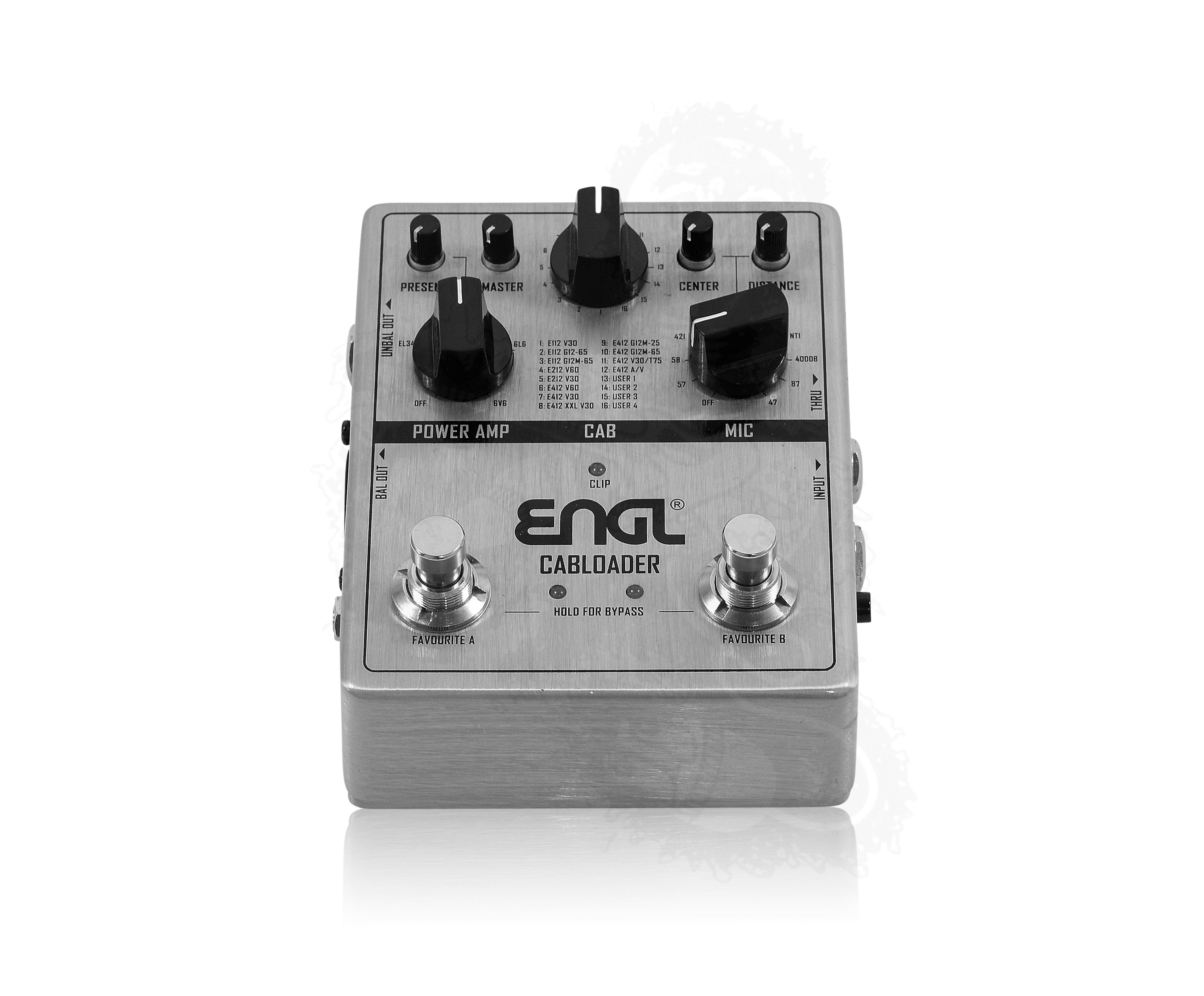

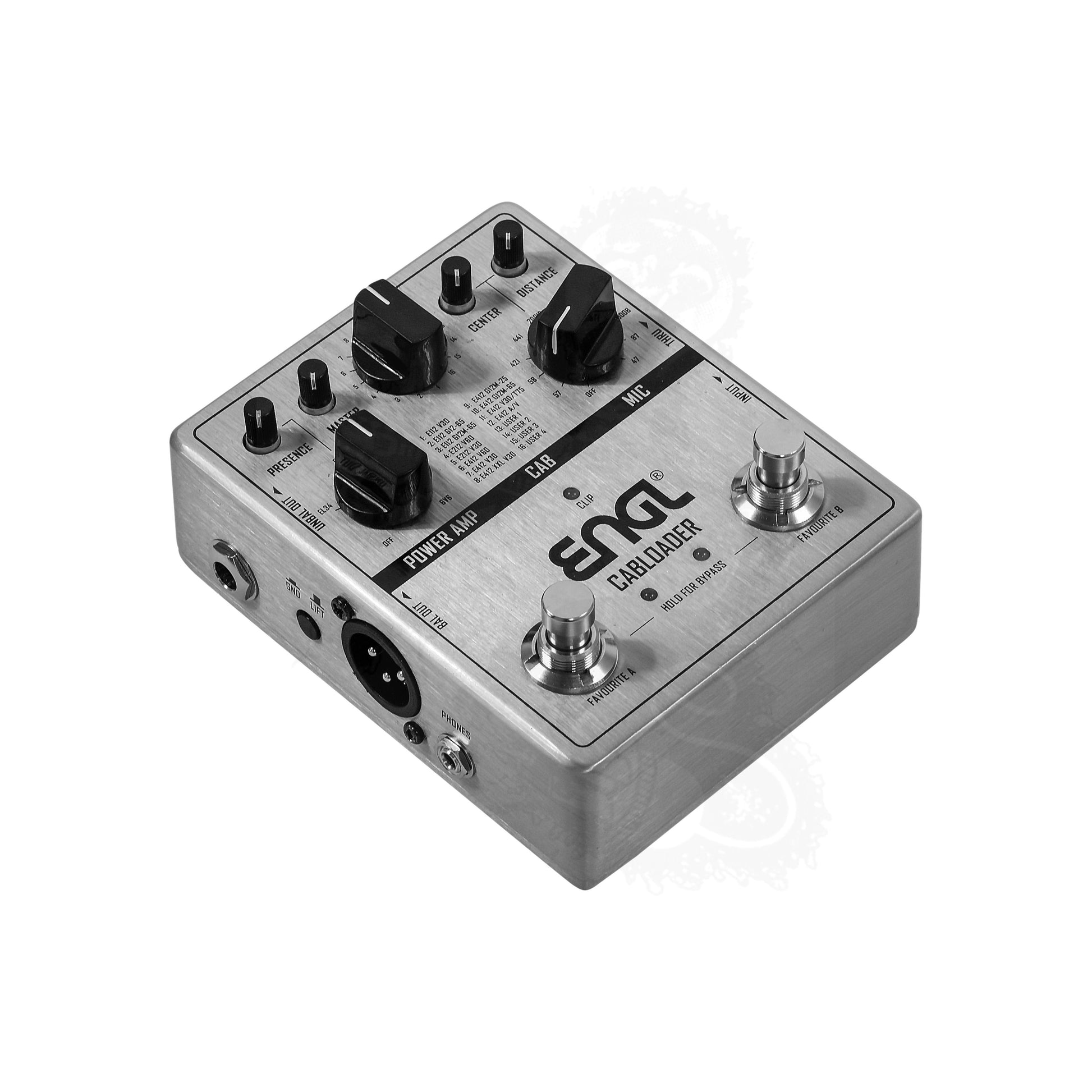

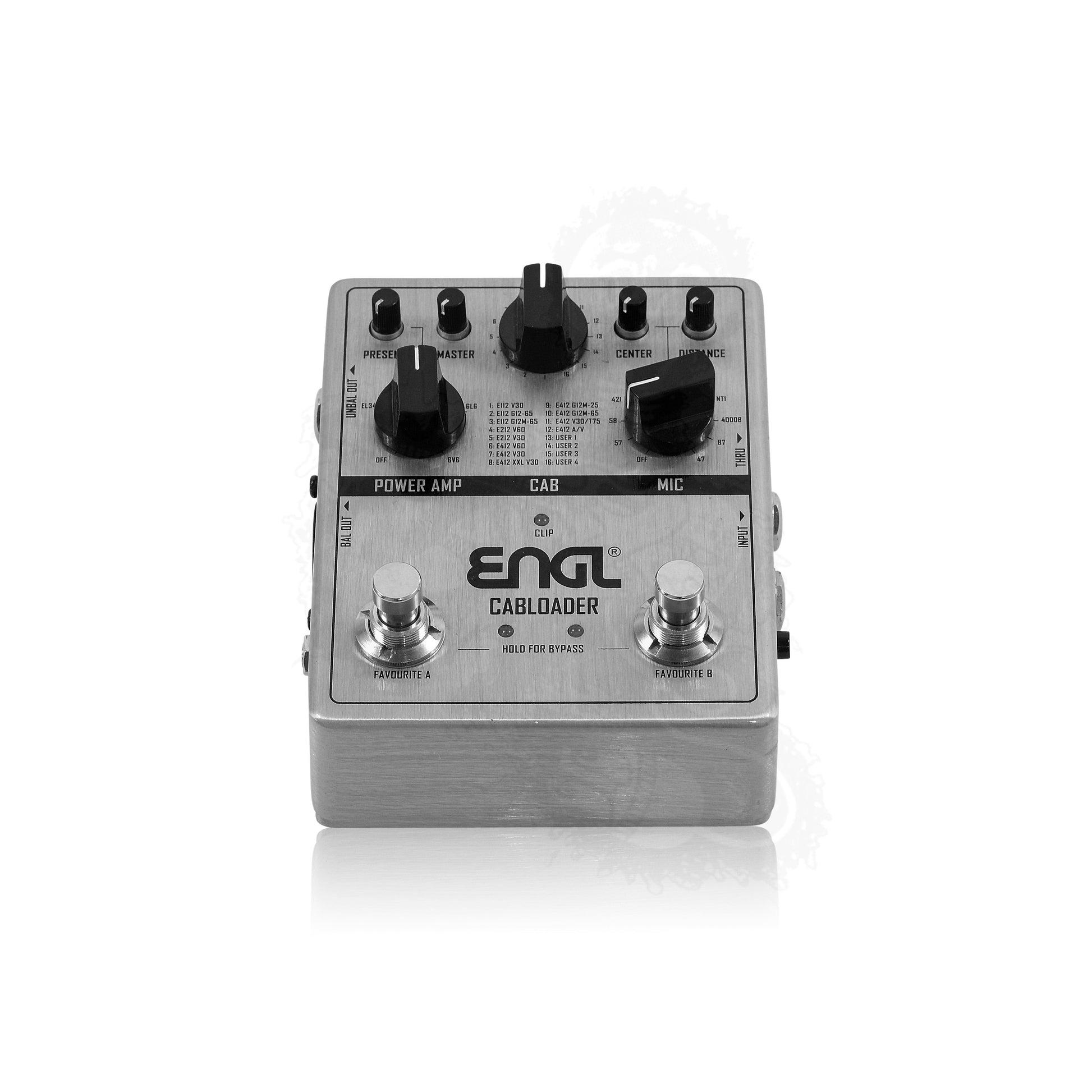

The ENGL CABLOADER is a full-featured speaker cabinet simulator, IR Loader and DI-Box. This all-in-one solution can transform your pedalboard into a full DI-Rig, provides a perfect link from your amplifier to a recording interface, or even just gives you a great way to hook up your pedal sto your Headphones for practice. The CABLOADER sports a whole host of IR based digital Cabinet Simulations Models, with various Microphone and optional Power Amp emulations. These allow you to digitally recreate the sound and feel of a fully mic´d guitar speaker and experiment with Cab Models you may never be able to optain in real life. 3rd party IR-loading is supported via the proprietary software so you can load .wav IR files from any of your favourite manufacturers or studios.

As complicated as the digital wizardry is, that´s going on inside this little box. The CABLOADER has been designed with sheer simplicity and ease of use in mind. Even a complete newcomer to the world of digital cab sims and IR-Loaders can quickly set up an amazing sound with it´s intuitive controls. The quality of the simulations and the extensive connection options make this the perfect tool for anyone from beginners to professionals.

Features

Impulse Response Cabinet Simulator

Microphone Simulator

Poweramp Simulator

Input Jack

Instrument / Line level adjustment switch

Thru Jack

Unbalanced Out Jack

Balanced Out Jack (XLR)

Ground Lift Switch

Headphones Out

9V DC power supply

Micro USB Port for IR loading (PC and MAC)

12 Built-in ENGL Cabinets

4 User / 3rd Party Slots (accessible via USB)

10 Microphone Models + Microphone Off

4 Poweramp Simulations + Poweramp Off

Favourite A Footswitch to save and recall Preset A

Favourite B Footswitch so save and recall Preset B

True Bypass

Controls:Microphone Section: MIC selector, Center and Distance control

CAB: CAB selector

Power Amp: POWER AMP Selector, Presence and Master Control

Sampling Rate at least 44.1kHz

Sampling Accuracy 24bit

Signal to noise ratio 100dB

IR format .wav

Sampling Length 1024 Samples (23.22ms)

Power Requirements 9V DC 300mA (negative center)

Dimensions 12 x 9.5 x 5.55 cm

Weight 0.405 kg
