With its smaller size and portability, the all-new EVH® 5150III® 50S 6L6 Head is the perfect amp for players who want Ed Van Halen’s touring tone, arena volume and performance in a compact package. Three channels of road-tested sound work for any playing style—crisp cleans, chunky overdrive, tight distortion and searing leads, while newly added independent dual-concentric controls allow for gain and volume level matching.

Tweaked to meet Eddie’s touring requirements, this 50-watt head delivers a full-spectrum of tone. Channel one powers crystal-clear clean tone; channel two features increased gain for greater sustain and is re-voiced for improved low-mid frequency definition; channel three also has improved range for the “low” control and oozes with increased liquid gain. Channels one and two each have dual concentric gain/volume controls, with shared EQ (low, mid, high). Channel three has its own gain, volume and EQ (low, mid, high) controls. All three channels also have global presence and global resonance controls.

The amp is also loaded with seven JJ ECC83 preamp tubes, a pair of Shuguang 6L6 power tubes, switchable output impedance (4, 8 and 16 ohms) and an adjustable bias control.

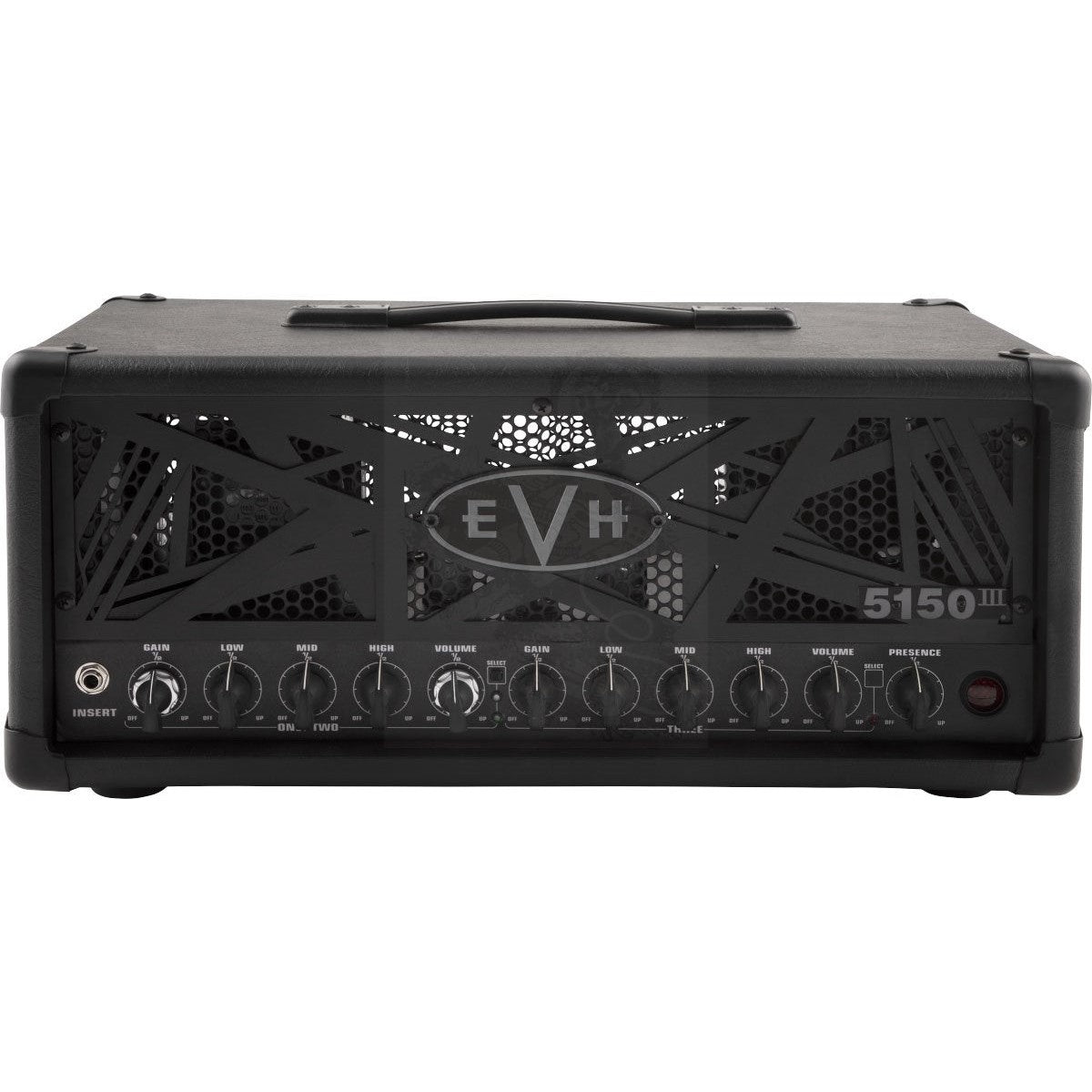

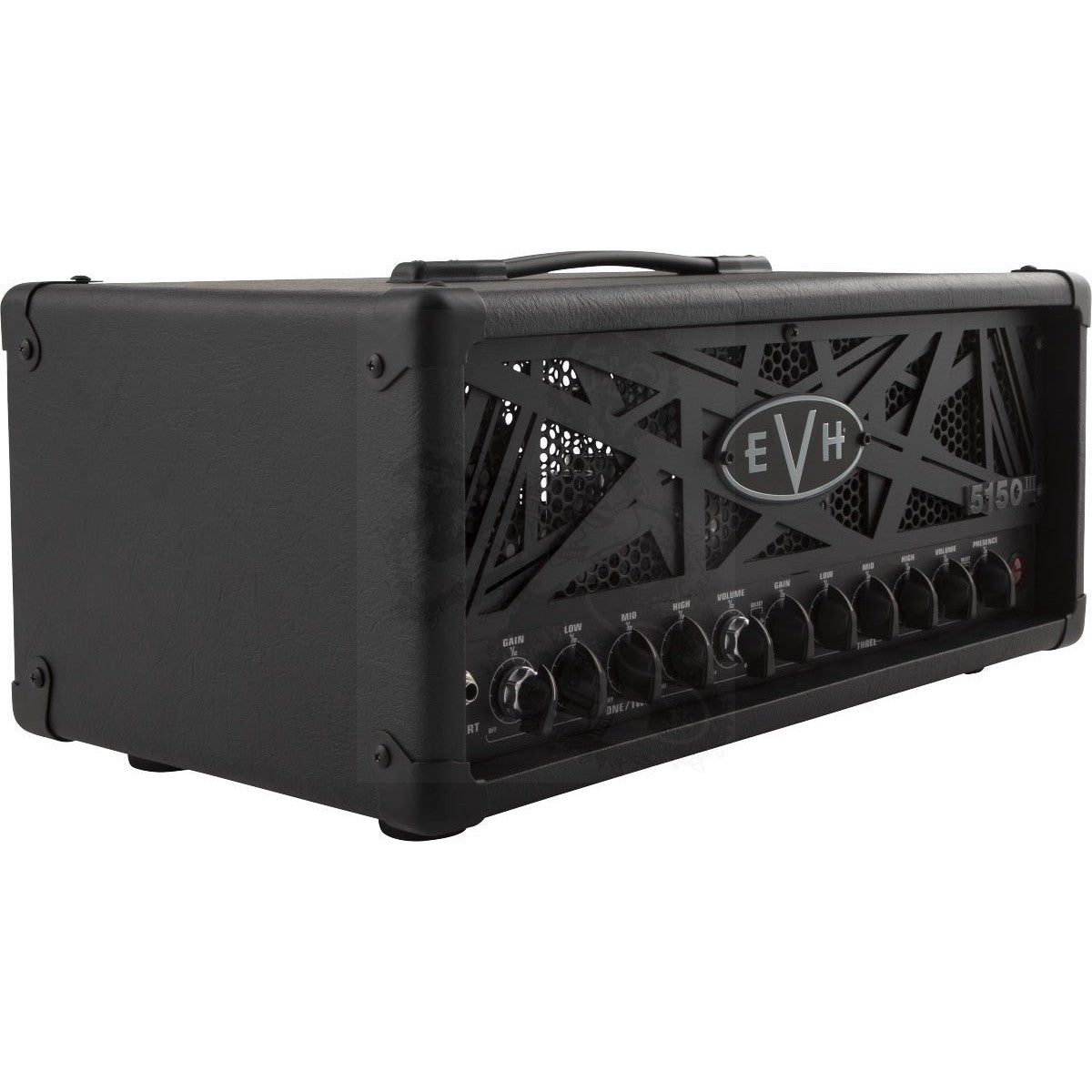

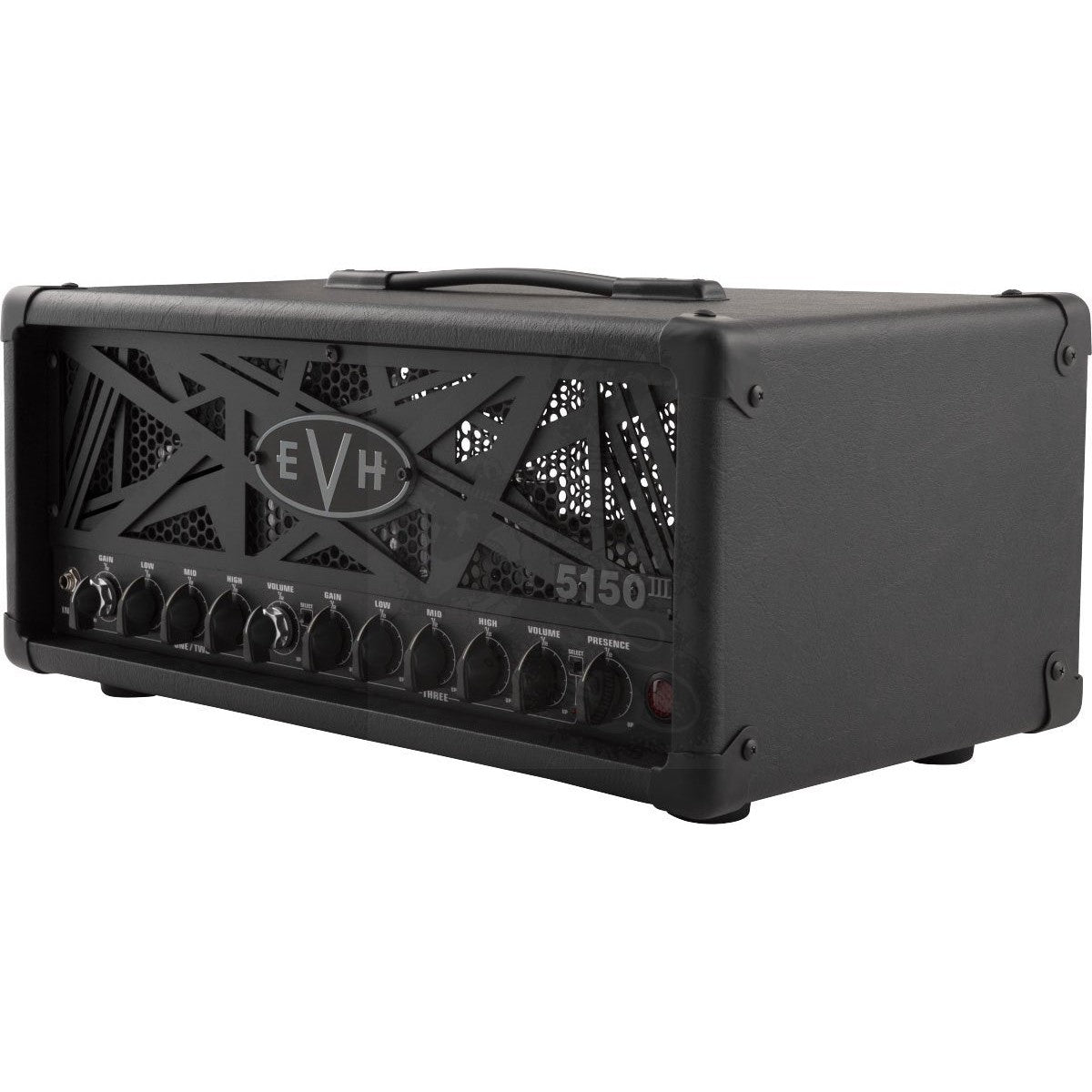

Seductively dark in black textured vinyl with a dual black EVH striped steel grille front panel, our 50-watt stealth head also comes with vintage-style “chicken head” black control knobs, red lamp jewel, dual speaker output jacks, four-button footswitch, effects loop, direct out and molded plastic handle.

A high-quality fitted cover is available as an EVH accessory.

50-watt head

Three Channels

Channels one and two have independent dual concentric gain/volume controls

Channel three has independent gain, volume and EQ (low, mid and high) controls

Global presence and resonance controls for all three channels

Selectable impedance (4, 8 or 16 ohms)

Adjustable bias control

Seven JJ ECC83 preamp tubes and two Shuguang 6L6 power tubes

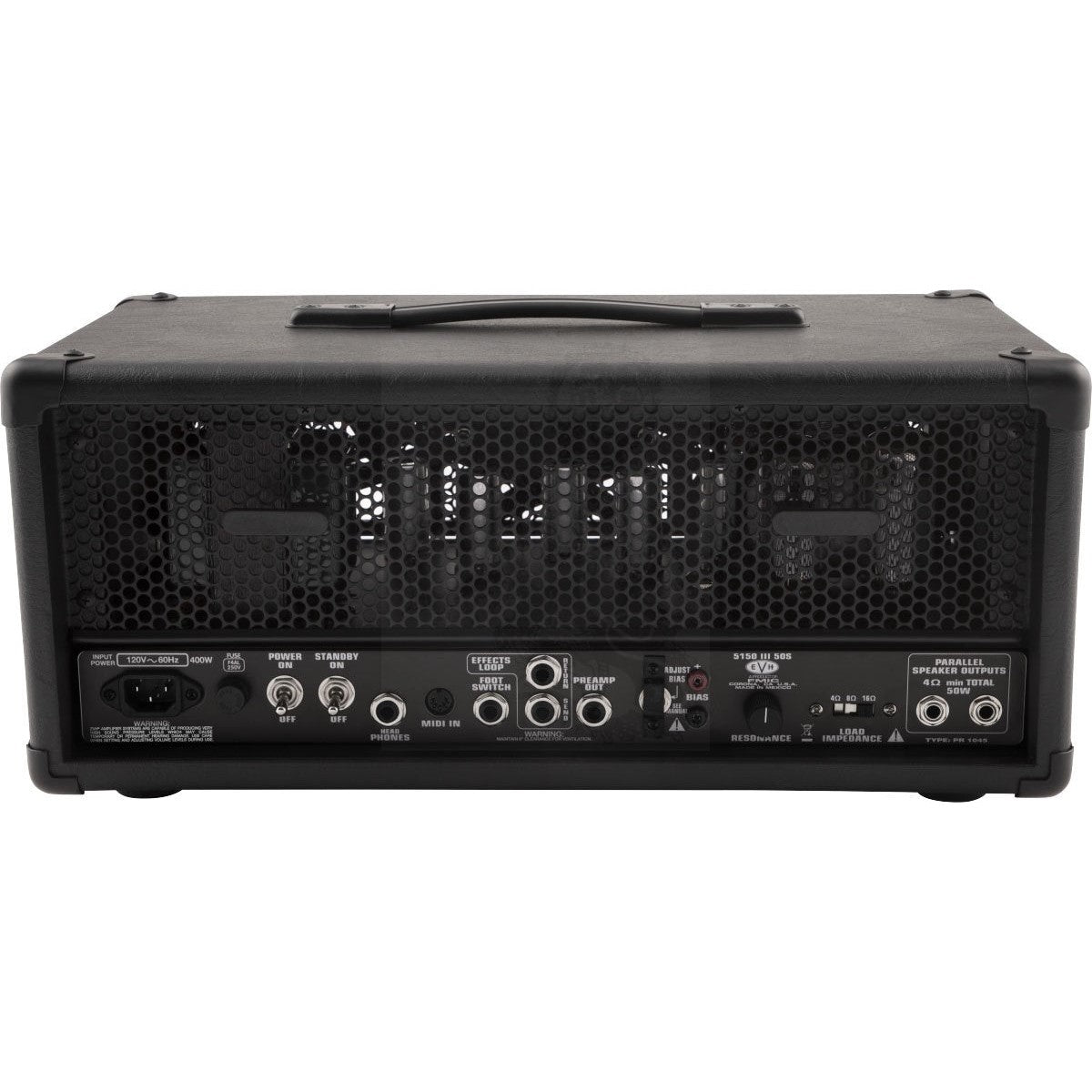

Dual parallel speaker output jacks, effects loop, headphone jack, line out and MIDI input

Four-button footswitch with ¼” input jack

Available in Black textured vinyl featuring a dual black EVH®-striped steel grille front panel

Electronics

Controls: Channel 1: Independent Volume and Gain w/ Shared Low, Mid and High; Channel 2: Independent Volume and Gain w/ Shared Low, Mid and High; Channel 3: Independent Volume, Gain, Low, Mid and High EQ, with Global Presence and Resonance

Effects Loop: 1/4 in (Send/Return)

Inputs: One - 1/4", MIDI (rear)

Headphone Jack: 1/4" Stereo

Line Out: One - (1/4")

Channels: Three - (Clean, Crunch and Lead)

Voltage: 120V

Wattage: 50 Watts

Hardware

Cabinet Material: 7-Ply 5/8" Birch Plywood

Handle: Molded Plastic Strap with Nickel-Plated Caps

Front Panel: Black EVH®-Striped Steel

Control Knobs: Black Chicken-Head Style Pointer

Tubes

Pre Amp Tubes: 7 x JJ ECC83 (12AX7)

Power Tubes: 2 x Shuguang 6L6

Miscellaneous

Included Accessories: 4-Button EVH® 1/4" Footswitch. Ch1, CH2, CH3, Effects Loop.

Accessories

FootSwitch: 4-Button Footswitch Included
