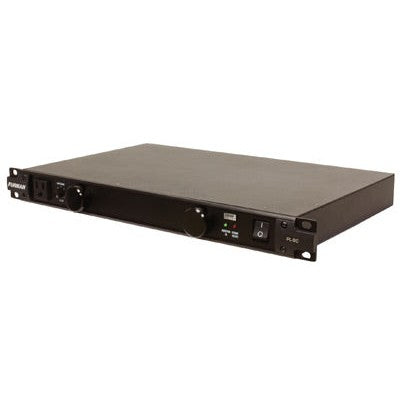

Furman - PL-8 C

$450.00
Steve's Code: 40409
By Furman

Description


The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design. The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world's most advanced and comprehensive transient voltage surge supressors.


































































Maximum Output Current:

15 amps

Line Cord:

Captive 3/14 AWG, 10 ft. black cord with NEMA 15 plug

Pull-out Lights:

Two multi-LED, dimmable lamps

BNC Socket w/Switch:

Rear rack lamp, 12VAC 500MA maxx (lamp not included)

Operating Voltage:

90 to 139 VAC

Spike Protection Mode:

Line to neutral, zero ground leakage

Spike Clamping Voltage:

188 VAC peak @ 3,000 Amps

Response Time:

1 nanosecond

Maximum Surge Current:

6,500 Amps

Noise Attenuation:

10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz

Dimensions:

19” W x 10.5” D x 1.75” H

Weight:

12 lbs.

Power Consumption:

12 watts

Safety Listing:

cTUVus
