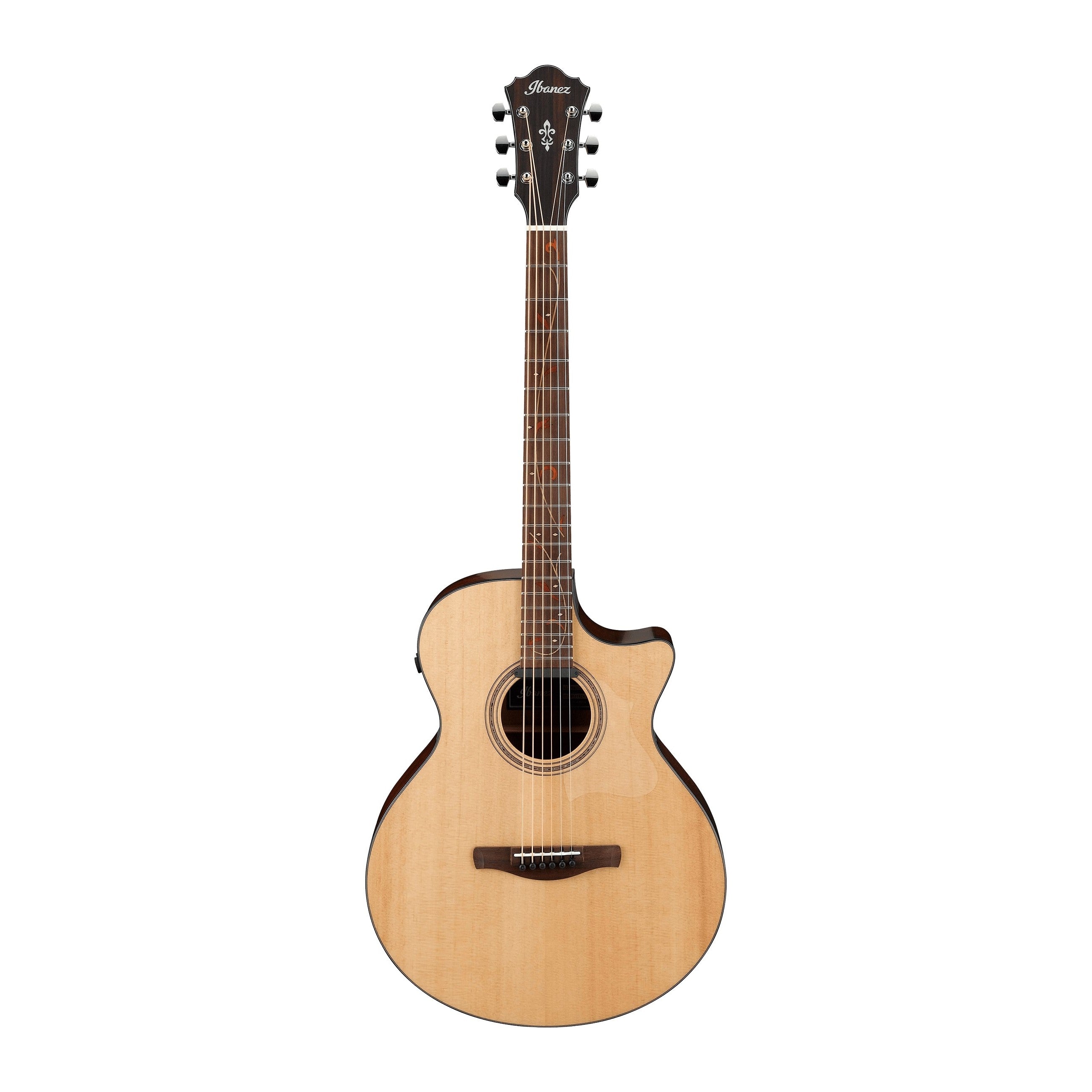

Ibanez - AE275BT - LGS Natural Low Gloss
$979.99
Unit price
/
Unavailable
Steve's Code: 10534
By Ibanez
Couldn't load pickup availability
Description
Features
Katalox Scalloped bridge
The lightweight, scalloped bridge improves vibration efficiency for better resonance, as well as providing more flexibility in adjusting the action than usual bridge.
X-M Bracing
After spending years of trial-and-error, Ibanez realized the out-of-the-box X-M Bracing to generate the ultimate sound standing out on the stage. The carefully designed scalloped X-bracing, the allocation of tone braces, and finger braces transmit the string vibration efficiently through the bridge to the body. The X-M Bracing creates the clear bottom and crispy treble sound with trimmed warm mid-range, yet provides a wide dynamic range and high response.
AE body shape
Designed for projection, balance, and comfort, the AE's perfectly crafted contemporary body shape offers the best of all worlds.
Ibanez AP11 Magnetic Pickup
The newly designed AP11 pickup is small, lightweight, and positioned so it won’t inhibit the natural vibrations of the top wood. The pickup generates a highly responsive sound with minimal feedback and delivers a lively response throughout the entire frequency range. The sound is transparent and reflects the guitar’s natural acoustic tone while preserving presence and mid-range. The AP11 also works well with effects such as reverb, chorus, and many others.
Ibanez Custom Electronics w/ Volume and Tone Control
The guitar also features on-board treble and bass controls for contouring the tone, making the AE suitable for variety of applications for modern players.
Comfort Grip w/Rounded Fingerboard Edge
In order to achieve supreme playability, the neck was specially designed with Thin-C shape style comfort grip with fingerboard's rounded edge.
Jumbo Frets
The jumbo frets support easy fingering.
Nyatoh neck
The Nyatoh neck provides a rich mid-low end.
Okoume back and sides
The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.
SPECS
body shape
AE body
bracing
X-M Bracing
top
Solid Sitka Spruce top
back & sides
Okoume back & Okoume sides
neck
Comfort Grip with Rounded Fretboard EdgeNyatoh neck
fretboard
Pau Ferro fretboard
bridge
Pau Ferro scalloped bridge
inlay
Specially designed Wooden Vine inlay
soundhole rosette
Abalone and Wooden
tuning machine
Chrome Die-cast tuners (18:1 gear ratio)
nut material
Bone
number of frets
20
saddle material
Compensated Bone
bridge pins
Ebony
strings
D'Addario® XTAPB1670
string gauge
.016/.022/.029/.048/.060/.070
string space
11mm
factory tuning
1B,2F#,3D,4A,5E,6B
pickup
Ibanez AP11 Magnetic
preamp
Ibanez Custom Electronics w/ Volume and Tone Control
output jack
1/4" Endpin Jack
NECK DIMENSIONS
Scale :
685.7mm/27"
a : Width
45mm at NUT
b : Width
56mm at 14F
c : Thickness
21mm at 1F
d : Thickness
22mm at 7F
Radius :
400mmR
DESCRIPTION
BODY DIMENSIONS
a : Length
20 1/8"
b : Width
16 1/4"
c : Max Depth
4 3/4"
DESCRIPTION
PREAMP
AE275BT's preamp diagram
DESCRIPTION
OTHER FEATURES
Recommended Case (not included)
AEL50C
