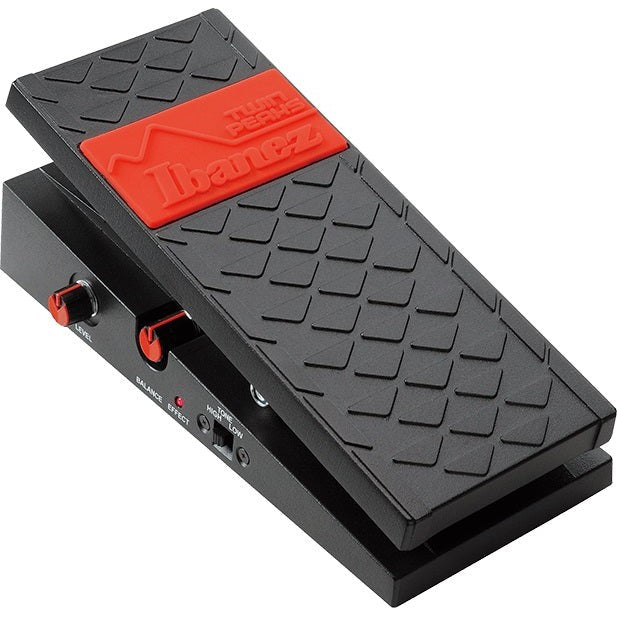

Twin Peaks is a new wah-wah pedal from Ibanez unlike any other before it. Most conventional wah-wah pedals utilize a single peak point to achieve the effect, but Twin Peaks doubles down on this sound by utilizing dual peak points at a higher and lower frequency. This is achieved through the use of dual inductor circuitry. Additionally, the mix of the 2 frequency peaks can be controlled via a balance knob, inspiring enriched levels of sonic experimentation with this exciting and entirely new pedal from Ibanez.

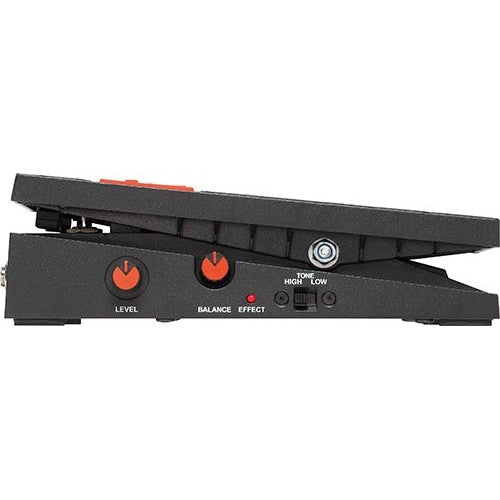

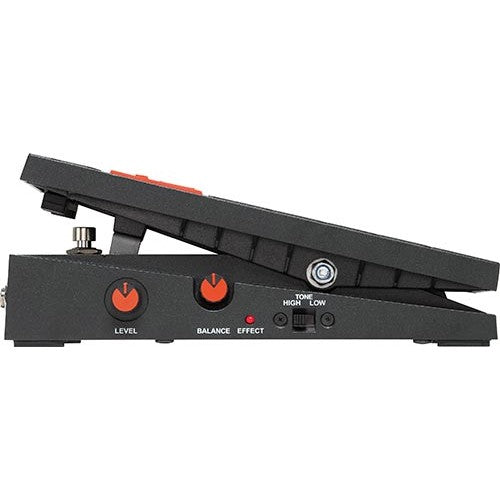

- Control: Master Level, Balance

- Switches: Tone Mode (High/Low)

- True Bypass

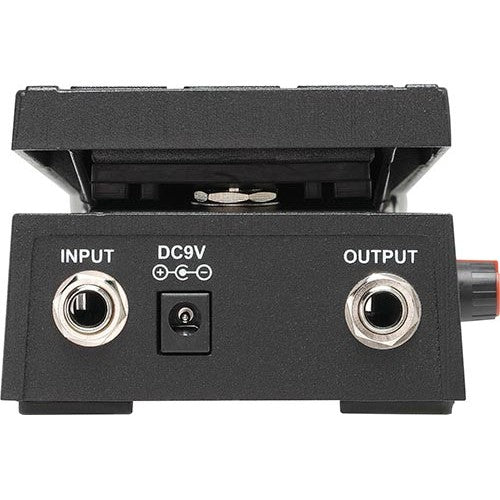

- I/O's: Input, Output

- Weight: 815 g

- Size (W x D x H): 96 mm x 202 mm x 84 mm

- Required Current: 15 mA @ 9 V

- Power Supply: 1 x 9-Volt Battery or External DC 9 Volt AC Adapter

Features:

"Balance" Control

- "Balance" controls the mix ratio of the 2 peak levels created by the dual inductor circuit resonances. The higher frequency provides a sweepable range similar to that of most traditional wah-wah pedals. The lower frequency is closer to what's generally found on modified or signature wah-wah pedals. Turning the "Balance" control counter-clockwise emphasizes the higher-frequency peak, while turning it clockwise emphasizes the lower-frequency peak.

"Tone" Mode Switch

- "Tone" mode switch selects wah sweeping frequency range,"High" or "Low"

- "High": The higher-frequency resonance sweeps from 670 Hz to 3 kHz, which is a higher range than typical wah-wah pedals. Because of this, there's a chance the tone could be too bright, so it's recommended to adjust the balance and level controls on the pedal, or the tone control on your guitar to soften some of the higher frequencies. The lower-frequency resonance sweeps from 300 Hz to 1 kHz, which is a slightly lower range than traditional wah-wah pedals.

- "Low": The higher-frequency resonance sweeps from 440 Hz to 2 kHz. That range covers what's generally used on traditional wah-wah pedals. The lower-frequency resonance sweeps from 220 Hz to 750 Hz.

Master "Level" Control

- Master "Level" controls overall output signal level. It gives a unity gain at 12 o'clock and a +6 dB boost all the way up.
