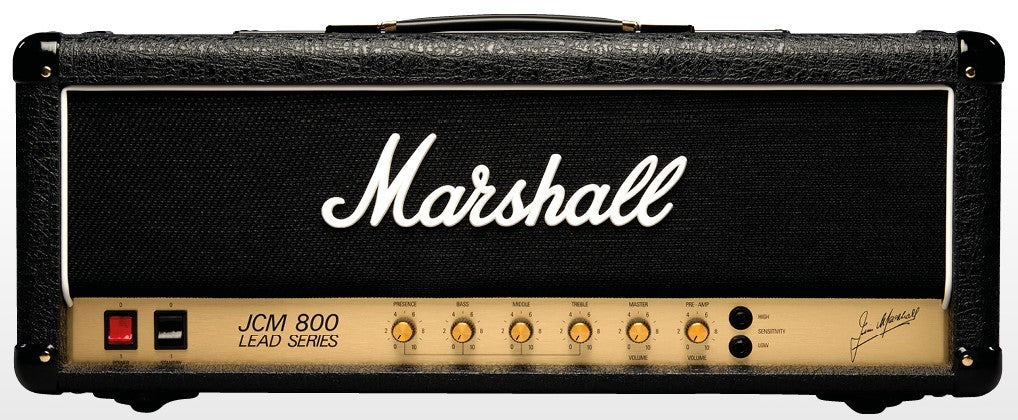

The art of the JCM800TM is its simplicity. Used by artists around the world, this amp continues to be one of our greatest. Oozing rock status, you can effortlessly detect its distinctive 100w roar. The first of our amps to feature a master volume for you to control your sound. We have added in a series FX loop, simple and effective.

Technical Specification

General

Model JCM800 2203

Range Vintage reissue

Technology Valve

Channels 1

Electronics

Output wattage 100w

Outputs 2 x 1/4" jack speaker outputs, selectable 16Ω/ 8Ω / 4Ω load

Inputs 2 (1 x high, 1 x low)

ControlsPresence, bass, middle, treble, master volume, preamp volume

Effects

None

Effects loop Yes, 1 x serial switchable

Valves

Preamp valves2 x ECC83, 1 x ECC83 (phase splitter)

Power amp valves4 x EL34

Accessories

Cable Detachable power cable included, speaker cable included

Footswitch None

Dust coverM-COVR-00049 (sold separately)

Dimensions (including feet and handle)

Weight 20.5 kg / 45 lbs

Width 740 mm / 29.1"

Height 315 mm / 12.4"

Depth 210 mm / 8.3".
