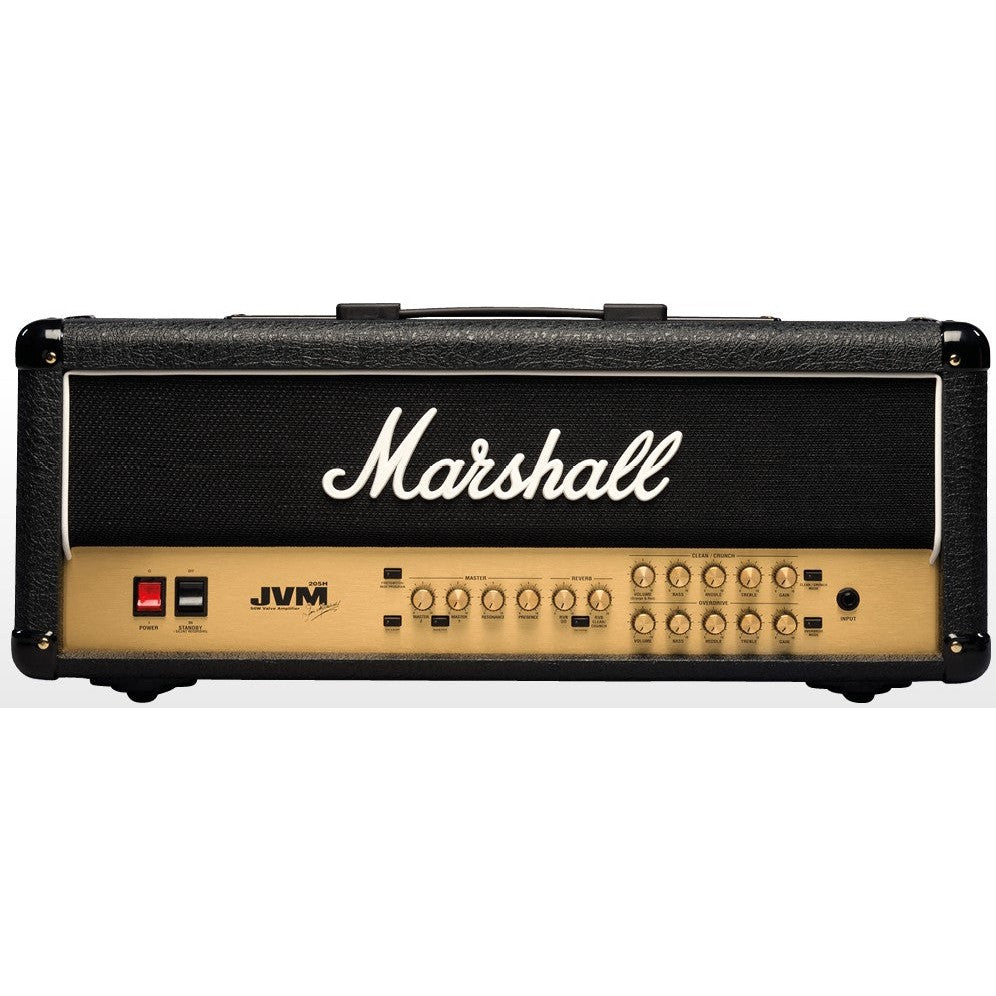

Enhance your sound with the extensive features of the 50w JVM205HTM. With a versatile and broad sound palette your musical talent is intensified no matter where you perform. Green, orange and red LED indicator lights will guide you through the sound palette and the modes of the two channels.

Technical Specification

General

Model JVM205H

Range JVM

Technology Valve

Channels 2 (Multi)

Electronics

Output wattage 50w

Outputs Speaker outputs: 5 x 1/4" jack sockets (16Ω load / 8Ω load / 4Ω load), Emulated Line Out (XLR), MIDI Thru

Inputs 1 x 1/4" jack instrument input, MIDI In, Footswitch

Controls Channel and mode select (button), gain (per channel), treble (per channel), middle (per channel), bass (per channel), reverb (per channel), presence, resonance, master volume select, master volume (switchable for each channel)

Effects Digital reverb

Effects loop 2, 1 x series parallel, 1 x series

Valves

Preamp valves 4 x ECC83, 1 x ECC83 (phase splitter)

Power amp valves 2 x EL34

Accessories

Footswitch PEDL-91006 included

Cable Detachable power cable included, Speaker cable included

Dimensions (including feet and handle)

Weight 17.5 kg / 39 lbs

Width 740 mm / 29.1"

Height 310 mm / 12.2"

Depth 215 mm / 8.5"
