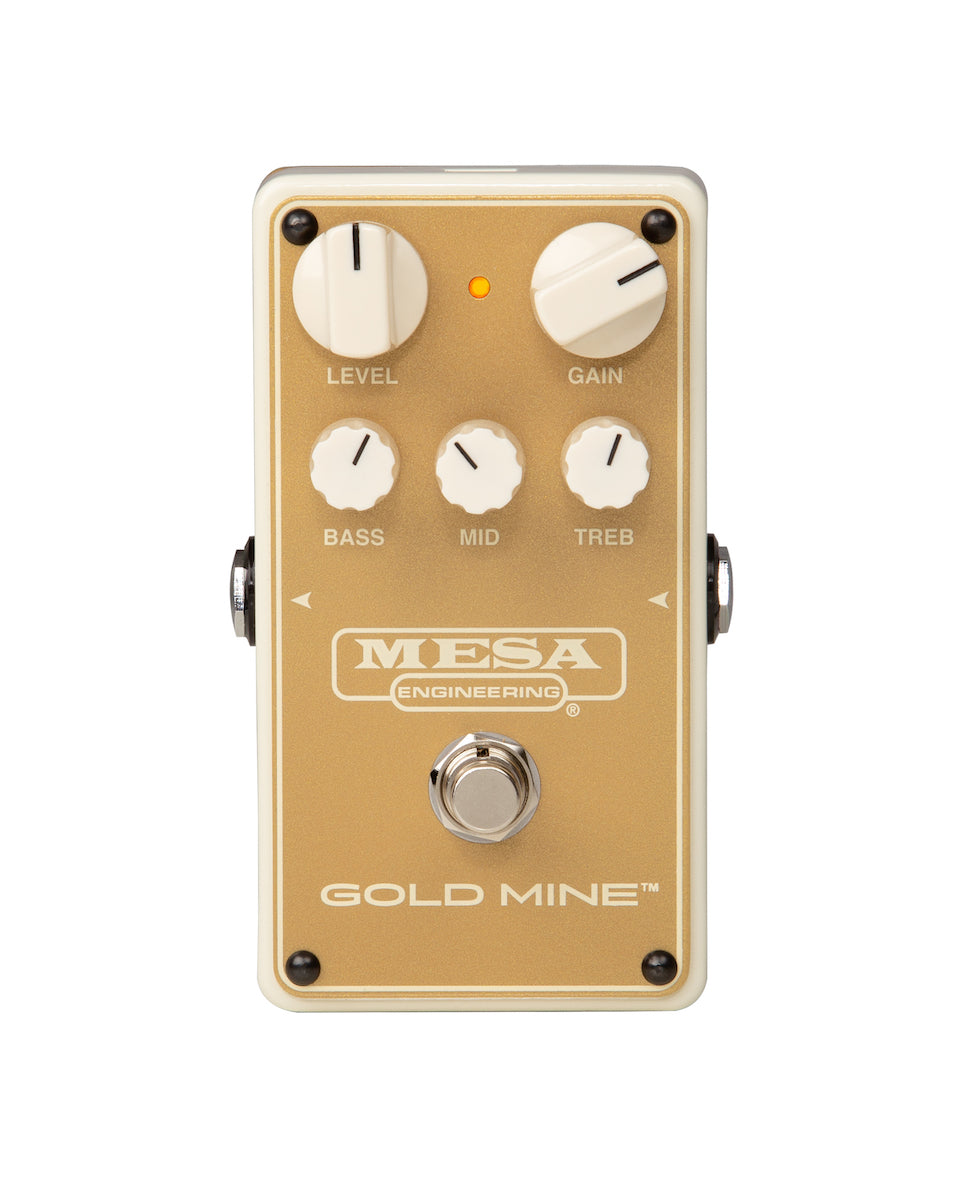

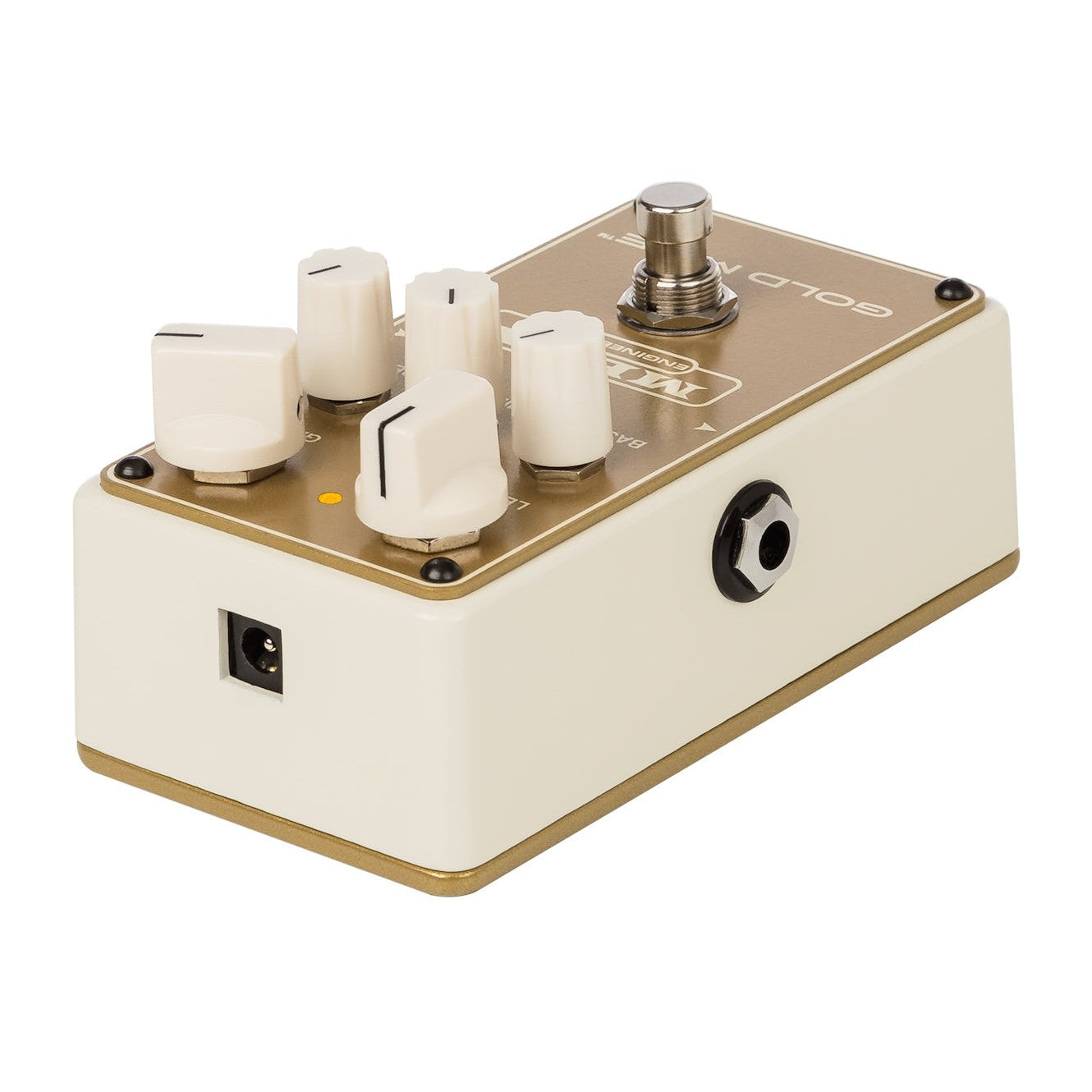

GOLD MINE™ – CALIFORNIA HIGH GAIN

A GOLD MINET™ awaits with our new mid to higher gain o ering that may just have you exclaiming Eureka! ...as you chunk and sing your way through chord stacks awash with harmonic complexity and soar through single note passages that brim with liquid gain and girth.

• Made in Petaluma, California, USA, with the World’s nest materials

• True Bypass On/O Switching - Bypasses all circuitry when o to ensure no tonal loss

• Gain Control allows you to dial in the perfect amount of gain from classic to higher gain styles

• Master Level Control provides a variable range of signal boost up to +20db

• Full Tone Stack (Bass, Mid & Treble) provides exceptional tone shaping and makes this pedal an extra “amp channel”

• Internal EQ Voicing Switch provides added style/voicing option

• On/O Status LED

• 1⁄4” Input & Output Jacks (Nominal Input -20db)

• 9V Battery Powered or optional 9VDC Powered via External Power Jack Input (Center Tip Negative)

• Power Consumption (Current Draw): 9VDC/25mA

• Dimensions (W/D/H): 2.87” x 4.77” x 2.28” (73mm x 122mm x 58mm)

• Weight: 11.68 oz. (331g) without battery
