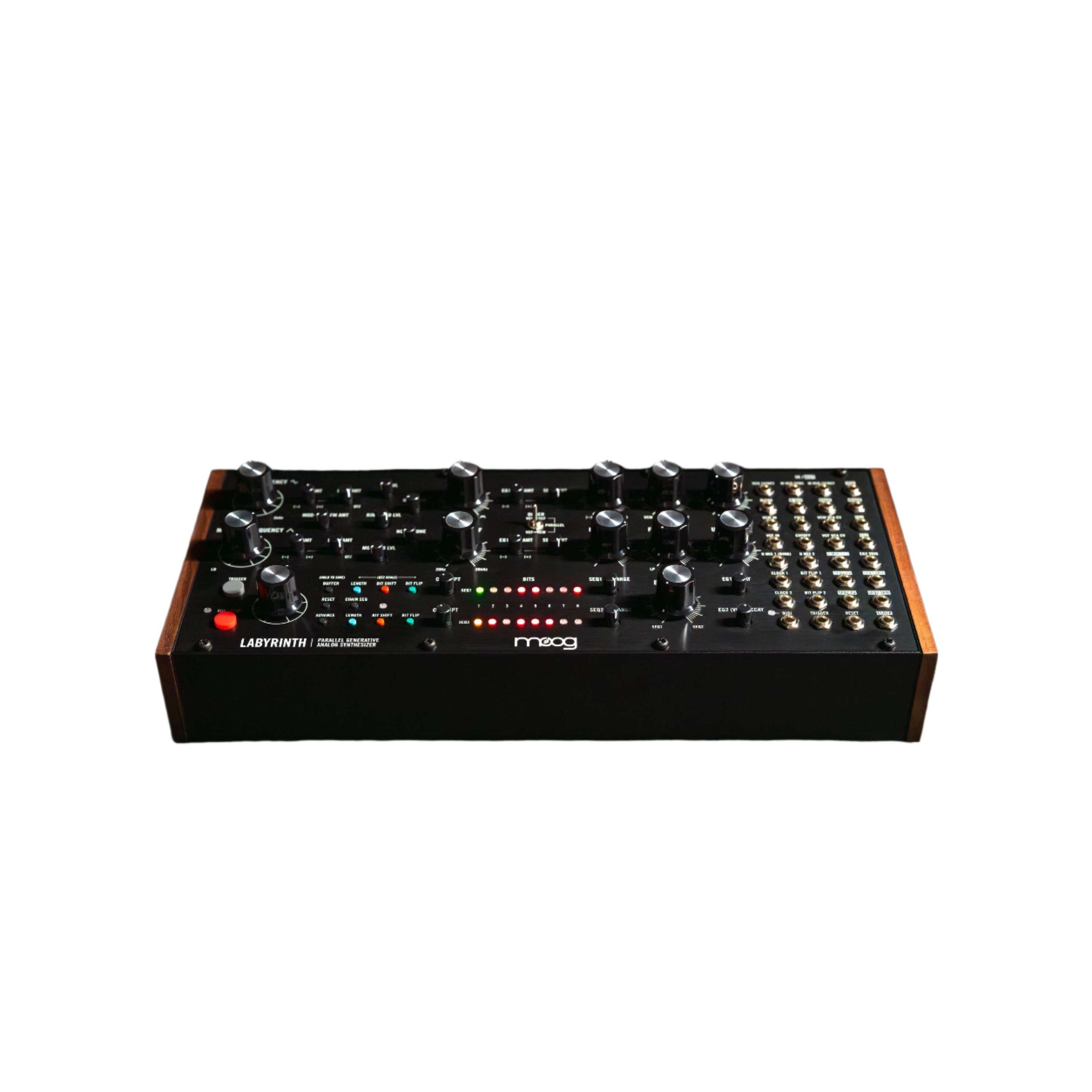

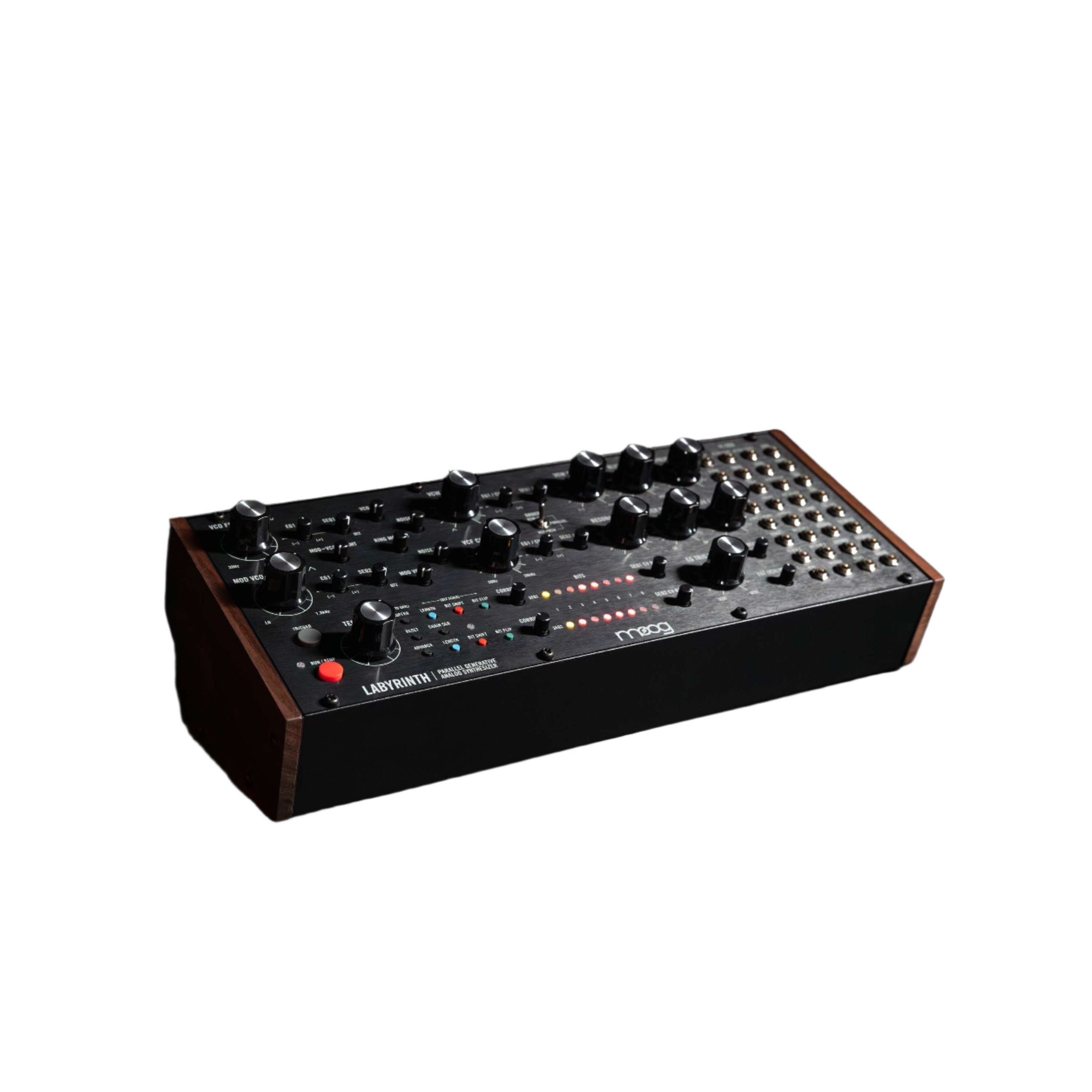

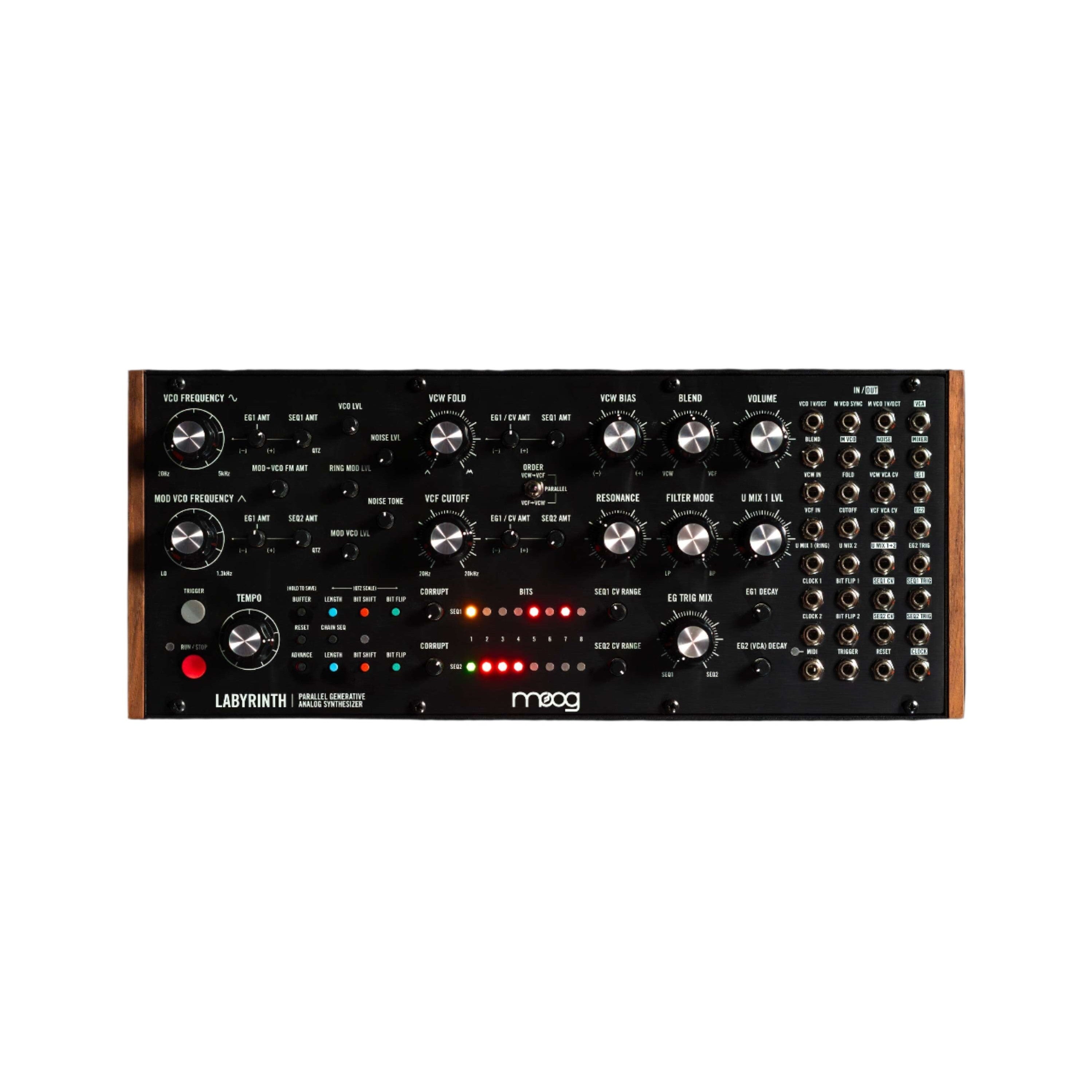

Labyrinth, a semi-modular instrument and idea machine, discovers patterns, layers, and textures both familiar and unheard. Two generative sequencers bring to life sounds that bloom over time, letting you control their evolution and scale, then play them off of each other for striking polymetric melodies. With parallel analog signal paths, this unique instrument shines when adding color to the static backdrop of a drum pattern or bassline. Fully capable of standing on its own, or adding depth to your existing rack, it’s equally at home in a live set or at the center of a humble bedroom studio. Labyrinth is the lightning in a bottle that drives a studio session deeper into undiscovered creative caverns.

Twist and Curve Through a Winding Path of Sound

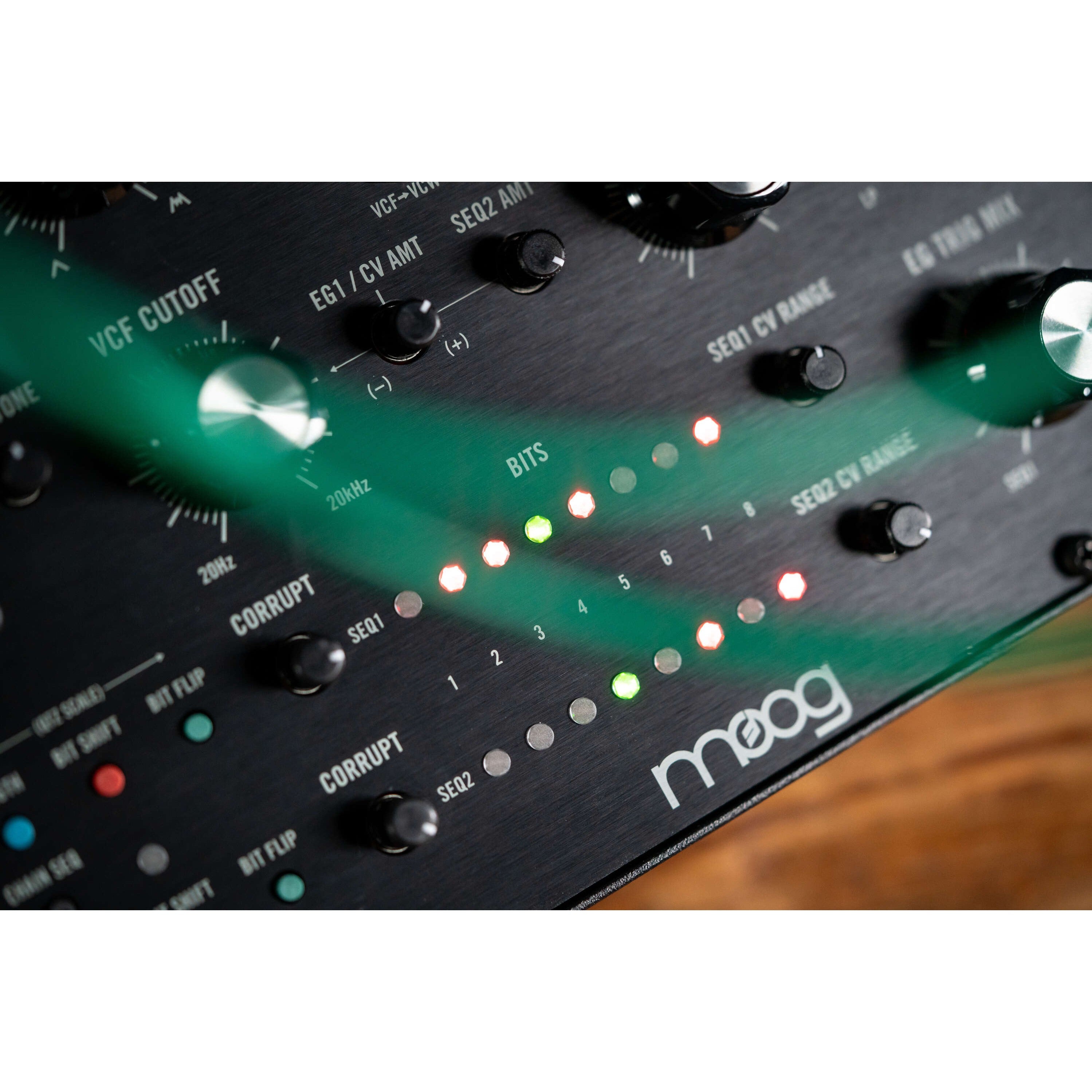

The beating heart of Labyrinth is a robust dual sequencer, which uses chance operations to construct two unique eight-step paths which twist and curve around each other, forming a mesmerizing path of sound. With a comprehensive patch bay, Labyrinth can be synced via analog clock or MIDI while processing, directing, and being influenced by other kit.

Creative Patching Possibilities for Performance
Tune your instruments together and let Labyrinth improvise alongside in key while you play Matriarch. Patch Labyrinth and Spectravox together for animated spectral movement. Combine Labyrinth with Mavis in a 104HP rack for expanded modularity. These are just a handful of many playful setups where Labyrinth fits. Whichever path you choose, have Labyrinth guide you.

Key Features

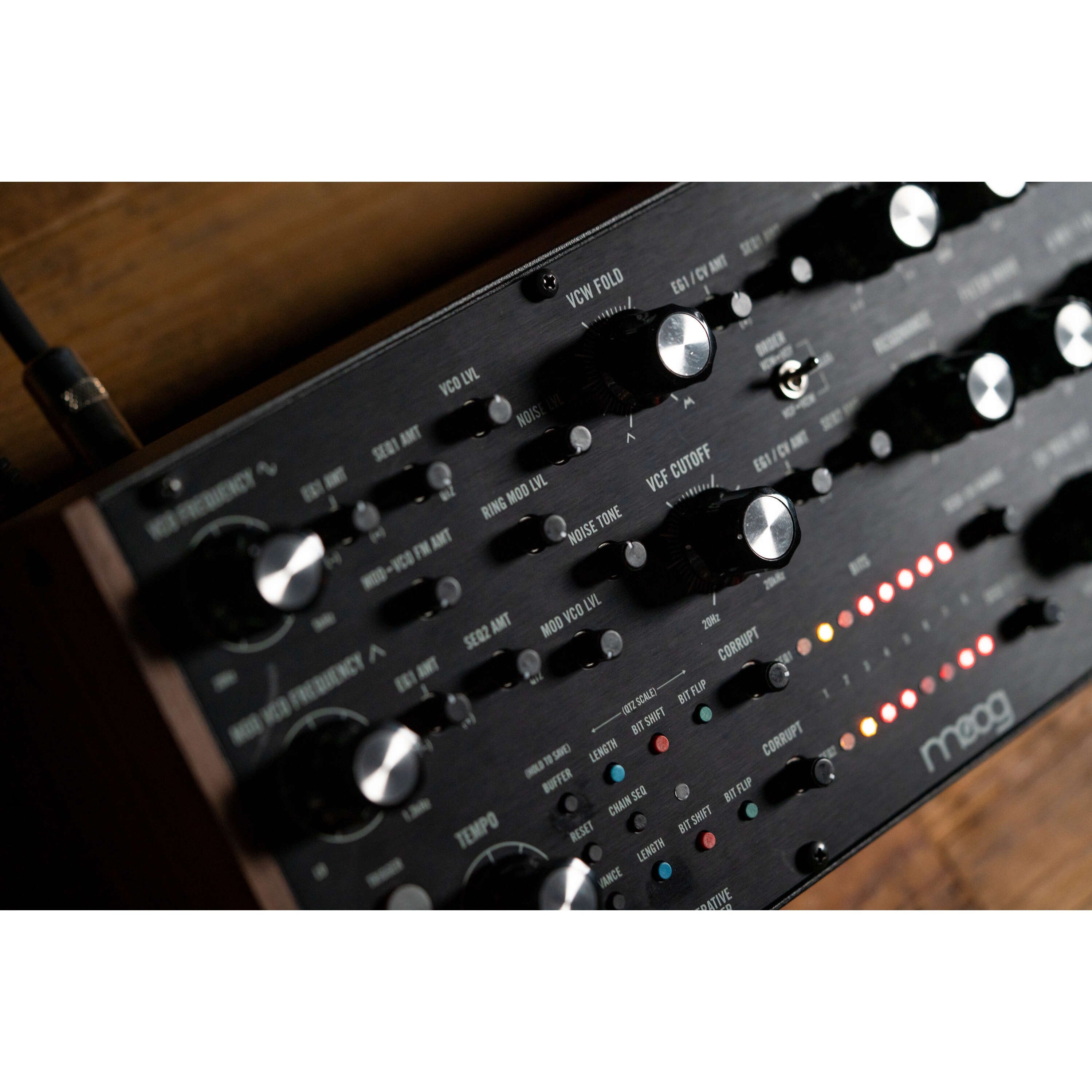

Sine wave oscillators, ring modulators, through-zero FM, and saturating mixers give Labyrinth an unconventional yet classic Moog sound

A diode-transistor hybrid wavefolder that sounds surprisingly smooth
A state-variable filter provides a new twist on the Moog sound, morphing from lowpass to bandpass
Creative patching possibilities for performance alongside other instruments
An infinite spiral of percussive or melodic sequences that bloom over time

Specifications
Sound Source: VCO, MOD VCO, RING MOD, Noise Generator
Signal Processors: 1x Voltage-Controlled Wavefolder 1x Voltage-Controlled State-Variable Filter 2x Voltage-Controlled Amplifiers
Dual Generative Sequencer: 2x 8-step Generative Digital Sequencers

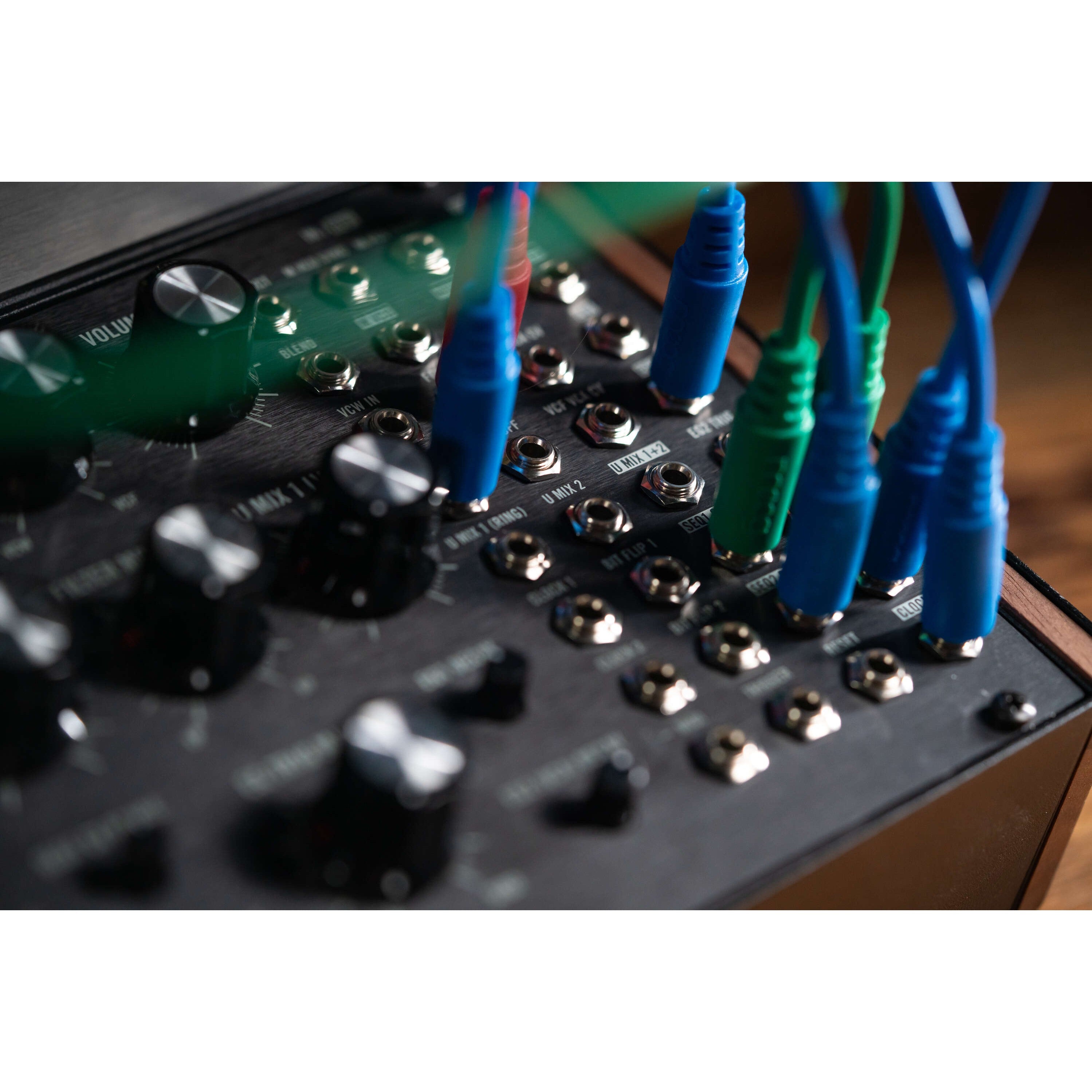

Patch Bay Jacks: 32 x 3.5mm
Inputs: 20 Input Jacks
Outputs: 12 Output Jacks
Audio Out: 1⁄4” TRS Headphone or 1⁄4” TS Instrument
Security: Kensington Lock slot
Power Supply: Wall adapter; barrel connection; center-pin positive
Input: 100 – 240VAC; 50 Hz – 60 Hz
Output: +12VDC; 1200mA
Power Consumption: 4.0 Watts
Eurorack Current Draw: 290 mA (maximum) from +12VDC (10-pin header)
Mounting Dims: 60HP (18mm Module Depth)
Sound Source: VCO, MOD VCO, RING MOD, Noise Generator
Signal Processors: 1x Voltage-Controlled Wavefolder 1x Voltage-Controlled State-Variable Filter 2x Voltage-Controlled Amplifiers
Dual Generative Sequencer: 2x 8-step Generative Digital Sequencers
Patch Bay Jacks: 32 x 3.5mm
Inputs: 20 Input Jacks
Outputs: 12 Output Jacks
Audio Out: 1⁄4” TRS Headphone or 1⁄4” TS Instrument
Security: Kensington Lock slot
Power Supply: Wall adapter; barrel connection; center-pin positive
Input: 100 – 240VAC; 50 Hz – 60 Hz
Output: +12VDC; 1200mA
Power Consumption: 4.0 Watts
Eurorack Current Draw: 290 mA (maximum) from +12VDC (10-pin header)
Mounting Dims: 60HP (18mm Module Depth)
