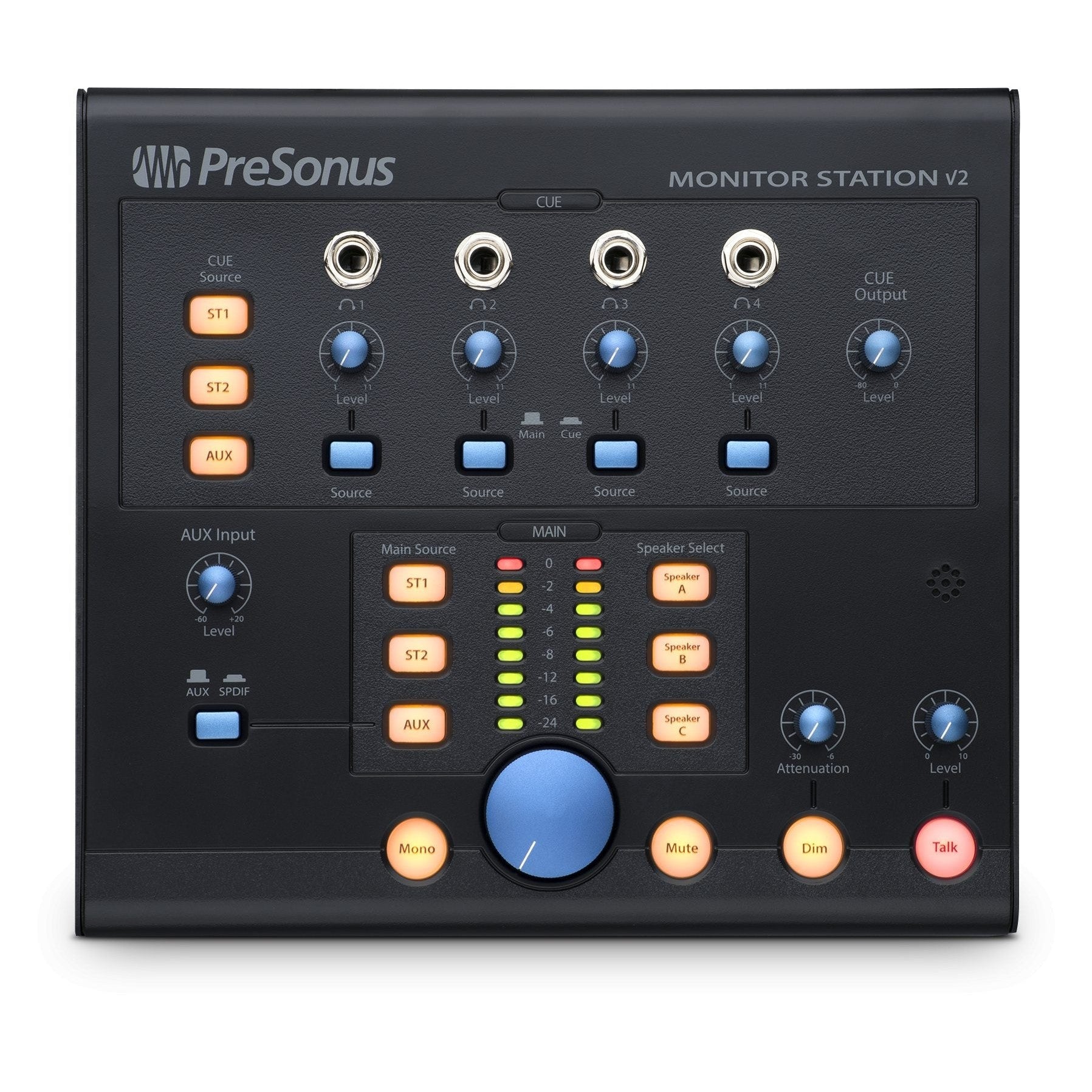

PreSonus - Monitor Station V2

Manage multiple audio sources and sets of monitor speakers, track using illegally loud headphone amplifiers, and talk back to your drummer—all from your desktop.

Specifications

Inputs and Outputs
2 Stereo pairs of ¼” TRS inputs
1 Stereo pair of RCA Aux inputs
1 Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
3 Stereo pairs of ¼” TRS speaker outputs with level controls
1 Stereo pair of ¼” TRS Main outputs
1 Stereo pair of ¼” TRS Cue outputs
4 ¼” TRS screaming-loud stereo headphone outputs
Controls
Large Main level control
3 Individual Main Source (ST1, ST2, Aux) select switches
3 Individual Speaker Select switches
Cue section with Source select (ST1, ST2, Aux) and output-level control
Aux-S/PDIF Select switch
Aux Input level control
Main Mute, Mono, and Dim switches with variable Dim attenuation
Additional Features
8-segment color LED input meters with selectable reference level
Built-in electret-condenser talkback microphone with input-gain control and Talkback button
Convenient desktop design

Dimensions
Height 2.5” (63.5 mm)
Depth 8.5” (216 mm)
Width 9” (228.6 mm)
