Sonzera [Portuguese]: from som (sound), meaning a cool and/or stunningsound (in the sense of music) – a kind of slang.

The Sonzera 20 is a moderately powered 20-watt combo amplifier withtwo independently controlled, footswitchable channels designed formaximum versatility. The clean channel delivers full, 3D tones reminiscentof American mid-1960’s amplifiers. The gain channel is related to the cleanchannel circuit-wise, so that it can be set up to act as a boosted cleanchannel or manipulated to make the channels sound like two completelydifferent amps (the gain channel can be set from slight to very heavy distortion by simply using the drive and level controls). The bright switch onthe gain channel has been carefully tailored to deliver familiar high-endsnap and is particularly effective on the low strings, neck pickup settings,and with singlecoils, while the low-end response of the gain channel isfull, tight, and clear.

Both channels on the Sonzera are designed to maximize note clarity anddefinition. The global presence control and the tone stacks allow playersto dial in a variety of tones from bell-like chime to warmer, thicker tones.

The Sonzera 20 Combo also features global spring reverb control thatis designed to enhance notes without clouding them. The reverb can beturned on and off via the footswitch. The addition of a built-in effectsloop allows players to use all their time-based effects with ease withoutnegatively impacting the overall tone of the amp.

With robust construction, a wide range of tones, and steadfast controllability, the Sonzera 20 Combo is a solid gig- and studio- worthy amplifier.

GENERAL

Available Configuration 1x12 Combo

ELECTRONICS

Wattage 20

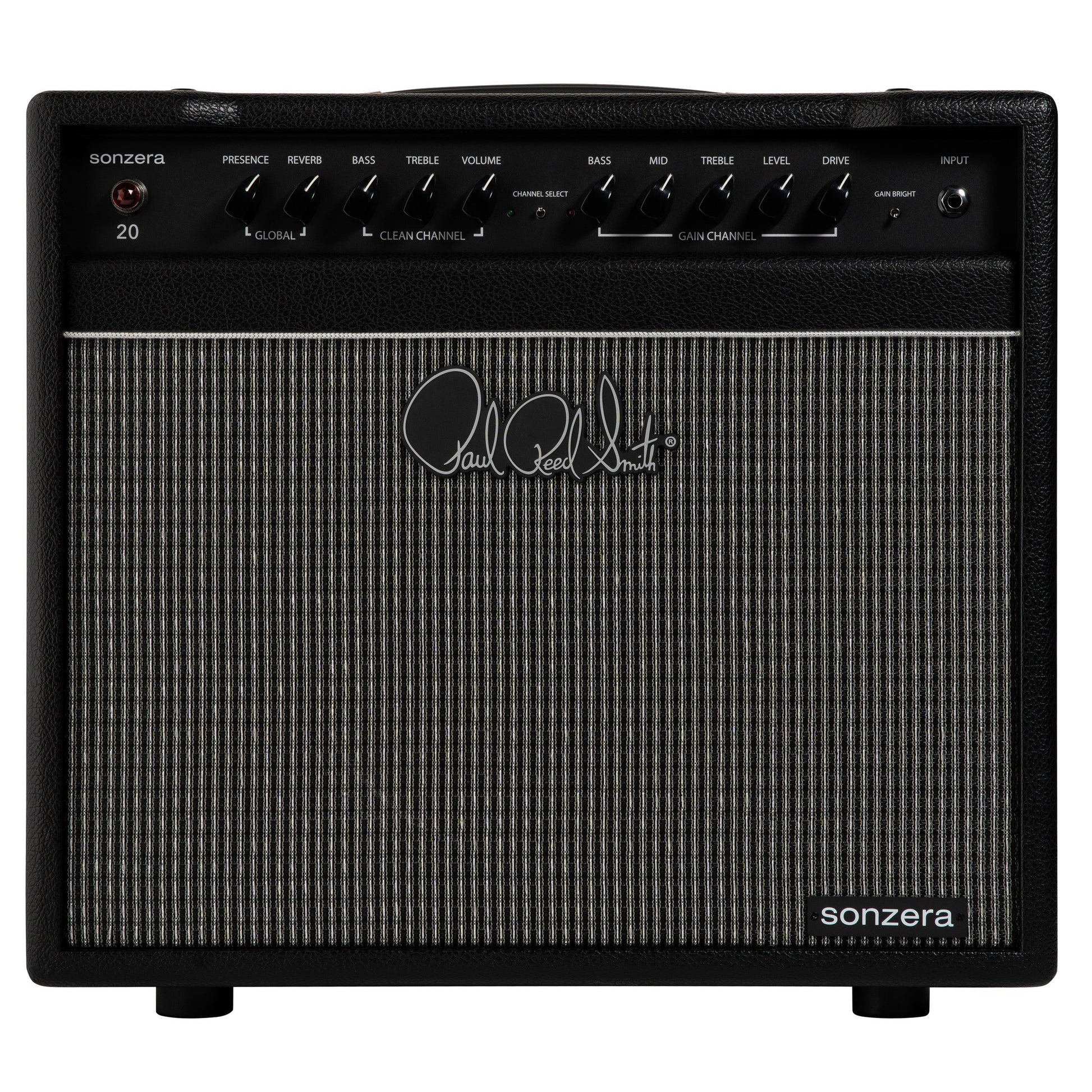

FRONT PANEL CONTROLS

Channel 1 Controls Bass, Treble, Volume

Channel 2 Controls Bass, Middle, Treble, Level, Drive, Bright Switch

Global Controls Presence, Reverb

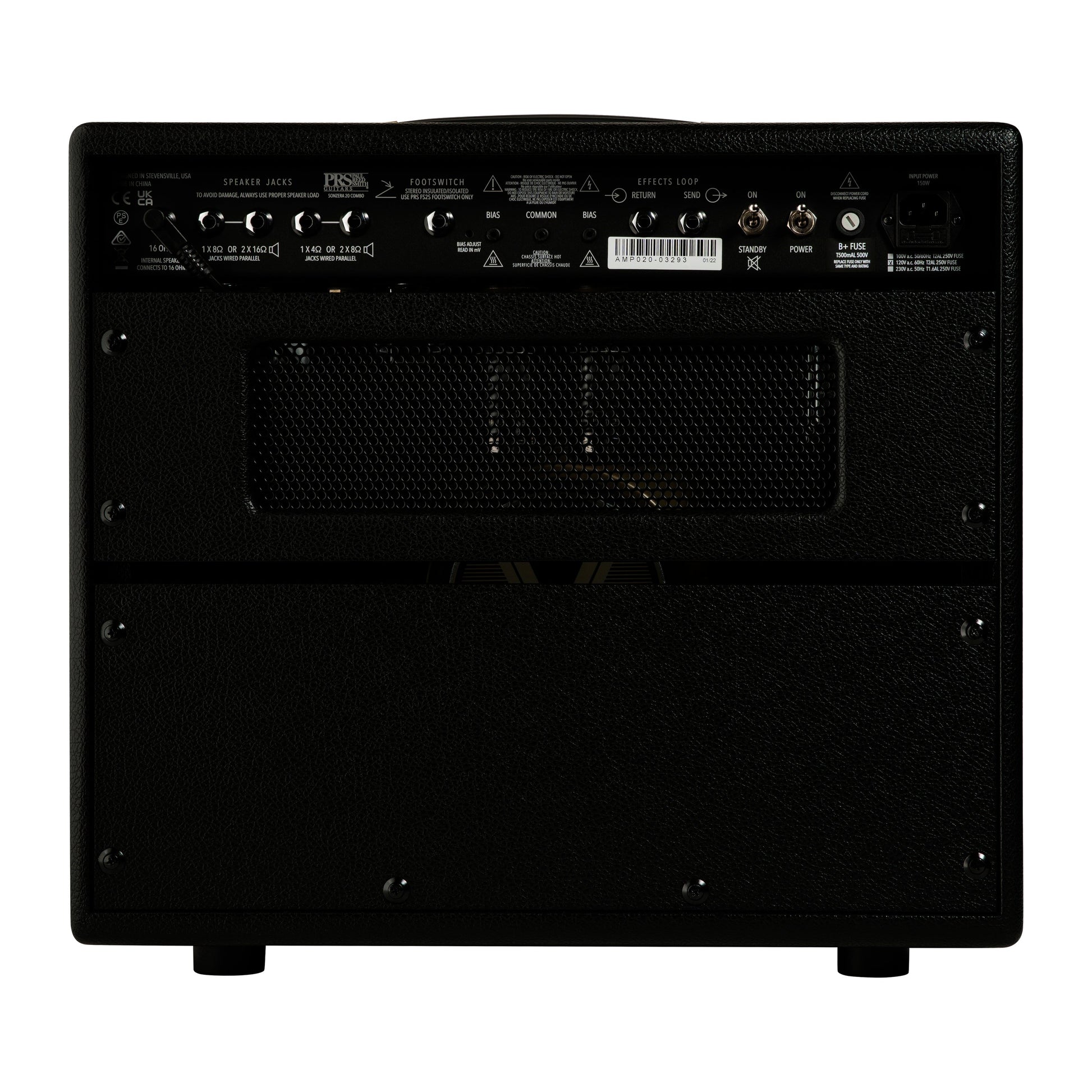

BACK PANEL FEATURES

Inlet Fused Power Inlet (IEC)

Effects Loop Series – MOSFET driven

Bias Adjustable

Output Jacks 5

Output Jack Ohm Selections (2) Parallel 4 ohm, (2) Parallel 8 ohm, (1) 16 ohm

Channels Clean and Gain

HARDWARE

Covering Black Tolex

Grill Cloth Black / Silver Rectangle

Panel Black Tolex

Piping Silver

Speakers Celestion V-Type 70W

Output Transformer 19G01-OPT

TUBES

Power Tubes 2x JJ 5881

Preamp Tubes 4x JJ ECC83S

MEASUREMENTS

Amp Width 21.5”

Amp Depth 10”

Amp Height 18”

Amp Weight 49 lbs

ACCESSORIES

Included Accessories 2-Button Footswitch, Channel and Reverb
