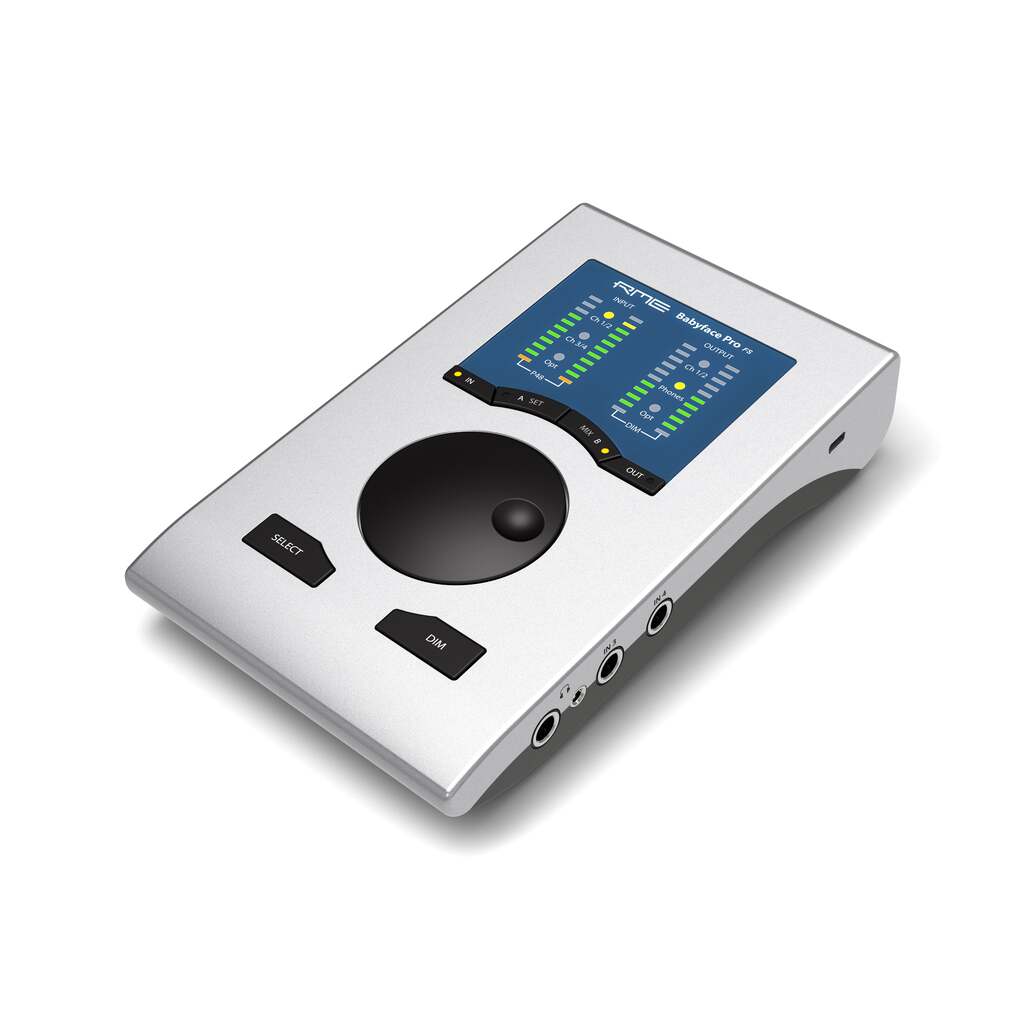

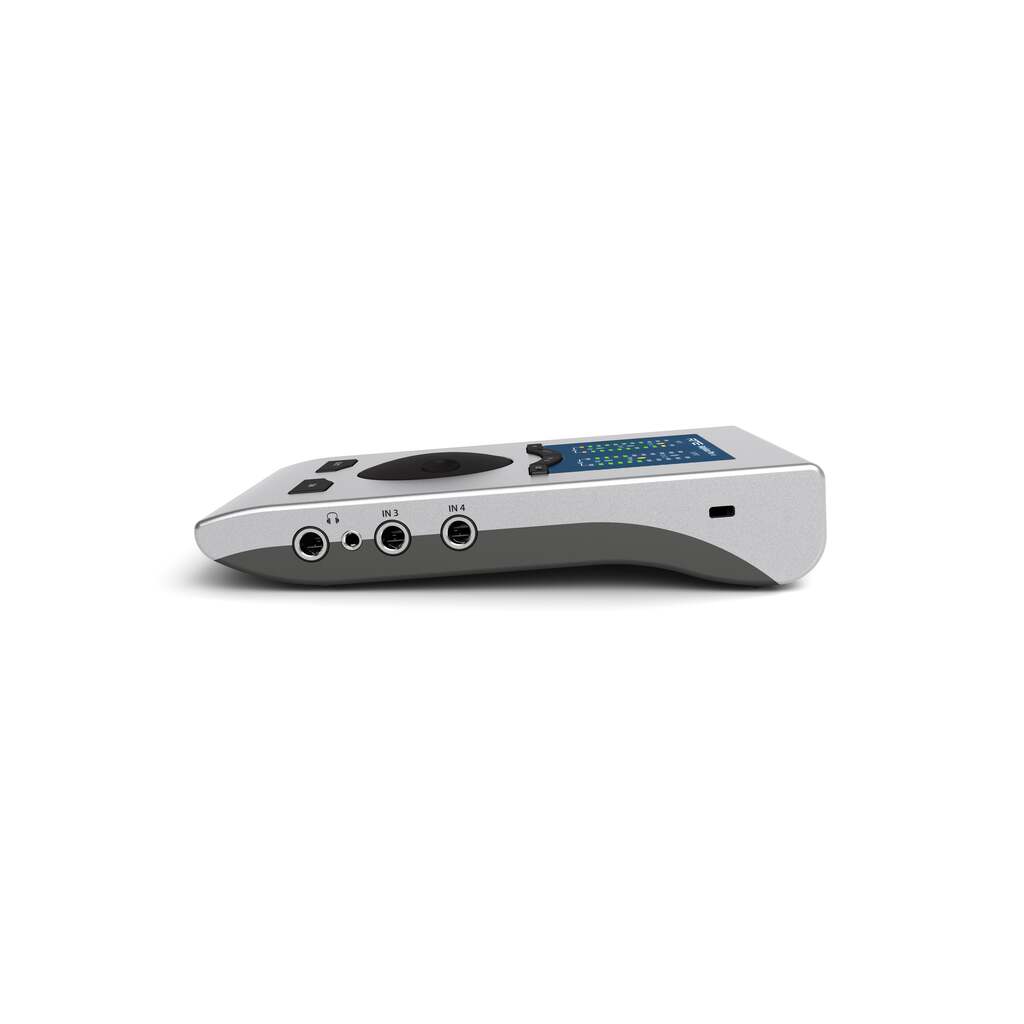

24-Channel 192 kHz bus-powered professional USB 2.0 Audio Interface

Four years ago the Babyface Pro again demonstrated RME’s absolute commitment to superior craftsmanship, not only in audio circuits and driver development, but also in mechanics. Created with the highest precision from a block of aluminum, this high-end portable interface incorporated newly designed analog and digital circuits. Its innovative energy saving technologies provided supreme fidelity with no compromises in level, noise or distortion.

In the new Babyface Pro FS even more improvements were implemented:

+19 / +4 dBu switch on the bottom adds a direct way to reduce the output level, thus improves SNR for sensitive active monitors, avoids distortion / overload, and helps to keep TotalMix FX faders near 0 dB instead of high attenuations.

Full SteadyClock FS circuit as in the ADI-2 Pro FS for lowest jitter and highest jitter immunity.

3.5 mm TRS phones output power rises from 70 mW to 90 mW. THD of both phones outputs improved by up to 10 dB. Uses same output op-amps as ADI-2 Pro now. Output impedance of 3.5 mm TRS lowered from 2 Ohms to 0.1 Ohms.

Mic inputs SNR improved from 112.2 dB to 113.7 dB, TRS Line inputs SNR improved from 114 dB to 116.3 dB (120 dBA). THD Line inputs improved by 8 dB.

6 samples less latency on the AD side by new ADC (5 samples AD, 7 samples DA. It won't get quicker...).

All the above improvements were achieved without raising the units power consumption.

K-slot for theft protection.

SPECS

Babyface Pro FS

ANALOG

AD, Microphone/Line 1-2

Input: XLR, electronically balanced

Input impedance balanced: 2 kOhm, 5.2 kOhm with PAD

Input impedance unbalanced: 1 kOhm, 2.6 kOhm with PAD

Signal to Noise ratio (SNR): 113,7 dB RMS unweighted, 117 dBA

Frequency response @ 44.1 kHz, -0.1 dB: 18 Hz – 20.8 kHz

Frequency response @ 96 kHz, -0.5 dB: 7 Hz – 45.8 kHz

Frequency response @ 192 kHz, -1 dB: 5 Hz – 88 kHz

With PAD active : -0.1 dB 8 Hz, -0.5 dB < 4 Hz, -1 dB < 3 Hz

THD: < -112 dB, < 0.00024 %

THD+N: < -108 dB, < 0.00035 %

THD @ 30 dB Gain: < -115 dB, < 0.00016 %

THD+N @ 30 dB Gain: < -100 dB, < 0.001 %

Channel separation: > 110 dB

Gain range: -11 dB up to +65 dB

Maximum input level XLR, Gain 0 dB: +8 dBu, PAD +19 dBu

Maximum input level XLR, Gain 65 dB: -57 dBu, PAD -46 dBu

AD, LINE/INSTRUMENT IN 3-4

As Microphone/Line 1-2, but:

Input: 6.3 mm TS jack, unbalanced

Input impedance: 1 MOhm

Signal to Noise ratio (SNR): 116 dB RMS unweighted, 120 dBA

Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.8 kHz

Frequency response @ 96 kHz, -0.5 dB: < 3 Hz – 45.8 kHz

Frequency response @ 192 kHz, -1 dB: < 2 Hz – 92 kHz

Maximum input level @+4 dBu, Gain 0 dB: +13 dBu

Maximum input level @-10 dBV, Gain 9 dB: -5 dBu

DA, Line Out 1-2

Dynamic range (DR): 115 dB RMS unweighted, 118 dBA

Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz – 20.8 kHz

Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 45 kHz

Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz

THD: - 106 dB, 0.0005 %

THD+N: -102 dB, 0.0008 %

Channel separation: > 110 dB

Output: XLR balanced

Output impedance: 300 Ohm balanced, 150 Ohm unbalanced

Output level @ 0 dBFS: Balanced +19 / +4 dBu, unbalanced +13 / +7 dBu

DC @ 0 dBFS: 6.35mm 4.8 V, 3.5mm 2.4 V, XLR bal. 9.6 V

DA, PHONES 3/4

AS DA Line Out, but:

Output: 6.3 mm TRS jack, unbalanced

Output impedance: 10 Ohm

Output level at 0 dBFS, 1 kOhm load: +13 dBu

Max power @ 0.1% THD: 60 mW

Signal to Noise ratio (SNR): 114.8 dB RMS unweighted, 118 dBA

Noise level: -101.8 dBu

Output: 3.5 mm TRS jack, unbalanced

Output impedance: 0.1 Ohm

Output level at 0 dBFS, 1 kOhm load: +7 dBu

Max power @ 0.1% THD: 90 mW

Signal to Noise ratio (SNR): 114 dB RMS unweighted, 117 dBA

Noise level: -107 dBu

MIDI

1 x MIDI I/O via breakout cable with 2 x 5-pin DIN jacks

Galvanically isolated by optocoupled input

Hi-speed mode: Jitter and response time typically below 1 ms

Separate 128 byte FIFOs for input and output 25.3

DIGITAL

Clocks: Internal, ADAT In, SPDIF In

Jitter suppression of external clocks: > 50 dB (2.4 kHz)

Effective clock jitter influence on AD and DA conversion: near zero

PLL ensures zero dropout, even at more than 100 ns jitter

Digital Bitclock PLL for trouble-free varispeed ADAT operation

Supported sample rates: 28 kHz up to 200 kHz

DIGITAL INPUTS

ADAT Optical

1 x TOSLINK

Standard: 8 channels 24 bit, up to 48 kHz

Double Speed (S/MUX): 4 channels 24 bit 96 kHz

Quad Speed (S/MUX4) : 2 channels 24 bit 192 kHz

Bitclock PLL ensures perfect synchronisation even in varispeed operation

Lock Range: 31.5 kHz – 50 kHz

Jitter suppression: > 50 dB (2.4 kHz)

SPDIF optical

1 x optical, according to IEC 60958

Accepts Consumer and Professional format

Lock Range: 27 kHz – 200 kHz

Jitter suppression: > 50 dB (2.4 kHz)

DIGITAL OUTPUTS

ADAT optical

1 x TOSLINK

Standard: 8 channels 24 bit, up to 48 kHz

Double Speed (S/MUX): 4 channels 24 bit 96 kHz

Quad Speed (S/MUX4) : 2 channels 24 bit 192 kHz

SPDIF optical

1 x optical, according to IEC 60958

Format Consumer (SPDIF) according to IEC 60958

Sample rate 28 kHz up to 200 kHz

GENERAL

Power supply: USB bus power or external power supply

Idle power consumption: 2.8 Watts

Typical power consumption: 3.7 Watts

Max. power consumption: 5.4 Watts

Current at 5 V bus power operation: 700 mA (3.7 Watts)

Current at 12 V external power: 313 mA (3.7 Watts)

Dimensions (WxHxD): 108 x 35 x 181 mm (4.25" x 1.4" x 7.1")

Weight: 680 g ( 1.5 lbs)

Temperature range: +5° up to +50° Celsius (41° F up to 122°F)

Relative humidity: < 75%, non condensing
