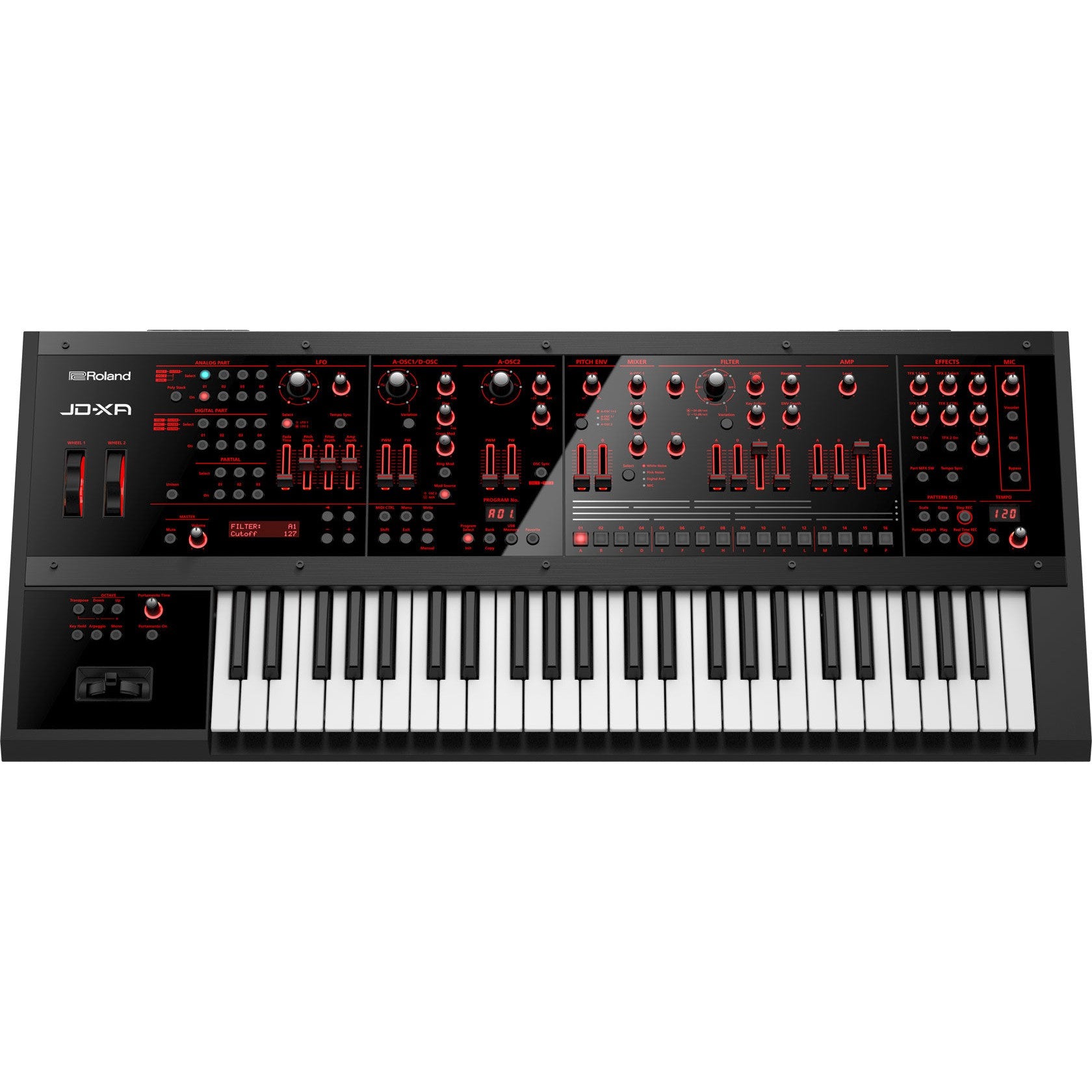

The JD-XA is a unique crossover synth that brings together analog warmth and digital versatility in one super-creative, no- compromise instrument. First, there?s a four-part, all-analog monster with true analog filters and a direct dry output. Next up is a four-part digital engine powered by Roland?s SuperNATURAL synth technology, plus an impressive selection of potent effects. The JD-XA?s engines can be used independently or interactively, providing an incredibly flexible platform for sound design, studio work, and live performance. Use the analog and digital parts side by side, stack them up for total sonic devastation, or shape digital waveforms via the analog filters to create sounds never heard before. With the JD-XA, you can forget about analog or digital?just close your eyes, imagine how the future sounds, and start creating music.

• Advanced synthesizer with independent analog and digital sound engines


• Discrete analog synth engine (four parts) with 2 x OSC, Filter, Amp, 4 x Env (2 x Pitch, Filter, Amp), and 2 x LFO per voice plus Analog Dry Out for raw signal output


• Analog filter section features 4-Pole, transistor-ladder, and multi-mode (LPF/HPF/BPF) filters with supremely smooth, natural response to knob movements


• OSC section includes Cross Mod, Ring Mod, and OSC Sync, all of which can be used simultaneously


• LFO rate covers a wide range from ultra-slow to ultra-fast


• Incredibly fast attack envelope time


• Separate digital section built around SuperNATURAL synth engine (four parts, 64 voices) that?s compatible with INTEGRA-7 sound libraries from Roland?s online Axial sound portal


• Digital parts can be routed through the analog filter section for warm, organic results


• Comprehensive effects with MFX for all parts plus five system effects (Reverb, TFX1, TFX2, Delay, and Master EQ)


• Flexible routing options for highly creative sound design


• Intuitive 16-track pattern sequencer (8 tracks for internal parts, 8 tracks for external parts) for fast creation of songs and loops


• Onboard USB, MIDI, and CV/GATE interfaces plus flexible MIDI control functionality make the JD-XA the ideal centerpiece for live performance and music production


• Mic input allows you to modulate synth sounds with your voice and explore classic Vocoder functionality


• Plenty of backlit knobs, sliders, and controllers for hands-on sound shaping

?

?

?

?

?

?

?

?

?

?

?

?

Keyboard

49?keys (with velocity and channel aftertouch)Sound Generator SectionMaximum Polyphony- Analog Part: 4 voices
Digital Part: 64 voices (varies according to the sound generator load)StructureAnalog/Digital Crossover Synthesizer
Analog Part: 4 parts (2 OSCs + AUX, 1 Filter, 1 AMP, 2 Pitch ENV, 1 Filter ENV, 1 AMP ENV, 2 LFOs and 1 MOD LFO)
Digital Part: 4 parts (3 Partial (3 OSCs, 3 Filters, 3 AMPs, Envelops for each section and LFOs)) (Digital Part uses SuperNATURAL Synth tones that is compatible with the Integra-7.)User Program Memory- Internal: 256
USB Flash memory: 256
The patterns of Arpeggio and Sequence are saved as programs.Analog-OSC Section- Oscillator waveforms: Saw, Square, Pulse/PWM, Triangle, Sine
Knobs/Sliders: Pitch, Fine, Cross Mod, Pulse Width, Pulse Width Modulation
Pitch Envelopes: Attack, Decay, Envelope Depth
Modulation: Cross Modulation, Ring Modulation, Oscillator Sync
(A-OSC2 is applied as modulation to A-OSC1.)Analog-FILTER Section- Filter Type: LPF1, LPF2, LPF3, HPF, BPF, Bypass
Knobs: Cutoff, Resonance, Key Follow, Envelope Depth, HPF, Drive
Envelope: Attack, Decay, Sustain, ReleaseAnalog-AMP Section- Knobs: Level
Envelope: Attack, Decay, Sustain, ReleaseDigital-OSC Section- Oscillator waveforms: Saw, Square, Pulse/PWM, Triangle, Sine, Variation
Knobs/Sliders: Pitch, Fine, Pulse Width, Pulse Width Modulation
Pitch Envelopes: Attack, Decay, Envelope Depth
Modulation: Ring Modulation
(Partial2-OSC is applied as modulation to Partial1-OSC.)Digital-FILTER Section- Filter Type: LPF1, LPF2, LPF3, HPF, BPF, Variation, Bypass
Knobs: Cutoff, Resonance, Key Follow, Envelope Depth, HPF
Envelope: Attack, Decay, Sustain, ReleaseDigital-AMP Section- Knobs: Level
Envelope: Attack, Decay, Sustain, ReleaseLFO Section- LFO Waveform: Triangle, Sine, Saw, Square, Sample&Hold, Random
Knobs/Sliders: Rate, Fade Time, Pitch Depth, Filter Depth, Amp Depth
Tempo SyncMixer Section (For Analog Part)- Level: A-OSC 1, A-OSC 2, AUXMic- Vocoder
MIC ModulationEffects- MFX: 8 systems, 67 types (each part has a MFX)
Part EQ: 8 systems (each part has a Part EQ)
TFX: 2 systems, 29 types
DELAY
REVERB: 6 types
Master EQ
Mic Input Reverb: 8 typesPattern SequencerTracks: 16
Patterns are saved as a program.
SMF import supported.ArpeggioPreset pattern: 64
Patterns are saved as a program.ControllersPitch bend and modulation lever, Pitch and modulation wheelsDisplay16 characters 2 line LCDExternal StorageUSB Flash memoryConnectorsPHONES jack: Stereo 1/4-inch phone type
MAIN OUTPUT jacks (L/MONO, R): 1/4-inch TRS phone type
ANALOG DRY OUTPUT jack: 1/4-inch phone type
CLICK OUTPUT jack: Stereo 1/4-inch phone type
MIC jack: Combo type (XLR, 1/4-inch TRS phone), balanced
FOOT PEDAL jacks (CTRL 1, CTRL 2, HOLD)
CV/GATE OUTPUT jacks (2 systems): Miniature phone type
(CV: These jacks support OCT/V (Hz/V is not supported). GATE: They output +5 V.)
MIDI connectors (IN, OUT)
USB COMPUTER port (USB Hi-Speed AUDIO/MIDI): USB B type
(Use a USB cable and a computer with a USB port that support USB 2.0 Hi-Speed.)
USB MEMORY port: USB A type
DC IN jackPower SupplyAC AdaptorCurrent draw3,000 mAAccessoriesOwner's Manual
AC Adaptor
Power CordSize and WeightWidth899 mm
35-7/16 inchesDepth388 mm
15-5/16 inchesHeight111 mm
4-3/8 inchesWeight6.5 kg
14 lbs. 6 oz.* Weight is excluding AC Adaptor.ASIO is a trademark and software of Steinberg Media Technologies GmbH.All specificattions and appearance are subject to change without notice.

?

?
