JUPITER RISING

Since the release of the JUPITER-4 in 1978, the name JUPITER has marked the pinnacle of Roland sound and playability. Roland synthesizers with the JUPITER name carry our most advanced sound technologies, are supremely playable, and are built from premium materials.

JUPITER-X combines classic Roland design and premium build quality with a powerful new synth engine. It faithfully recreates sought-after instruments from our long history of genre-defining sounds. And with multiple layers, loads of polyphony, and deep hands-on control, you can craft huge, spacious sounds that have as much sparkle as they have warmth and punch.

Iconic synthesizer with legendary sound and design.

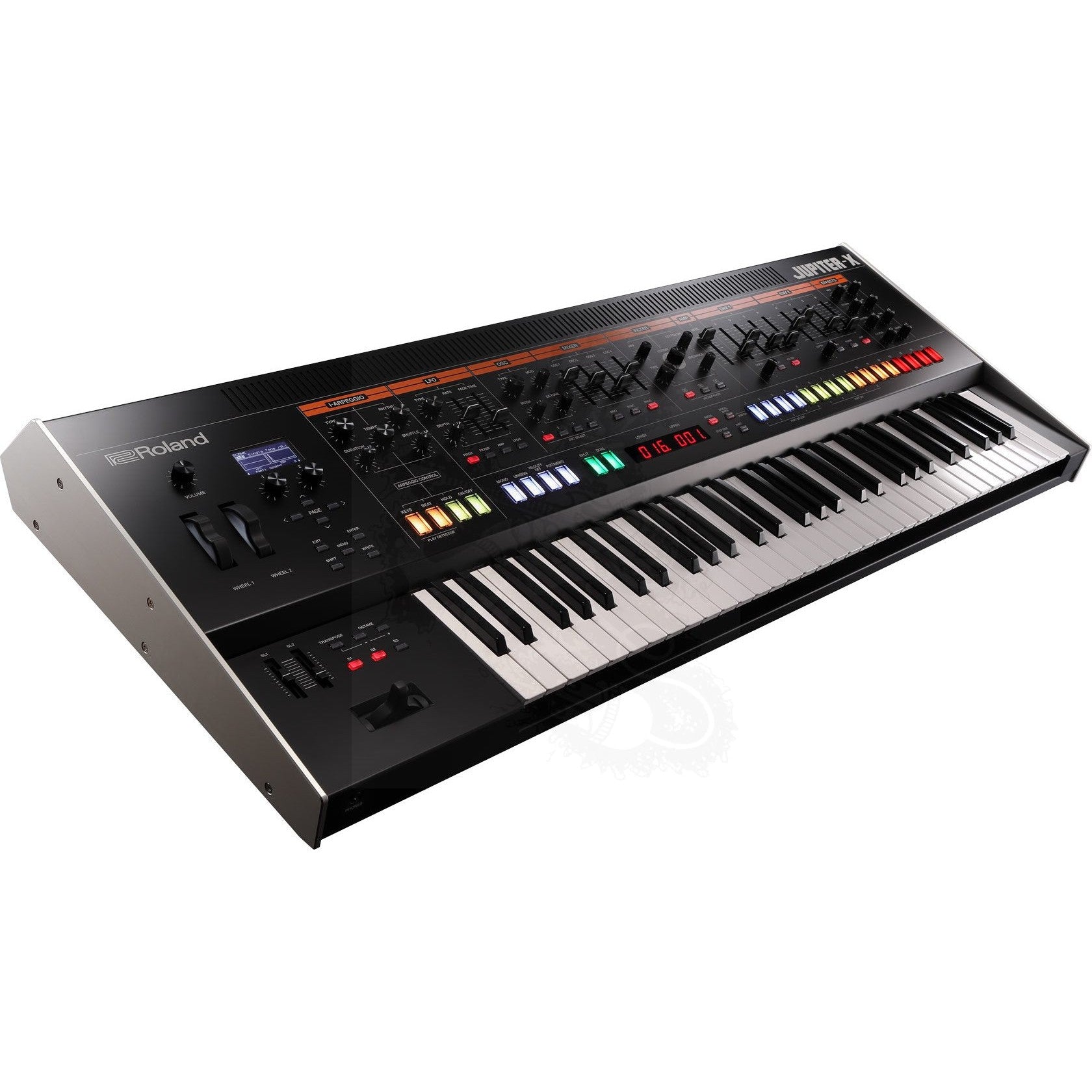

The 61-key JUPITER-X is the peak of Roland sound quality and design. Its all-metal build uses premium materials throughout, and the all-new aftertouch-enabled keyboard is the best we’ve ever made. A familiar layout and large array of controls let you dig in and easily shape your sounds, whether you’re composing in the studio or performing on stage.

Classic analog to vintage digital. And beyond.
JUPITER-X is equipped with our latest sound engine, capable of morphing into legendary synths from our long history of genre-defining sounds. It’s so flexible that it can reproduce our highly sought-after analog classics like the JUPITER-8, JUNO-106, and SH-101, as well as digital machines like the vintage XV-5080 and modern RD pianos. You also get the many Roland drum machines that are the foundation of electronic and dance music like the TR-808, TR-909, CR-78, and more. It’s like a studio full of vintage gear, with modern capabilities and a deep synth engine so you can explore unmapped sonic territory.

Intelligent. Inspiring.
Need something wonderful, fast? JUPITER-X’s I-Arpeggio is a next generation arpeggiator that uses artificial intelligence to not just accompany you, but to inspire you. I-Arpeggio takes your input—notes, rhythms, phrases—and creates complementary drum parts, basslines, chords, and arpeggiated lines. It works on each of JUPITER-X’s five parts simultaneously, and generated patterns can be customized and even exported to your DAW. These aren’t canned backing tracks—they’re intelligently generated beats and phrases that energize live performance and pulverize writer’s block.

Find the sweet spots.

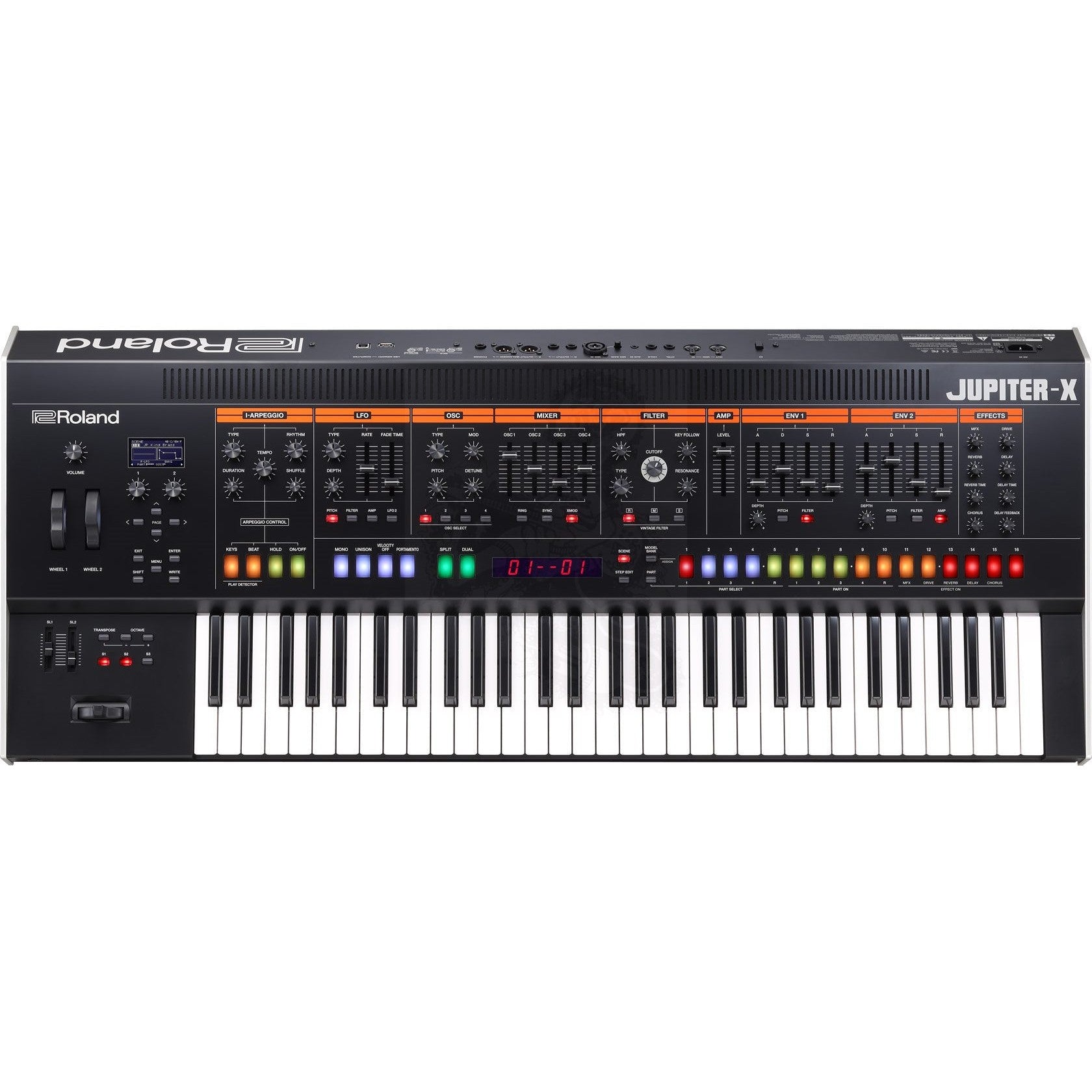

In addition to its informative display, JUPITER-X has a huge array of large, comfortable knobs, sliders, and buttons. They feel sturdy and precise for incredibly smooth sweeps and subtle changes. And with the dedicated effects section and quick switching between synth layers, you can immediately take control of any aspect of a sound. This kind of natural, hands-on control gives you the feeling of reaching in and touching the sound, shaping it to find just the right settings for the moment.

The power of polyphony.
JUPITER-X can layer up to five parts, four for synths and one for drums. Its engine can power multiple authentic Roland classics like the JX-8P or JUPITER-8 with enough polyphony to create thick layers and complex backing parts. Create the perfect bass and lead split with an SH-101 and JUNO-106, layer a rich RD piano with lush JX-8P strings, or make a monster stack of JUPITER-8s.

Built to last. Made to play.
Whether it’s a personal studio, professional studio, or a touring rig, JUPITER-X is right at home. The tough metal and premium components mean it stands up to the rigors of live performance and always feels solid and precise. The high-quality balanced connections, numerous performance controllers, and multiple pedal inputs make JUPITER-X ready for any situation.

Ever-expanding.
JUPITER-X is part of an expandable platform, so it can be updated with fresh new content as it becomes available. It can also directly share sounds and other contents with the highly-mobile JUPITER-Xm.

Specifications
Keyboard
61 Keys (semi-weighted keyboard and channel aftertouch)
Sound Generator
ZEN-Core
Various MODEL sound generators
Parts
5 parts (Play part: 4, Rhythm part: 1)
Tones
Preset tone: 4,000 or greater
User tone: 256
Drum Kit: 90 or greater
Scene
256
Effects
Multi-Effects: 4 systems, 90 types
Part EQ: 5 systems
Overdrive
Reverb: 7 types
Chorus: 4 types
Delay: 5 types
Mic NS / Compressor
Master EQ / Compressor
Arpeggiator
I-ARPEGGIO (Multi parts arpeggiator with playing detection)
Arpeggio Parts
5 parts
Controllers
Pitch Bend/Modulation Lever
Wheel x 2
Assignable Slider x 2
Assignable Switch x 3
Bluetooth
Ver 4.2
Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)
Display
Graphic LCD 128 x 64 dots
Speaker Amplifier Power Output
4 W x 2
Speakers
Full range (3.5 x 8 cm) x 2
Tweeter 2 cm x 2
Connectors
HEADPHONES jacks: Stereo miniature phone type (front), Stereo 1/4-inch phone type (rear)
MAIN OUT jacks (L/MONO, R): 1/4-inch phone type
MAIN OUT jacks (L, R): XLR type
MIC INPUT jack: 1/4 inch phone type/XLR type
AUX INPUT jack: Stereo miniature phone type
HOLD PEDAL jack
CONTROL PEDAL jack
MIDI connectors (IN, OUT)
USB COMPUTER port (AUDIO/MIDI)
USB MEMORY port
External Memory
USB Flash drive (sold separately)
Power Supply
AC 117–240 V, 50/60 Hz
Accessories
Owner's manual
Leaflet "USING THE UNIT SAFELY"
Power cord
Options (sold separately)
Keyboard Stand: KS-10Z, KS-12
Pedal Switch: DP series
Expression Pedal: EV-5
USB Flash drive (*)

* Use a commercially available USB flash drive. However, we cannot guarantee that all commercially available USB flash drives will work.
Size and Weight
Width
1,090 mm
42-15/16 inches
Depth
447 mm
17-5/8 inches
Height
119 mm
4-11/16 inches
Weight
16.9 kg
37 lbs 5 oz
