The KD-22 is a premium 22-inch kick drum pad that comes standard with the flagship VAD716 V-Drums Acoustic Design kit. It features a full-depth wood shell and an innovative pad sensor system built into an acoustic drumhead for authentic feel and rebound. The KD-22 also offers an updated leg design, improved pad durability, and a larger trigger area for double pedals and short beater settings.

The KD-22 is available in many attractive finishes. Choose from a Pearl White painted gloss shell, walnut veneer shell in Satin Walnut, or maple veneer shell in transparent Gloss Cherry, Gloss Ebony, or Gloss Natural.

Premium 22-inch x 18-inch kick pad with wood shell construction
Innovative head-mounted sensor system for true acoustic feel and rebound
Enlarged trigger area supports double kick pedals and short beater settings
Updated telescopic legs with improved stability, adjustment indicators, and a new rubber foot and nut design
Custom chrome lugs, claws, and spurs
Included KDP-5 self-adhesive patch reduces wear and supports plastic, felt, and wood beaters (replacement patches available separately)

Specifications

Shell
22 (Diameter) x 18 (Depth) inches
Wood shell

Pad size
6.4 inches

Finish

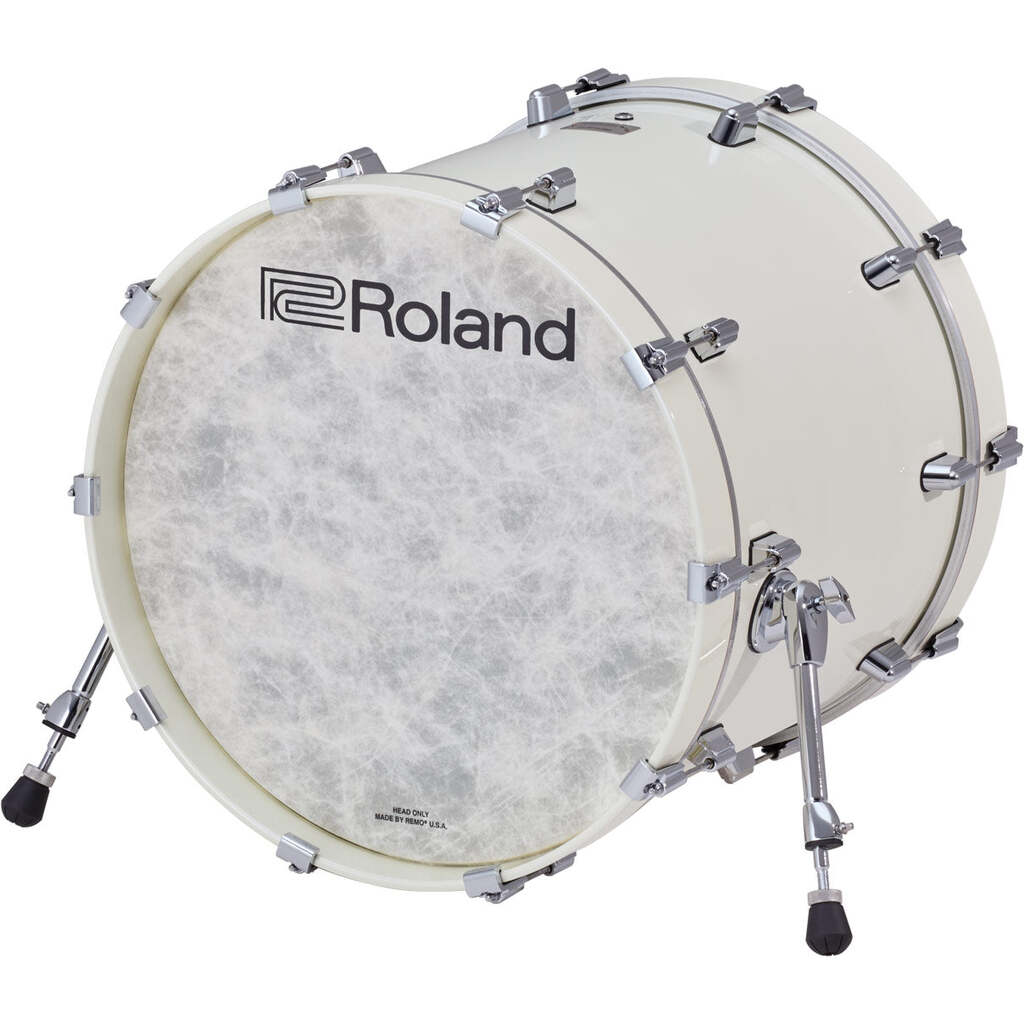

KD-22-PW: Pearl White

Trigger
1 (Head)

Acceptable pedal
Single pedal, Twin pedal

Connector
TRIGGER OUTPUT jack

Accessories
Owner's Manual
Leaflet (USING THE UNIT SAFELY, IMPORTANT NOTES, and Information)
Connection cable
Drum key
Wood hoop protector
Kick drum patch: KDP-5

Options (sold separately)
Kick pedal

Size and Weight
Width
680 mm
26-13/16 inches

Depth
555 mm
21-7/8 inches

Height
578 mm
22-13/16 inches

*When storing the legs

Weight
12.4 kg
27 lbs 6 oz
