The 12-inch PD-12X is included with our flagship TD716 kit and is compatible with select V-Drums products. Its elegant, streamlined design offers an acoustic-style hoop height and a shallow depth for easy adjustment within your setup. The high-resolution, multi-sensor system provides independent detection of rim and head hits, hot spot elimination, and positional sensing with the V71 and other modules that support this feature. And thanks to the new universal mount, you can use the PD-12X with most of the leading drum hardware brands.

Streamlined 12-inch V-Pad with the latest V-Drums sensing technology
Elegant design with die-cast hoops, rim playing surface set inside of the hoop, and chrome parts
Standard acoustic snare/tom hoop height
New pad construction with multiple sensors that detect rim and head hits with ultra-accurate detail
Precision quad sensor placement for hot spot elimination and positional sensing accuracy

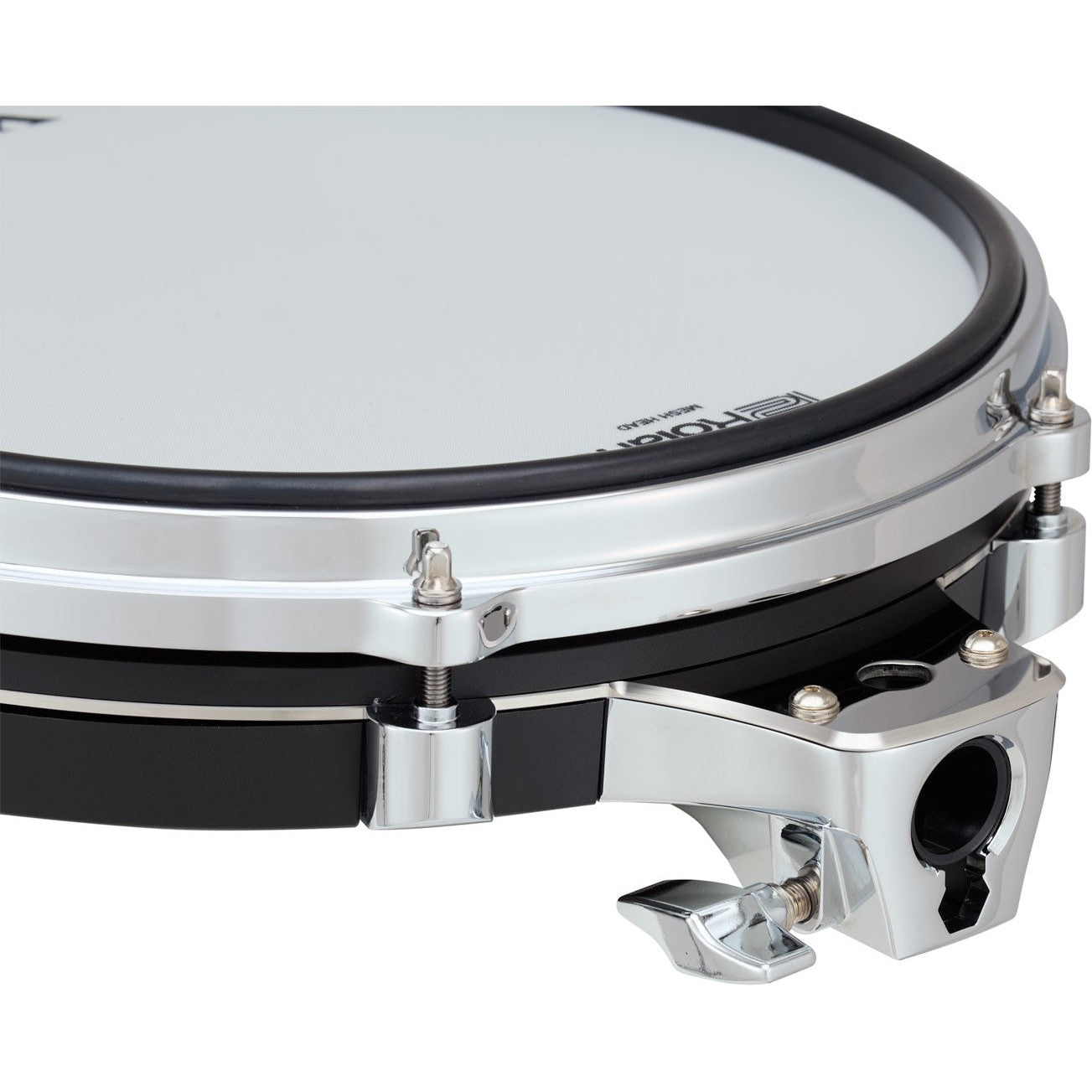

Universal mount with wide hardware compatibility: Roland, DW, Pearl, Yamaha, and others
Shallow design for setup flexibility
1/4-inch TRS trigger output
Works with the V71, TD-50X, and TD-27 modules (full support, including positional sensing)
Also works with the TD-17 (positional sensing not supported)
Attractive black finish that matches the PD-10X V-Pad and KD-18-BK Kick Drum Pad



Specifications
Pad size
12 inches
Available playing methods (Triggers)
Head shot (High resolution positional detection)
Rim shot (Depth detection)
Sensor system
Head Multi sensor
Rim sensor
Accessories
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Knob bolt
Connection Cable
Drum Key
Options (sold separately)
Pad Mount (MDH series)
Drum Stands (MDS series)
Size and Weight
Width
350 mm
13-13/16 inches
Depth
365 mm
14-3/8 inches
Height
95 mm
3-3/4 inches
Weight
3.15 kg
7 lbs
Mountable vertical rod (stand sold separately: MDS series, etc.)
Diameter of mountable rods: 9.7--13.3 mm (7/16 to 9/16 inches)
Mountable horizontal pipes/rods
Horizontal pipes:
--Diameter of mountable pipes: 22.2 mm (7/8 inches)

Horizontal rod:
--Diameter of mountable rods (round type): 10.8 mm (7/16 inches)
--Width of mountable rods (hexagonal type/width-across-flats): 9.5--10.0 mm (3/8 to 7/16 inches)
--Length of mountable rods: 60--120 mm (2-3/8 to 4-3/4 inches)
