V-Drums Acoustic Design expands the V-Drums experience by blending the distinctive aesthetic of acoustic drums with Roland’s leading digital drum technology. Every component realizes the authentic crafted appearance of high-quality acoustic drums, with full-diameter wood shells, deluxe shell wraps, and heavy-duty chrome hardware designed by Roland.

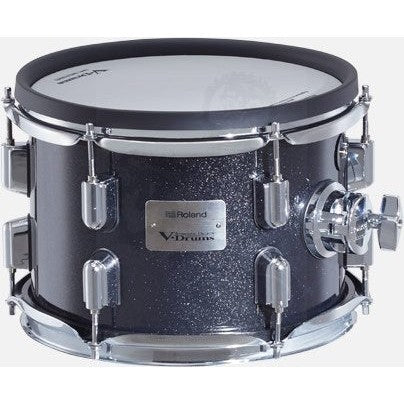

The PDA100-MS is a premium 10” tom pad with a full-depth wood shell for the most immersive V-Drums Acoustic Design experience. Dual zones provide independent head and rim triggering, while the newly developed sensor system eliminates hot spots for accurate and even response across the entire playing surface of the head.

Premium 10” x 7” dual-zone tom pad with wood shell construction

Legendary Roland double-ply mesh head with adjustable tension for customizing the rebound and feel

Tom bracket included for mounting to standard acoustic tom holders

Independent head and rim triggers

Advanced sensor design eliminates hot spots for accurate playing expression and response

Midnight Sparkle wrap and custom chrome hardware

Specifications

Shell

10 (diameter) x 7 (depth) inches

Wood shell

Finish

Midnight sparkle (Wrap)

Head

Top: 2-ply mesh head

Bottom: 2-ply mesh head

Triggers

2 (Head, Rim)

Connector

Output jack

Allowable diameter of mounting rod

9--13 mm (3/8?9/16 inches)

Usable pipe size

Not compatible

Dimensions

295 (W) x 330 (D) x 210 (H) mm

11-5/8 (W) x 13 (D) x 8-5/16 (H) inches

Weight

2.9 kg

6 lbs 7 oz

Accessories

Owner's Manual

Leaflet "USING THE UNIT SAFELY"

Connection cable

Drum key
