3-VCO Enhanced Ladder Filter Analog Poly Synth:

- Experience the Power of 3 Oscillators and a Ladder Filter with the Trigon-6 Module

- A Sound That Is Bold and Familiar

- All-New Filter and Oscillator Design

- Rounding Out the Picture

- More Power Features

- Dual Effects

- Adjustable Vintage Character

- More Than the Sum of Its Parts

- Portable and Powerful

Oscillators:

- 3 Discrete VCOs Per Voice

- Simultaneously Selectable Wave Shapes: Triangle, Sawtooth, Reverse Sawtooth, and Variable-Width Pulse

- Pulse Width Per Oscillator

- Hard Sync: Oscillator 1 Syncs to Oscillator 2

- Keyboard Tracking On/Off (Oscillator 3)

- Low-Frequency Mode (Oscillator 3)

- Oscillator Feedback and Drive Controls for Increased Signal Saturation

- White Noise Source

Low-Pass Filter:

- Switchable 2/4-Pole, Discrete, Resonant, Low-Pass, Ladder Filter Per Voice

- Filter Can Be Driven Into Self-Oscillation with the Resonance Control

- Bi-Polar Filter Envelope Amount

- Velocity Modulation of Envelope Amount

- Keyboard Tracking: Off, Half, Full

Filter Envelope:

- 4-Stage (ADSR) Envelope Generator

- Velocity Modulation of Envelope Amount

Amplifier Envelope:

- 4-Stage (ADSR) Envelope Generator

- Velocity Modulation of Envelope Amount

Low-Frequency Oscillator:

- 5 Wave Shapes: Sine, Sawtooth, Reverse Sawtooth, Square, and Random (Sample and Hold)

- LFO Sync

- Initial Amount

- Mod Destinations: Oscillator 1 Frequency, Oscillator 2 Frequency, Oscillator 3 Frequency, Oscillator 1 Pulse Width, Oscillator 2 Pulse Width, Oscillator 3 Pulse Width, Filter Cutoff, Amp (VCA)

Poly Mod:

- Sources: Oscillator 3 (Bi-Polar) and Filter Envelope (Bi-Polar)

- Destinations: Oscillator 1 Frequency, Oscillator 2 Frequency, Oscillator 3 Frequency, Oscillator 1 Pulse Width, Oscillator 2 Pulse Width, Filter Cutoff, Feedback Amount

Vintage Knob:

- Recreates Vintage Synth Characteristics by Adding Voice-to-Voice Variations in Component Behavior

Aftertouch:

- Source: Channel (Mono) Aftertouch with Bi-Polar Amount

- Destinations: Oscillator 1 Frequency, Oscillator 2 Frequency, Oscillator 3 Frequency, LFO Amount, Amplifier Envelope Amount, Filter Envelope Amount, FX Mix A, FX Mix B

Clock:

- Master Clock with Tap Tempo

- BPM Control and Display

- MIDI Clock Sync

Arpeggiator:

- Selectable Note Value: 16th Note, 8th Note Triplet, 8th Note, Dotted 8th Note, Quarter Note

- 1-, 2- or 3-Octave Range

- Up, Down, Up/Down, Random, and Assign Modes

Sequencer:

- Polyphonic Step Sequencer with Up to 64 Steps and Rests

Effects:

- Stereo Analog Distortion

- Dual, 24-Bit, 48-kHz Digital Effects, Including: Reverb (Room, Hall, Plate, Spring), Delay (Full-Bandwidth Digital Delay and Emulated Bucket Brigade), Chorus, Flanger, Phase Shifter, and Ring Modulator

- Delay Sync

- True Bypass Maintains Fully Analog Signal Path When Digital Effects Are Off

Performance Controls:

- Hold Switch Latches Held Notes On

- Polyphonic Portamento

- Unison (Monophonic) Mode with Configurable Voice Count, from 1 to All 6 Voices, Chord Memory, and Key Modes

- Preset Switch: When On, the Front Panel Is Live — What You See Is What You Hear

Patch Memory:

- 500 User and 500 Factory Programs in 10 Banks of 100 Programs Each

- Direct Program Access, Including Single-Button Access to the Current Set of 10 Programs

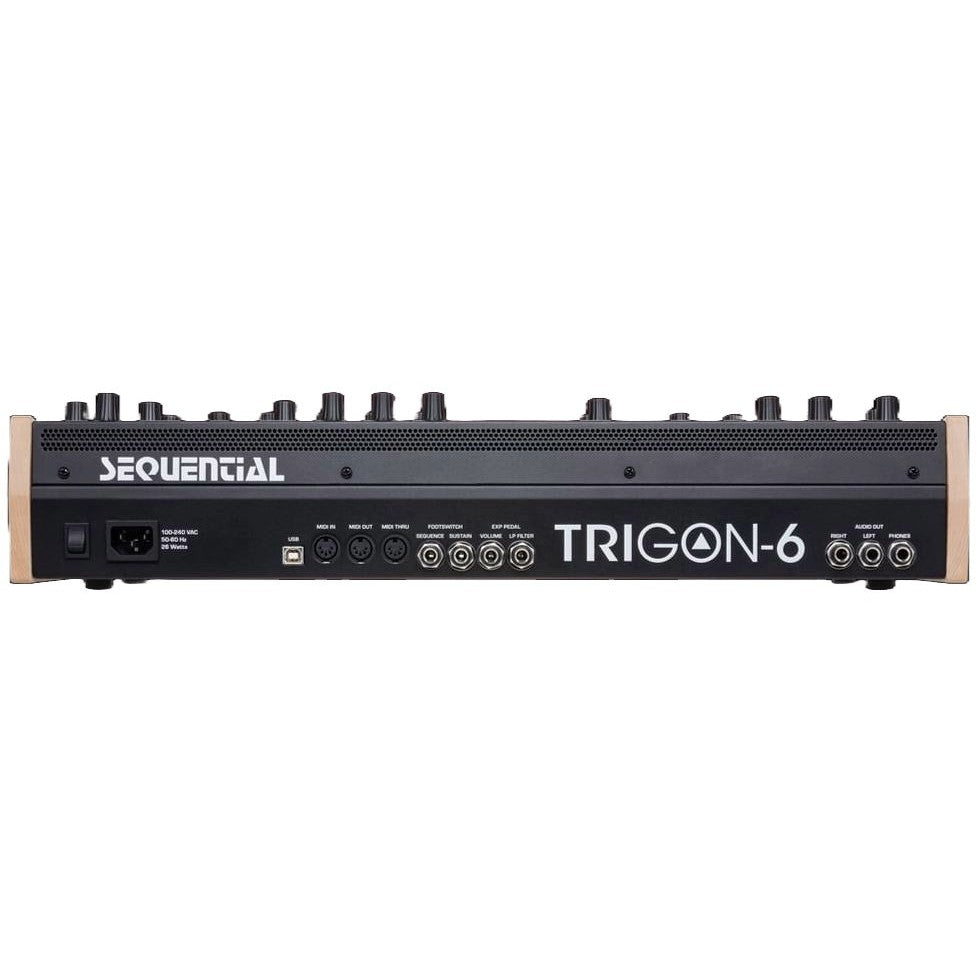

In/Out:

- Left/Mono and Right Audio Outputs (2 x 1/4" Phone Jack)

- Headphone Output (Stereo, 1/4" Phone Jack)

- MIDI In, Out, and Thru Ports

- USB for Bi-Directional MIDI Communication

- Filter Cutoff Expression Pedal Input

- Volume Expression Pedal Input

- Sustain Footswitch Input

- Sequencer Start/Stop Footswitch Input

Power:

- IEC AC Power Inlet for Internal Power Supply

- Operates Worldwide on Voltages Between 100 and 240 Volts at 50 to 60 Hz; 30 Watts Maximum Power Consumption

Physical:

- Dimensions (L x W x H): 22.00" x 8.45" x 4.54" | 55.88 cm x 21.46 cm x 11.53 cm

- 10.9 lb | 4.95 kg

- Maple End Panels
