Get Lost in the Grit, Warmth, and Texture of Classic Bucket Brigade Delay.

Certified Organic Delay:

- The delays that become true classics do not simply repeat the notes you play

- They do something special to each delay repeat – something that evokes a feeling, fueling the music and inspiring you

- Plug into Brig, play a note, and you’re instantly drawn in by repeats that evolve with captivating complexity and uncommonly rich tonal characteristics

- Brig delivers all the warmth, subtle grit and unique tactile playing experience of analog bucket brigade delays (BBDs), offering three distinct delay voicings in one highly addictive stereo pedal

Three Delays in One:

- Brig’s stunning dBucket sound generation gives you three different and meticulously crafted analog delay voicings

- The 3205 voice delivers gritty repeats that can morph as it feeds back, creating sounds ranging from gorgeous slapback echoes to psychedelic sci-fi effects

- The 3005 voice recreates a dual MN3005 BBD chip circuit running at 15 V for longer delay times, higher headroom, and warm repeats with a soft, dreamlike quality

- The Multi voice features two cross-coupled, super-clean dBucket delay lines with golden ratio timing to create complex soundscapes and a huge stereo soundfield that remains musical and clean even while sitting on the edge of self-oscillation

Deceptively Powerful:

- Brig is a triumph of compact design, offering a huge amount of power and flexibility in an elegantly small form factor: three truly distinct delay voices. Artifact-free tap tempo. Stereo operation. Straightforward responsive controls and expression pedal capability. High-impedance, ultra-low noise discrete Class A JFET stereo input preamp for exceptional touch sensitivity, dynamics and feel. MIDI control for tempo, patch save/recall, and more. Premium components, rugged construction, and a USB jack for controlling the pedal via MIDI from a computer or for performing firmware updates.

Sound Design:

- Voices - Meticulously made

- Modulation - Magic modulation

- Repeats - Play the feedback

- Filter - Don't forget the noise

- Tap Tempo - Artifact-free tap tempo

Features:

- MIDI - Limitless possibilities

- True / Buffered Bypass - Choose your bypass mode

- JFET Input - Analog touch

- Stereo - Moving in stereo

- ARM Processor - Power to the pedal

Specs:

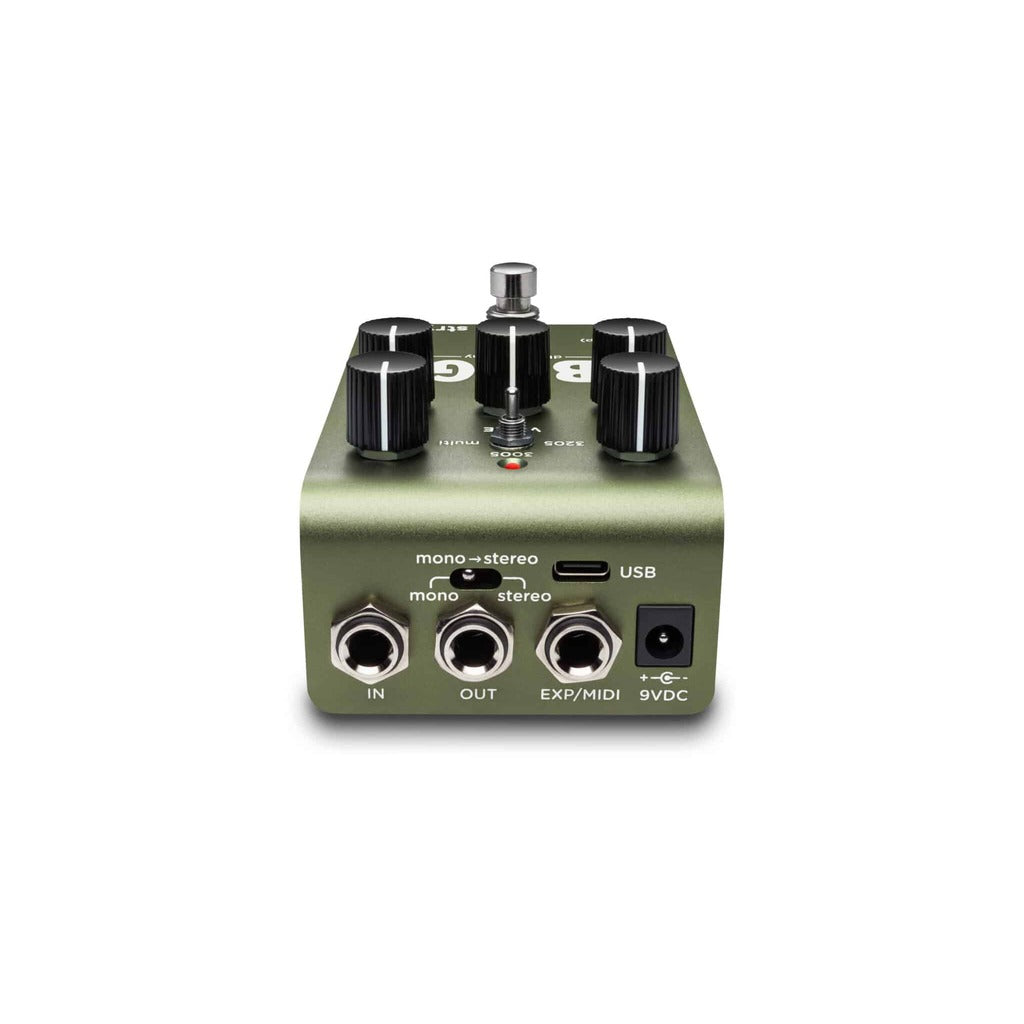

Ins, Outs, and Switches

- High impedance ultra low-noise discrete Class A JFET TRS stereo input

- Low impedance TRS stereo output

- Expression pedal input allows the connection of a TRS expression pedal, MiniSwitch, MultiSwitch Plus, or TRS MIDI connection

- USB jack for controlling via MIDI from a computer or for performing firmware updates

Audio Quality

- Premium JFET analog front end

- Ultra low noise, high performance 24-bit 96 kHz A/D and D/A converters provide uncompromising audio quality

- 520 MHz ARM Superscalar processor

- 32-bit floating point processing

- 20 Hz to 20 kHz frequency response

- Audio Input Impedance: 1 M Ohm

- Audio Output Impedance: 100 Ohm

- Typical Signal-to-Noise Ratio: 116 dB

More

- Strong and lightweight anodized aluminum chassis

- Power Requirements: Maximum 9 V DC center-negative, with a minimum of 250 mA (power supply NOT included)

- Dimensions: 4.6” deep x 2.7” wide x 2.5” tall /// 11.7 cm deep x 6.9 cm wide x 6.4 cm tall

- Designed and built in the USA
