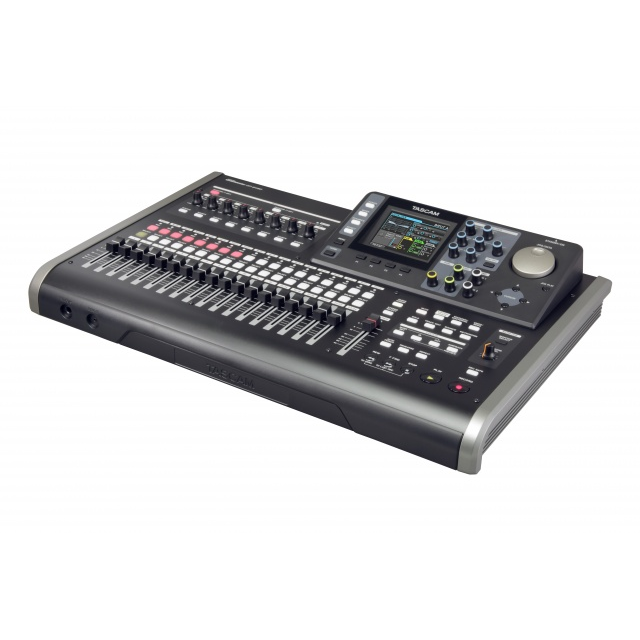

The DP-24SD Digital Portastudio is a 24-track workstation, allowing eight tracks of simltaneous recording. The built-in mixer includes everything you need for a professional-sounding mix, from EQ and reverb to amp simulation and multi-band mastering effects. The Digital Portastudio series creates finished productions without the need for a computer, instead using a simple-to-use control surface to keep you creative.

For clear display of your mix, the DP-24SD has a large color LCD displaying tracks, meters, and effects parameters. A set of 12 encoders control EQ, effects sends, and panning. Built-in effects include compression, guitar amp modeling, delay, reverb, with a total of 10 effects processirs available during mixing.

Eight XLR mic/line inputs each provide phantom power for condenser microphones, switchable in banks of four. One input includes an instrument-level impedence switch for direct input recording of guitar or bass. Balanced monitor outputs and effects sends are also provided on the rear panel. A USB output allows tracks and mixes recorded to your SD card to be transferred to a computer for CD burning or sharing online.

For a complete music production on a desktop, there's no simpler choice than the DP-24SD.

DP-24SD SPECIFICATIONS

Recording Media SD (512MB – 2GB) / SDHC card (4GB – 32GB)

File System SD card:FAT16 / SDHC card:FAT32

INPUT A-H



XLR



Connector XLR-3-31(1:GND, 2:HOT, 3:COLD), Balanced

Input impedance 2.4k ohms

Nominal input level -14dBu

Maximum input level +2dBu

TRS



Connector 6.3mm(1/4")TRS phone jack, Balanced

Input impedance 22k ohms or more

/ 1M ohms(when INPUT H, GUITAR selected)

Nominal input level +4dBu

Maximum input level +20dBu

STEREO OUT



Connector RCA pin-jack, Unbalanced

Output impedance 200 ohms

Nominal output level -10dBV

Maximum output level +6dBV

EFFECT SENDS

Connector 6.3mm(1/4")TS phone jack, Unbalanced

Output impedance 200 ohms

Nominal output level -10dBV

Maximum output level +6dBV

MONITOR OUT

Connector 6.3mm(1/4")TRS phone jack, Balanced

Output impedance 200 ohms

Nominal output level -2dBu

Maximum output level +14dBu

PHONES



Connector 6.3mm(1/4")stereo phone jack

Maximum output level 70mW + 70mW (THD+N 0.1% or less, 32 ohms loaded)

USB

Connector

USB Mini-B type 4-pin

Format USB2.0 High-Speed mass-storage class

REMOTE



Connector

2.5mm TRS jack

Power Dedicated AC adapter (TASCAM GPE248-120200-Z, included)

Power consumption 12W (when phantom power supplying)

Dimensions 514(W)×100.4(H)×336.9(D)mm / 20.2"(W)×4.1"(H)×13.4""(D)

Weight 6.2kg / 13.67 lb

Accessories AC adapter, 4GB SD card, warranty card, owner's manual

Audio performance

Frequency response 20Hz to 20kHz (+/-1dB, INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)

S/N Ratio 90dB or greater (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)

THD 0.01% or less (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)

Operating system requirements

Windows

OS Windows XP, Windows Vista, Windows 7, Windows 8

CPU Pentium 300MHz or more

Memory 128MB or more

USB USB2.0

Macintosh

OS Mac OS X Snow Leopard(V10.6), OS X Lion(V10.7), OS X Mountain Lion(V10.8), OS X Mavericks(V10.9)

CPU Power PC, iMAC, G3, G4 266MHz or more

Memory 64MB or more

USB USB2.0
