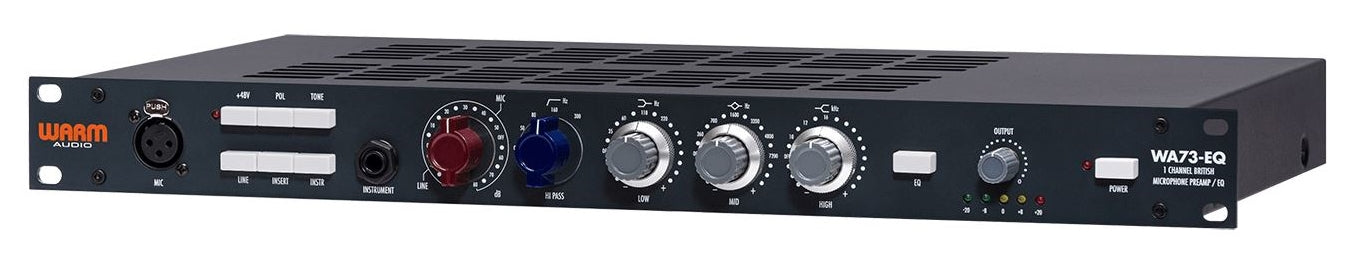

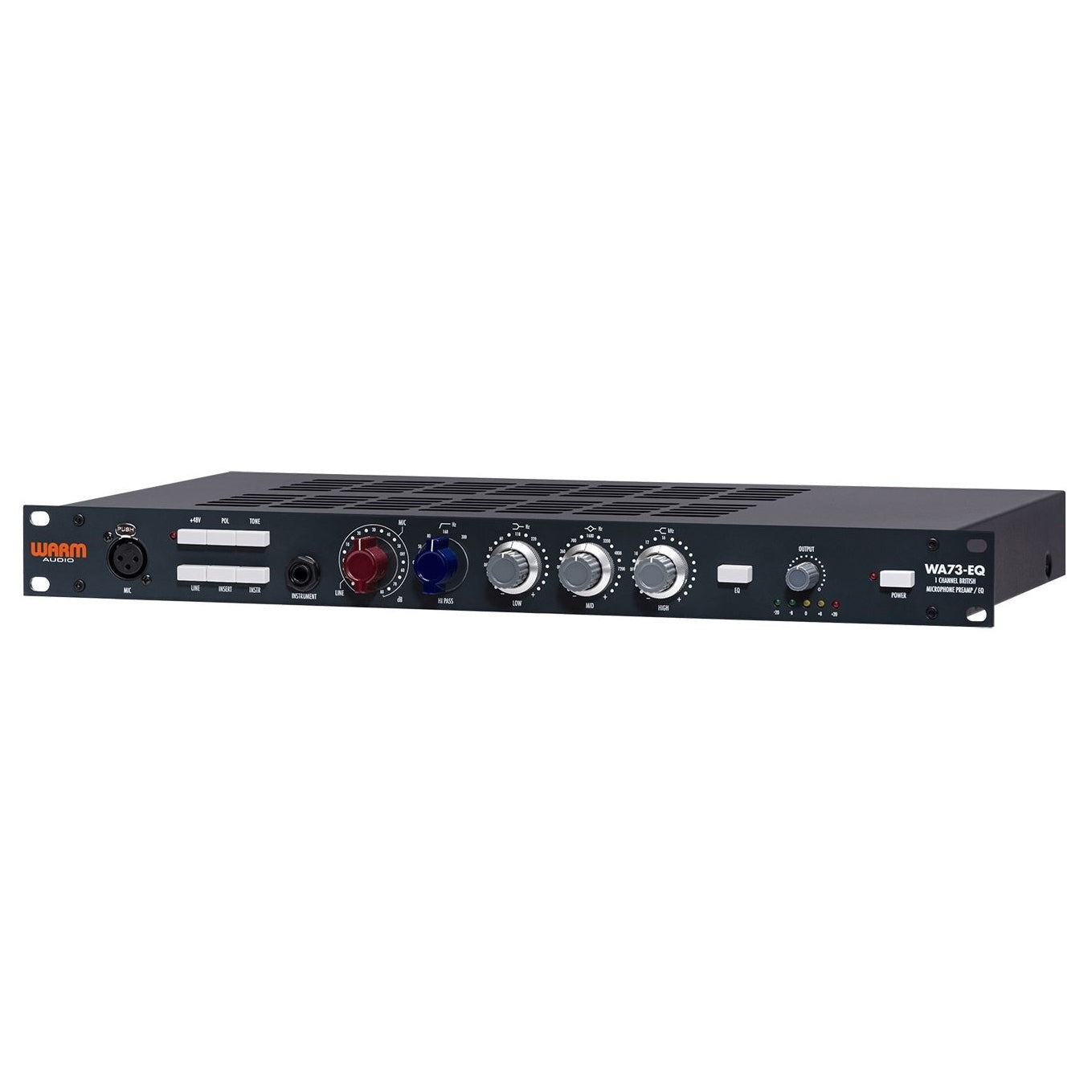

Warm Audio - WA73-EQ Single Channel British Mic Pre + EQ

$1,149.00
Steve's Code: 72409
Barcode: 713541493162

Description

Technical Specification



SINGLE CHANNEL, CLASS A, '73-STYLE BRITISH MICROPHONE PREAMP WITH EQ

UK MADE CARNHILL TRANSFORMERS

UK MADE - BLORE EDWARDS EQ DUAL-CONCENTRIC SWITCH POTENTIOMETERS

HAND WIRED, HAND ASSEMBLED

80DB OF GAIN - RESISTOR STEPPED GAIN SWITCH

FULLY DISCRETE

TONE BUTTON - CHANGES INPUT TRANSFORMER IMPEDANCE FOR VARYING TONE

POLARITY SWITCH

48V PHANTOM POWER

INDUCTOR BASED 3 BAND EQ

LOW BAND BOOST/CUT - 35, 60, 110, 220 HZ

MID BAND BOOST/CUT - 360, 700, 1600, 3200, 4800, 7200 HZ

HIGH BAND BOOST/CUT - 10, 12, 16 KHZ

ADDITIONAL HIGH BAND FREQUENCY EQ POINTS ADDED (COMPARED TO VINTAGE 1073)

4 POSITION INDUCTOR BASED HIPASS FILTER - 50, 80, 160, 300 HZ

XLR MIC INPUTS (FRONT & BACK)

LINE LEVEL TRS INPUT

TS SEND/RECEIVE INSERT JACKS

XLR & TRS LINE LEVEL OUTPUTS

DIRECT IN, INSTRUMENT INPUT

OUTPUT CONTROL

LED LEVEL INDICATION

FREQ RESPONSE 20HZ - 20KHZ +/-.5 DB

19" RACK MOUNTABLE

INTERNAL IEC 115V/230V POWER INLET
