Specs:
- Neck Type: Wizard III | Maple Neck
- Top | Back | Body: Poplar Burl Top | Meranti Body
- Fretboard: Jatoba Fretboard | White Dot Inlay
- Fret: Jumbo Frets
- Number of Frets: 24
- Bridge: Edge-Zero II Bridge
- String Space: 10.8 mm
- Neck Pickup: Quantum (H) Neck Pickup (Passive | Ceramic)
- Middle Pickup: Quantum (S) Middle Pickup (Passive | Alnico)
- Bridge Pickup: Quantum (H) Bridge Pickup (Passive | Ceramic)
- Factory Tuning: 1E, 2B, 3G, 4D, 5A, 6E
- Strings: D'Addario® EXL120
- String Gauge: 0.009 | 0.011 | 0.016 | 0.024 | 0.032 | 0.042
- Nut: Locking Nut
- Hardware Color: Black

Neck Dimensions:
- Scale: 648 mm | 25.5"
- Width at Nut: 43 mm
- Width at 24th Fret: 58 mm
- Thickness at 1st Fret:19 mm
- Thickness at 12th Fret: 21 mm
- Fingerboard Radius: 400 mmR

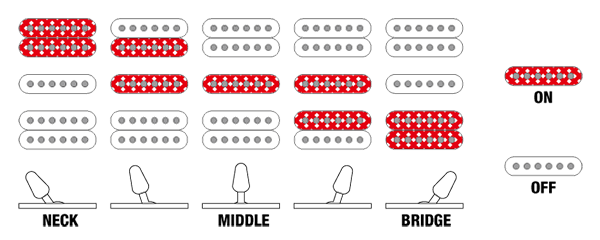

Switching System:
- When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.

Controls:
- With the guitar held in the playing position, there is 1 knob and 1 switch along the lower edge of the body. Closest to the neck is the 5-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the 5-way pickup selector switch.
