Specs:
- Neck Type: Wizard II-7 | 3-pc Maple Neck
- Top | Back | Body: Meranti Body
- Fretboard: Jatoba Fretboard | White Dot Inlay
- Fret: Jumbo Frets
- Number of Frets: 24
- Bridge: Edge-Zero II-7 Bridge
- String Space: 10.8 mm
- Neck Pickup: Quantum 7 (H) Neck Pickup (Passive | Ceramic)
- Bridge Pickup: Quantum 7 (H) Bridge Pickup (Passive | Ceramic)
- Factory Tuning: 1E, 2B, 3G, 4D, 5A, 6E, 7B
- Strings: D'Addario® EXL120-7
- String Gauge: 0.009 | 0.011 | 0.016 | 0.024 | 0.032 | 0.042 | 0.054
- Nut: Locking Nut
- Hardware Color: Black

Neck Dimensions:
- Scale: 648 mm | 25.5"
- Width at Nut: 48 mm
- Width at 24th Fret: 68 mm
- Thickness at 1st Fret:19 mm
- Thickness at 12th Fret: 21 mm
- Fingerboard Radius: 400 mmR

Switching System:
- When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.

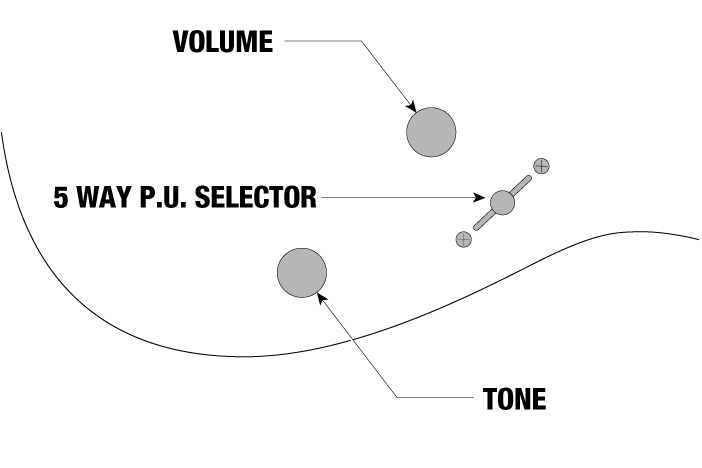

Controls:
- With the guitar held in the playing position, there is 1 knob and 1 switch along the lower edge of the body. Closest to the neck is the 5-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the 5-way pickup selector switch.
