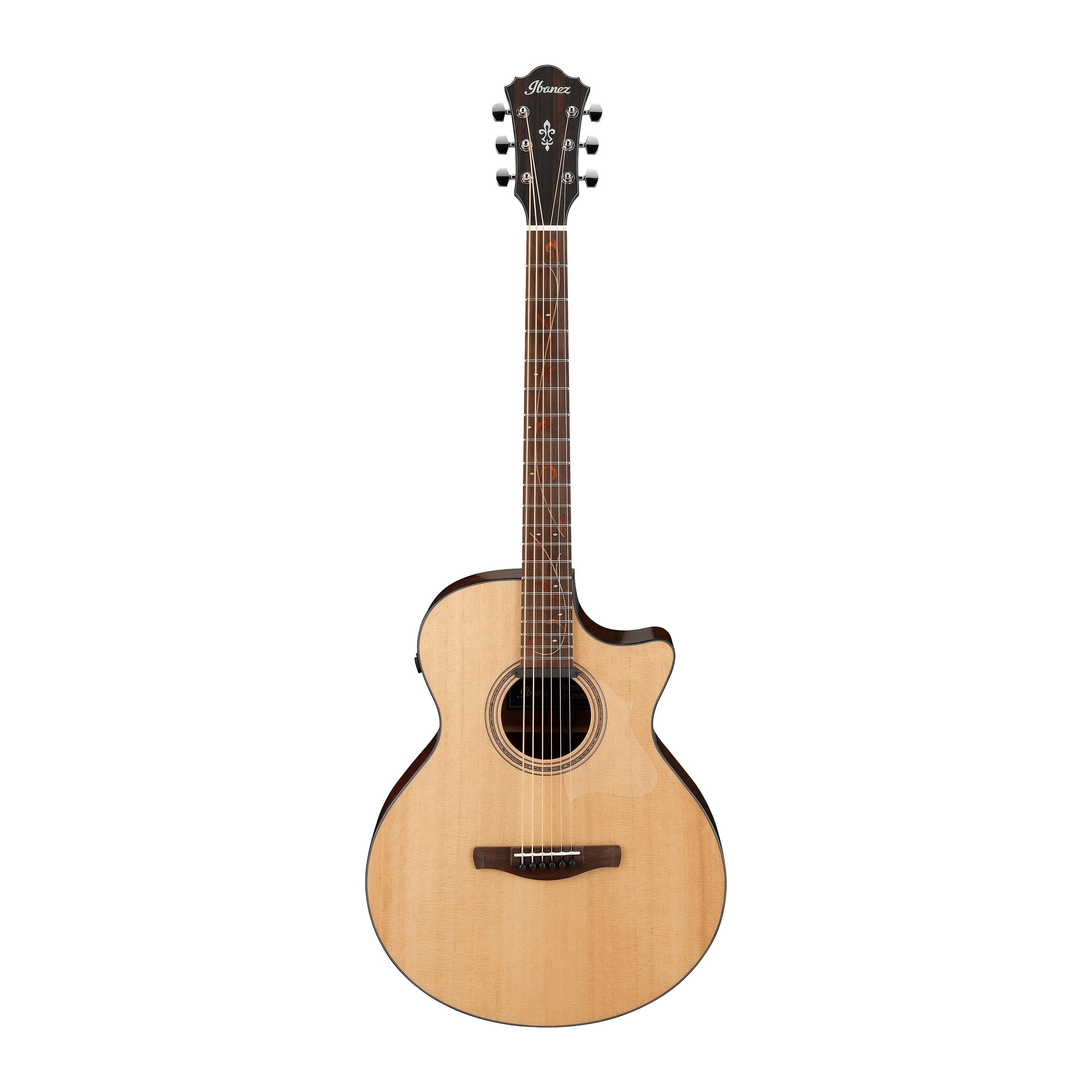

Ibanez - AE275BT - LGS Natural Low Gloss

$979.99
Steve's Code: 10534
Barcode: 4549763233691
By Ibanez

Description
Features



Katalox Scalloped bridge

The lightweight, scalloped bridge improves vibration efficiency for better resonance, as well as providing more flexibility in adjusting the action than usual bridge.



X-M Bracing

After spending years of trial-and-error, Ibanez realized the out-of-the-box X-M Bracing to generate the ultimate sound standing out on the stage. The carefully designed scalloped X-bracing, the allocation of tone braces, and finger braces transmit the string vibration efficiently through the bridge to the body. The X-M Bracing creates the clear bottom and crispy treble sound with trimmed warm mid-range, yet provides a wide dynamic range and high response.



AE body shape

Designed for projection, balance, and comfort, the AE's perfectly crafted contemporary body shape offers the best of all worlds.



Ibanez AP11 Magnetic Pickup

The newly designed AP11 pickup is small, lightweight, and positioned so it won’t inhibit the natural vibrations of the top wood. The pickup generates a highly responsive sound with minimal feedback and delivers a lively response throughout the entire frequency range. The sound is transparent and reflects the guitar’s natural acoustic tone while preserving presence and mid-range. The AP11 also works well with effects such as reverb, chorus, and many others.



Ibanez Custom Electronics w/ Volume and Tone Control

The guitar also features on-board treble and bass controls for contouring the tone, making the AE suitable for variety of applications for modern players.



Comfort Grip w/Rounded Fingerboard Edge

In order to achieve supreme playability, the neck was specially designed with Thin-C shape style comfort grip with fingerboard's rounded edge.



Jumbo Frets

The jumbo frets support easy fingering.



Nyatoh neck

The Nyatoh neck provides a rich mid-low end.



Okoume back and sides

The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.



    SPECS

        body shape

        AE body

        bracing

        X-M Bracing

        top

        Solid Sitka Spruce top

        back & sides

        Okoume back & Okoume sides

        neck

        Comfort Grip with Rounded Fretboard EdgeNyatoh neck

        fretboard

        Pau Ferro fretboard

        bridge

        Pau Ferro scalloped bridge

        inlay

        Specially designed Wooden Vine inlay

        soundhole rosette

        Abalone and Wooden

        tuning machine

        Chrome Die-cast tuners (18:1 gear ratio)

        nut material

        Bone

        number of frets

        20

        saddle material

        Compensated Bone

        bridge pins

        Ebony

        strings

        D'Addario® XTAPB1670

        string gauge

        .016/.022/.029/.048/.060/.070

        string space

        11mm

        factory tuning

        1B,2F#,3D,4A,5E,6B

        pickup

        Ibanez AP11 Magnetic

        preamp

        Ibanez Custom Electronics w/ Volume and Tone Control

        output jack

        1/4" Endpin Jack

    NECK DIMENSIONS

            Scale :

            685.7mm/27"

            a : Width

            45mm at NUT

            b : Width

            56mm at 14F

            c : Thickness

            21mm at 1F

            d : Thickness

            22mm at 7F

            Radius :

            400mmR



        DESCRIPTION

    BODY DIMENSIONS

            a : Length

            20 1/8"

            b : Width

            16 1/4"

            c : Max Depth

            4 3/4"



        DESCRIPTION

    PREAMP

    AE275BT's preamp diagram



    DESCRIPTION

    OTHER FEATURES

        Recommended Case (not included)

        AEL50C
